Technical specifications for CAD32MD
-
Product ModelCAD32MD
-
Product ParametersControl relay
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x9.5x7.8cm
-
ManufacturerSchneider Electric
-
Weight0.5 kg
-
Pole contact composition3 NO + 2 NC
-
rated operational voltage<= 690 V AC 25...400 Hz
-
Control circuit typeDC standard
-
Control circuit voltage220 V DC
-
Rated impulse withstand voltage6 kV conforming to IEC 60947
-
conventional free air thermal current10 A
-
Maximum operating rate10 A
-
Maximum operating rate180 cyc/mn
-
Time constant28 ms
-
Hold-in power consumption in W5.4 W at 20 °C
Description
CAD32MD
CONTROL RELAY
CAD SERIES
220 VDC COIL
600 V
3 NO POLES
2 NC POLES
10 AMP
TESYS + OPTIONS
CONTROL RELAY
CAD SERIES
220 VDC COIL
600 V
3 NO POLES
2 NC POLES
10 AMP
TESYS + OPTIONS
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Connections
Features:
- TeSys D control relay
- 5 contacts (3NO + 2NC)
- 10 A gG conforming to IEC 60947-5-1
- IP2X front face conforming to VDE 0106
The CAD32MD SCHNEIDER ELECTRIC Control relay may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric CAD32MD Control relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

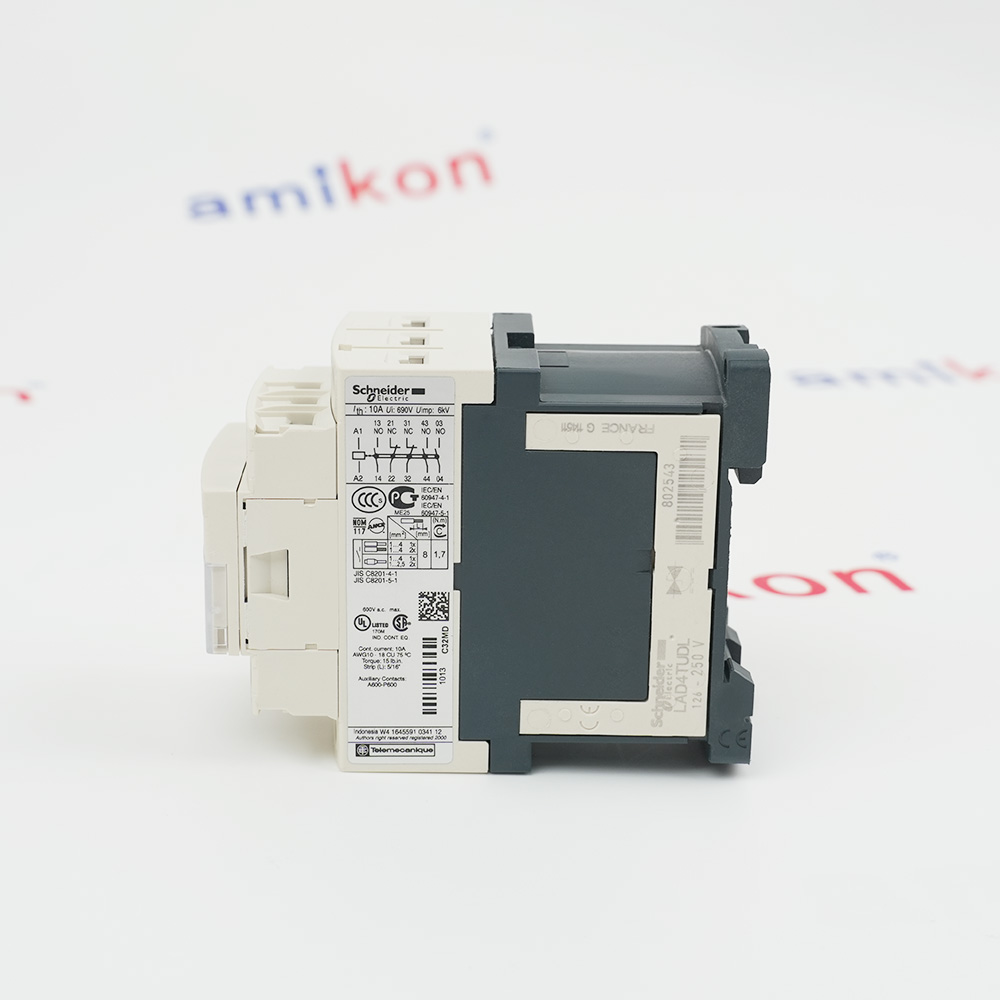

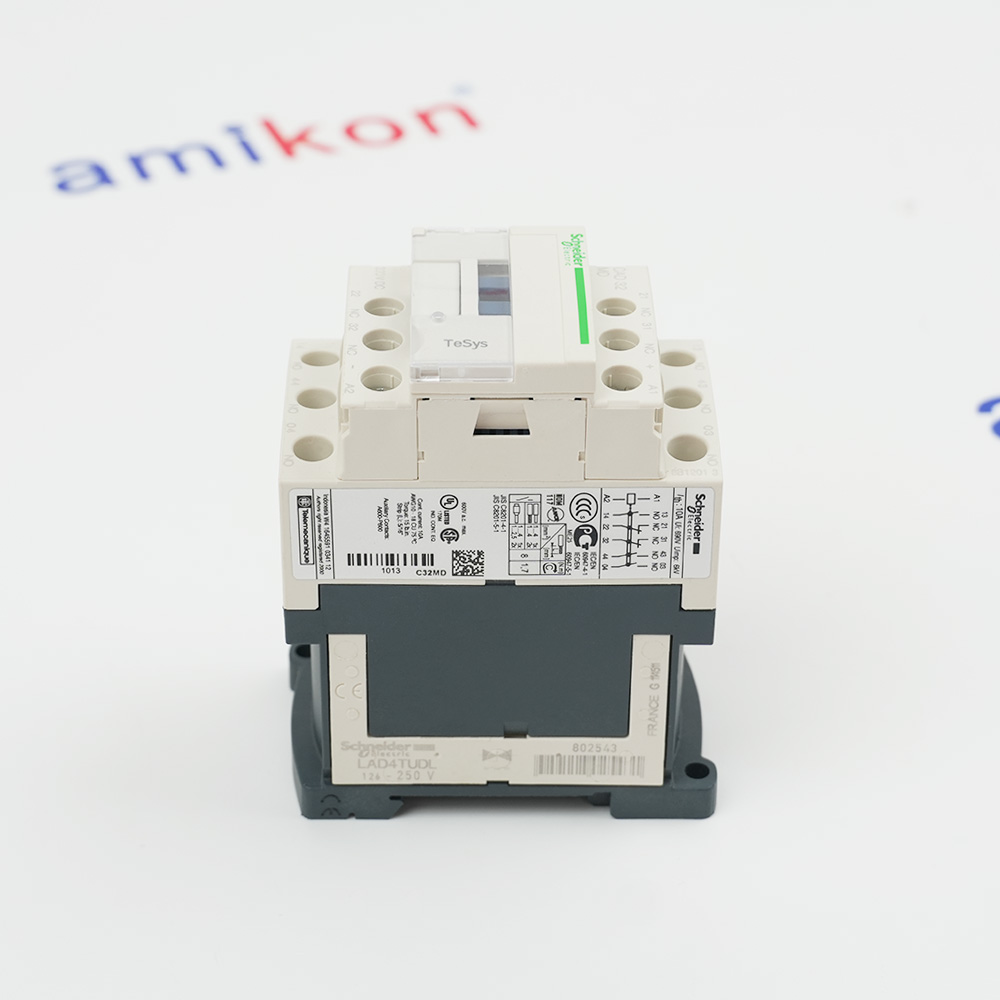

The Schneider Electric CAD32MD is a TeSys Deca control relay designed for controlling electromagnetic loads such as AC-15 and DC-13. It is a compact 5-pole device featuring 3 Normally Open (NO) and 2 Normally Closed (NC) contacts, operated by a 220V DC standard coil.
- Industrial Automation Systems:Creates motor starters & interfaces with PLCs
- Industrial Machinery:Reliable switching up to 180 cycles/min for high-operating-rate machinery
- HVAC Systems:Control circuits for heating, ventilation & AC equipment
- Switching Contactor/Relay Coils:Handles larger contactor coils or auxiliary relay loads
- Signalling and Control Equipment:Powers control & signaling devices in electrical panels
- Industrial Infrastructure & Building Management:General control applications in infrastructure projects
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminals: Uses screw clamp terminals.
Cable Capacity: Accepts 1 or 2 cables ranging from 1–4 mm² (flexible or solid).
Torque: Ensure a tightening torque of 1.7 N·m using a Philips No. 2 or flat 6 mm screwdriver.
Labeling: Terminals are numbered for easy identification (e.g., 13-14 for NO, 21-22 for NC)
FAQs
-
What is the CAD32MD?
+The CAD32MD is a TeSys D (or TeSys Deca) control relay manufactured by Schneider Electric -
What are the contact configurations?
+The CAD32MD features 5 contacts in a 3 NO (Normally Open) + 2 NC (Normally Closed) configuration. -
What is the CAD32MD coil voltage?
+The device operates with a 220 V DC standard coil. -
What is the CAD32MD maximum operating rate?
+It supports high operating rates of up to 180 cycles/min. -
What is the CAD32MD conventional free air thermal current?
+It has a thermal current rating of 10 A at 60 °C.
