Siemens

Central Braking Module

SINAMICS S120
Central Braking Module
Input: 1070-1115 V
1200 kW

SINUMERIK I/O MODULE

SINUMERIK I/O MODULE
PP 72/48D PN 72 I
DIGITAL48 O DIGITAL
DC 24 V, 0,25 A

power block

SINAMICS
Replacement power block
for 675-1080 V DC
910 A

Processor Unit

SIMOVERT
ASTERDRIVES VECTOR CONTROL
CONVERTER COMPACT UNIT,
IP20 3 380-480V AC,
50/60HZ, 72 A NOM.
POWER RATINGS:
37KW DOCUMENTATION ON CD

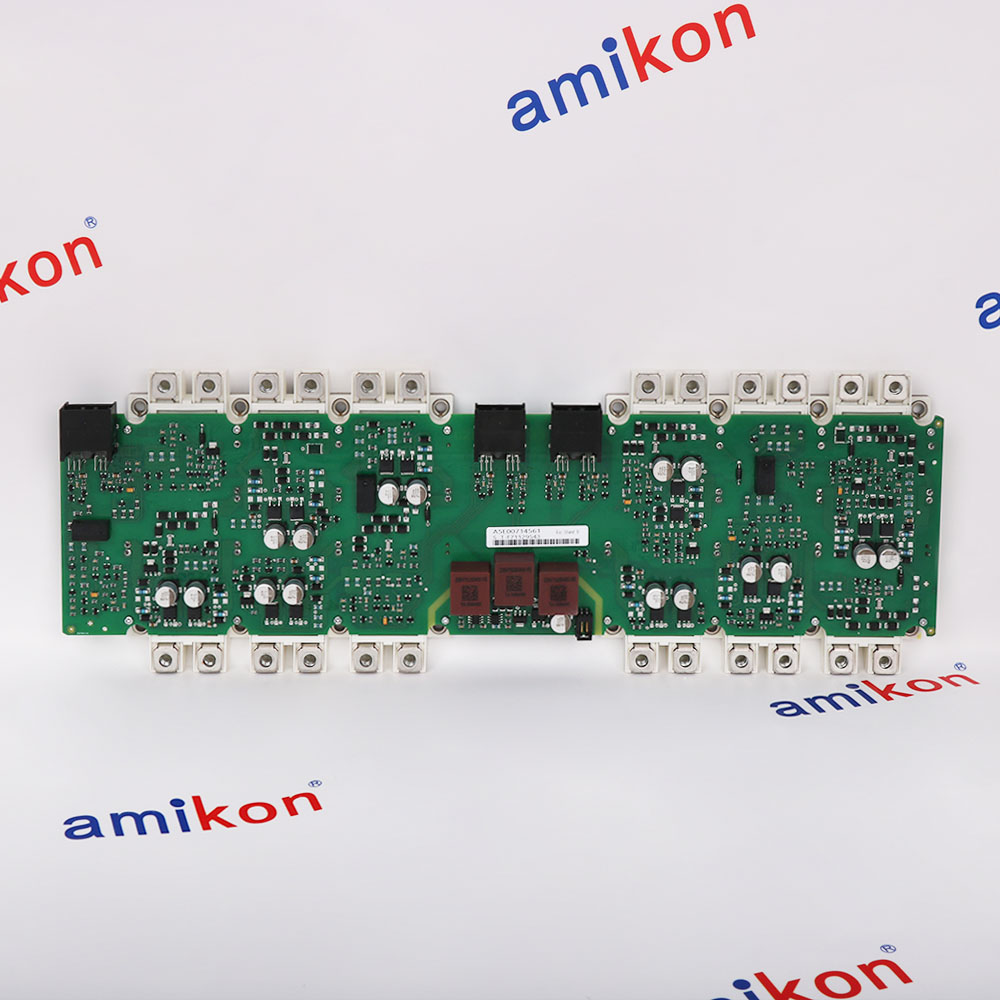

INVERTER POWER BOARD

INVERTER POWER BOARD
LOW VOLTAGE CONVERTER
INPUT: 0.7 AMP 320-1244 VDC
OUTPUT: 3 AMP 32 VDC 180 W
IP00

TELEPERM XP FUM 210 MODULE

Part Number: 6DP1210-8AC
System: TELEPERM XP
Input Voltage: 24 V DC
Power Consumption: 15 W
Operating Temperature: -5°C to 45°C

INTEGRATED MEASUREMENT INTERFACE BOX

7KE3188
INTEGRATED MEASUREMENT INTERFACE BOX
19.5 V
3 AMP
A5E01614931
40-Pin Male Header 0.1" 2.54mm Breadboard

DIGITAL OUTPUT MODULE

SIMATIC S5 440
DIGITAL OUTPUT MODULE
NON-FLOATING F
S5-90U/-95U/-100U
ET 100U, ET 200U
4 OUTPUTS 24V DC; 0.5A

DIGITAL INPUT MODULE

SIMATIC S5
Digital input 432
Isolated for S5-115U
16 inputs UC 48 to 60 V

INDUSTRIALETHERNET SWITCH

SCALANCE XB008G
UNMANAGED INDUSTRIALETHERNET SWITCH
FOR 10/100/1000MBIT/S
W. 8 X 10/100/1000MBIT/S
RJ45- ELECTRICALPORTS
FOR ESTABLISHING SMALL STAR- ANDLINE
TOPOGRAPHIES
LED-DIAGNOSTICS, IP20

DP/AS-Interface F-Link

DP/AS-Interface F-Link
gateway PROFIBUS DP/AS-i
for safety-oriented data transmission
from ASIsafe to PROFIBUS-DP-PROFIsafe
Master profile M3/M4 according to
AS-i specification V3.0
degree of protection IP20
spring-loaded terminals

Slave-Module

SIMATIC DP
Slave-Module
IM 184 for PROFIBUS DP
max. 12 Mbaud

Power Supply Unit

Model Number: A5E00063020
Type: Switching Power Supply
Input Voltage: 120/230V AC (auto-ranging)
Input Frequency: 47-63 Hz
Output Voltage: 24V DC
Output Current: Insert specific current, 5 A
Output Power: Insert specific power 120 W
Efficiency: Up to [insert specific efficiency, 90%

Digital input module

SIMATIC S5
Digital input 436
Isolated 16 Inputs
115/240V AC

Terminal block

SIMADYN D
CONVERTER SU10
26-POLE 26
SCREW-PLUGIN-TERMINALS
26-POLE PLUG

DIGITAL OUTPUT MODULE

SIMATIC S5
456 DIGITAL OUTPUT MODULE
FLOATING, COMPACT
VERSION U 8 OUTPUTS
115/240V AC; 2A

Electropneumatic positioner

Model Number: 6DR5220-0EM21-0AA0
Product Family: SIPART PS2
Input Signal: 4 to 20 mA
Operation Type: Double-acting for bidirectional control
Pneumatic Connection Thread: 1/4 inch NPT
Enclosure Material: Durable polycarbonate housing

COMMUNICATION PROCESSOR

SIMATIC S7-300
CP 340 COMMUNICATION PROCESSOR
backplane bus 5 V DC, max.:220 mA
Power loss, max.:0.85 W
Transmission rate, min:2.4 kbit/s
FB length in RAM, max.:2 700 byte

Digital output module

SIMATIC S5
Digital output 458
Isolated for S5-115U/F
16 solid state relay
outputs DC 30V; 0.5 A

Security control unit

Model Number: S79220-A3919-F000-01
Input Voltage: 24V DC
Power Consumption: < 10W (energy-efficient design)
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity Range: 10% to 90%
Ethernet: 10/100 Mbps (RJ45 connector)
RS-485: For connecting peripheral devices

Electronic Module

SIMATIC DP
distributed I/O
DP/RS 232C LINK Converter from
PROFIBUS DP to
RS 232C interface

Digital input module

SIMATIC S5
Analog input 464
Isolated for
ET 100U 4 inputs
+-50mV with linearization

Digital input module

SIMATIC S5
Digital input 430
Isolated for S5-90U/-95U/-100U
ET 100U,
ET 200U 4 inputs 230V UC

Digital input module

SIMATIC S5
Digital input 431
Isolated Compact
design U 16 inputs
24V/48V/60V DC

DIGITAL OUTPUT MODULE

SIMATIC S5
Digital output 454-4
Isolated Compact
design 16 Outputs
24/60 V DC
