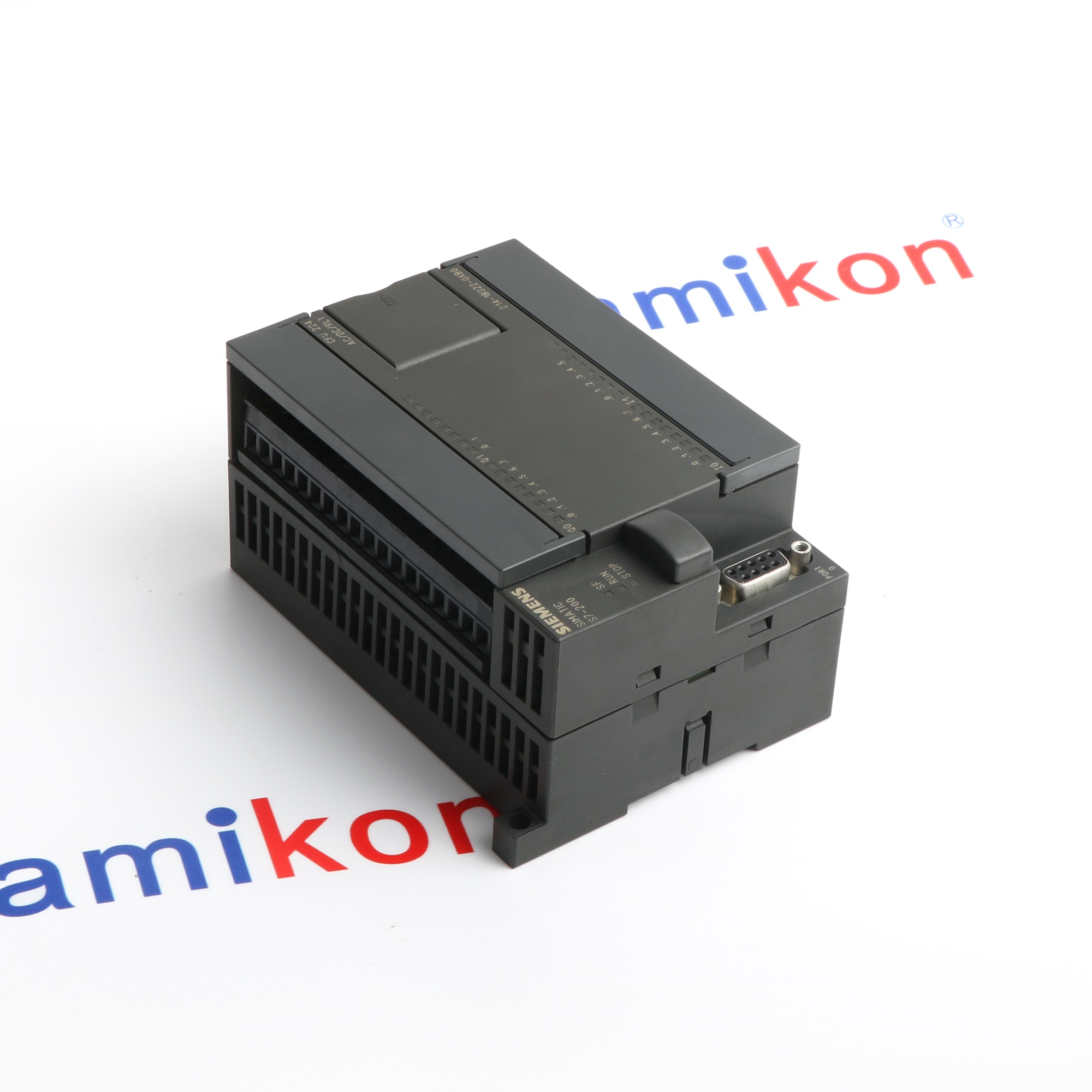

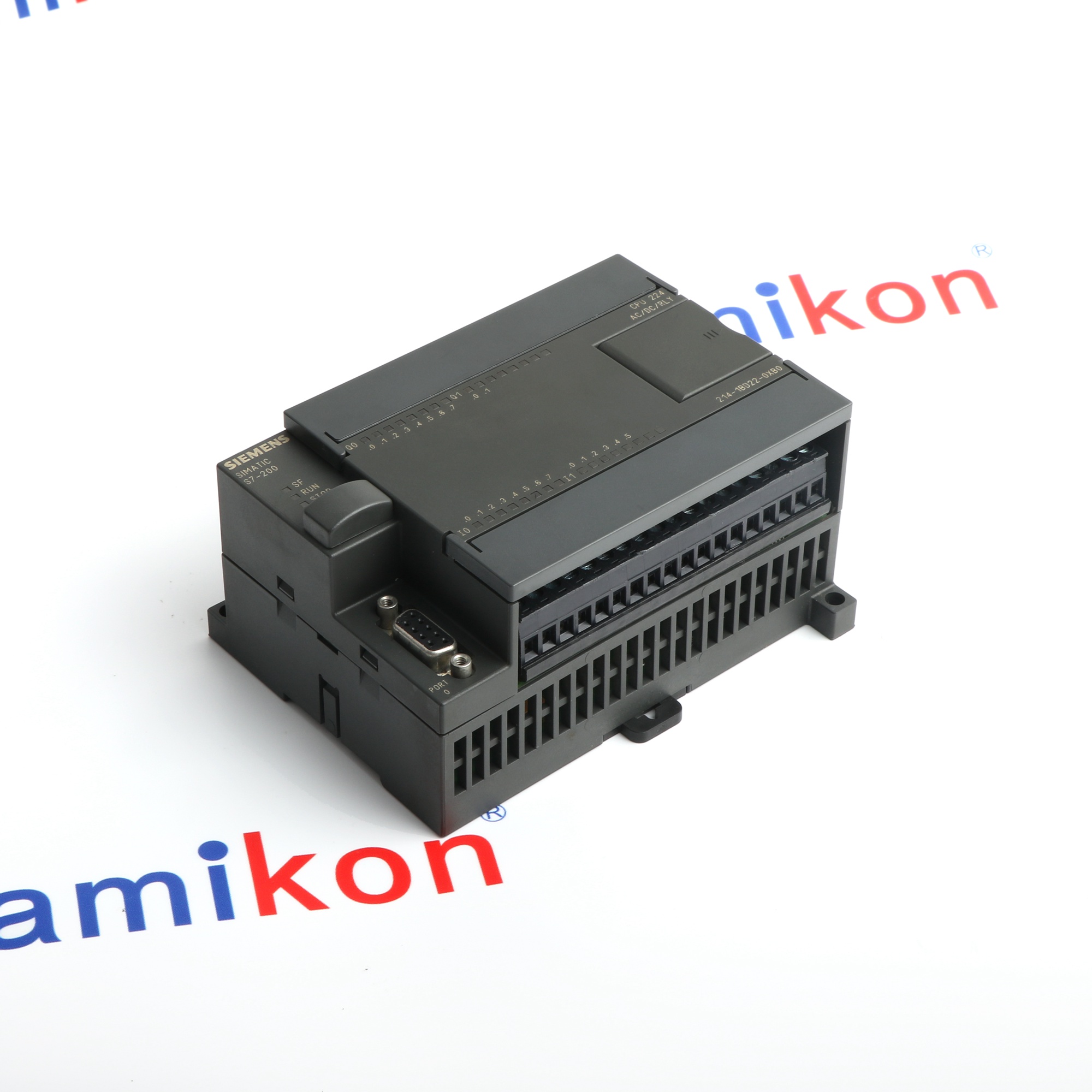

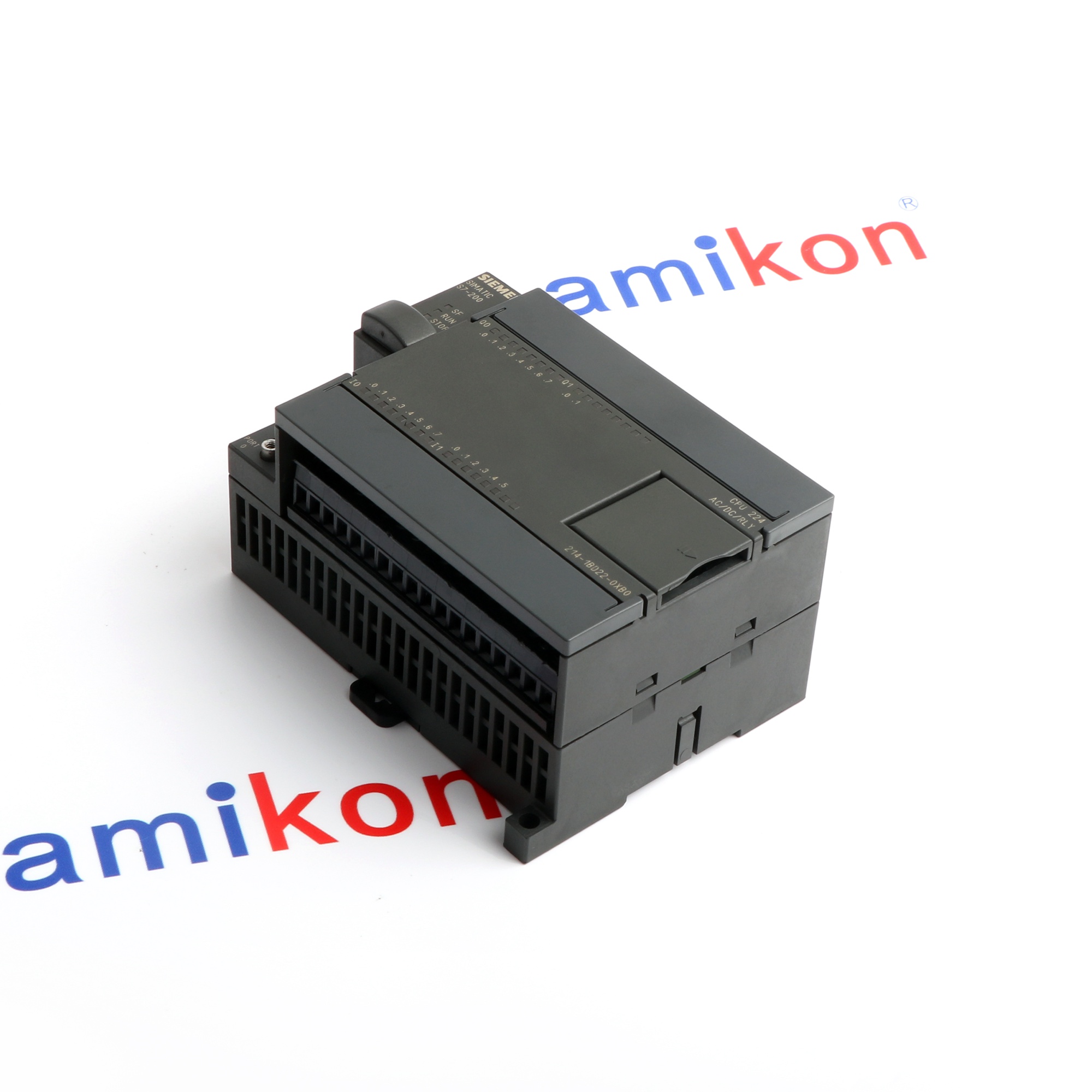

      Siemens 6ES7214-1BD22-0XB0
      Siemens 6ES7214-1BD22-0XB0
      Siemens 6ES7214-1BD22-0XB0
      Siemens 6ES7214-1BD22-0XB0
      Siemens 6ES7214-1BD22-0XB0
      Siemens 6ES7214-1BD22-0XB0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7214-1BD22-0XB0

      CPU 224 AC/DC/Relay Controller

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          CPU 224 control with AC supply and relay outputs

          The Siemens 6ES7214-1BD22-0XB0 is a SIMATIC S7-200 CPU 224 with an AC power supply, fourteen 24 V DC digital inputs and ten relay outputs. Its removable terminal blocks and exact order number are documented in the manufacturer's Release 3 system manual.

          The CPU provides one RS-485 port and supports up to seven expansion modules, subject to the system power budget. The original manufacturer reference is in Czech; the English Amikon summary does not replace its wiring diagrams, safety instructions or project-specific installation checks.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · FOOD & BEVERAGE

            Beer and Soft Drink Production

            Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry.
          • 02 · WATER & WASTEWATER

            Desalination and Water Distribution

            Seawater desalination for additional freshwater supply within water utilities.Drinking water distribution through networks serving public supply needs.
          • 03 · TEXTILE MANUFACTURING

            Natural and Manufactured Fibers

            Natural fiber production and processing within the textile industry.Manufactured fiber production for the wider textile manufacturing sector.

          Technical specifications for 6ES7214-1BD22-0XB0

          • Product Model
            6ES7214-1BD22-0XB0
          • Product Parameters
            CPU 224 AC/DC/Relay Controller
          • Manufacturer
            Siemens
          • Supply voltage
            120-240 V AC nominal; 85-264 V AC, 47-63 Hz permissible
          • Digital inputs
            14 integrated, 24 V DC
          • Digital outputs
            10 integrated relay outputs
          • Terminal blocks
            Removable
          • User program memory
            4096 words (EEPROM program capacity)
          • User data memory
            2560 words (EEPROM user-data capacity)
          • Expansion modules
            7 maximum, subject to configuration and power budget
          • Digital process image
            128 inputs and 128 outputs
          • Analog process image
            32 inputs and 32 outputs
          • Timers
            256 total
          • Counters
            256 total
          • Built-in communications
            1 RS-485 port
          • PPI communication rates
            9.6, 19.2, 187.5 kbaud
          • Boolean instruction execution
            0.37 microseconds per instruction
          • Power dissipation
            10 W
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          S7-200 CPU 224 AC/DC/RELAY

          Match the relay CPU, expansion load and serial connection

          Treat the full order number as the starting point for system integration. This CPU224 combines an AC supply, fourteen DC inputs and ten relay outputs; the nearby DC/DC/DC version has different supply and output circuitry. Use the exact AC/DC/relay diagram when checking terminal groups, rather than transferring wiring from another CPU224 variant.
          Calculate the expansion and sensor loads separately before selecting the final module arrangement. The exact CPU row lists 660 mA available at 5 V DC and 280 mA at 24 V DC. These limits still apply within the seven-module ceiling, and an external sensor supply must not be paralleled with the CPU sensor supply.
          The published capacities are 4096 words of program memory and 2560 words of user-data memory, with one built-in RS-485 port. Match the existing program requirements and PPI network arrangement to this generation. The process-image capacities are addressing limits; they do not mean that all listed digital or analog channels are physically integrated.

          Features:

          • Exact relay-output variant
          • Separate 5 V and 24 V load budgets
          • Generation-specific memory and RS-485
          The Siemens 6ES7214-1BD22-0XB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
