- 6SL3210-1PE21-4UL0
In Stock
Ships by Wednesday, July 22
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6SL3210-1PE21-4UL0
-
Product Model6SL3210-1PE21-4UL0
-
Product ParametersSINAMICS Power module PM240-2
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size24.3x20.5x26.5cm
-
ManufacturerSiemens
-
Weight6.3 kg
-
Number of phases3 AC
-
Line voltage380 ... 480 V ±10 %
-
Line frequency47 ... 63 Hz
-
Rated current (LO)17.20 A
-
Rated current (HO)15.30 A
-
Rated power (LO)5.50 kW
-
Max. output current20.40 A
-
Output frequency for vector control0 ... 200 Hz
-
Output frequency for V/f control0 ... 550 Hz
Description

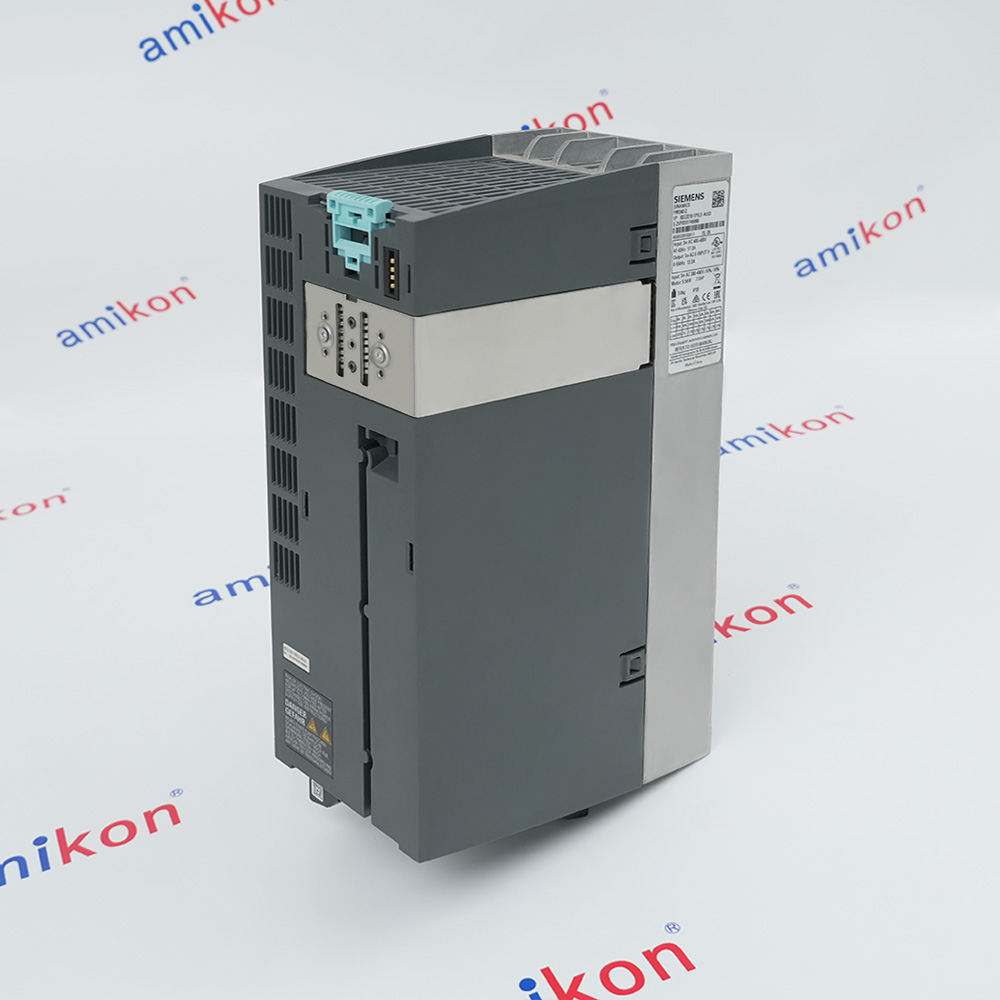

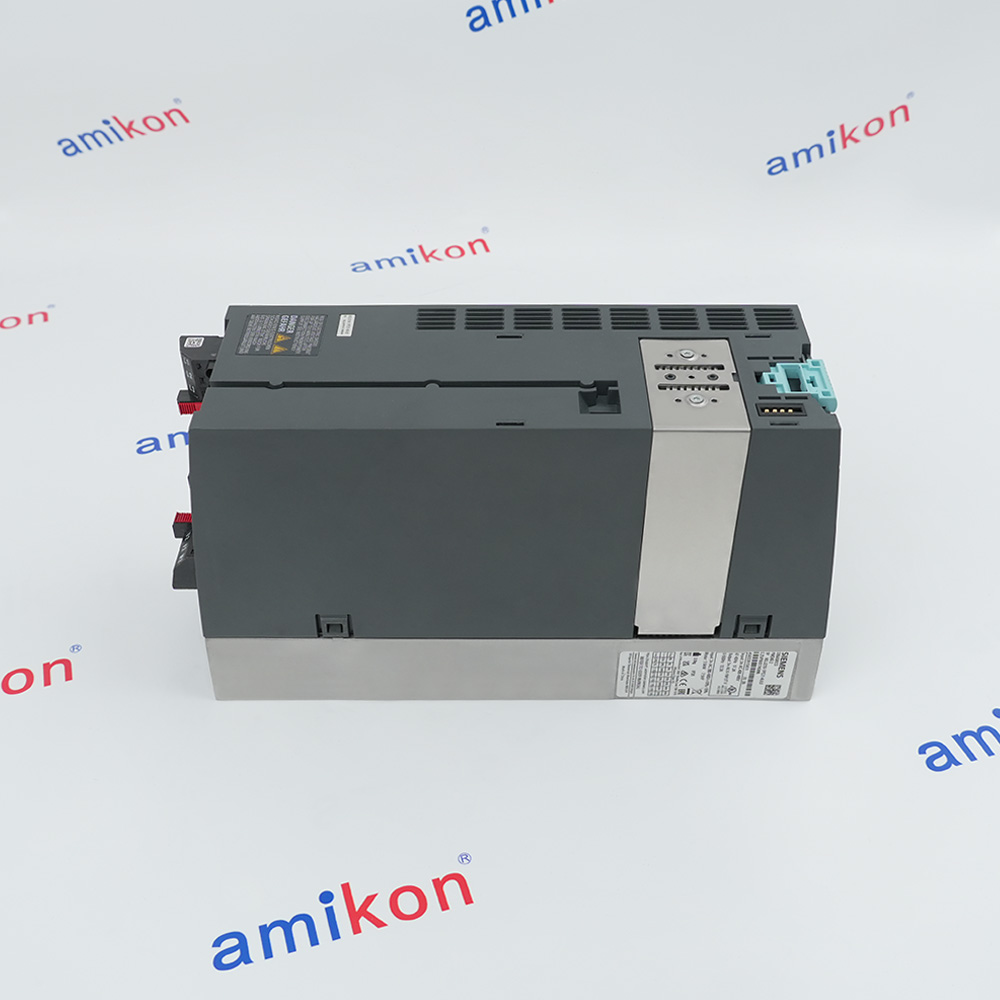

The 6SL3210-1PE21-4UL0 is a SINAMICS Power Module PM240-2 by Siemens for modular AC variable frequency drive systems. The 6SL3210-1PE21-4UL0 serves as the power stage component of the SINAMICS G120 drive platform, requiring a compatible Control Unit (CU) to form a complete variable speed drive for three-phase AC motors. The 6SL3210-1PE21-4UL0 is engineered to deliver efficient and flexible motor control for a wide range of industrial automation applications.
The 6SL3210-1PE21-4UL0 accepts three-phase input power from 380 V to 480 V AC at 47–63 Hz with a ±10% voltage tolerance, making the 6SL3210-1PE21-4UL0 adaptable to global industrial power grid conditions. The input rated current of the 6SL3210-1PE21-4UL0 is 17.2 A under Low Overload (LO) conditions and 13.2 A under High Overload (HO) conditions. On the output side, the 6SL3210-1PE21-4UL0 provides three-phase power to the motor with a rated output power of 5.5 kW (7.5 HP) for LO duty or 4.0 kW for HO duty.
The 6SL3210-1PE21-4UL0 accepts three-phase input power from 380 V to 480 V AC at 47–63 Hz with a ±10% voltage tolerance, making the 6SL3210-1PE21-4UL0 adaptable to global industrial power grid conditions. The input rated current of the 6SL3210-1PE21-4UL0 is 17.2 A under Low Overload (LO) conditions and 13.2 A under High Overload (HO) conditions. On the output side, the 6SL3210-1PE21-4UL0 provides three-phase power to the motor with a rated output power of 5.5 kW (7.5 HP) for LO duty or 4.0 kW for HO duty.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Dual Overload Rating: 5.5 kW LO / 4.0 kW HO
- Integrated Braking Chopper
- Wide Input Voltage Range 380–480 V AC ±10%
- Unfiltered Design for Flexible EMC Configuration
The PM240-2 delivers 4 kW at high overload (HO) duty and 5.5 kW at low overload (LO) duty. The HO rating supports 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, with an ambient temperature range of –10 °C to +50 °C. The LO rating supports 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, with an ambient temperature range of –10 °C to +40 °C.
The 6SL3210-1PE21-4UL0 SIEMENS SINAMICS Power module PM240-2 may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6SL3210-1PE21-4UL0 SINAMICS Power module PM240-2 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6SL3210-1PE21-4UL0 includes an integrated braking chopper that enables fast deceleration and efficient control of regenerative energy from the motor. The built-in braking chopper of the 6SL3210-1PE21-4UL0 eliminates the need for external braking components in many applications, reducing system complexity and installation cost. The 6SL3210-1PE21-4UL0 is supplied without an integrated EMC filter, providing flexibility for users to add external line filters based on specific electromagnetic compatibility requirements at the installation site.
The 6SL3210-1PE21-4UL0 has an IP20 protection rating, making it suitable for installation in protected control cabinet environments where protection against solid objects is required. The 6SL3210-1PE21-4UL0 uses internal air cooling with a cooling air requirement of 0.009 m³/s, and adequate ventilation with at least 100 mm of free space above and below the module must be maintained.
- Automotive: Drives conveyors, material handling, and assembly line motors
- Electronics: Powers high-speed pick-and-place robots and component handling
- Aerospace/Machinery: Controls CNC machines, cutting tools, and presses
- Power Generation: Operates auxiliary pumps, cooling fans, and ventilation
- Water/Wastewater: Drives centrifugal pumps and air blowers continuously
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Conductor Cross-section: Accepts wires between 1.50 and 6.00 mm² (AWG 16 to AWG 10).Line Side (L1, L2, L3): Connect the 3-phase 380V–480V AC power supply to the top terminals.
Motor Side (U, V, W): Connect the motor leads to the bottom terminals.
Cable Lengths: Maximum shielded motor cable length is 50 meters (164 ft); unshielded is 100 meters (328 ft).
Grounding: Secure the earth/ground cables firmly to the designated PE (Protective Earth) terminal studs to prevent electrical hazards and reduce electromagnetic interference.
Alternative Names
6SL3210-1PE21-4ULO
6SL3210-1PE2I-4UL0
6SL3210-1PEZ1-4UL0
6SL3210-IPE21-4UL0
6SL321O-1PE21-4UL0
6SL32I0-1PE21-4UL0
6SL3Z10-1PE21-4UL0
6SL3210 1PE21 4UL0
6SL3210 1PE21 4ULO
6SL3210 1PE2I 4UL0
6SL3210 IPE21 4UL0
6SL321O 1PE21 4UL0
6SL32I0 1PE21 4UL0
6SL32101PE214UL0
Technical notes
The 6SL3210-1PE21-4UL0 features dual overload capability to suit different application requirements. In Low Overload (LO) mode, the 6SL3210-1PE21-4UL0 supports 1.1× rated output current (110% overload) for 57 seconds and 1.5× rated output current (150% overload) for 3 seconds, with a cycle time of 300 seconds. In High Overload (HO) mode, the 6SL3210-1PE21-4UL0 supports 1.5× rated output current (150% overload) for 57 seconds and 2.0× rated output current (200% overload) for 3 seconds, also with a 300-second cycle time. This flexibility makes the 6SL3210-1PE21-4UL0 suitable for both constant torque loads such as conveyors and extruders, and variable torque loads such as pumps and fans.
FAQs
-
What is the 6SL3210-1PE21-4UL0 ?
+The SIEMENS 6SL3210-1PE21-4UL0 is a SINAMICS PM240-2 Power Module (Frame Size FSB) for AC drives, widely used for precise motor control in industrial applications. -
What does the Low Overload (LO) and High Overload (HO) rating mean?
+Drives have two operational profiles. Low Overload allows for 110% of the rated current for 60 seconds, ideal for pumps and fans. High Overload allows for 150% of the rated current for 60 seconds, which is necessary for cyclic, high-starting-torque applications like conveyors or extruders. -
Does this Power Module include a line filter?
+No. The "U" at the end of the part number (or lack of "F" in the base type) indicates this module is without an integrated line filter. You may need an external radio interference (RFI) filter depending on your EMC (Electromagnetic Compatibility) requirements.
