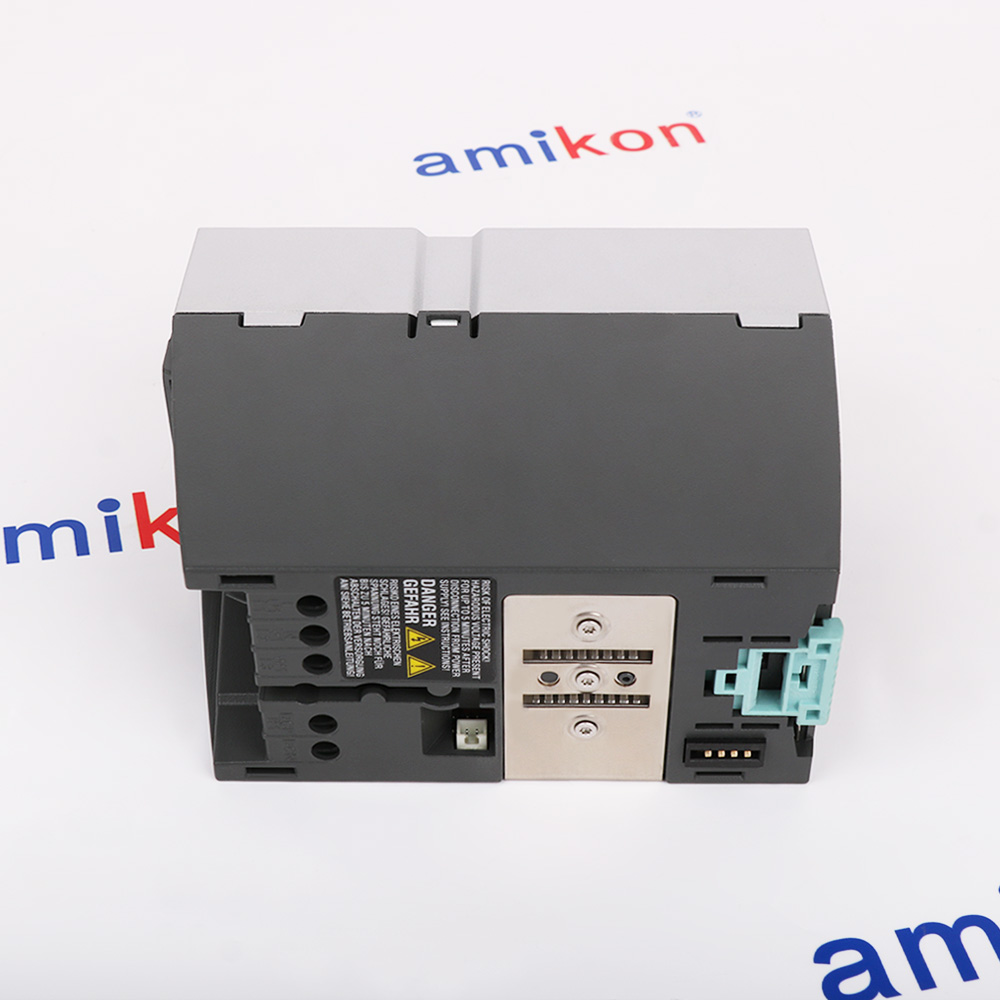

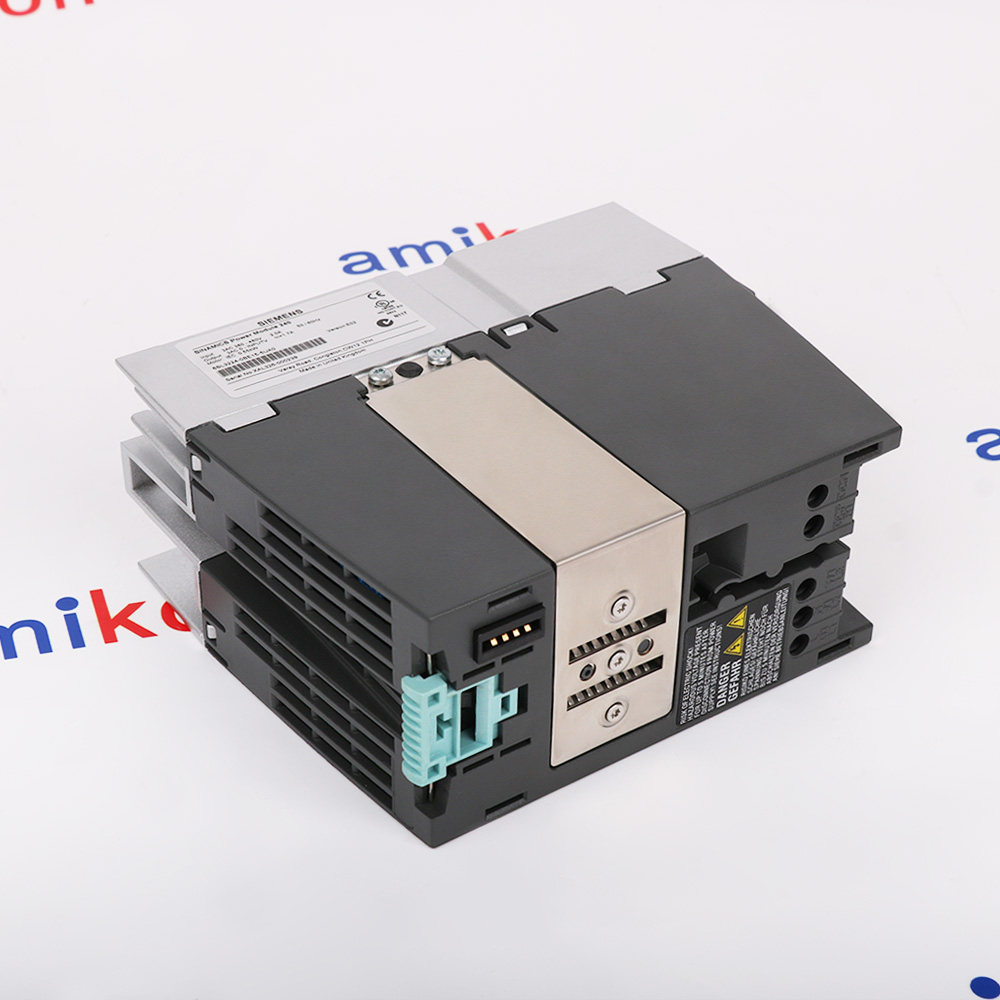

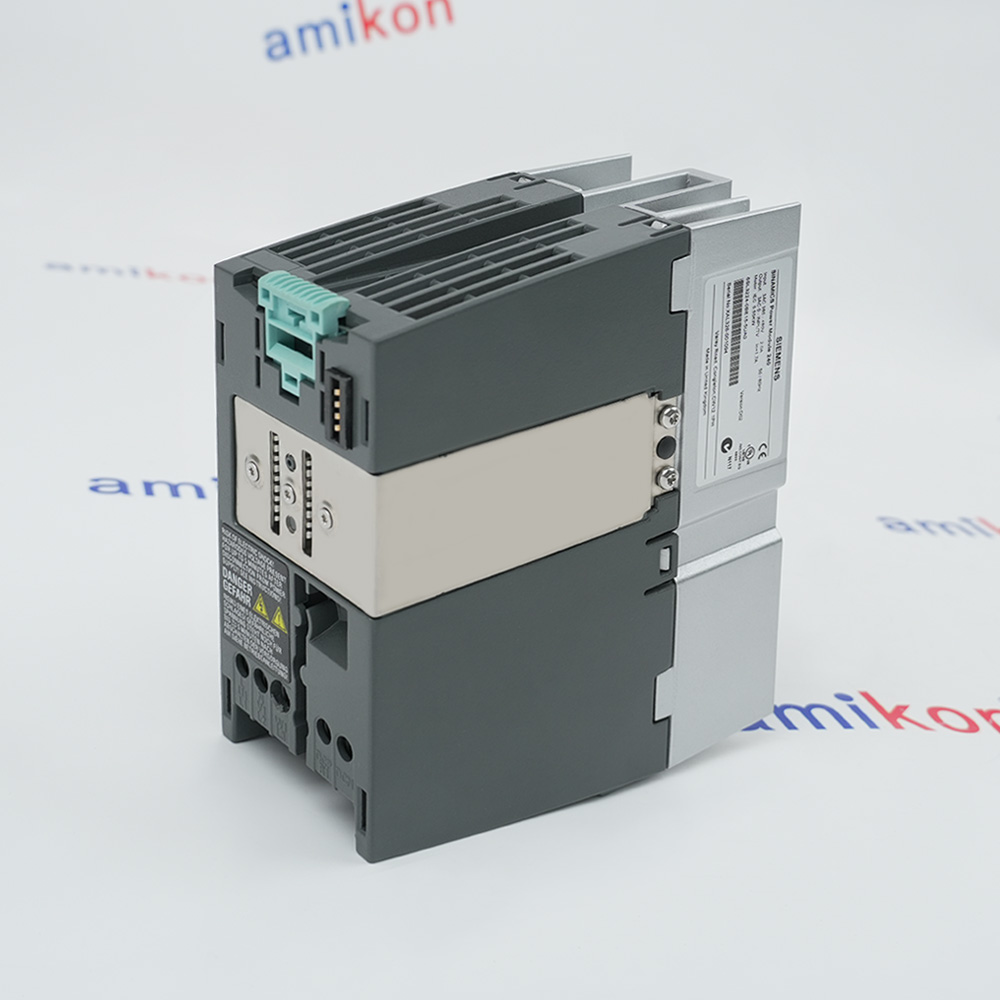

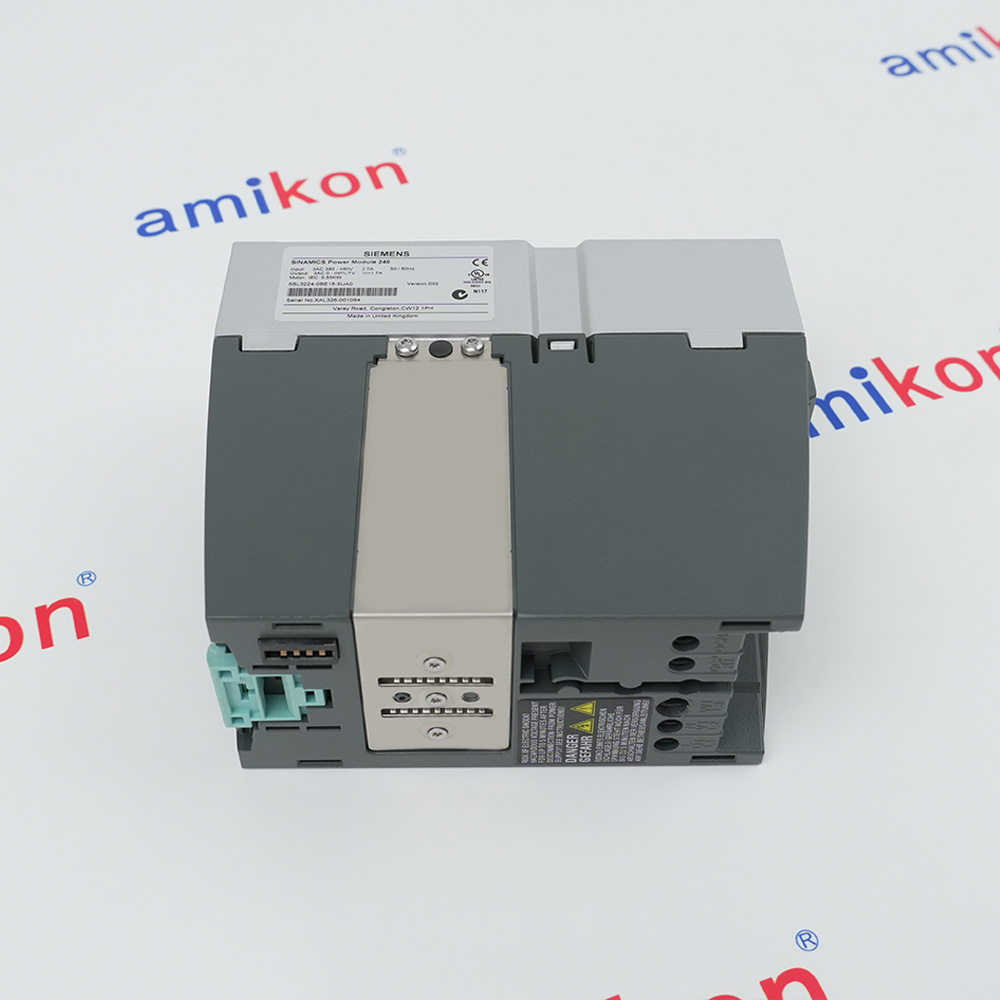

- 6SL3224-0BE15-5UA0
In Stock
Ships by Thursday, July 23
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6SL3224-0BE15-5UA0
-
Product Model6SL3224-0BE15-5UA0
-
Product ParametersSINAMICS Power Module PM240
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.5x14.5x17.3cm
-
ManufacturerSiemens
-
Weight1.1 kg
-
Max. output at linear load at rated output voltage0.55kW
-
Max. output at quadratic load at rated output voltage0.55kW
-
Nominal output current I2N1.7A
-
ETIM ClassFrequency converter =< 1 kV
-
Number of phases3 AC
-
Line voltage380 ... 480 V ±10 %
-
Line frequency47 ... 63 Hz
-
Rated current with line reactor1.80 A
-
Rated current without line reactor2.10 A
-
Rated current (LO)1.70 A
Description
The SIEMENS 6SL3224-0BE15-5UA0 is a power module from the SINAMICS G120 series. It is a modular inverter power unit designed for 3-phase 380 to 480 V AC line supplies. The module features an integrated braking chopper and does not include a line filter.
The PM240 power module delivers a low overload (LO) base load power of 0.37 kW with an output current of 1.3 A. It provides high overload capability of 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. The output frequency range extends from 0 to 550 Hz depending on the selected control mode.
The PM240 power module delivers a low overload (LO) base load power of 0.37 kW with an output current of 1.3 A. It provides high overload capability of 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. The output frequency range extends from 0 to 550 Hz depending on the selected control mode.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical & Terminal Wiring
Features:
- SINAMICS G120 PM240 power module
- 380–480 VAC three-phase input
- Integrated braking chopper
- Compatible with SINAMICS G120 control units
This PM240 version supports a three-phase supply voltage of 380 to 480 VAC and delivers a rated output power of 0.55 kW. The module incorporates an integrated braking chopper, allowing braking energy generated during motor deceleration to be dissipated through an external braking resistor. This feature improves dynamic braking performance in applications with frequent start-stop cycles or rapid deceleration requirements.
The 6SL3224-0BE15-5UA0 Siemens SINAMICS Power Module PM240 may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6SL3224-0BE15-5UA0 SINAMICS Power Module PM240 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module is supplied without an integrated EMC filter, providing flexibility for installations where external filtering solutions are preferred or where EMC requirements vary according to regional standards. The compact FSA frame size allows installation in control cabinets with limited space while maintaining high drive performance.
Designed for industrial environments, the PM240 operates within an ambient temperature range of -10°C to +50°C and offers IP20 protection for cabinet-mounted installations. The unit is suitable for use in conveyor systems, pumps, fans, mixers, packaging machinery, material handling equipment, and general-purpose motor control applications.
- Material Handling: Manages smooth starts/stops in conveyors, roller systems, treadmills, and sorting equipment
- Fluid Management: Regulates flow in pump drives, wastewater setups, and centrifugal pump applications
- HVAC Automation: Controls fans, blowers, and air supply units within building management systems
- Light Machine Tools: Provides variable speed control for packaging, woodworking, metalworking, and mixers
- Dynamic Braking: Dissipates regenerative energy via external resistor in high-inertia machinery during deceleration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Line Supply (L1, L2, L3): Connect the incoming 3-phase power supply. Because this is an unfiltered (UA0) model, you should install an external line reactor or external EMC filter if your environment requires Category C2 compliance.
Motor Connections (U, V, W): Connect the 3-phase motor. Keep shielded cables under 50 meters or unshielded cables under 100 meters.
Alternative Names
6SL3224 0BE15 5UA0
6SL 3224-0BE15-5UA0
6SL 3224 0BE15 5UA0
6SL3224-OBE15-5UAO
6SL3224-0BEI5-5UA0
6SL3224-OBEI5-5UAO
6SL3224 OBE15 5UAO
6SL3224 0BEI5 5UA0
Technical notes
The module is designed for installation in a control cabinet due to its IP20 protection rating. It employs forced air cooling with an integrated fan, requiring a cooling air flow of 4.8 l/s. The pulse frequency is factory set to 4 kHz and can be adjusted in 2 kHz steps up to 16 kHz, with current derating at higher pulse frequencies.
FAQs
-
What is the 6SL3224-0BE15-5UA0?
+The Siemens 6SL3224-0BE15-5UA0 is a SINAMICS G120 PM240 Power Module designed for heavy-duty industrial drives. It features an unfiltered 3-phase input and an integrated braking chopper. . -
What are the ventilation clearance requirements?
+When mounting inside an enclosure, you must maintain a minimum lateral clearance of 30 mm on the sides of the unit to ensure adequate heat dissipation. -
What Control Units are compatible?
+This power module is hardware-compatible with SINAMICS G120 CU2xx-2 Control Units -
How much heat does the unit generate?
+The maximum power loss (heat loss) at full output rating is approx. 99 W to 100 W, which must be factored into your electrical cabinet climate control calculations.
