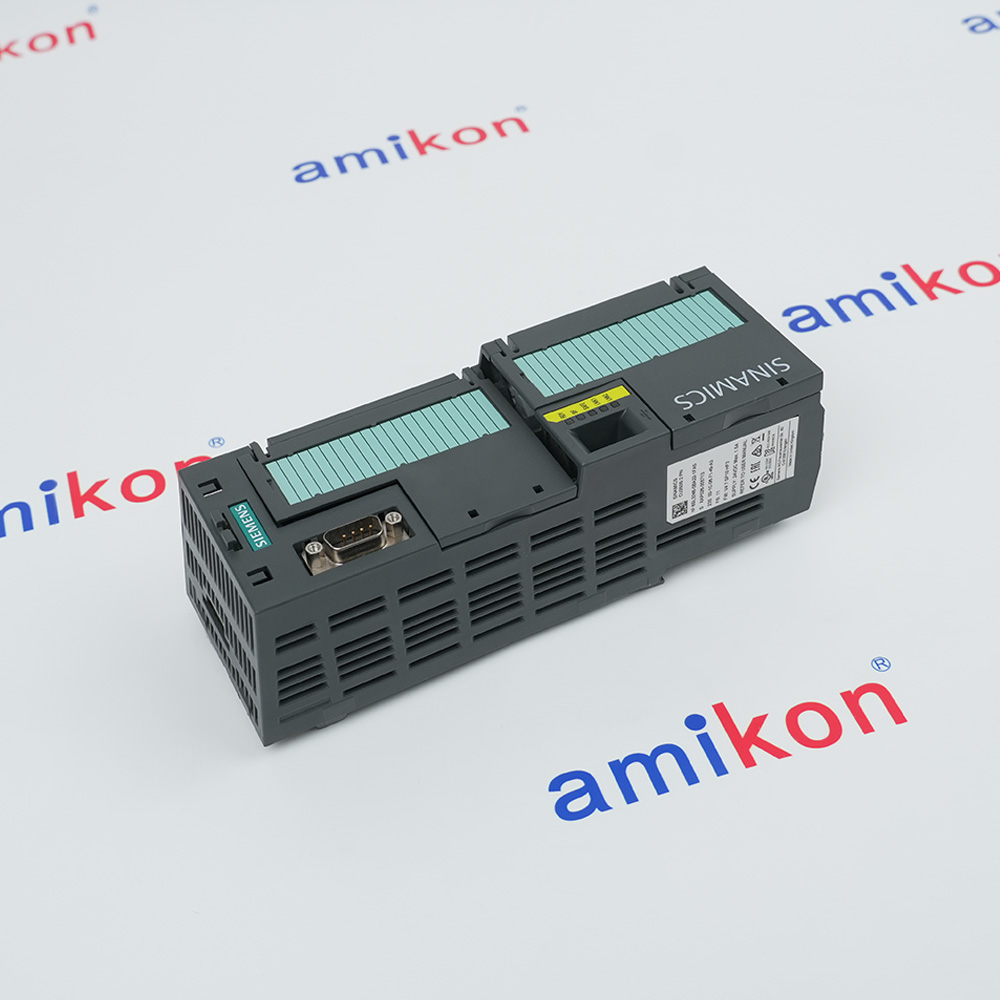

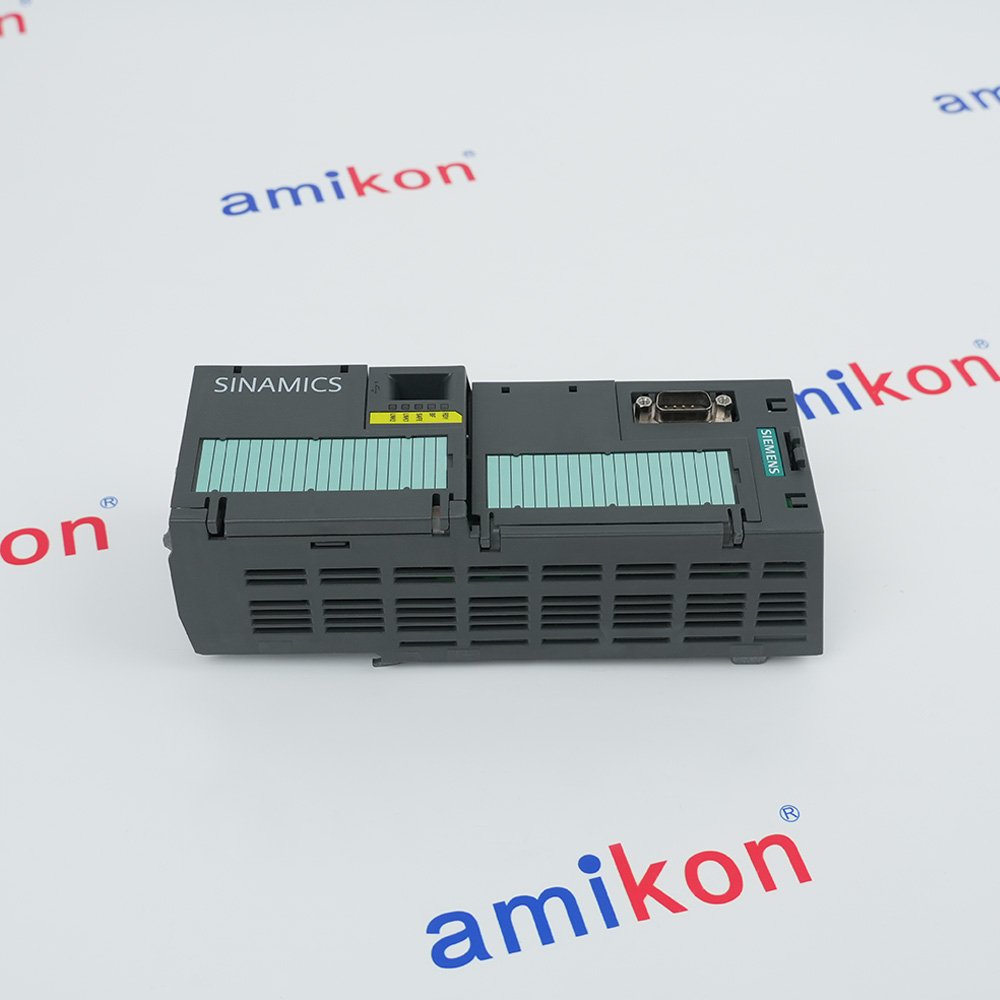

- 6SL3246-0BA22-1FA0
In Stock
Ships by Wednesday, July 8
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6SL3246-0BA22-1FA0
-
Product Model6SL3246-0BA22-1FA0
-
Product ParametersSINAMICS G120 CONTROL UNIT
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20.6x7.2x6.8cm
-
ManufacturerSiemens
-
Weight0.7 kg
-
Power ModuleDC 24 V
-
External power supplyDC 20 ... 29 V
-
Max. power consumption2.00 A
-
Power loss12.00 W
-
Switching level: 0→111 V
-
Switching level: 1→05 V
-
Output (resistive load)DC 30 V, 1 A
-
Operation-10 ... 50 °C (14 ... 122 °F)
-
Storage-40 ... 70 °C (-40 ... 158 °F)
Description
The SIEMENS 6SL3246-0BA22-1FA0 is a SINAMICS G120 Control Unit CU250S-2 PN designed for complex drive applications requiring high-performance motor control and advanced communication capabilities. The 6SL3246-0BA22-1FA0 is part of the modular SINAMICS G120 system, where it combines with a Power Module to form a complete variable frequency drive.
The 6SL3246-0BA22-1FA0 features integrated PROFINET IO communication with PROFIsafe support and EtherNet/IP capability, allowing seamless integration into PROFINET-based automation systems and TIA (Totally Integrated Automation) environments. The 6SL3246-0BA22-1FA0 supports vector control for demanding applications requiring precise speed and torque control, with Easy Positioning (EPOS) functionality available through an extended function license for positioning tasks.
The 6SL3246-0BA22-1FA0 features integrated PROFINET IO communication with PROFIsafe support and EtherNet/IP capability, allowing seamless integration into PROFINET-based automation systems and TIA (Totally Integrated Automation) environments. The 6SL3246-0BA22-1FA0 supports vector control for demanding applications requiring precise speed and torque control, with Easy Positioning (EPOS) functionality available through an extended function license for positioning tasks.
Alternative Names
6SL3246-0BA22-1FAO
6SL3246-0BA22-IFA0
6SL3246-OBA22-1FA0
6SL3246-OBA22-IFAO
6SL3246 0BA22 1FA0
6SL3246 OBA22 1FA0
6SL3246 0BA22 1FAO
6SL3246 0BA22 IFA0
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Wiring & Connectivity
Features:
- SINAMICS G120 Control Unit
- RS485/USS/MODBUS RTU
- 4 configurable DI/DO outputs, 6 DI outputs (3 F-DI outputs)
The 6SL3246-0BA22-1FA0 Siemens SINAMICS G120 Control Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6SL3246-0BA22-1FA0 SINAMICS G120 Control Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6SL3246-0BA22-1FA0 is the article number for the SINAMICS CU250S-2 PN Control Unit, a high-performance modular component of the SINAMICS G120 converter system. It is for applications requiring high-level motion control, featuring integrated PROFINET and EtherNet/IP communication. Supports Basic Positioning (EPos) via an Extended Function License, making it suitable for single-axis positioning tasks.
- Industrial Machinery & Processing Equipment:Precise motor control for high-performance automation
- Conveyor Drive Systems:Heavy-duty material handling & assembly line transport
- Pumps and Fans:HVAC motor & industrial pumping systems
- Compressors:Constant & variable torque applications
- Packaging Machinery:Accurate speed regulation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Communication: Dual-port PROFINET / EtherNet/IP interface for daisy-chaining multiple drives.
Encoders: Supports up to two encoders simultaneously.Terminal Strip: For HTL and Resolver signals (max cable length: 100m).
Sub-D Connector: For TTL, HTL, or SSI absolute encoders.
DRIVE-CLiQ: High-speed digital interface for Siemens-specific sensors.
Shielding: Use the optional Shield Connection Plate (6SL3264-1EA00-0LA0) to ensure proper EMC compliance and strain relief for cables
Technical notes
The 6SL3246-0BA22-1FA0 includes integrated safety functions compliant with SIL 2 (EN 61508) and PL d (EN ISO 13849-1), featuring Safe Torque Off (STO), Safe Brake Control (SBC), and Safe Stop 1 (SS1) as standard. Additional safety functions can be activated via an extended safety license.
FAQs
-
What is 6SL3246-0BA22-1FA0?
+The Siemens 6SL3246-0BA22-1FA0 is a SINAMICS G120 Control Unit CU250S-2 PN for advanced, high-performance vector control in industrial applications. -
What is the 6SL3246-0BA22-1FA0 fieldbus?
+It supports PROFINET and EtherNet/IP -
How many inputs/outputs does it have?
+It features 15 standard digital inputs (including 3 F-DI fail-safe), 3 digital outputs (including 1 F-DO), 2 analog inputs, and 2 analog outputs. -
Does it support positioning?
+Yes, it supports Extended Functions for positioning (EPos) via a license.
