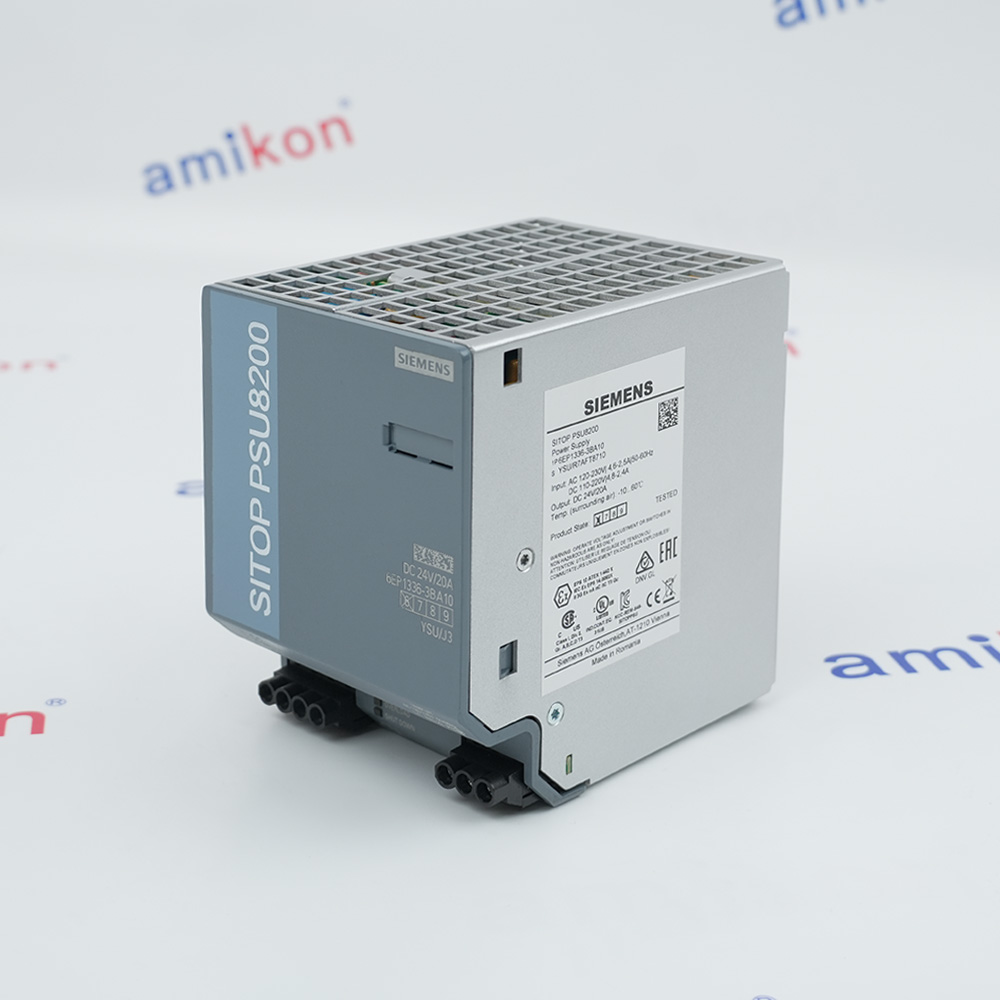

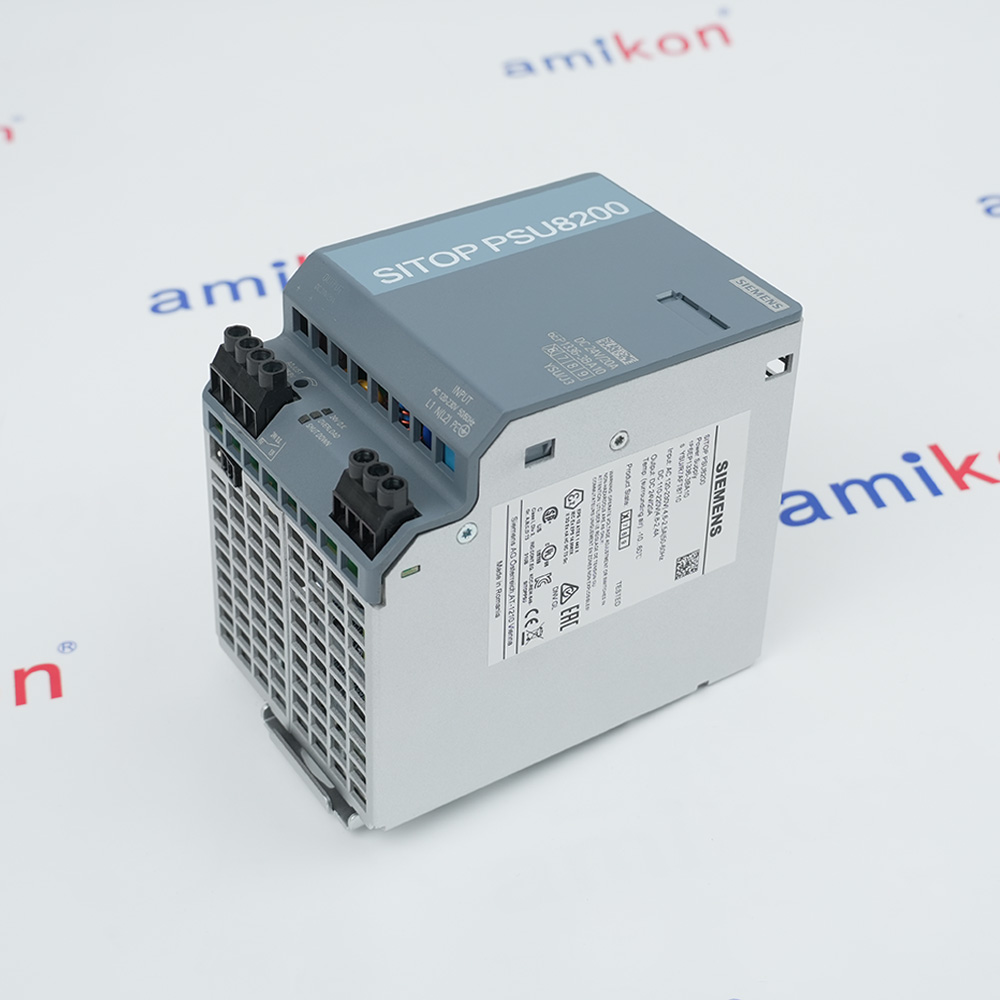

- 6EP1336-3BA10
In Stock
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6EP1336-3BA10
-
Product Model6EP1336-3BA10
-
Spare ModelPSU8200
-
Product ParametersSITOP PSU100M Power Supply
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9x12.6x12.8cm
-
ManufacturerSiemens
-
Weight1.15 kg
-
type of the power supply network1-phase and 2-phase AC or DC
-
minimum rated value120 V
-
maximum rated value230 V
-
supply voltage at DC110 ... 220 V
-
input voltage at DC88 ... 350 V
-
line frequency50/60 Hz
-
output voltage at DC rated value24 V
Description
The SIEMENS 6EP1336-3BA10 SITOP PSU8200 20 A stabilized power supply is a high-performance, regulated technology power supply designed for automated systems and machines.
The SIEMENS 6EP1336-3BA10 features a wide-range input that supports both 1-phase and 2-phase AC or DC power sources. The SIEMENS 6EP1336-3BA10 accepts AC input voltages from 85 V to 275 V (120–230 V rated) and DC input voltages from 88 V to 350 V (110–220 V rated), with automatic current switchover and temperature derating necessary when input voltage is below 100 V at 50 °C. The SIEMENS 6EP1336-3BA10 provides a minimum power failure buffering time of 20 ms at 230 V input, ensuring system stability during brief power interruptions.
The output characteristics of the SIEMENS 6EP1336-3BA10 include a regulated, isolated 24 V DC output with a rated current of 20 A. The SIEMENS 6EP1336-3BA10 allows output voltage adjustment from 24 V to 28.8 V via a potentiometer, with a total tolerance of ±3%. The SIEMENS 6EP1336-3BA10 delivers excellent voltage regulation performance, with static line regulation of approximately 0.1% and static load regulation of approximately 0.3%, ensuring stable power delivery to sensitive automation equipment.
The SIEMENS 6EP1336-3BA10 features a wide-range input that supports both 1-phase and 2-phase AC or DC power sources. The SIEMENS 6EP1336-3BA10 accepts AC input voltages from 85 V to 275 V (120–230 V rated) and DC input voltages from 88 V to 350 V (110–220 V rated), with automatic current switchover and temperature derating necessary when input voltage is below 100 V at 50 °C. The SIEMENS 6EP1336-3BA10 provides a minimum power failure buffering time of 20 ms at 230 V input, ensuring system stability during brief power interruptions.
The output characteristics of the SIEMENS 6EP1336-3BA10 include a regulated, isolated 24 V DC output with a rated current of 20 A. The SIEMENS 6EP1336-3BA10 allows output voltage adjustment from 24 V to 28.8 V via a potentiometer, with a total tolerance of ±3%. The SIEMENS 6EP1336-3BA10 delivers excellent voltage regulation performance, with static line regulation of approximately 0.1% and static load regulation of approximately 0.3%, ensuring stable power delivery to sensitive automation equipment.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion
Features:
- Wide-Range Input Voltage
- 24 V DC / 20 A Regulated Output
- Advanced Overload Protection
- Extended Temperature Range and Certifications
The power supply provides a stable output voltage that can be adjusted from 24 V to 28 V using the integrated potentiometer. High regulation accuracy, low ripple voltage, and fast response to load changes make it suitable for supplying PLCs, industrial PCs, HMI panels, I/O modules, communication equipment, sensors, actuators, and other 24 V DC automation devices.
The 6EP1336-3BA10 Siemens SITOP PSU8200 20 A stabilized power supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6EP1336-3BA10 SITOP PSU8200 20 A stabilized power supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Integrated protection functions include overload protection, short-circuit protection, overvoltage protection, thermal protection, current limiting, and galvanic isolation between the input and output circuits. The unit supports overload operation up to 150% of the rated output current for short durations and maintains a minimum 20 ms hold-up time during power interruptions at nominal input voltage.
Designed for installation on standard 35 mm DIN rails, the PSU8200 features natural convection cooling, screw terminal connections, front-panel LED status indication, and IP20 protection. Its compact enclosure simplifies installation inside industrial control cabinets while supporting reliable continuous operation.
- Packaging Machinery: Adjusts cut lengths, changes targets on the fly, and monitors faults without a PC
- Conveyor Systems: Displays operational status, speed, item counts, line monitoring, and alarms
- Water/Pump Controls: Views live pressure/flow, adjusts set points, and triggers maintenance alerts
- Food/Beverage: Interfaces with temperature set-points and displays batch sequence prompts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Type: Mount horizontally on a standard TH35-15 or TH35-7.5 DIN rail (EN 60715).
Snapping In: Hook the top of the device's rear clip onto the rail and push down on the bottom until it snaps securely.
Convection Clearances: To ensure adequate natural cooling, maintain a clearance of at least 50 mm above and 50 mm below the device. No lateral clearance is required.
Alternative Names
6EP1336-3BA1O
6EP1336-3BAI0
6EP1336-38A10
6EPI336-3BA10
6EP1336 3BA10
6EP1336 3BA1O
6EP1336 3BAI0
6EP1336 38A10
6EPI336 3BA10
6EP13363BA10
Technical notes
Protection and monitoring capabilities of the SIEMENS 6EP1336-3BA10 include output overvoltage protection below 33 V, current limitation at approximately 21.5 A, and short-circuit protection with selectable constant current or latching shutdown modes. The SIEMENS 6EP1336-3BA10 provides 150% overload capability for up to 5 seconds per minute and a 300% power boost (60 A) for 25 ms during operation, making the SIEMENS 6EP1336-3BA10 ideal for applications with high inrush current requirements.
FAQs
-
What is the 6EP1336-3BA10 ?
+The Siemens 6EP1336-3BA10 (SITOP PSU8200) is a 1-phase/2-phase industrial power supply that delivers a stabilized 24V DC output at 20A -
Does the power supply require a manual input voltage switch?
+No. It features a wide-range input that automatically handles AC inputs from 85V to 275V and DC inputs from 110V to 220V. -
Can I mount multiple units side-by-side without lateral clearance?
+Yes. Thanks to its high efficiency and low heat generation, this model does not require lateral mounting clearances -
Can the output voltage be adjusted?
+Yes. You can manually adjust the output between 24 VDC and 28.8 VDC via the built-in front potentiometer.
