- 6EP1436-3BA00
In Stock
Ships by Sunday, August 30
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6EP1436-3BA00
-
Product Model6EP1436-3BA00
-
Product ParametersSITOP Power Supply
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size16.2x12.8x12.8cm
-
ManufacturerSiemens
-
Weight2.1 kg
-
Rated line frequency 150 Hz
-
Rated line range47 ... 63 Hz
-
OutputControlled, isolated DC voltage
-
Adjustment range24 ... 28.8 V
-
24 V/20 ASITOP modular20 A
-
input3 AC 400-500
-
Voutpu4 V DC/20 A
-
Rated voltage value Vin rated400 ... 500 V
-
Overvoltage resistance2.3 × Vin rated, 1.3 ms
-
Mains buffering at Vin400 V
-
Mains buffering at Iout ratedmin. 6 ms; at Vin = 400 V
-
Description

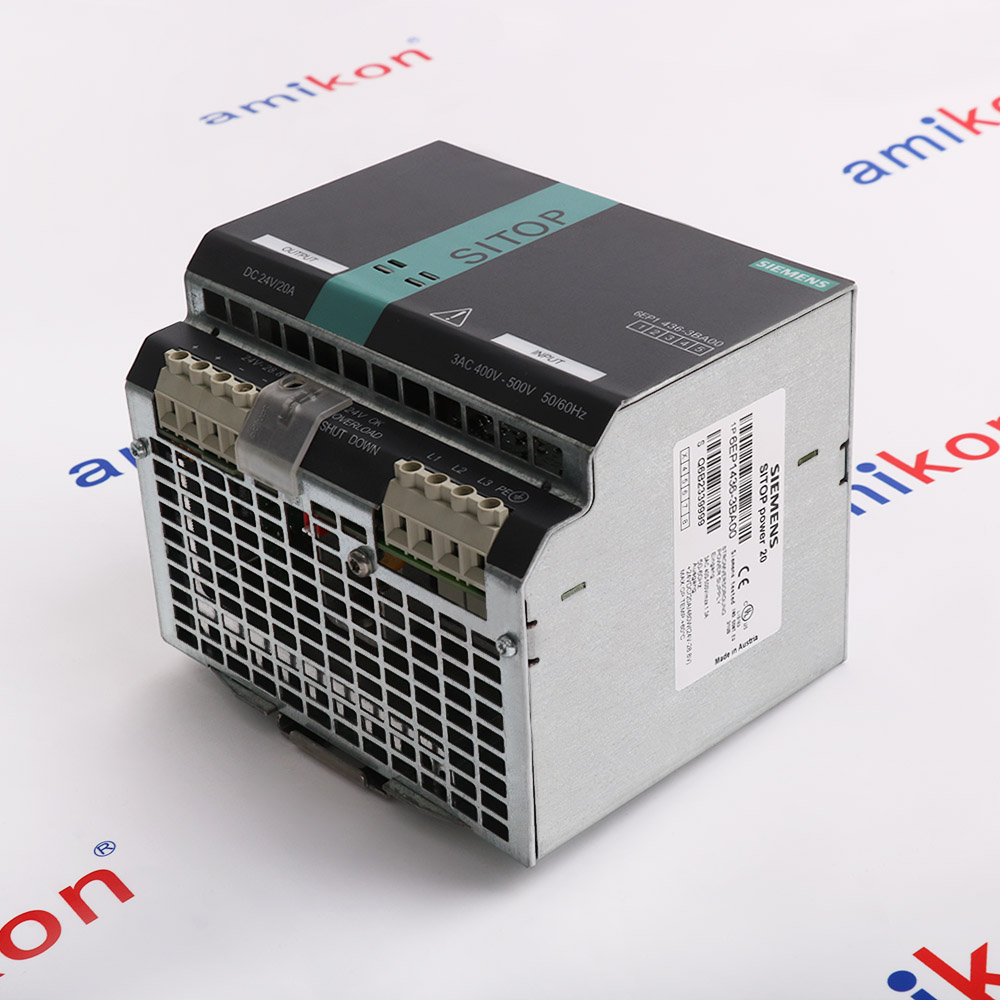

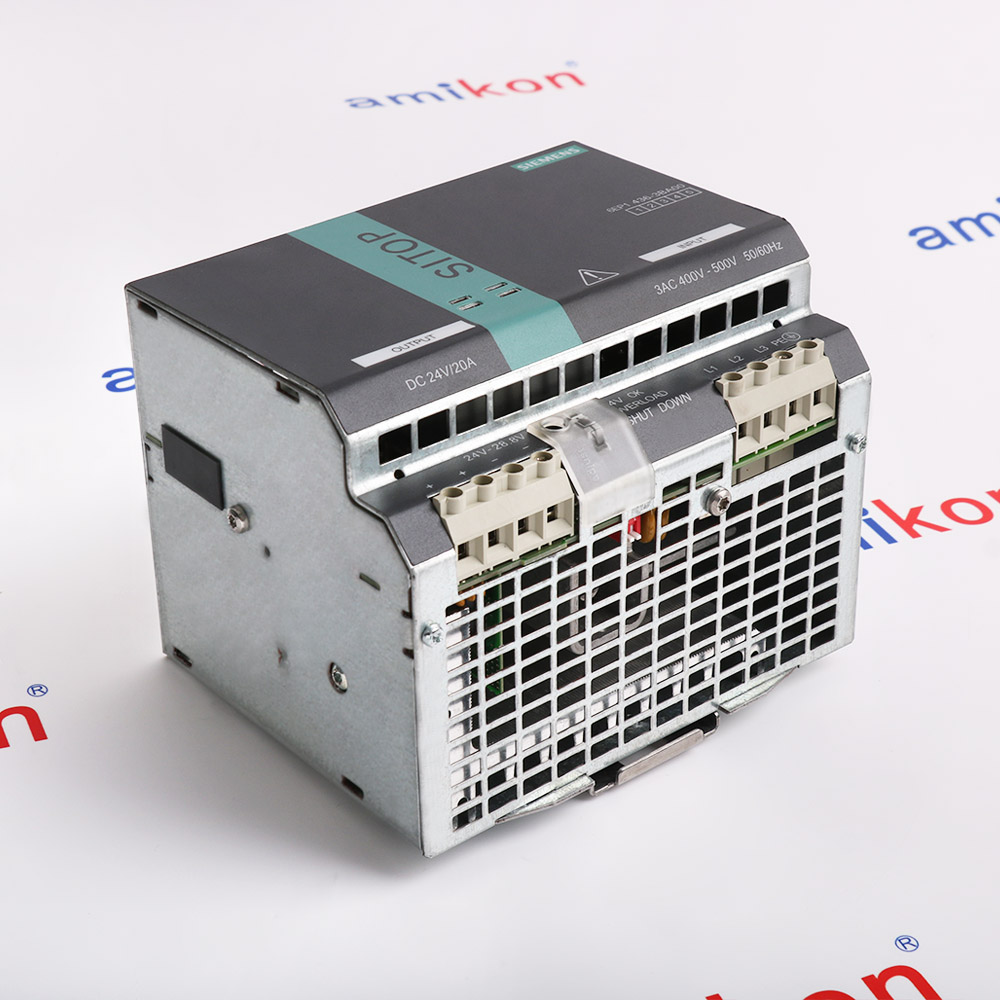

The 6EP1436-3BA00 is a SITOP MODULAR stabilized power supply manufactured by Siemens for industrial automation applications. The 6EP1436-3BA00 delivers 24 V DC at 20 A output current, providing a total of 480 W continuous power to supply DC control circuits, PLCs, sensors, actuators, and other industrial automation components. The 6EP1436-3BA00 is part of the SITOP MODULAR product family, which represents Siemens' advanced power supply platform for demanding industrial environments.
The 6EP1436-3BA00 operates from a three-phase input voltage of 400–500 V AC at 50–60 Hz. The wide input voltage range of the 6EP1436-3BA00 ensures compatibility with standard industrial three-phase power grids worldwide, including both 400 V European systems and 480 V North American systems. The 6EP1436-3BA00 features active power factor correction (PFC) that maintains a high power factor across the entire input voltage range, reducing reactive power consumption and minimizing harmonic distortion on the supply network.
The 6EP1436-3BA00 operates from a three-phase input voltage of 400–500 V AC at 50–60 Hz. The wide input voltage range of the 6EP1436-3BA00 ensures compatibility with standard industrial three-phase power grids worldwide, including both 400 V European systems and 480 V North American systems. The 6EP1436-3BA00 features active power factor correction (PFC) that maintains a high power factor across the entire input voltage range, reducing reactive power consumption and minimizing harmonic distortion on the supply network.
Information
Overview
Manuals
Application Notes
Product Applications
Important Wiring Precautions
Features:
- 24 V DC / 20 A Output Rating
- Three-Phase 400–500 V AC Input
- High Efficiency up to 93%
- Wide Ambient Temperature Range
- Integrated Power Boost Function
Its IP20 metal enclosure, DIN rail mounting, wide 320–550 VAC input range, and low ripple output make it an ideal power source for PLCs, industrial PCs, HMI devices, distributed I/O modules, communication equipment, and other 24 VDC automation components. The model has been phased out by Siemens and is superseded by the SITOP PSU8200 6EP3436-8SB00-0AY0.
The 6EP1436-3BA00 SIEMENS SITOP MODULAR 24 V/20 A may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6EP1436-3BA00 SITOP MODULAR 24 V/20 A Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6EP1436-3BA00 incorporates multiple protection functions to ensure safe and reliable operation. The 6EP1436-3BA00 features overload protection with constant current characteristic, short-circuit protection with automatic restart, and overvoltage protection that safely limits the output voltage in fault conditions. The 6EP1436-3BA00 also includes thermal protection that prevents damage from excessive temperatures, with automatic recovery when conditions return to normal.
The 6EP1436-3BA00 is for seamless integration with the SITOP modular accessory system. The 6EP1436-3BA00 can be combined with SITOP redundancy modules, selectivity modules, and buffer modules to create comprehensive power supply solutions. When paired with a SITOP redundancy module, two 6EP1436-3BA00 units can be configured in a 1+1 redundant arrangement for critical applications requiring maximum availability. The 6EP1436-3BA00 can also be combined with buffer modules to provide ride-through capability during brief power interruptions.
- Automotive Production: Powers robotic cells and conveyors facing massive startup current fluctuations
- Heavy Machinery/CNC: Provides stable 24V for precision CNC, milling, and metalworking systems
- Process Automation: Supplies uninterrupted energy to PLCs and I/O where voltage drops halt operations
- Packaging/Bottling: Drives high-speed continuous-motion packing, sorters, and multi-axis servos
- Power Distribution: Central source in cabinets with parallel switching for doubled output or redundancy
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Line Protection: This unit does not contain built-in input fuses. A external protective device, such as a 3-phase miniature circuit breaker (MCB), must be implemented upstream in accordance with local IEC 60364 electrical standards.
Stranded Wire: If using finely stranded wires, crimp high-quality wire end ferrules onto the ends before insertion into the screw terminals to prevent loose individual wire strands.
Voltage Adjustments: The front face contains a small potentiometer. The default output is 24V DC, but it can be adjusted manually up to 28.8V DC if voltage drop correction across long cable runs is needed.
Alternative Names
6EP1436-3BAOO
6EP1436-38A00
6EPI436-3BA00
6EPI436 3BA00
6EP1436 3BA00
6EP1436 3BAOO
6EP1436 38A00
6EP14363BA00
6EP14363BAOO
6EP143638A00
6EPI4363BA00
Technical notes
The 6EP1436-3BA00 operates reliably across a wide ambient temperature range from -25°C to +70°C. The 6EP1436-3BA00 delivers its full rated output power of 480 W up to +60°C ambient temperature, with gradual derating above this temperature. This wide temperature range of the 6EP1436-3BA00 makes it suitable for installations in uncontrolled environments, outdoor enclosures, and applications with significant thermal variation.
FAQs
-
What is the 6EP1436-3BA00？
+The Siemens SITOP Modular 6EP1436-3BA00 is a 3-phase, 24 V/20 A stabilized power supply unit designed for industrial applications. It is part of the SITOP modular family, known for high reliability, efficiency, and flexibility in demanding environments. -
6EP1436-3BA00 are the input voltage requirements?
+The unit accepts a three-phase AC input of 400 to 500 V, with a working range of 320 to 550 V AC. -
Is the output voltage adjustable?
+Yes, the output voltage can be adjusted, typically between 24 V and 28.8 V DC.
