PRODUCT DESCRIPTION

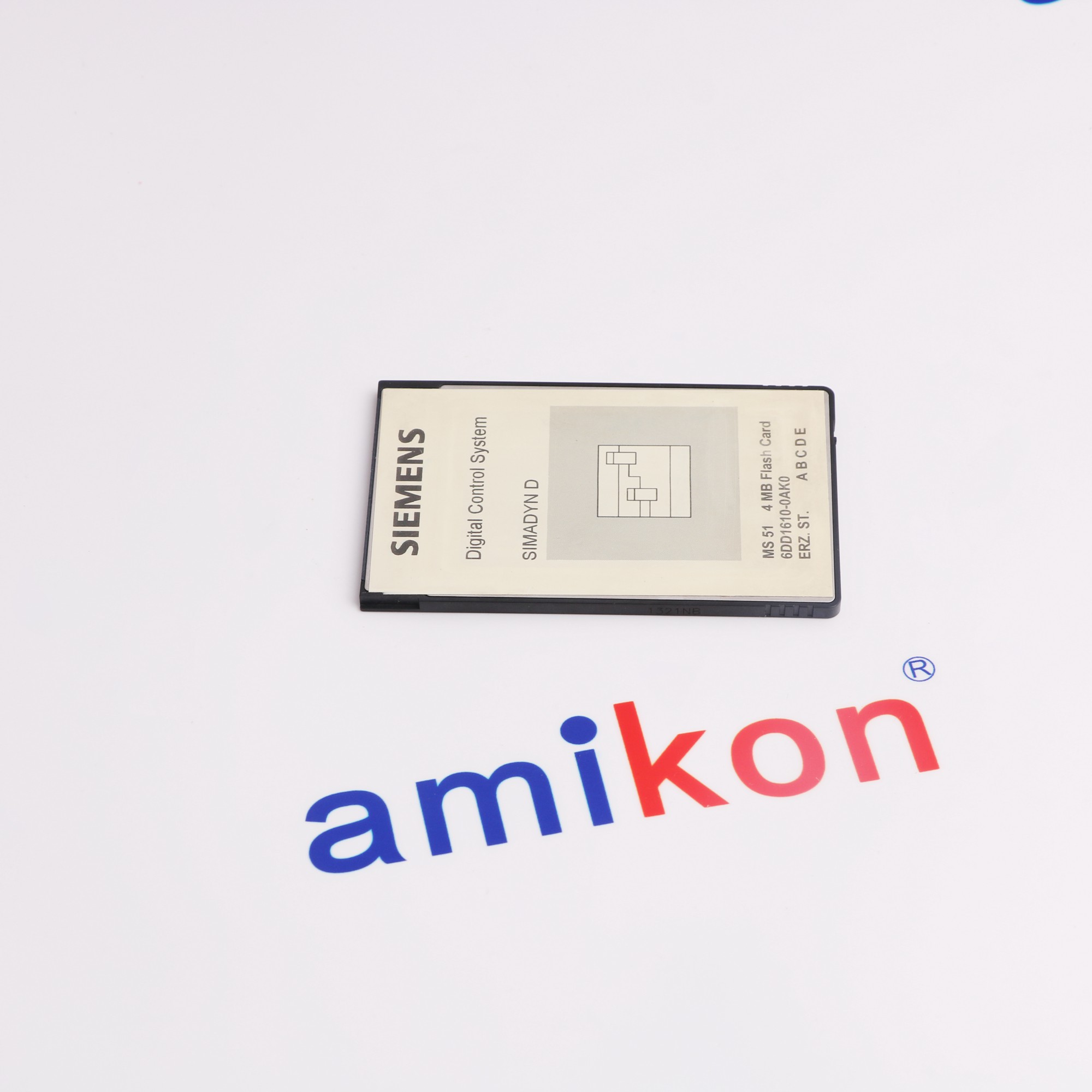

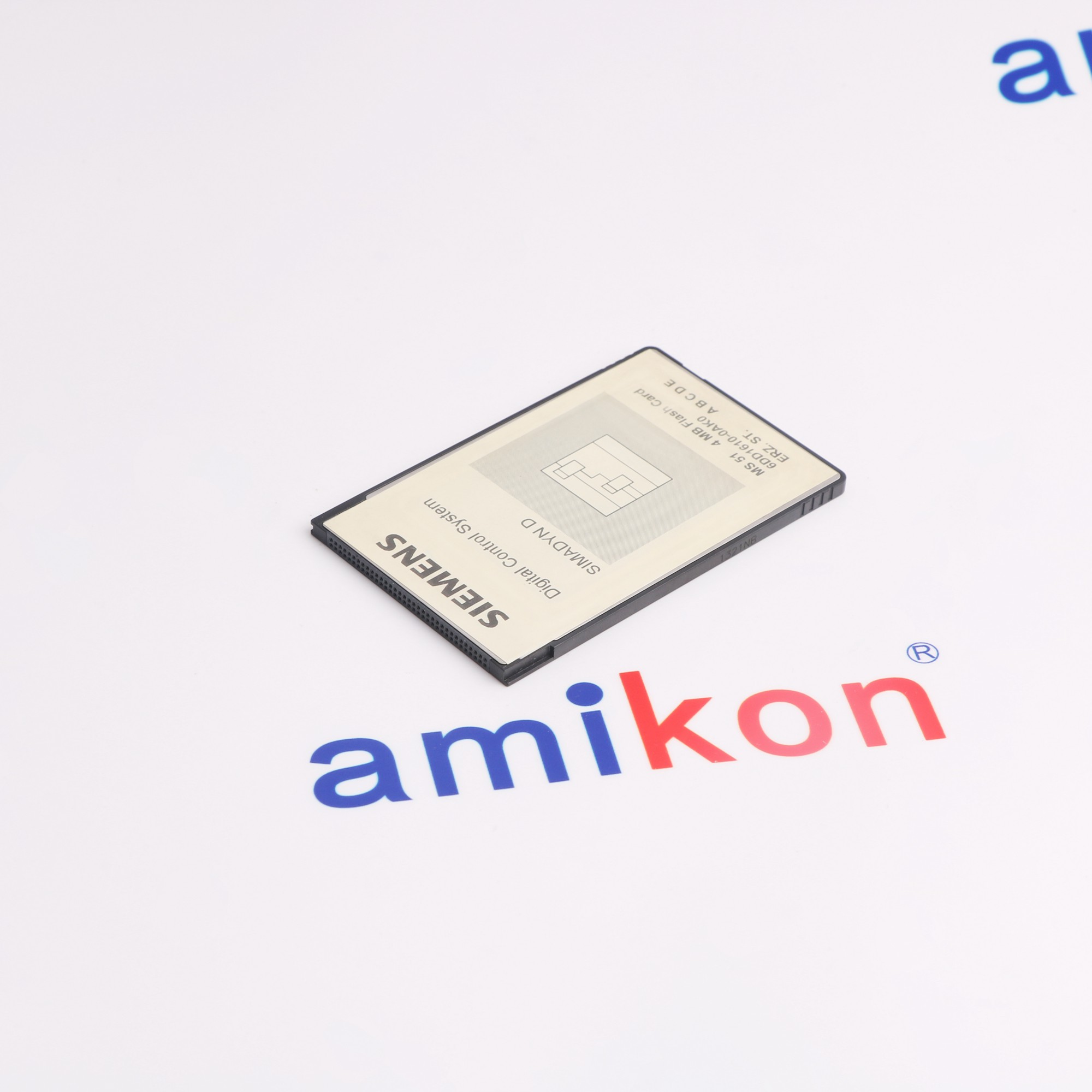

6DD1610-0AK0 Four Megabyte Program Memory Card
Siemens 6DD1610-0AK0 is the MS51 program-memory submodule for SIMADYN D. It stores the configured processor program and operating parameters for a compatible installed control configuration.
The card contains 4 MB of non-volatile flash and 8 KB EEPROM for changeable operating parameters. Its sixty-eight-pin JEIDA/PCMCIA connection interfaces with the documented processor-module receptacle. Programming can be performed through a suitable PCMCIA adapter or the supported serial connection to the CPU; the hardware write-protect switch controls permitted memory changes.
The card contains 4 MB of non-volatile flash and 8 KB EEPROM for changeable operating parameters. Its sixty-eight-pin JEIDA/PCMCIA connection interfaces with the documented processor-module receptacle. Programming can be performed through a suitable PCMCIA adapter or the supported serial connection to the CPU; the hardware write-protect switch controls permitted memory changes.
BEFORE YOU BUY
Confirm the complete four megabyte program memory card
ACTUAL APPLICATIONS
Application context for 6DD1610-0AK0
6DD1610-0AK0 retains configured processor programs in paper production, textile processing and metal manufacturing. Suitability depends on the installed SIMADYN D processor and project. The required memory capacity, programming connection and accepted application image must match the existing control configuration.
-
01 · PULP & PAPER
Pulp Processing and Paper Production
Pulp Processing and ProductionPaper and Board Manufacturing -
02 · TEXTILES
Textile Processing and Fabric Production
Textile Production and ProcessingFabric Manufacturing and Finishing -
03 · METALS
Metal Processing and Steel Production
Steel Production and ProcessingMetal Sheet Manufacturing Control
Technical specifications for 6DD1610-0AK0
-
Product Model6DD1610-0AK0
-
Product ParametersFour Megabyte Program Memory Card
-
In stock1 unit
-
ManufacturerSiemens
-
Program flash capacity4 MB
-
Operating-parameter EEPROM8 KB
-
Supply voltage5 V DC
-
Current consumption100 mA
-
Memory access time200 ns
-
Memory-card connection68 pins; JEIDA/PCMCIA
-
Programming interfacesPCMCIA offline; CPU serial link online
-
Hardware write protection1 write-protect switch
View all additional
Alternative Names
6DD1610-0AK0
SIMADYN D MS51 memory submodule
MS51 four-megabyte flash program card
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6DD1610-0AK0 four megabyte program memory card
Select the MS51 for a compatible SIMADYN D processor and the required four-megabyte project capacity. Use the accepted HW Config and CFC configuration for the installed control system.
Check the sixty-eight-pin memory connection and write-protect setting. Load the project using the supported PCMCIA programming arrangement or the documented serial link through the CPU.
Follow the SIMADYN D instructions for memory handling and startup. Validate the loaded program, operating parameters and processor diagnostic state before accepting the control configuration.
Features:
- Program flash capacity: 4 MB
- Operating-parameter EEPROM: 8 KB
- Supply voltage: 5 V DC
The 6DD1610-0AK0 four megabyte program memory card requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6DD1610-0AK0 four megabyte program memory card
Match 6DD1610-0AK0 and the MS51 flash-memory execution before exchange. The MS5, MS52 and SRAM variants have different memory arrangements.
Retain the accepted project and operating-parameter backup. Record the host CPU, card connection and write-protect position before removing the memory submodule.
Load the verified application and check processor startup, retained parameters and diagnostic status. Confirm the installed project identity before returning the controlled process to service.
Features:
- Program flash capacity: 4 MB
- Operating-parameter EEPROM: 8 KB
- Supply voltage: 5 V DC
The 6DD1610-0AK0 four megabyte program memory card requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6DD1610-0AK0 four megabyte program memory card must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size5.4 × 8.56 × 0.33cm
-
Shipping weight0.03kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8523511000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6DD1610-0AK0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How much program storage is available on MS51?
MS51 provides 4 MB flash for the configured processor program, including the operating-system content. -
Where are changeable operating parameters retained?
The card has 8 KB EEPROM for changeable operating parameters, separate from the program flash. -
What electrical supply is specified for MS51?
The manufacturer table specifies 5 V DC and 100 mA current consumption. -
What memory-card connection is used?
The module uses a sixty-eight-pin JEIDA/PCMCIA memory-card connection. -
Which programming paths are documented?
The hardware manual permits offline loading through a suitable PCMCIA programmer and online loading through the CPU serial connection. -
Is MS51 interchangeable solely because another card fits the slot?
No. Match flash capacity, memory technology and the supported processor project; mechanical fit alone is insufficient. -
What project information is needed for an MS51 quotation?
Provide 6DD1610-0AK0, the installed CPU designation, required program image and memory capacity, with any required programming accessories. -
What should be checked on delivery of the memory card?
Compare the exact article and MS51 designation, inspect the sixty-eight-pin connection and write-protect switch, and retain the accepted project backup.
