      6DD1662-0AB0

      Need Help? Contact US!
      Call us: +86-18020776786
      Proper, Ready.

      Delivery time
      Please indicate your delivery time

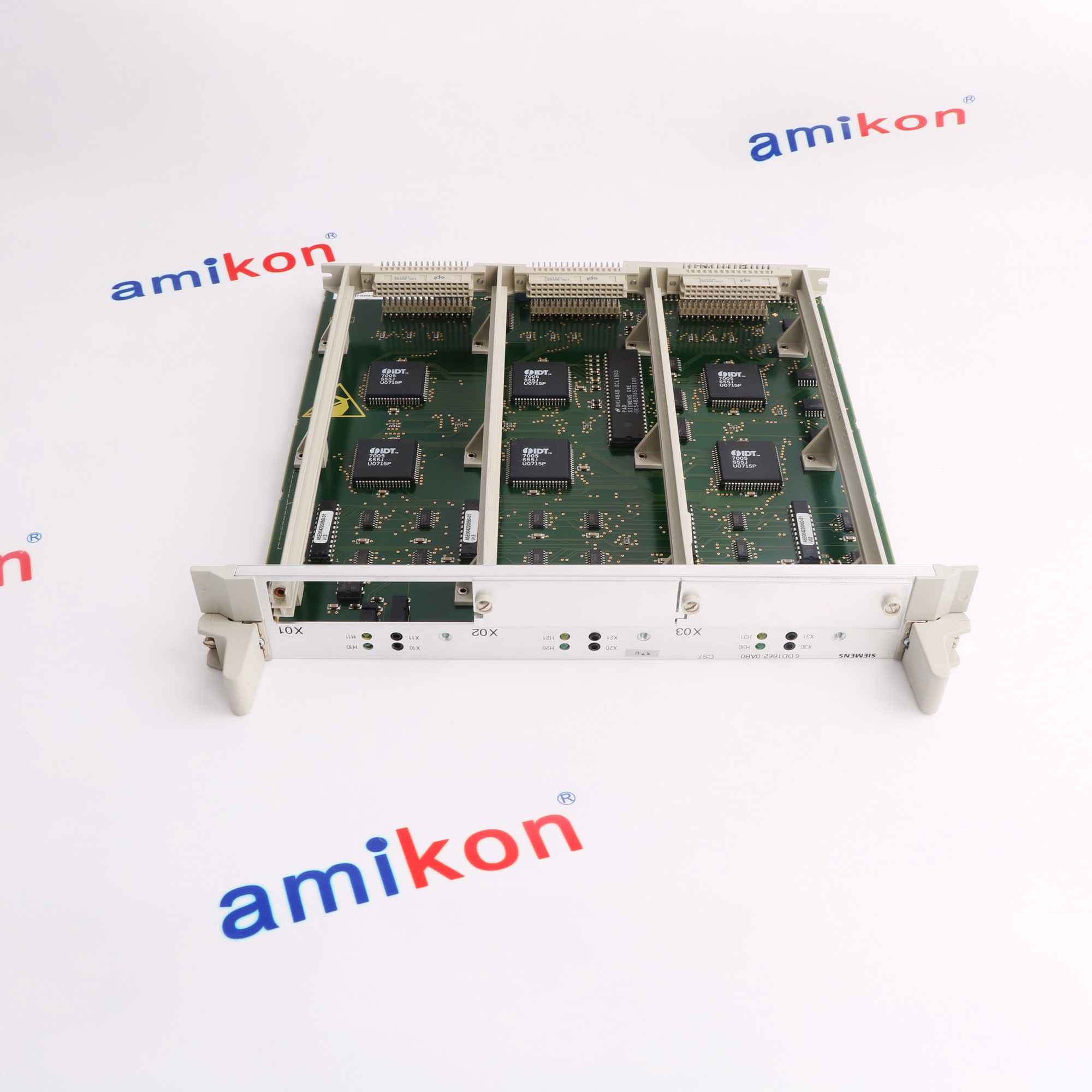

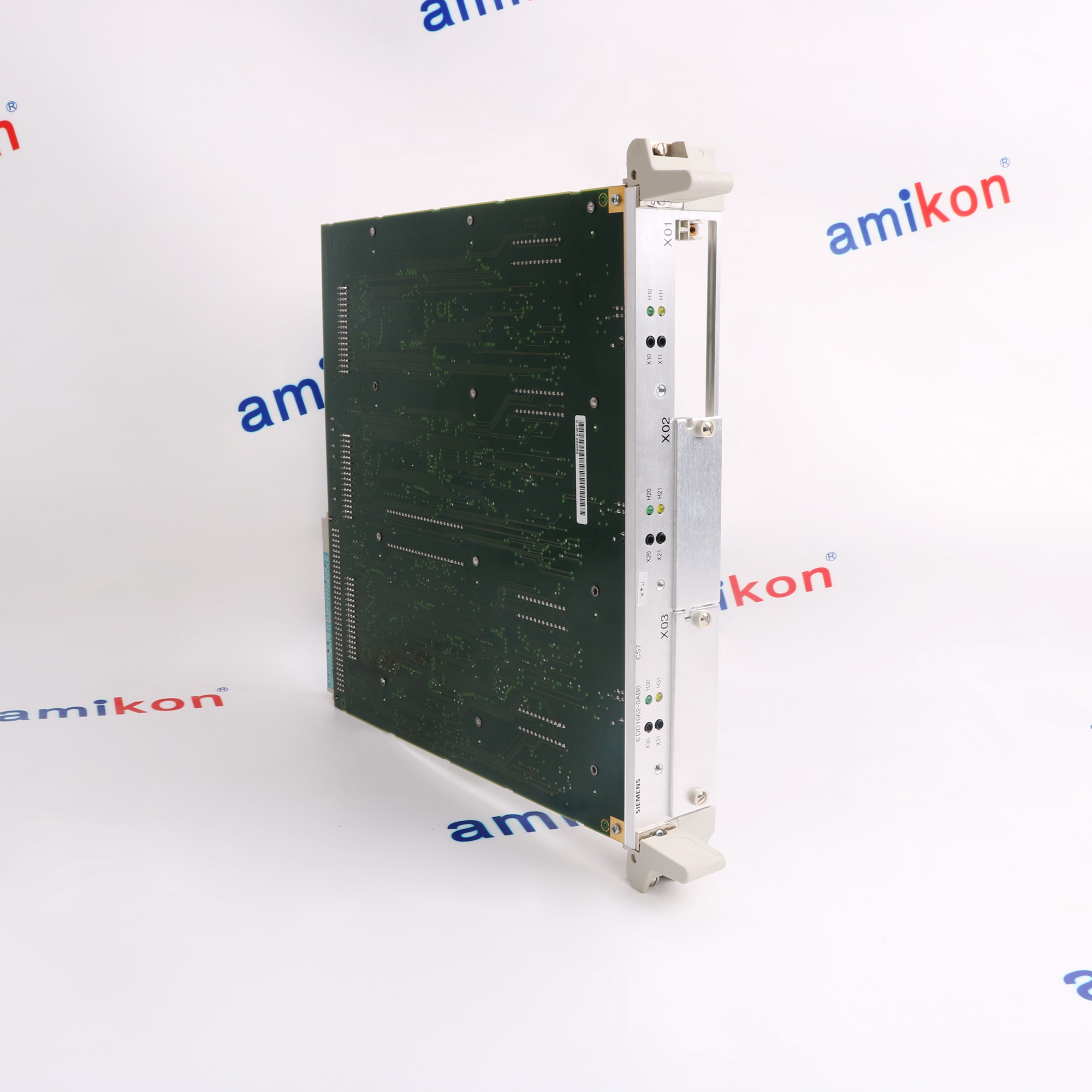

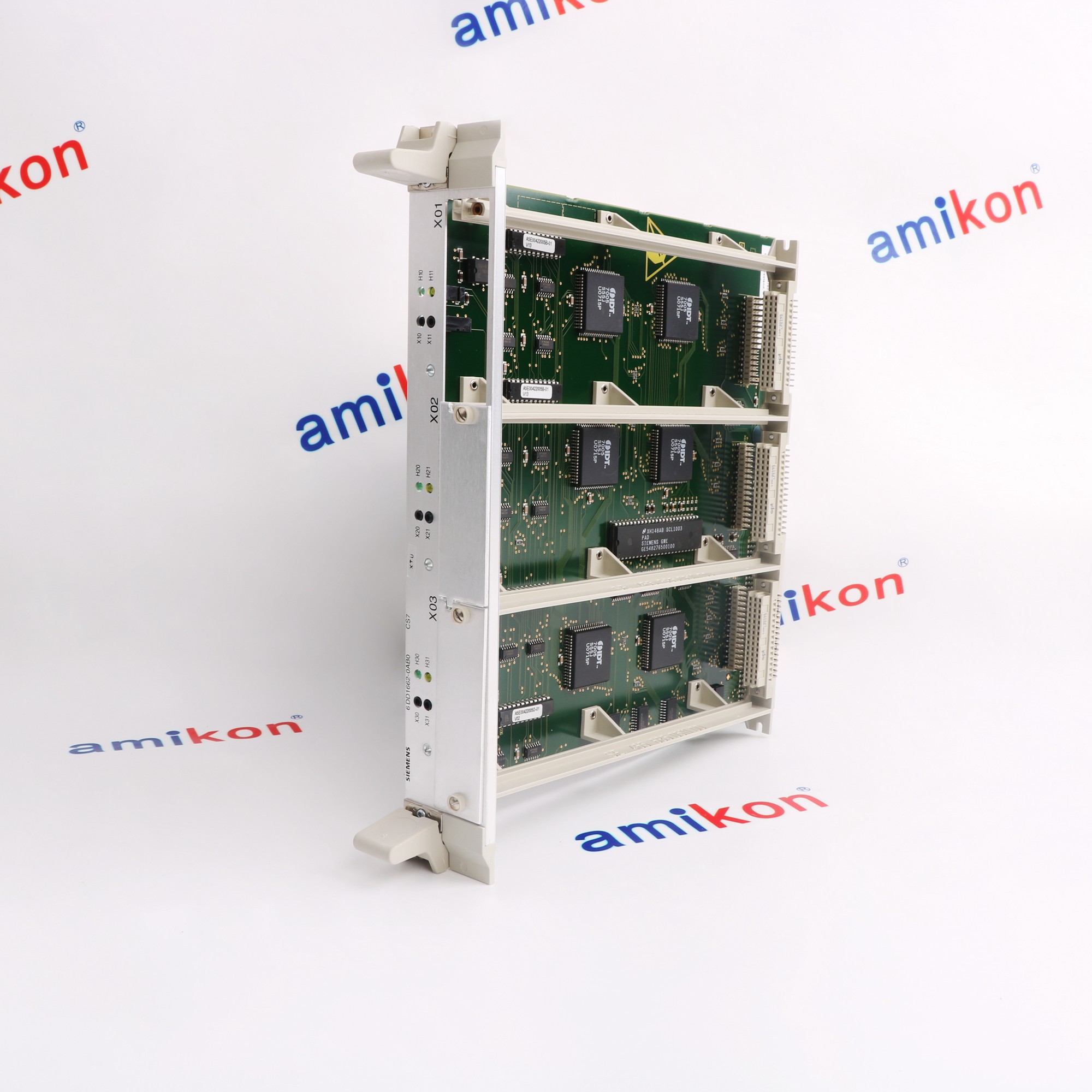

      Siemens 6DD1662-0AB0
      i
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Information

      Product Describe
      6DD16620AB0
      COMMUNICATION MODULE
      SIMADYN D
      CS7
      CARRIER MODULE FOR
      MAX. 3 COMMUNICATION SUBMODULES

      Technical specifications for 6DD1662-0AB0

      • Product Model
        6DD1662-0AB0
      • Product Parameters
        Communications support module
      • Tariff Code
        8537101190
      • Country of origin
        Germany
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        4x26.2x26.2cm
      • Manufacturer
        Siemens
      • Weight
        0.42 kg
      • Data Rate
        1.5 Mbps
      • Physical Layer
        RS-485 standard
      • Power Supply
        24 V DC
      • Operating Temperature
        0°C to +55°C
      • Relative Humidity
        Up to 95% non-condensing

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is 6DD1662-0AB0 ?+
        The Siemens 6DD1662-0AB0 is a CS7 communication carrier module for the SIMADYN D system.
      • What is the function of the 6DD1662-0AB0?+
        It serves as a support module (carrier) for communication modules within the SIMADYN D system.
      • What are the 6DD1662-0AB0 diagnostic features?+
        It features 2 diagnostic LEDs per plug-in compartment (H10/H11, H20/H21, H30/H31).
      • What protocols are supported?+
        It supports serial data transfer protocols such as DUST, USS, and PROFIBUS, depending on the installed submodule.
      Get a quick price fo 6DD1662-0AB0
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product

      MORE INFORMATION

      Overview Manuals Technical notes Product Applications Hardware Installation Steps

      Features:

      • 3 receptacles for comm modules (X01-X03).
      • Dual port RAM: 16 KB per comm module
      • 2 diagnostic LEDs per compartment
      • Transfers L-bus basic sampling time (sync)
      • Transfers clock interrupt for CPU RTC
      • Can generate L-bus interrupt signal
      • Test socket pair for reset (test only)
      • L-bus connection
      The Siemens 6DD1662-0AB0 communication support module features three plug-in interfaces (X01 to X03), each equipped with 16 Kbytes of dual-port RAM to support high-speed data exchange. Each slot includes two diagnostic LEDs (H10/H11, H20/H21, H30/H31) to indicate the status of the communication module, with the LED function depending on the specific module installed. The module can transfer the L-bus basic sampling time to the communication module for synchronization and can pass the communication module’s clock interrupt to the CS7 CPU module to set the real-time clock (not applicable for SS4, SS5, and SS52 modules). In addition, the communication module can generate an interrupt signal on the L-bus, but it must be ensured that only one interface module is configured to perform this function. Each slot also includes test sockets (X10/X11, X20/X21, X30/X31) for initiating a reset, intended solely for testing purposes and not for normal operation. The module provides reliable connectivity through the L-bus to the system.

      The 6DD1662-0AB0 SIEMENS Communications support modules may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      SIEMENS 6DD1662-0AB0 Communications support modules Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The Siemens 6DD1662-0AB0 is a CS7 Carrier Module designed for the SIMADYN D automation system. It functions as a communication carrier that supports up to three communication submodules, allowing for flexible industrial networking and data exchange.Supports up to 3 submodules.Configurable based on installed submodules
      • Rolling Mills:Controls roller speed/torque for precise metal thickness
      • Coilers & Tensioners:Manages high-speed winding with constant tension to prevent tearing
      • HVDC Stations:Manages power conversion & grid stabilization for HVDC
      • Gas & Steam Turbines:High-dynamic governor control for stable energy output
      • Test Stands:High-speed data & rapid control for gearbox/engine simulation
      • Plastic Extrusion:Manages heating & motor sync for consistent material flow
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      Preparation: Ensure the SIMADYN D subrack power is switched off. The module is not "hot-swappable".
      Submodule Insertion:
      The CS7 has three plug-in compartments (labeled X01, X02, and X03).
      Insert your required communication submodules (e.g., SS4, SS5, or SS52) into these slots before installing the carrier module into the rack.
      Ensure the submodules are firmly seated and locked to maintain connection with the Dual Port RAM (16 Kbytes per module).
