          PRODUCT DESCRIPTION

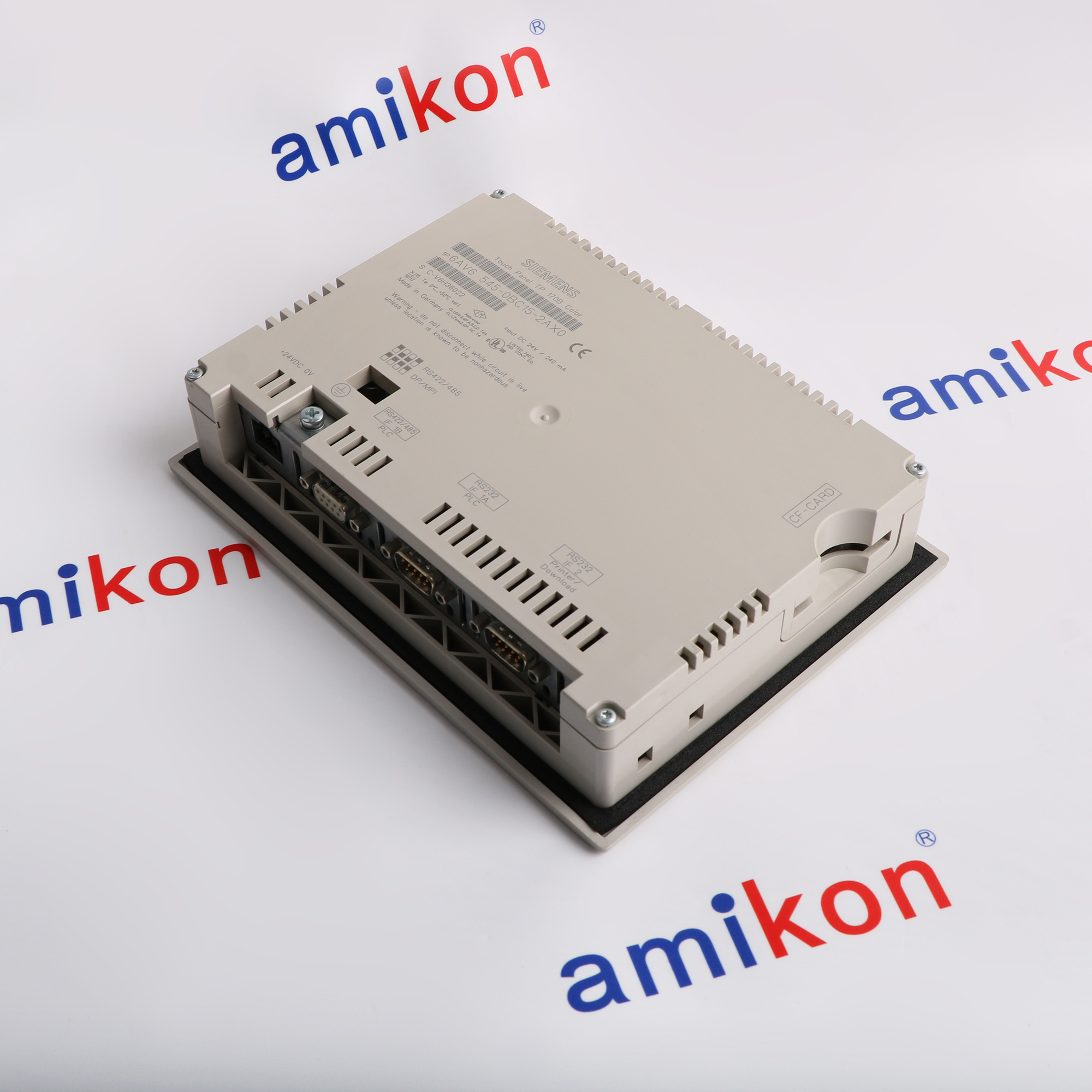

          6AV6545-0BC15-2AX0 Color touch operator panel

          Siemens 6AV6545-0BC15-2AX0 is the TP170B Color operator panel in the SIMATIC HMI family. It provides touch operation, process visualization and message handling for compatible machine and production-control projects.

          A 5.7-inch STN screen displays 16 colors at 320 × 240 pixels and uses an analog resistive touch surface. The panel combines a 66 MHz RISC processor, 768 KB user memory, serial controller connections and a CompactFlash slot. Windows CE runs the configured HMI project, while correct panel mounting provides the documented IP65 front protection.
          BEFORE YOU BUY

          Confirm the complete color touch operator panel

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for 6AV6545-0BC15-2AX0

          Siemens 6AV6545-0BC15-2AX0 is the TP170B Color operator panel in the SIMATIC HMI family. It serves compatible automation in automotive, food and beverage, packaging. Suitable use requires the documented companion hardware, electrical connections and configured production process.
          • 01 · AUTOMOTIVE

            Vehicle Manufacturing and Automotive Parts Production

            Automotive Body ProductionVehicle Component Manufacturing
          • 02 · FOOD & BEVERAGE

            Food Processing and Industrial Beverage Production

            Food Processing and PackagingBeverage Production and Bottling
          • 03 · PACKAGING

            Industrial Packaging Production and Material Converting

            Paper Packaging ProductionFlexible Packaging Converting

          Technical specifications for 6AV6545-0BC15-2AX0

          • Product Model
            6AV6545-0BC15-2AX0
          • Spare Model
            TP170B
          • Product Parameters
            Color touch operator panel
          • In stock
            10 units
          • Manufacturer
            Siemens
          • Display technology
            STN, 16 colors
          • Screen diagonal
            5.7 inches
          • Display resolution
            320 × 240 pixels
          • Touch input
            Analog resistive
          • Processor
            32-bit RISC, 66 MHz
          • User memory
            768 KB
          • Rated supply
            24 V DC
          • Current consumption
            0.25 A rated
          • Power consumption
            7 W typical
          • Serial interfaces
            2 RS232, 1 RS422, 1 RS485
          • Memory card slots
            1 CompactFlash
          • Operating system
            Windows CE
          • Runtime languages
            5
          • Project capacity
            1000 tags, 100 screens
          • Front/rear protection
            IP65 / IP20
          View all additional
          Ask for Quote

          Alternative Names

          6AV6545-0BC15-2AX0 SIMATIC HMI TP170B Color Color touch operator panel HMI TP170B Color STN, 16 colors display technology
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 6AV6545-0BC15-2AX0 color touch operator panel

          Siemens 6AV6545-0BC15-2AX0 is the TP170B Color operator panel in the SIMATIC HMI family. It provides touch operation, process visualization and message handling for compatible machine and production-control projects.
          Compare display technology (STN, 16 colors), screen diagonal (5.7 inches) and display resolution (320 × 240 pixels) with the installed SIMATIC HMI TP170B Color configuration. Match the supply connections and documented companion hardware before connection.
          Use the applicable SIMATIC HMI TP170B Color instructions for wiring and commissioning. Test the affected functions of 6AV6545-0BC15-2AX0, review its status indications and record the accepted settings with the equipment documentation.

          Features:

          • Display technology: STN, 16 colors
          • Screen diagonal: 5.7 inches
          • Display resolution: 320 × 240 pixels
          The 6AV6545-0BC15-2AX0 color touch operator panel requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify 6AV6545-0BC15-2AX0 color touch operator panel

          Replace 6AV6545-0BC15-2AX0 only after matching its complete article, SIMATIC HMI TP170B Color role and installed interface configuration. Related order numbers do not establish interchangeability.
          Record the existing color touch operator panel connections and preserve the configured SIMATIC HMI TP170B Color settings before removal. Photograph connector keying, cable labels and the supplied article identification.
          After fitting the verified 6AV6545-0BC15-2AX0, restore the documented settings and test the affected functions at a safe operating point. Retain its receiving inspection and functional acceptance results with the asset record.

          Features:

          • Display technology: STN, 16 colors
          • Screen diagonal: 5.7 inches
          • Display resolution: 320 × 240 pixels
          The 6AV6545-0BC15-2AX0 color touch operator panel requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the 6AV6545-0BC15-2AX0 color touch operator panel must be checked for document applicability before installation or commissioning.
