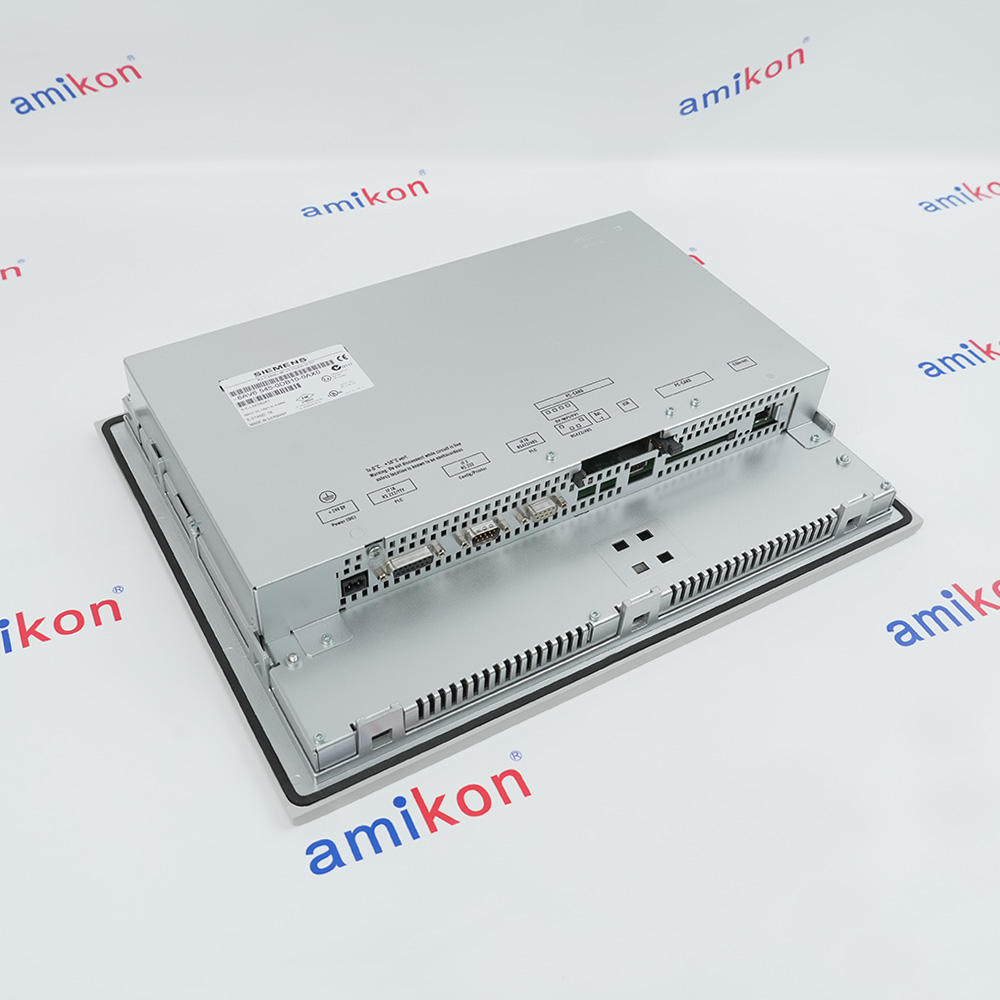

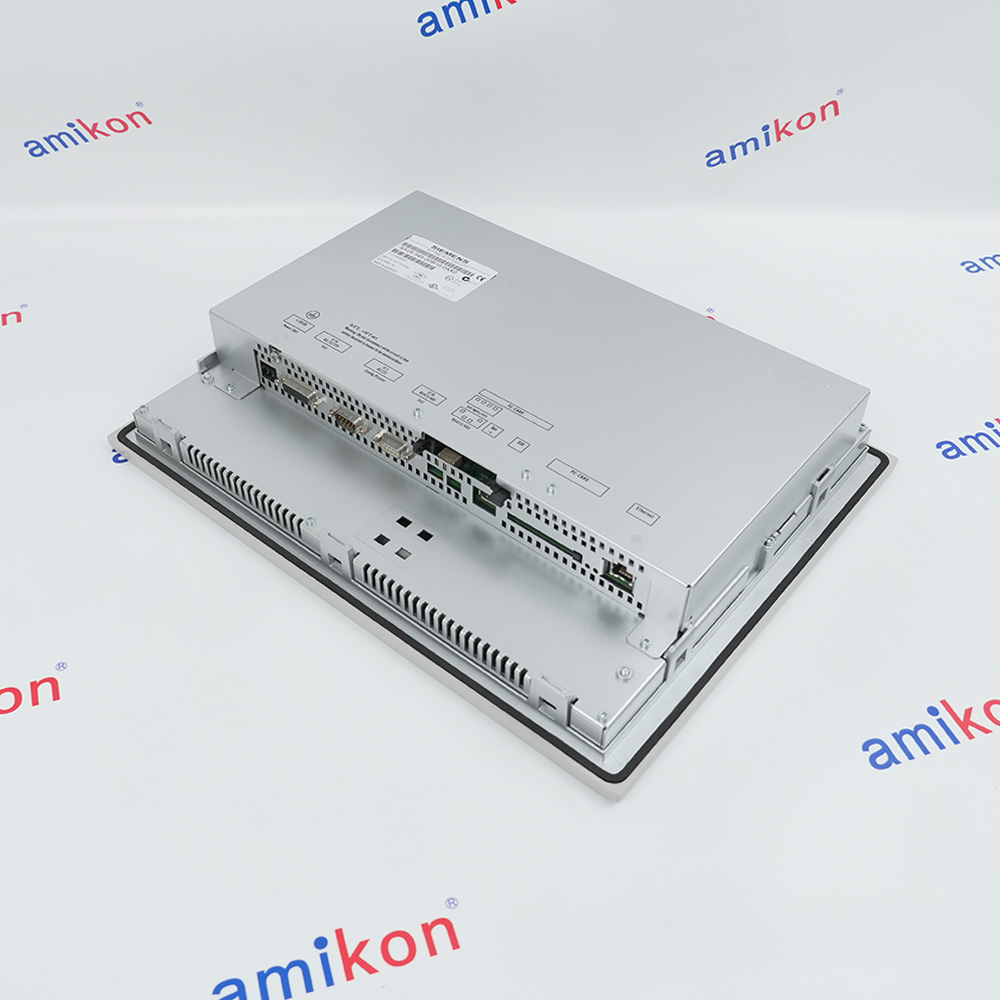

- 6AV6545-0DB10-0AX0
In Stock
Ships by Friday, August 14
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6AV6545-0DB10-0AX0
-
Product Model6AV6545-0DB10-0AX0
-
Product ParametersSIMATIC Multi Panel MP 370 15" color TFT display
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size40x30.8x7.5cm
-
ManufacturerSiemens
-
Weight5.65 kg
-
Design of displayTFT, 256 colors
-
Screen diagonal15.1 in
-
Horizontal image resolution1 024 Pixel
-
Vertical image resolution768 Pixel
-
MTBF backlighting (at 25 °C)50 000 h
-
Control elementsTouch screen
-
Design as touch screenYes; analog, resistive
-
Type of supply voltageDC
-
UPS connectable (serial)Yes
-
Current consumption (rated value)1.8 A
-
Active power input, typ41 W
-
Processor typeMIPS
Description
The 6AV6545-0DB10-0AX0 is a SIMATIC Multi Panel MP 370 human-machine interface (HMI) device manufactured by Siemens for industrial automation applications. The 6AV6545-0DB10-0AX0 features a 15-inch color TFT display with touch screen operation, providing operators with a large, intuitive interface for monitoring and controlling industrial processes. The 6AV6545-0DB10-0AX0 runs on the Windows CE 3.0 embedded operating system, delivering a stable and reliable platform for demanding industrial environments.
The 6AV6545-0DB10-0AX0 is configurable using Siemens ProTool engineering software Version V6.0 + SP2 or higher. The 6AV6545-0DB10-0AX0 allows engineers to create comprehensive visualization screens, alarms, trends, and recipes for machine and process control. The 6AV6545-0DB10-0AX0 supports communication with SIMATIC S7 PLCs and other automation devices, enabling seamless data exchange between the HMI and the control system.
The 6AV6545-0DB10-0AX0 is configurable using Siemens ProTool engineering software Version V6.0 + SP2 or higher. The 6AV6545-0DB10-0AX0 allows engineers to create comprehensive visualization screens, alarms, trends, and recipes for machine and process control. The 6AV6545-0DB10-0AX0 supports communication with SIMATIC S7 PLCs and other automation devices, enabling seamless data exchange between the HMI and the control system.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- 15-Inch Color TFT Display
- Touch Screen Operation
- Windows CE 3.0 Operating System
- ProTool Configuration Compatibility
- SIMATIC Multi Panel Platform
A MIPS processor manages the HMI runtime, with 7,168 KB of Flash/RAM memory available for user data. An optional 3.6 V backup battery provides a minimum of 3 years of retentive memory and hardware clock backup. The hardware clock is battery-backed, synchronizable, and retentive.The panel accepts DC power supply with a rated current consumption of 1.8 A and typical active power input of 41 W. A serial UPS connection is supported for power-fail protection.
The 6AV6545-0DB10-0AX0 SIEMENS SIMATIC Multi Panel MP 370 15" color TFT display may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6AV6545-0DB10-0AX0 SIMATIC Multi Panel MP 370 15" color TFT display Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The front panel carries IP65 protection against dust and water jets; the rear panel is IP20 rated. The unit mounts vertically with a maximum permissible tilt angle of 35° without external ventilation. Operating temperature range is 0 °C to +50 °C; storage and transport temperature range is –20 °C to +60 °C. Maximum relative humidity during operation is 85%.
The MP 370 supports up to 5 online languages and 32 project languages. The message system handles 4,000 bit messages and 4,000 analog messages across 32 alarm classes, with Alarm S telegram procedure support. Recipe management supports 500 recipes with 1,000 data records each and 1,000 entries per data record. The integrated recipe memory is 128 KB, expandable via memory cards.
Screen configuration supports 500 images with up to 30,000 text elements, 2,000 icons, and 2,000 dynamic objects per project. Each image can contain up to 400 I/O fields, 400 date/time fields, 20 curve diagrams, 20 bar graphs, 20 sliders, and 20 analog indicators. Archiving supports 50 archives with 50,000 entries each, stored on PC card, CF card, or Ethernet in CSV format.
- Automotive: Integrates assembly lines, robot cells, and stamping presses for cycle time/alarm management
- Chemical/Petrochemical: Used in FM Class I Div. 2 and EX Zone 2/22 hazardous locations
- Food/Beverage: Controls blending, packaging, and pasteurization in washdown environments
- Water/Wastewater: Handles telemetry, pump controls, and fault logging via serial/Ethernet protocols
- Pharmaceutical: Operates complex batch recipes with multi-level data tracking via flash memory
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cutout Dimensions: Prepare a precise panel cutout of 370 mm x 286 mm (Width x Height).Clearance Requirements: Maintain at least 50 mm of clearance around all sides of the rear housing to allow for natural convection cooling.Seal Inspection: Ensure the rubber sealing gasket on the front bezel is properly seated before inserting the unit to maintain its IP65 ingress protection rating.Clamping Screws: Insert the unit from the front, then secure it from behind using the provided screw clamps. Tighten the screws evenly until the seal is compressed; do not overtighten, as this can warp the plastic housing or damage the touch glass.
Alternative Names
6AV6545-0DB10-0AXO
6AV6545-0DB10-OAX0
6AV6545-0DB1O-0AX0
6AV6545-0DBI0-0AX0
6AV6545-0D810-0AX0
6AV6545-ODB10-0AX0
6AV6545 0DB10 0AX0
6AV6545 0DB10 0AXO
6AV6545 0DB10 OAX0
6AV6545 0DB1O 0AX0
6AV6545 0DBI0 0AX0
6AV6545 ODB10 0AX0
6AV65450DB100AX0
Technical notes
The SIEMENS 6AV6545-0DB10-0AX0 is a SIMATIC Multi Panel MP 370 with a 15.1-inch color TFT display and analog resistive touch screen. It belongs to the "Multifunctional Platform" product category, positioned between dedicated operator panels and industrial PCs. The panel runs Windows CE 3.0 and is configurable with ProTool Version V6.0 + SP2 or higher, or WinCC flexible Standard Version 2004 or higher.
FAQs
-
What is the 6AV6545-0DB10-0AX0?
+The Siemens 6AV6545-0DB10-0AX0 is a discontinued SIMATIC MP 370 Multi Panel used as a Human-Machine Interface (HMI) for industrial applications. -
What software is used to program this HMI?
+It can be configured using Siemens ProTool (Version V6.0+SP2 or higher) or the newer WinCC software. -
What are the screen specifications?
+It features a 15.1-inch color TFT display with a resolution of 1024 x 768 pixels. -
What interfaces does it include?
+It contains 1 x Ethernet (RJ45), 1 x TTY, 2 x RS232, 1 x RS422, and 1 x RS485 ports.
