PRODUCT DESCRIPTION
Two current outputs for configured analog setpoints

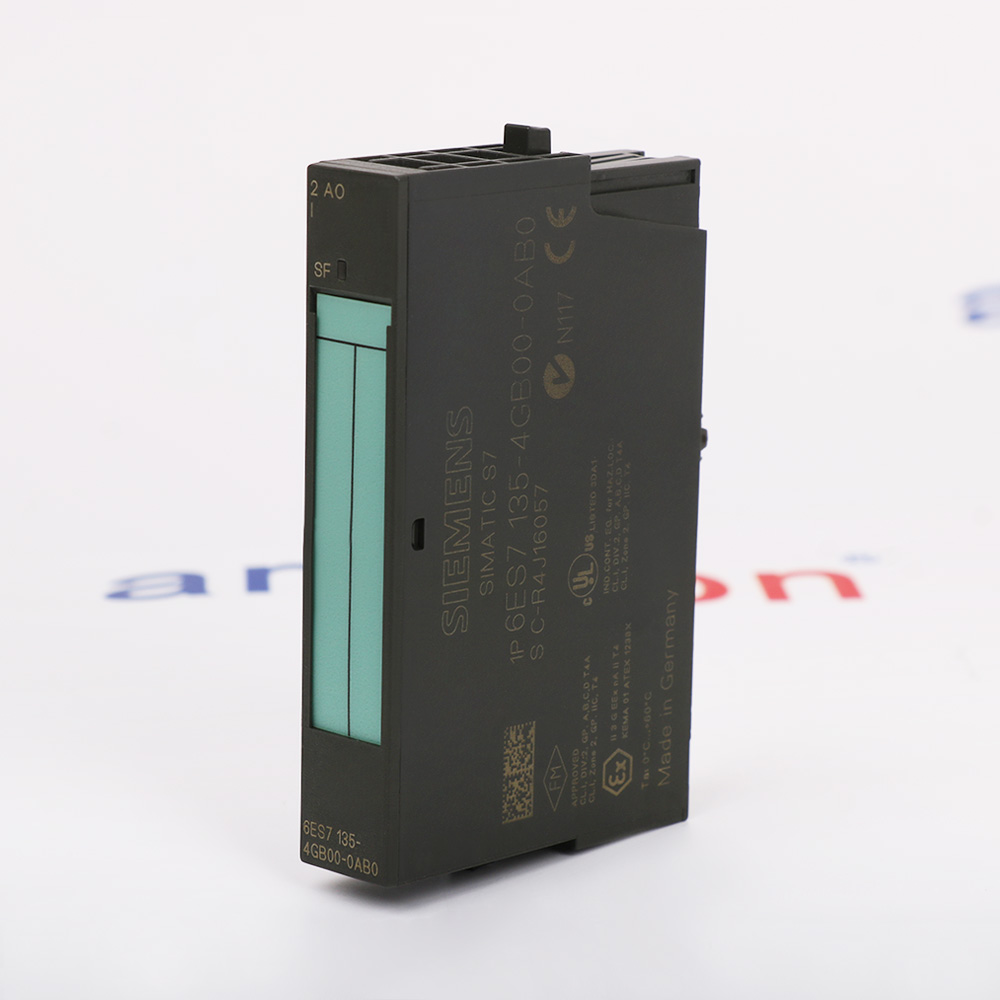

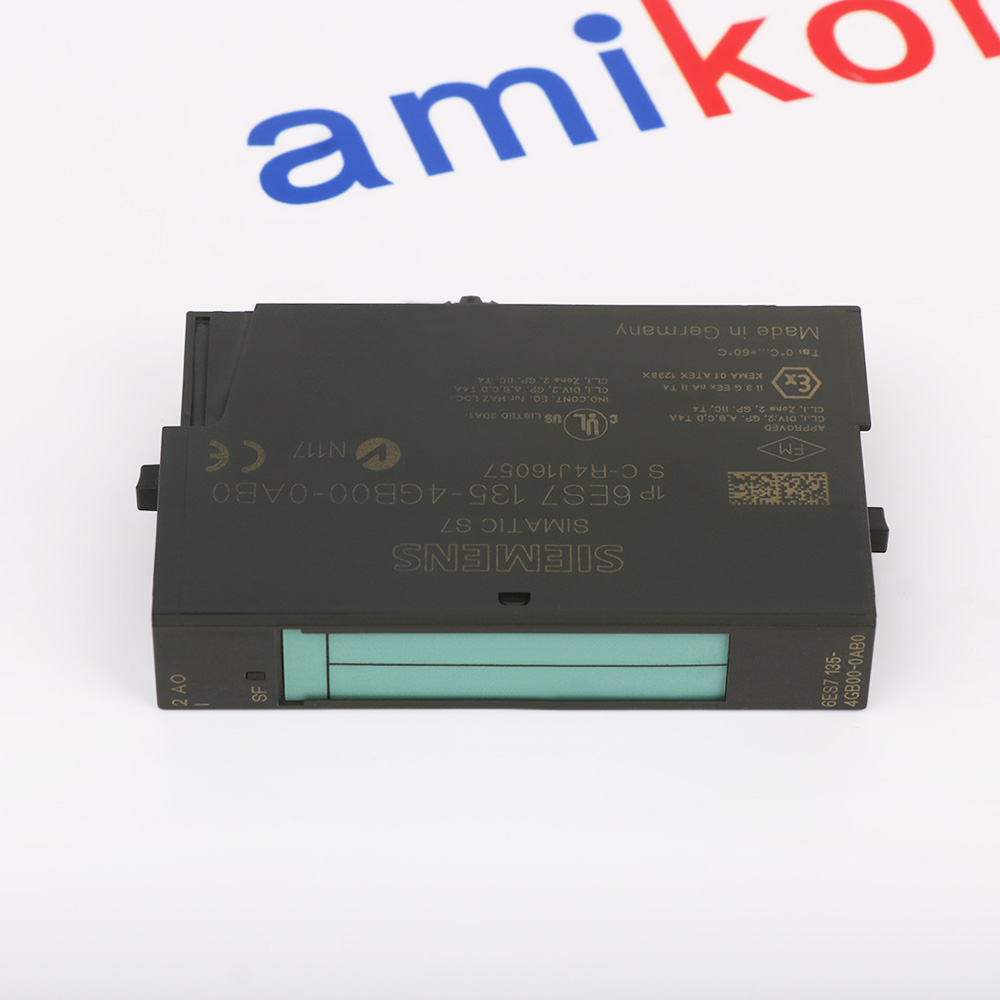

Siemens 6ES7135-4GB00-0AB0 is a SIMATIC ET 200S Standard electronic module with two analog current outputs. Its documented ranges are bipolar ±20 mA and 4-20 mA, selected per channel. The module uses two-conductor load connections and a 24 V DC load supply.
The exact specification permits loads up to 500 ohm and shielded cables up to 200 m, subject to the complete circuit requirements. Configurable wire-break reporting and controller-STOP response support fault handling. The output channels share an analog reference and are not electrically isolated from each other.
The exact specification permits loads up to 500 ohm and shielded cables up to 200 m, subject to the complete circuit requirements. Configurable wire-break reporting and controller-STOP response support fault handling. The output channels share an analog reference and are not electrically isolated from each other.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · PLASTICS PROCESSING
Blow Molding and Thermoforming
Blow molding within the wider plastic product manufacturing industry.Thermoforming as a manufacturing route for shaped plastic products. -
02 · FOOD & BEVERAGE
Dairy, Bakery and Confectionery
Dairy production and processing within the commercial food industry.Bakery and confectionery manufacturing across diverse consumer food categories. -
03 · TEXTILE MANUFACTURING
Manufactured Fibers and Textile Finishing
Manufactured fiber production for the wider textile manufacturing sector.Textile finishing for materials within the commercial fabric industry.
Technical specifications for 6ES7135-4GB00-0AB0
-
Product Model6ES7135-4GB00-0AB0
-
Product ParametersET 200S Current Output Module
-
ManufacturerSiemens
-
Analog outputs2 current channels
-
Output ranges±20 mA and 4-20 mA
-
Resolution13 bits plus sign at ±20 mA; 13 bits at 4-20 mA
-
Rated load supply24 V DC from the power module; reverse-polarity protection
-
Maximum supply current150 mA from L+
-
Maximum power dissipation2 W
-
Maximum cycle time1.5 ms
-
Current load resistanceMaximum 500 ohm
-
Inductive load limit1 millihenry
-
No-load output voltage18 V
-
Shielded cable lengthMaximum 200 m
-
Output connectionTwo-conductor supported; four-conductor not supported
-
Operational error limit±0.5% of output range across temperature; basic error ±0.3% at 25 °C
-
Electrical isolationFrom backplane and load supply; not between channels
-
Clocked operationNot supported
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S CURRENT-LOOP SETPOINTS
Check load, shared reference and current-range configuration together
Use the terminal assignment that corresponds to the installed terminal module rather than assuming every 15 mm base exposes the same auxiliary contacts. The exact section shows current outputs and analog returns across four terminal-module arrangements, with different unused and auxiliary positions. It specifies a two-conductor actuator connection; the separate sensing arrangement of a voltage-output module is not applicable to this current-output circuit.
Choose 4-20 mA or bipolar ±20 mA for each channel and confirm that the receiving equipment and controller scaling match that choice. The specified 500 ohm load limit and 1 millihenry inductive limit define the documented output-load conditions. The 200 m shielded-cable allowance does not remove those electrical limits. Both channels lack mutual isolation, so their reference relationship also needs review when separate pieces of field equipment are connected.
The output parameter table separates current-channel wire-break reporting from the short-circuit diagnostic used by voltage variants. Enable only the applicable functions and coordinate the module-wide STOP response with the intended process action. If the interface loses its supply while the output electronics remain powered, the manual specifies configured substitute outputs; this condition should be considered separately from an ordinary controller-command change.
Features:
- Terminal-specific two-conductor loops
- Range, loop load and reference checks
- Current-specific diagnostics and substitutes
The Siemens 6ES7135-4GB00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the exact 4GB00 order number and the existing terminal-module identity before selecting a spare. The system manual explains that type coding prevents incorrect module insertion and warns that recoding can create dangerous states. Use the same-type procedure and the site's safe isolation rules. Neither physical fit nor the shared 2AO designation establishes compatibility with a voltage-output or High Feature electronic module.
Restore the current range, controller scaling, wire-break reporting and configured STOP response as a coordinated set. The parameter table allows deenergized outputs, substitute values or retained commands, and requires substitutes within the nominal range. A replacement that produces the expected current during normal operation can still respond differently to a stopped controller or an interface-supply interruption if those settings are not retained.
Before returning the loop to service, verify the supply, analog-return connection and commanded current at the connected load. Check the total load against the documented resistance and inductance limits and evaluate the module's diagnostic indication. Where an operating station exchange is proposed, confirm the supported interface and assigned removal/insertion parameters, including the single-gap restriction; the module specification alone does not authorize an unrestricted live exchange.
Features:
- Exact-code and terminal review
- Fault-response parameter retention
- Load-side current and station checks
The Siemens 6ES7135-4GB00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7135-4GB00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7135-4GB00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this a voltage-output module?
No. The exact order number provides two current outputs. Its selectable ranges are ±20 mA and 4-20 mA; voltage-output settings from the shared family parameter table do not apply. -
Can it use four-wire remote sensing?
No. The exact technical table permits two-conductor current-output connections and explicitly excludes four-conductor connections. Use the current-loop terminal drawings, not the voltage-output sensing circuit. -
What is the maximum load resistance?
The manufacturer specifies 500 ohm. Check the complete connected loop, including relevant wiring resistance, against the permitted load; the 200 m shielded-cable maximum is not independent permission to exceed the load limit. -
Which fault diagnostic is configurable for the current channels?
The shared parameter table assigns wire-break diagnostics to 2AO I Standard/High Feature. Short-circuit-to-M diagnosis belongs to the voltage variants in that table and must not be copied into this module's specification. -
Are the two output channels isolated from each other?
No. They are isolated from the backplane bus and load supply, but not mutually isolated. Preserve the documented analog returns and check the reference-potential relationship in the station design. -
Does controller STOP necessarily produce 4 mA?
No. The available responses are deenergized outputs, a configured substitute value or retention of the last value. Substitute values must stay inside the selected nominal range. Inspect the actual configuration rather than assuming the lower range endpoint is the fault response.
