PRODUCT DESCRIPTION
Evaluate discrete sensor signals within an ET 200S safety project

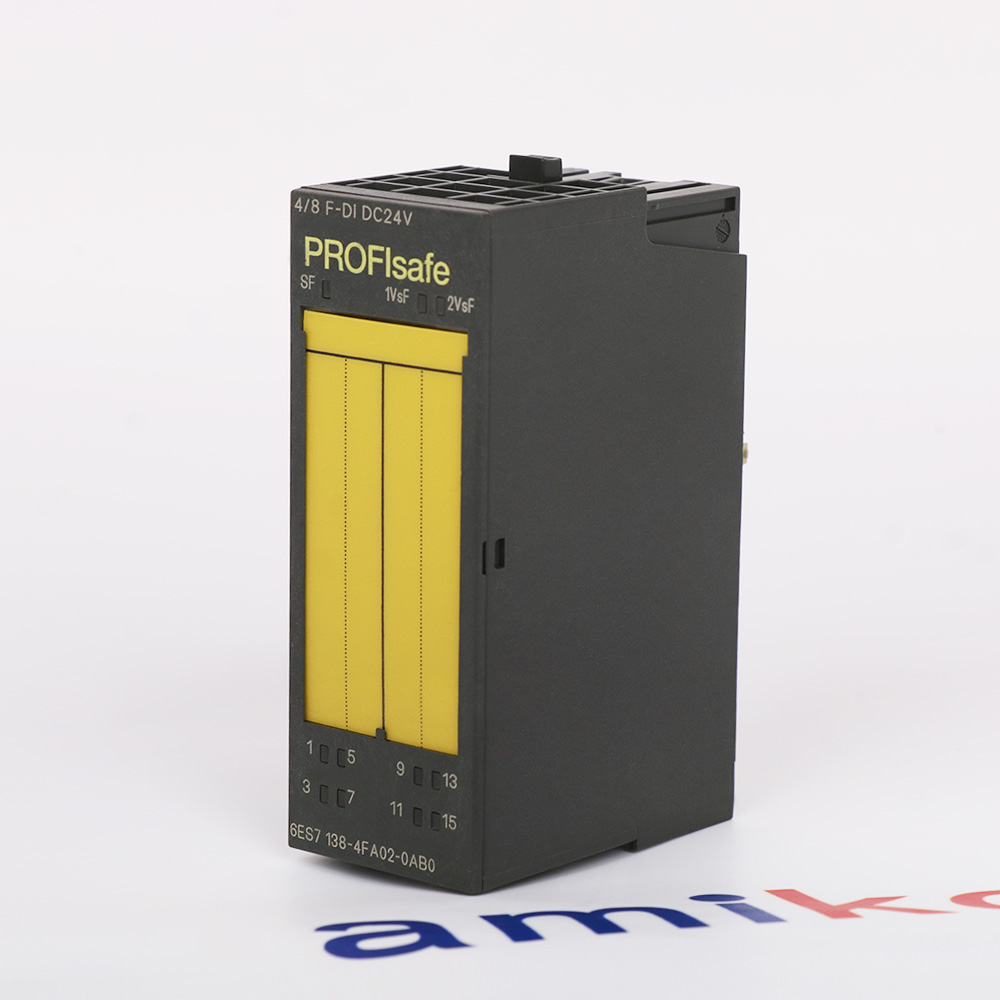

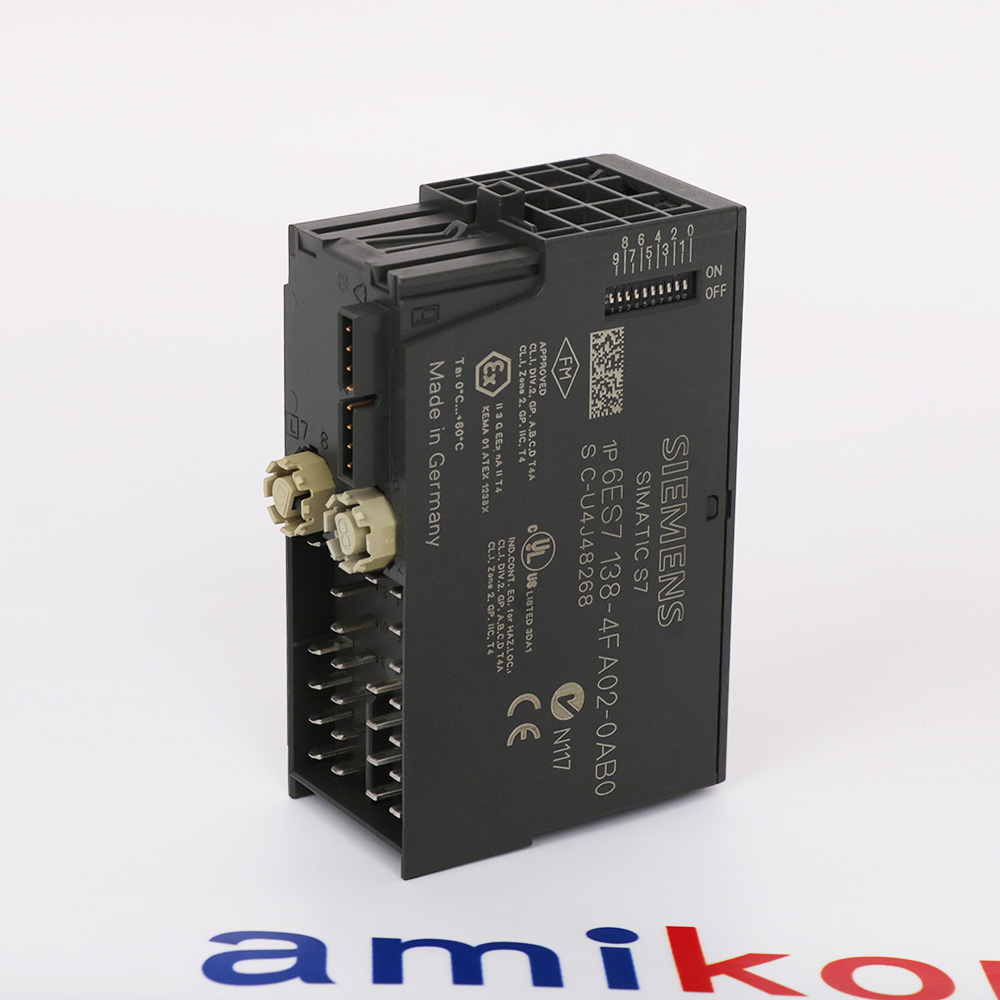

Siemens 6ES7138-4FA02-0AB0 is a 24 V DC ET 200S electronic input module for PROFIsafe operation. Its eight physical inputs can be evaluated individually or arranged as four paired inputs, with two protected sensor supplies available for the connected circuits.
The module combines configurable input filtering with channel indications, a group-fault display and diagnostic reporting. Its role depends on the maintained safety project, sensor evaluation and selected power module; a matching terminal footprint alone does not establish application suitability or interchangeable safety performance.
The module combines configurable input filtering with channel indications, a group-fault display and diagnostic reporting. Its role depends on the maintained safety project, sensor evaluation and selected power module; a matching terminal footprint alone does not establish application suitability or interchangeable safety performance.
BEFORE YOU BUY
Confirm the complete installed configuration
- Identify the exact FA02 order code and installed hardware release.
- Check the existing sensor pairing, terminal module and potential-group supply.
- Confirm the project address, input delay and channel-fault response settings.
- Obtain resolved safety-calculation evidence before changing the validated safety design.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · FOOD & BEVERAGE
Edible Oil and Sugar Production
Edible oil production and processing across the food manufacturing sector.Sugar manufacturing and processing within the commercial food industry. -
02 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets. -
03 · WATER & WASTEWATER
Drinking Water and Wastewater Services
Drinking water production for public and community supply services.Wastewater treatment serving households, communities and industrial water users.
Technical specifications for 6ES7138-4FA02-0AB0
-
Product Model6ES7138-4FA02-0AB0
-
Product ParametersPROFIsafe Digital Input Module
-
ManufacturerSiemens
-
Input arrangement8 single-channel inputs or 4 two-channel input evaluations
-
Supply requirements24 V DC nominal; 20.4-28.8 V DC permissible; no reverse-polarity protection
-
Process-image allocation6 input bytes and 4 output bytes
-
Sensor-supply capacity2 outputs, 0-300 mA each; maximum total 600 mA
-
Sensor-supply voltageAt least L+ minus 1.5 V under load
-
Sensor-supply protectionElectronic short-circuit protection; response threshold 0.7-1.8 A
-
Input signal thresholdsSignal 0: -30 to +5 V; signal 1: +15 to +30 V
-
Input current3.7 mA typical at signal 1
-
Input filteringCommon selectable delay of 0.5, 3 or 15 ms; not the complete safety-function response time
-
Input characteristicIEC 61131 Type 1
-
Sensor compatibilitySwitches and 3- or 4-wire proximity sensors; 2-wire sensor connection not supported
-
Input isolationIsolated from backplane bus; not isolated between channels or from load supply L+
-
Power dissipation4 W typical
-
Module consumptionBackplane 28 mA typical; L+ 120 mA typical without sensor load
-
Status and diagnosticsGreen input LEDs, red SF group-fault LED and red sensor-supply fault indication; diagnostic reporting supported
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S DISCRETE SENSOR EVALUATION
Match sensor evaluation to the maintained safety project
Start with the input arrangement already defined in the safety project. The FA02 module provides eight physical channels, but paired evaluation uses two channels for each process signal. The selected power module, sensor qualification and evaluation method all influence the permitted application; changing only the electronic module does not establish a new safety capability.
Allocate the module's six input bytes and four output bytes within the configured station and verify its PROFIsafe address against the physical switch setting. Keep the recorded input delay and channel-fault behavior aligned with the project. Diagnostic settings support fault investigation, but neither a green channel indication nor a cleared group-fault LED validates the complete safety function.
Check each sensor against the permitted signal voltage, input current and protected supply budget. Two-wire proximity sensors are not supported. The fastest filter setting brings additional shielding requirements, while reliable signal capture also depends on test settings and pulse duration. Maintain the original validated wiring records because this product-reference package does not replace the complete installation and safety calculation documentation.
Features:
- Recorded sensor-pair evaluation
- Matched PROFIsafe project address
- Verified supply and signal conditions
The Siemens 6ES7138-4FA02-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm that the installed item is the complete 6ES7138-4FA02-0AB0 order number, then record its release, terminal base and associated power module. The applicable 2005 manual identifies FA02 release 01 onward. A later FA suffix or a physically similar ET 200S input module is not automatically an interchangeable spare.
Retain the approved channel assignments, sensor-pair definitions and physical PROFIsafe address when preparing the replacement. Compare the project settings with the actual station before allowing process values to return to the safety program. Siemens describes passivation and reintegration separately, so replacing hardware alone does not eliminate the need to correct and acknowledge the underlying fault.
Use the diagnostics to distinguish an electronics fault from a supply failure, cable defect, invalid parameter set or sensor discrepancy. After the cause is corrected, perform the documented safety-function checks and retain the maintenance record. Do not import probability values or replacement promises from a newer suffix while the original FA02 safety-data discrepancy remains unresolved.
Features:
- Exact FA02 identity and release
- Address and sensor-pair preservation
- Fault correction before reintegration
The Siemens 6ES7138-4FA02-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4FA02-0AB0 provides product references with source editions identified. Installation documentation with unresolved conflicts is not provided . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7138-4FA02-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Why does the designation say 4/8 inputs?
The hardware has eight input channels. Individual evaluation provides eight signals, while paired evaluation uses two channels per process signal and provides four evaluated signals. The selected arrangement must match the sensors, power module and validated project; channel count alone is not a safety-class guarantee. -
Can two-wire proximity sensors be connected?
No. The exact-model datasheet excludes two-wire sensors. Siemens lists switches and three- or four-wire proximity sensors for this module. Sensor current, output levels and response to the configured testing still need checking before a device is accepted for the application. -
Are the internal sensor supplies separate power modules?
No. They are two protected sensor-supply outputs belonging to this input module, each rated for up to 300 mA and together limited to 600 mA. Their loaded voltage is at least L+ minus 1.5 V. The ET 200S potential-group power module remains a separate selection. -
Does a 0.5 ms filter mean a 0.5 ms safety response?
No. It is an input-delay setting, not the response time of the entire safety function. Sensor signal duration, short-circuit testing, PROFIsafe timing and the safety program also matter. The manual requires shielded digital-input and sensor-supply wiring for the 0.5 ms setting. -
What should be checked when the module reports a parameter error?
Compare the actual module with the configured type, then compare the physical PROFIsafe address with STEP 7 HW Config. Siemens also identifies faulty parameterization as a possible cause. Diagnose the mismatch within the approved project rather than treating a cleared LED as proof that the safety function is valid. -
Can a fault be cleared simply by replacing the input module?
Not always. Sensor faults, cable short circuits, supply problems and discrepancy settings can create diagnostic messages independently of the electronics. Correct the identified cause, retain the configured address and follow the safety program's reintegration procedure. Preserve the validated sensor arrangement when replacing the exact module. -
Does the supplied reference package authorize safety calculations or wiring?
No. It contains selected manufacturer product information, not complete commissioning instructions. The older manual contains an unresolved safety-probability entry, so no PFH or PFD figure is supplied here and no installation PDF is offered. Obtain an applicable manufacturer clarification before relying on those figures.
