PRODUCT DESCRIPTION
Manage a safety-controlled 24 V load group with defined output conditions

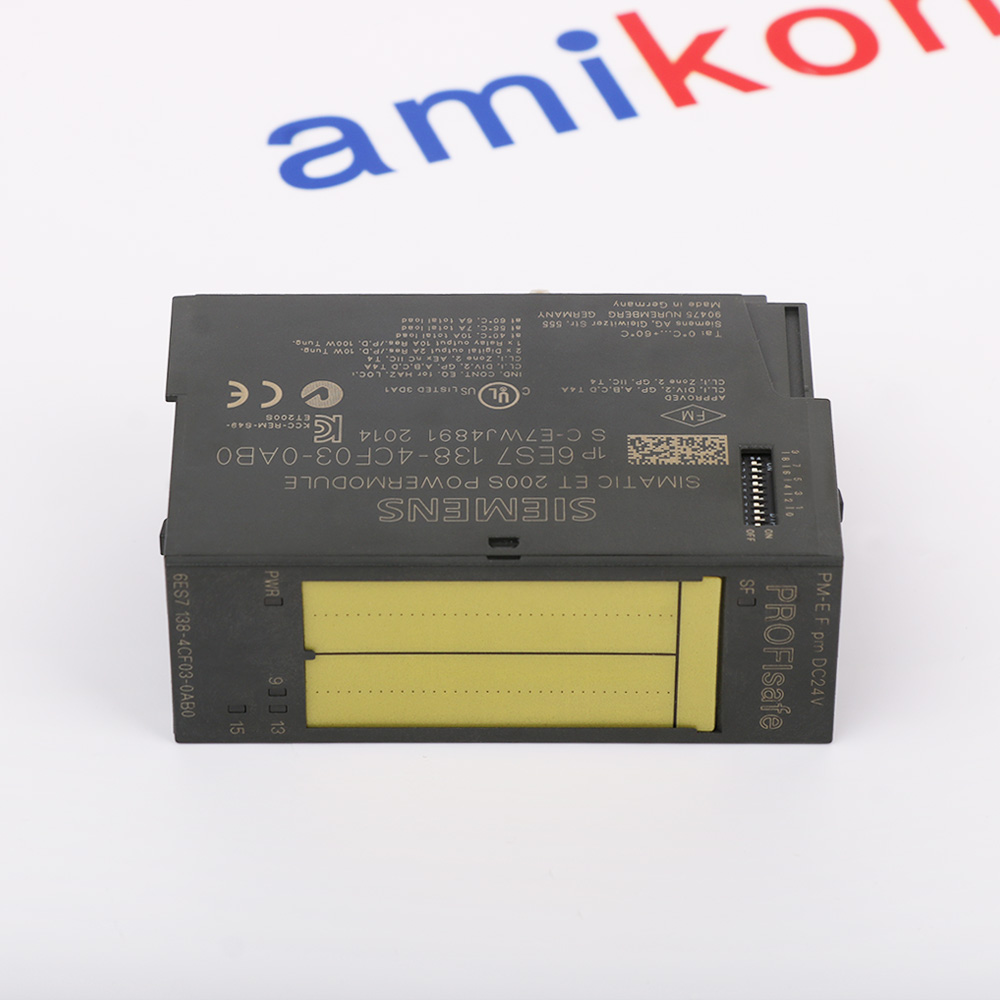

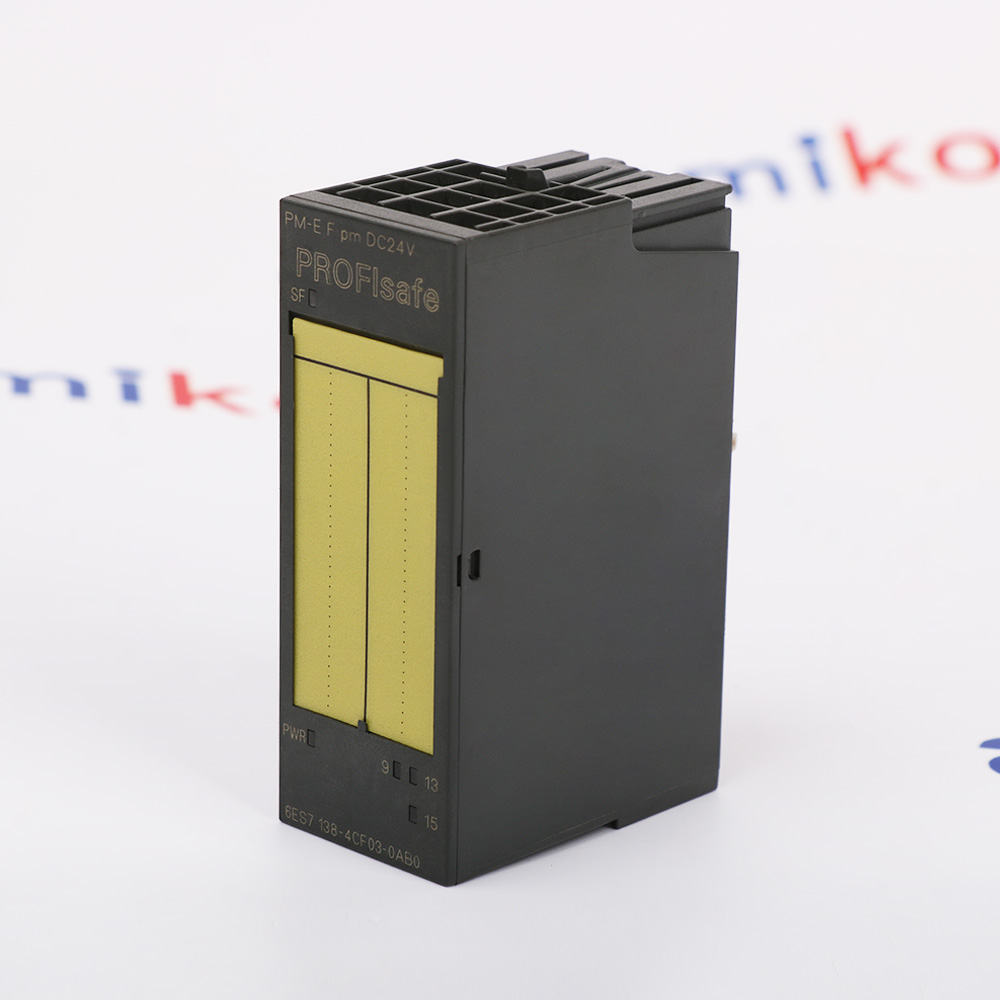

Siemens 6ES7138-4CF03-0AB0 is the ET 200S PM-E F pm DC24V PROFIsafe power module. It combines relay switching of the P1/P2 voltage buses with two additional P/M-switching fail-safe semiconductor outputs for suitable 24 V DC loads.
The module supports safety-related shutdown within a correctly engineered F-system. Selection must account for the intended load group, relay switching interval, external protection, temperature-dependent current limits and safety-program validation; its maximum attainable safety class is not an unconditional rating for the complete machine.
The module supports safety-related shutdown within a correctly engineered F-system. Selection must account for the intended load group, relay switching interval, external protection, temperature-dependent current limits and safety-program validation; its maximum attainable safety class is not an unconditional rating for the complete machine.
BEFORE YOU BUY
Confirm the complete installed configuration
- Confirm the full 4CF03 code, hardware release and maintained F-system project.
- Check whether the application needs group shutdown or separate fail-safe outputs.
- Verify the terminal module, external 10 A B-characteristic breaker and actual load wiring.
- Review relay switching intervals, ambient temperature, current budget and safety validation records.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · WATER & WASTEWATER
Desalination and Water Distribution
Seawater desalination for additional freshwater supply within water utilities.Drinking water distribution through networks serving public supply needs. -
02 · PLASTICS PROCESSING
Extrusion and Injection Molding
Plastic extrusion for material production within the plastics industry.Injection molding for plastic product manufacturing across industrial markets. -
03 · FOOD & BEVERAGE
Edible Oil and Sugar Production
Edible oil production and processing across the food manufacturing sector.Sugar manufacturing and processing within the commercial food industry.
Technical specifications for 6ES7138-4CF03-0AB0
-
Product Model6ES7138-4CF03-0AB0
-
Product ParametersET 200S Fail-Safe Power Module
-
ManufacturerSiemens
-
Output arrangement2 P/M-switching semiconductor outputs plus 1 P/M-switching relay output for P1/P2
-
Rated load supply24 V DC; permissible range 20.4-28.8 V DC; no reverse-polarity protection
-
Semiconductor output current2 A rated per channel; permitted on-state range 20 mA to 2.4 A
-
Total-current deratingHorizontal: 10 A up to 40 °C, 7 A up to 55 °C, 6 A up to 60 °C; vertical: 6 A up to 40 °C
-
Relay protectionNo output short-circuit protection; external 10 A circuit breaker with B characteristic required
-
Compatible terminal modulesTM-P30S44-A0 or TM-P30C44-A0
-
Process-image allocation5 input bytes and 5 output bytes; access only the documented useful-data bits
-
PROFIsafe destination address1-1022; physical DIP setting must match HW Config and satisfy network uniqueness rules
-
F monitoring time10-10,000 ms; default 150 ms
-
Output readback timeSelectable 1, 5, 10, 50, 100, 200 or 400 ms per electronic output; default 1 ms; load and interference restrictions apply
-
Maximum output cable length200 m, shielded or unshielded; route P and M signal lines together in one cable or sheathed cable
-
Semiconductor load limits12 ohm to 1 kohm load resistance; lamp load maximum 10 W
-
Module supply consumptionBackplane maximum 28 mA; L+ typical 100 mA without load; typical power loss 4 W
-
Isolation arrangementOutputs isolated from backplane; no isolation between channels or from their power supply
-
Operational diagnosticsSF red LED, load-supply and output-status green LEDs; diagnostic functions are not safety-related signals
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S SAFETY-CONTROLLED LOAD GROUP
Validate the complete shutdown path, not only the module rating
Integrate the module into a supported ET 200S F-system with the appropriate interface, F-CPU and engineering software. Configure the PROFIsafe address before installation and make the physical DIP setting match the project. The module operates in safety mode only; its five-byte input and output allocations include protocol data that the application must not overwrite.
For a standard output group, the documented function is safety-related shutdown, not safety-related activation. Assess undetected standard-output faults, process feedback and the time available for the safety program to establish a safe state. The reviewed original diagrams contain inconsistent P1/P2 polarity labels; obtain manufacturer clarification for the actual wiring rather than treating this product overview as an installation instruction.
Review the relay protection, temperature-dependent current budget and permitted output loading as separate selection checks. Grounded loads, test pulses and capacitive discharge also affect the engineered safety function. Keep the 2015 safety-characteristic information and 2022 approval corrections with the project records. Those supplements qualify historical information but do not, in the reviewed text, resolve the P1/P2 diagram discrepancy.
Features:
- Matched F-system and PROFIsafe address
- Process-feedback-based group shutdown
- Protected and thermally qualified load circuit
The Siemens 6ES7138-4CF03-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Identify the complete 6ES7138-4CF03-0AB0 order number, existing release and maintained safety project before replacing hardware. Check the installed TM-P30 terminal module and distinguish the relay-controlled group from the two individual semiconductor outputs. A common ET 200S form factor does not establish interchangeability with a standard power module or a different fail-safe switching design.
Switch off the load voltage and follow the station maintenance procedure before withdrawing the power module. Preserve the established PROFIsafe address and verify it against HW Config. Retain the approved installation drawings: the reviewed manual diagrams disagree on P1/P2 labels, and this reference does not select one interpretation or authorize rewiring or an unspecified substitute.
Restore the intended channel activation, readback and fault-passivation settings, then correct and acknowledge any communication or channel faults through the safety program. Validate the actual safety function, including process feedback and relay switching conditions, and document the result. Keep the later Siemens safety and approval supplements with the equipment records; LED status alone cannot demonstrate a safe installation.
Features:
- Exact identity and terminal arrangement
- Load-off replacement and address retention
- Safety-function revalidation and records
The Siemens 6ES7138-4CF03-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable later product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4CF03-0AB0 provides product references with source editions identified. Installation documentation with unresolved conflicts is not provided . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7138-4CF03-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does this module make standard outputs safe to switch on?
No. Siemens permits safety-related shutdown of the connected standard output group, not safety-related activation. This standard-output combination is limited to SIL 2 / Category 3 / PL d, even though individual module output paths can have higher attainable ratings. External L+ shorts at standard outputs are not detected; the F-system must evaluate suitable process feedback within the application's process safety time. -
Is SIL 3 / Category 4 / PL e available without additional conditions?
No. For the relay output path itself, the manual requires switching at least monthly for its maximum SIL 3 / Category 4 / PL e; less frequent switching is limited to SIL 2 / Category 3 / PL d. This does not raise a downstream standard-output group above its SIL 2 / Category 3 / PL d limit. The two semiconductor outputs have separate wiring conditions, and the complete safety function requires validation. -
Can the relay output rely only on internal protection?
No. Siemens requires an external 10 A B-characteristic circuit breaker for L+ to protect the relay contacts; the relay output has no short-circuit protection. The reviewed 2013 diagrams disagree on P1/P2 polarity labels, so this product reference supplies no installation drawing or terminal-connection recipe. Obtain manufacturer clarification before wiring. -
Why can grounded or capacitive loads cause a fault?
A chassis-ground connection can bridge the M-switch, while capacitive loads may not discharge within the selected readback time. Siemens supplies specific grounding, capacitance, resistance and readback guidance. Do not bypass diagnostics or increase timing without checking the safety design, interference conditions and required response time. -
Can the module be replaced while its load supply remains on?
No. The manual's hot-swap table requires the load voltage to be switched off for PM-E F pm replacement. Preserve the configured PROFIsafe DIP address. Replacement generates a communication error requiring acknowledgment in the safety program; the process remains passivated if the required acknowledgment is not completed. -
What should happen after a short-circuit or prolonged passivation?
Correct the fault and revalidate the safety function before acknowledgment. Siemens requires fault repair within the documented 100-hour interval, or removal/supply isolation of the affected module before that interval expires. Record the repair and validation; an SF indication or its absence must not be used as the safety function itself.
