PRODUCT DESCRIPTION
PROFIsafe shutdown of a load group with two additional P/M outputs

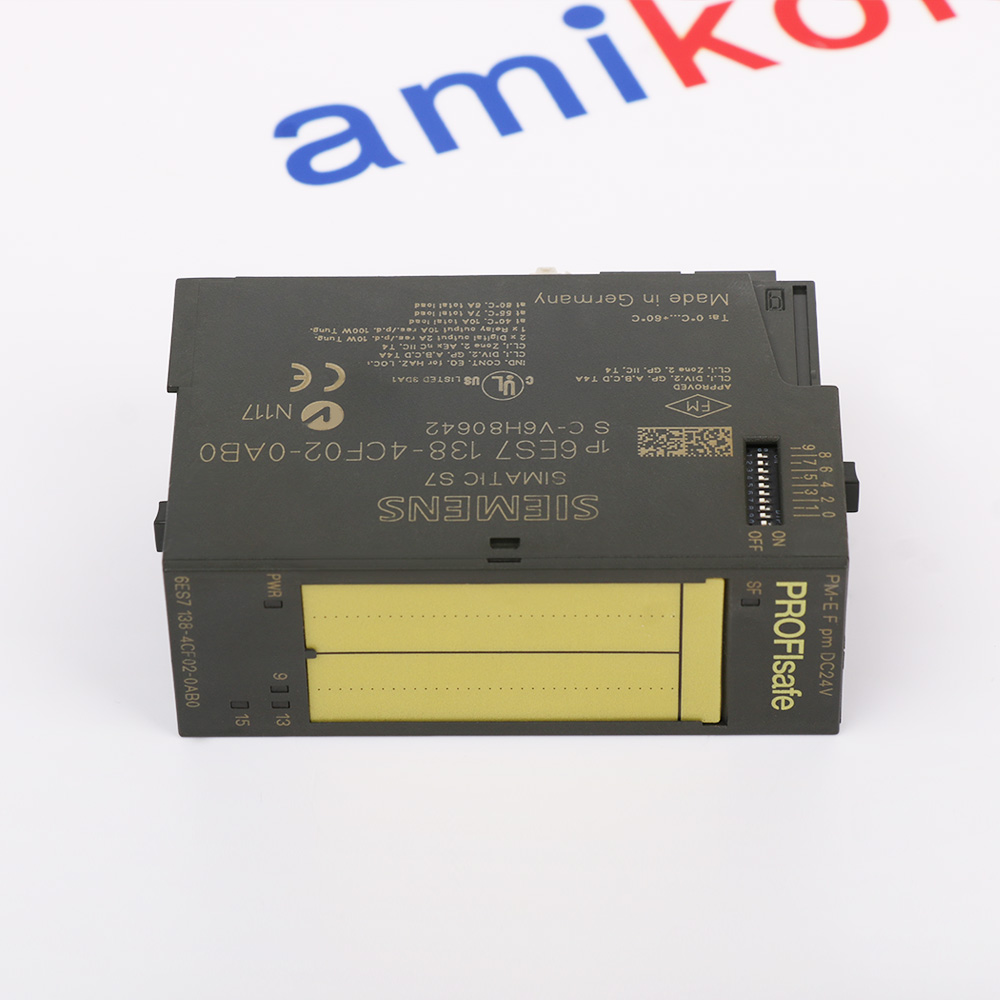

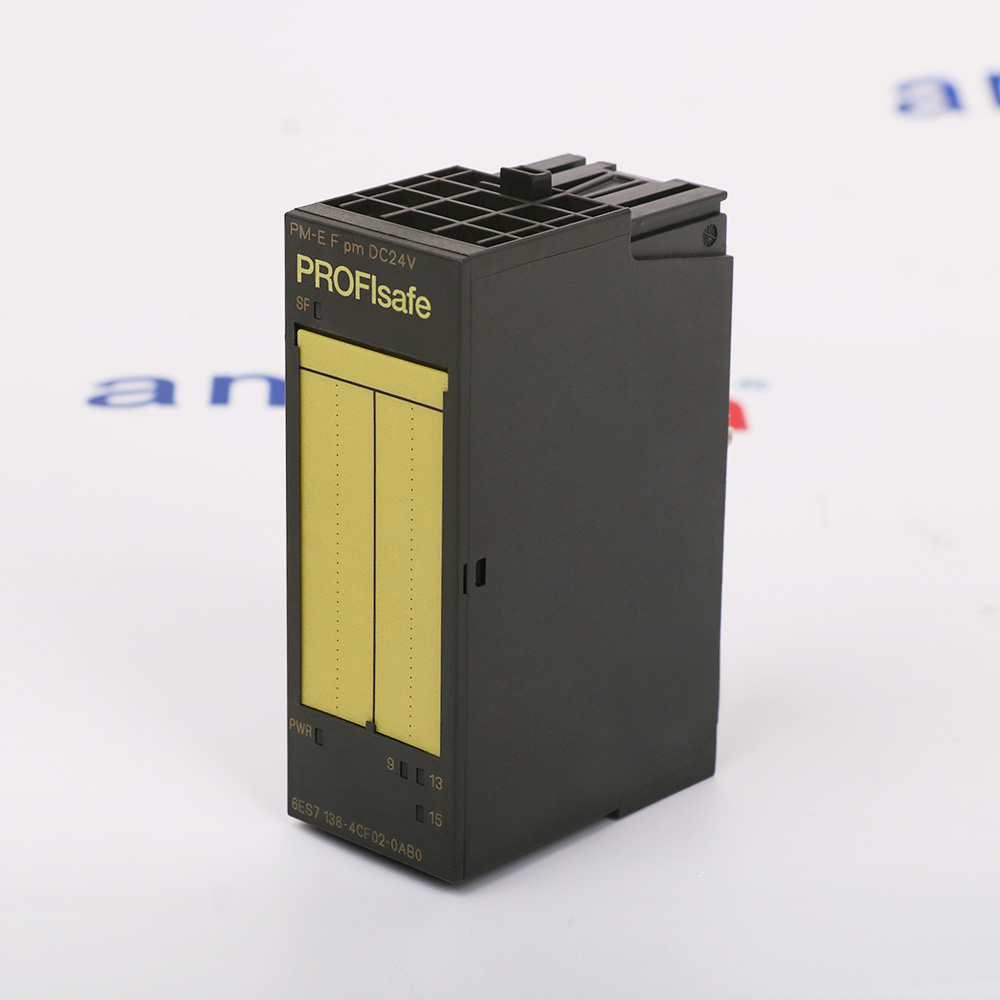

Siemens 6ES7138-4CF02-0AB0 is the PM-E F pm DC24V PROFIsafe power module for SIMATIC ET 200S. It combines relay switching of the P1/P2 voltage buses with two separate P/M-switching semiconductor outputs. The exact safety capability depends on the connected modules and switching arrangement.
The module supports documented shutdown functions for compatible loads such as solenoid valves and DC contactors. It is not a universal safety enable or voltage converter. Engineering must address the terminal base, external relay-contact protection, PROFIsafe address and complete system-level safety assessment.
The module supports documented shutdown functions for compatible loads such as solenoid valves and DC contactors. It is not a universal safety enable or voltage converter. Engineering must address the terminal base, external relay-contact protection, PROFIsafe address and complete system-level safety assessment.
BEFORE YOU BUY
Confirm the complete installed configuration
- Match full CF02 order code and release, not just the PM-E family name.
- Review the actual downstream standard modules and required safety class.
- Confirm TM-P30S44-A0 or TM-P30C44-A0 and external contact protection.
- Record the PROFIsafe destination address, readback setting and approved safety program.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · FOOD & BEVERAGE
Dairy, Bakery and Confectionery
Dairy production and processing within the commercial food industry.Bakery and confectionery manufacturing across diverse consumer food categories. -
02 · TEXTILE MANUFACTURING
Fabric Production and Textile Finishing
Fabric production spanning the wider commercial textile manufacturing sector.Textile finishing for materials within the commercial fabric industry. -
03 · METAL FORMING
Sheet Metal and Wire Processing
Sheet metal processing within the broader metal forming industry.Wire processing for metal products across industrial manufacturing sectors.
Technical specifications for 6ES7138-4CF02-0AB0
-
Product Model6ES7138-4CF02-0AB0
-
Product ParametersET 200S Fail-Safe Power and Output Module
-
ManufacturerSiemens
-
Rated load supply24 V DC; permissible 20.4-28.8 V
-
Output arrangement2 P/M semiconductor outputs plus 1 P/M relay output
-
Semiconductor output current2 A rated per output; permitted on-state load 20 mA-2.4 A
-
Group-current deratingHorizontal: 10 A to 40°C, 7 A to 55°C, 6 A to 60°C; vertical: 6 A to 40°C
-
External relay protection10 A B-characteristic circuit breaker required by original manual
-
Process-image allocation5 input bytes and 5 output bytes; only useful-data bits may be accessed
-
PROFIsafe destination address1-1022; switch setting must match configuration and uniqueness rules
-
Readback time1/5/10/50/100/200/400 ms; default 1 ms
-
Backplane current consumptionMaximum 28 mA
-
No-load current from L+Typical 100 mA
-
Typical power dissipation4 W
-
Reverse-polarity protectionNot provided
-
Terminal module typesTM-P30S44-A0 or TM-P30C44-A0
-
Maximum actuator cable length200 m; P and M signal lines routed together as specified
-
Semiconductor load range12 ohm-1 kohm; maximum 10 W lamp load
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
PROFISAFE LOAD-GROUP SHUTDOWN
Validate the complete P/M switching arrangement
Separate the two semiconductor outputs from the relay-switched potential group when defining the application. Siemens documents different safety-class conditions for individual outputs and for standard electronic modules supplied through P1/P2. The relevant table also distinguishes relay switching frequency. Review the entire output path and the approved F-program before treating a module-level capability as a system-level result.
Use the specified terminal module and retain the documented conductor arrangement. DO2 has duplicated terminal connections that require parallel wiring under the stated high-current condition to avoid terminal heating. An external protective device is required for the relay contacts. The full wiring chapter also addresses load grounding, cable routing and the limits of detecting external shorts.
Set the PROFIsafe destination address to match the project's hardware configuration and applicable uniqueness rules. The reserved process-image area includes safety communication, so application access is limited to the useful-data bits. Readback time, wire-break monitoring and channel-fault behavior require deliberate parameter selection; an unsuitable readback setting can cause passivation when connected loads are capacitive.
Features:
- Separate relay and semiconductor paths
- External protection and terminal checks
- F-address and diagnostic configuration
The Siemens 6ES7138-4CF02-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the full order number, release identification, terminal module and configured PROFIsafe address before selecting a replacement. A similar PM-E designation does not prove equivalent wiring or safety behavior. The exact historical manual identifies CF02 separately from other P/M and P/P products, so preserve the installed system documentation and assess proposed alternatives through the applicable manufacturer compatibility evidence.
Review the F-program response to a communication interruption before any authorized maintenance. Siemens explains that replacing an F-module during operation can generate an F-CPU communication error, and the required acknowledgment is handled in the safety program. Do not bypass a safety function to restore production; the plant's qualified personnel must use the approved maintenance and recommissioning procedure.
Reassess the complete safety documentation when introducing a different product revision or redesigning the load group. Later Siemens Product Information gives updated reliability data for this exact order code, while the historical manual contains wiring-specific limits. Preserve both sources and the required operating assumptions, including repair time, mission time and contributions from the controller, communication, sensors and actuators.
Features:
- Exact hardware identity retained
- Safety-program acknowledgment respected
- Later safety information included
The Siemens 6ES7138-4CF02-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable later product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4CF02-0AB0 provides product references with source editions identified. Use the exact model-specific source pages . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7138-4CF02-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does every output arrangement achieve SIL3?
No. Siemens distinguishes the semiconductor outputs, relay switching frequency and use of standard DO modules. The 2005 exact-model table gives different achievable classes for these arrangements. The safety level must be checked for the complete installed circuit, not inferred from the family name. -
What is the purpose of the two semiconductor outputs?
DO0 and DO1 are separately controlled P/M-switching fail-safe outputs. They are distinct from relay output DO2, which switches the voltage buses and associated terminal connections. Do not combine them into a generic claim of three identical 2 A outputs. -
Does the module provide safety-related activation?
The manual explicitly limits the group arrangement to safety-related shutdown, not safety-related activation. Faults such as an external short to L+ require the specified system measures. This product page cannot replace the safety circuit design and validation. -
What external protection is required for the relay path?
Siemens specifies an external 10 A B-characteristic circuit breaker in the L+ feed to protect the relay contacts. The relay output has no internal short-circuit protection. The exact wiring and applicable project protection requirements must be checked before installation. -
Can its LEDs be used as safety feedback?
No. Siemens states that the output status LEDs must not be used for safety-related activities. They help with local diagnostics, but the approved F-program and required sensor or actuator feedback determine the safety function. -
Which safety reliability figures should be used?
The 2015 Siemens Product Information explicitly lists CF02 and provides newer PFDavg/PFH values with a 100-hour repair time and 20-year mission time. Do not copy the older 2005 numerical table into a current safety calculation without checking the later document and full system contribution.
