PRODUCT DESCRIPTION
Four standard outputs within a four-ampere module budget

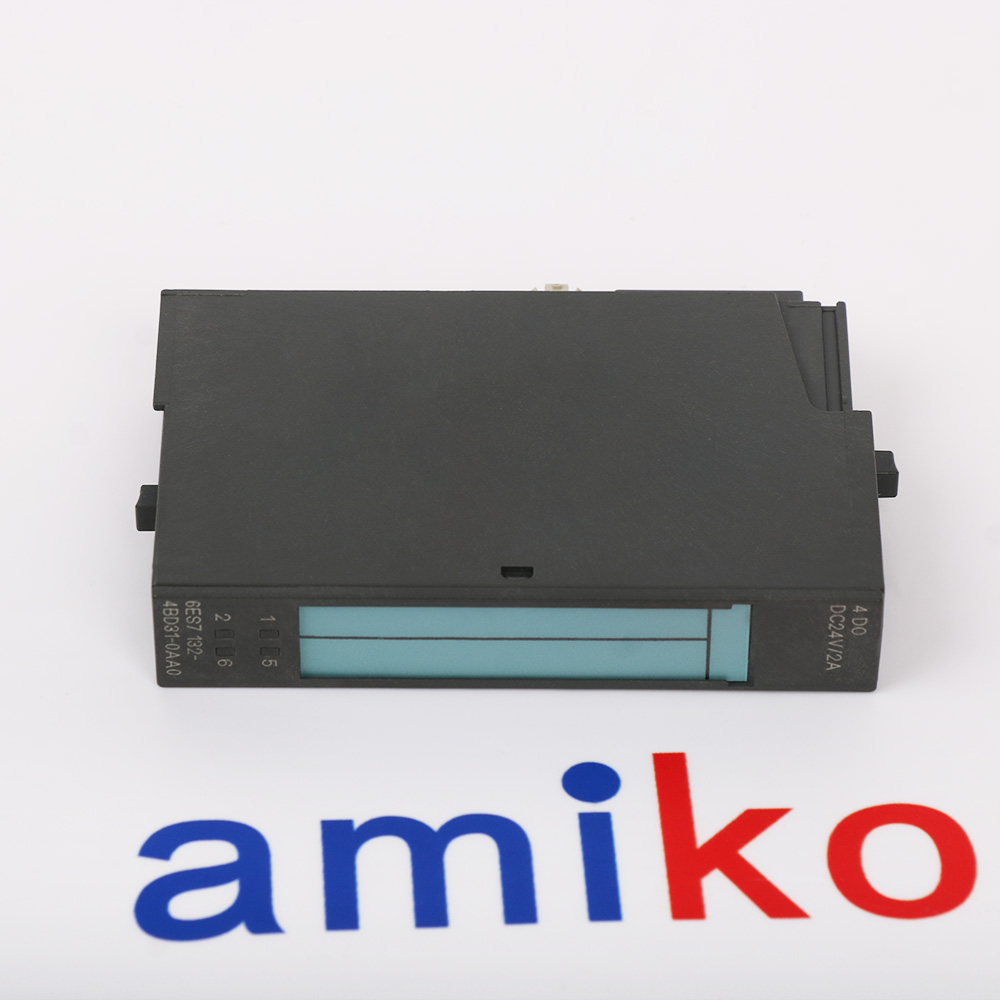

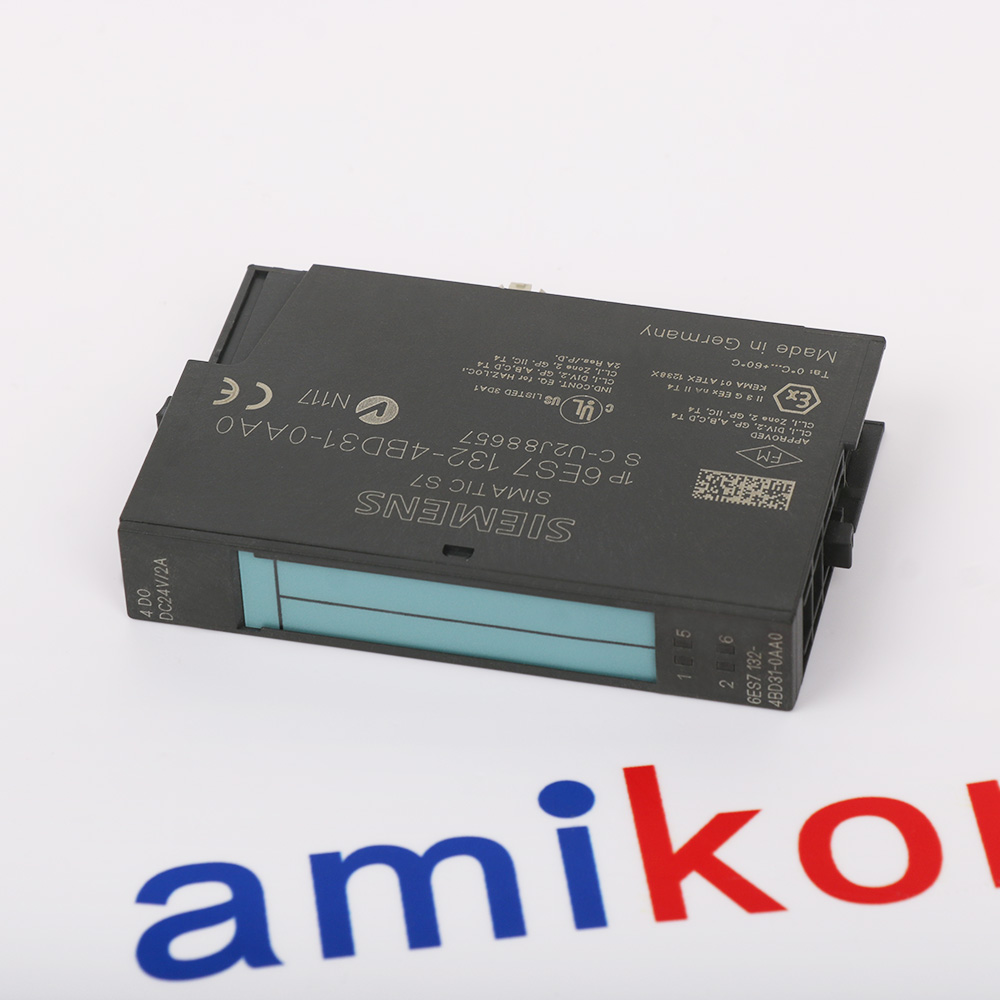

Siemens 6ES7132-4BD31-0AA0 is a four-channel Standard digital output module for SIMATIC ET 200S. It switches 24 V DC loads at a rated current of 2 A per channel, with a maximum total output current of 4 A per module.
The electronics provide output short-circuit protection and separate green channel indicators. They are isolated from the backplane bus, but individual channels are not mutually isolated. The selected ET 200S terminal module provides permanent field wiring, while this Standard version has no diagnostic function.
The electronics provide output short-circuit protection and separate green channel indicators. They are isolated from the backplane bus, but individual channels are not mutually isolated. The selected ET 200S terminal module provides permanent field wiring, while this Standard version has no diagnostic function.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7132-4BD31-0AA0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · FOOD & BEVERAGE
Food Processing and Beverage Production for Consumer Markets
Food preparation and processing for packaged consumer product supply.Commercial beverage manufacturing for retail and hospitality market distribution. -
02 · TEXTILE MANUFACTURING
Textile Material Production and Commercial Fabric Finishing
Fiber processing and yarn manufacturing for industrial textile production.Fabric production and finishing for commercial textile product supply. -
03 · WATER & WASTEWATER
Public Water Supply and Industrial Wastewater Treatment
Treatment and distribution of drinking water for public supply.Collection and processing of wastewater from communities and industries.
Technical specifications for 6ES7132-4BD31-0AA0
-
Product Model6ES7132-4BD31-0AA0
-
Product ParametersET 200S 4-Channel Output Module
-
ManufacturerSiemens
-
Output channels4
-
Rated load voltage24 V DC from the power module
-
Output current2 A rated per channel; 4 A maximum total per module
-
On-state output voltageAt least L+ minus 1 V
-
Off-state residual currentMaximum 0.5 mA
-
Resistive-load switching delayMaximum 200 microseconds on; 1.3 ms off
-
Load-resistance range12 ohm to 3.4 kohm
-
Lamp loadMaximum 10 W
-
Resistive-load switching frequency100 Hz
-
Power lossTypically 1.6 W
-
Cable lengthMaximum 1000 m shielded; 600 m unshielded
-
Process address space1 byte, or 4 bits when packed
-
Channel isolationIsolated from backplane bus; not between channels
-
Isochronous operationNot supported
-
DiagnosticsNo diagnostic function; channel state LEDs
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S STANDARD OUTPUTS
Load switching with permanent terminal connections
The module supplies 4 output channels through its ET 200S terminal module. The total module current is limited independently from the nominal 2 A rating of each output.
Green indicators show output state, while this Standard module does not provide channel diagnostic reporting. The field circuit should therefore not rely on an absent wire-break alarm.
Terminal availability depends on the selected terminal module. Compare output, reference and auxiliary connections with the original diagram before commissioning.
Features:
- 4 output channels with a shared current budget
- Backplane isolation with shared channel reference
- Separate output state indicators
The Siemens 6ES7132-4BD31-0AA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Identify the complete output-module and terminal-module order numbers before replacement. Preserve the existing channel addresses and confirm which auxiliary terminals are actually fitted.
Recheck the power-module polarity, individual load currents and 4 A aggregate limit. Do not connect outputs in parallel merely to obtain a higher current rating.
Validate each output state after installation and account for the documented supply-connection transient where high-speed counting inputs are connected.
Features:
- Exact output and terminal-module matching
- Individual and aggregate load checks
- Channel-state and wiring verification
The Siemens 6ES7132-4BD31-0AA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal and block diagrams with polarity, per-channel and aggregate load limits and connection-transient conditions.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7132-4BD31-0AA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7132-4BD31-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can the outputs be paralleled to increase load current?
No. The manual permits redundant control of a load under its stated arrangement, but expressly excludes parallel connection for increased output capacity. -
Does the 2 A channel rating remove the module current limit?
No. The module total remains limited to 4 A across its 4 outputs. Individual and aggregate load limits must both be respected. -
Does reverse-polarity protection guarantee that outputs remain off?
No. The manufacturer warns that reversed polarity can switch the digital outputs through. Correct supply polarity must be verified. -
What happens when load voltage is applied through a mechanical contact?
The manufacturer notes a possible high signal lasting approximately 50 microseconds. This transient must be considered when connecting high-speed counters. -
Does this Standard module provide wire-break diagnostics?
No. Its documented indication is output status; the technical data state that diagnostic functions are not provided. -
Is the terminal block included in the electronics-module dimensions?
No. The electronics and terminal module are separate elements. Select a listed terminal-module type and verify the complete assembled dimensions and wiring.
