PRODUCT DESCRIPTION
Bring monitored 24 V inputs into a PROFIsafe station

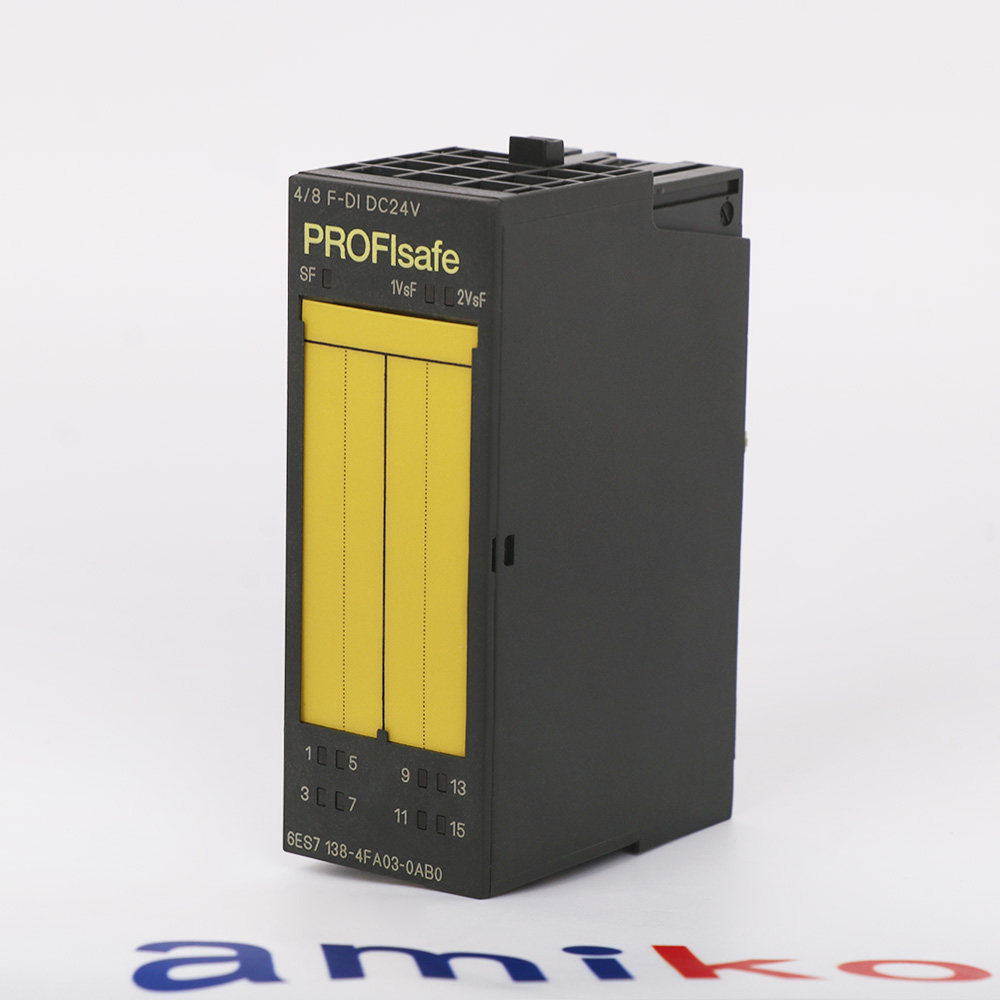

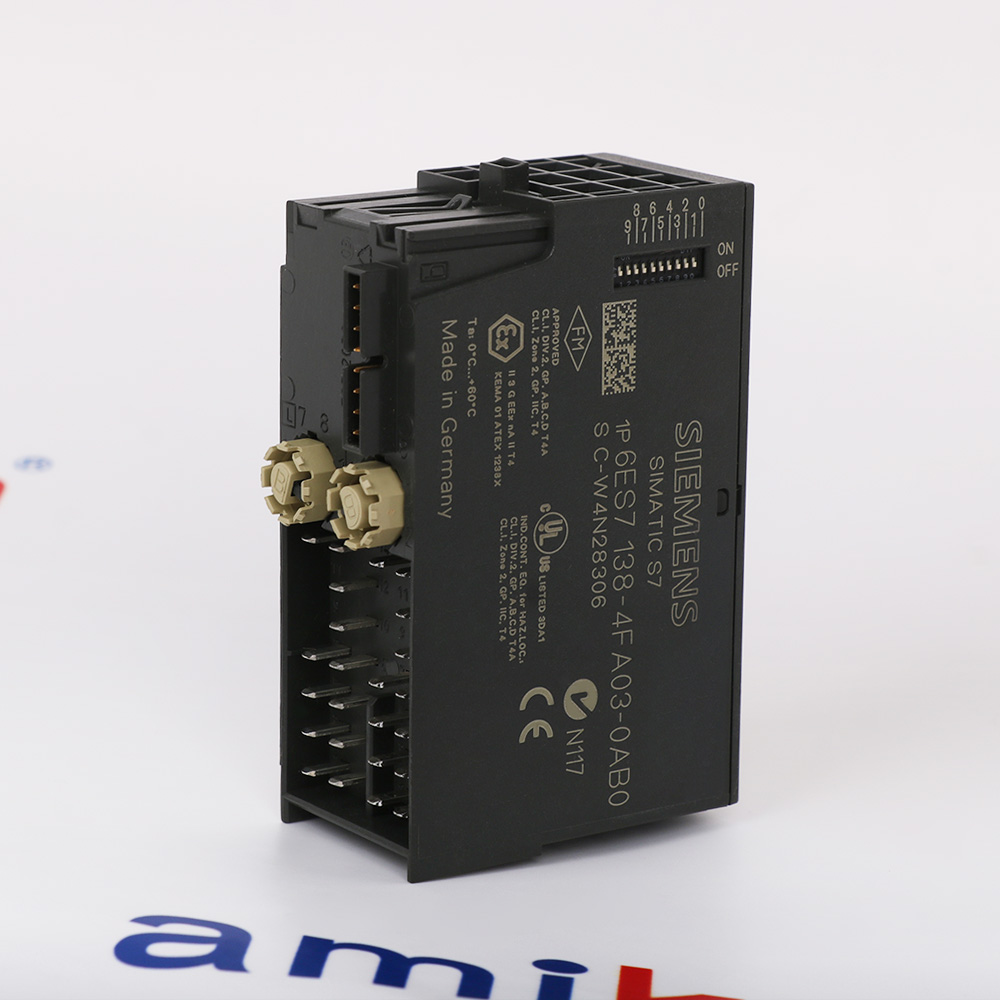

Siemens 6ES7138-4FA03-0AB0 is an ET 200S electronic module for acquiring 24 V digital signals through PROFIsafe. It offers eight single-channel inputs or four two-channel evaluations, with configurable input delay, integrated sensor-supply outputs and local diagnostic indication.
The exact-model datasheet also identifies use in a PROFINET configuration with IM 151-3 HF. Electrical isolation separates the input circuitry from the backplane, while channel-to-channel separation is not provided; sensor selection, station supply and the safety assessment therefore remain important integration checks.
The exact-model datasheet also identifies use in a PROFINET configuration with IM 151-3 HF. Electrical isolation separates the input circuitry from the backplane, while channel-to-channel separation is not provided; sensor selection, station supply and the safety assessment therefore remain important integration checks.
BEFORE YOU BUY
Confirm the complete installed configuration
- Confirm FA03 on the complete label rather than selecting by family appearance.
- Check the interface configuration and the actual potential-group power module.
- Compare sensor electrical characteristics and configured input evaluation.
- Retain the safety assessment and obtain exact installation records before commissioning.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · TEXTILE MANUFACTURING
Manufactured Fibers and Textile Finishing
Manufactured fiber production for the wider textile manufacturing sector.Textile finishing for materials within the commercial fabric industry. -
02 · PLASTICS PROCESSING
Extruded and Thermoformed Plastics
Plastic extrusion for material production within the plastics industry.Thermoforming as a manufacturing route for shaped plastic products. -
03 · PACKAGING
Food and Beverage Packaging
Food product packaging across the commercial food manufacturing sector.Beverage packaging for finished products in the drinks industry.
Technical specifications for 6ES7138-4FA03-0AB0
-
Product Model6ES7138-4FA03-0AB0
-
Product ParametersET 200S Safety Input Module
-
ManufacturerSiemens
-
Digital input configuration8 single-channel inputs or 4 two-channel evaluations
-
Rated supply24 V DC; no reverse-polarity protection
-
PROFINET configurationIdentified for use with IM 151-3 HF; verify the maintained station configuration
-
Address-space occupation6 input bytes and 4 output bytes
-
Sensor-supply outputs2 outputs; 0-300 mA per output
-
Sensor-supply voltageMinimum L+ minus 1.5 V
-
Sensor-supply protectionElectronic short-circuit protection, response threshold 0.7-1.8 A
-
Input voltage levelsSignal 0: -30 to +5 V; signal 1: +15 to +30 V
-
High-signal input current3.7 mA typical
-
Configurable input delayPublished transition-delay bounds 0.3-17 ms for both directions; not complete safety-response time
-
Input characteristicIEC 61131 Type 1
-
Two-wire sensor connectionNot supported
-
Electrical separationInputs isolated from backplane; no separation between channels or from L+
-
Diagnostic indicationDiagnostic function, red SF group-error LED and green input-status LEDs
-
Typical power loss4 W
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S PROFIsafe SIGNAL ACQUISITION
Review the station supply before applying the input ratings
The FA03 datasheet identifies a PROFIsafe input module that can also be used with IM 151-3 HF in a PROFINET configuration. Record the actual interface and configured module identity before planning the signal path. Eight single-channel inputs and four two-channel evaluations are different ways of using the hardware, so the engineering project must describe the intended arrangement.
The field-side electrical checks should include sensor output levels, input current and the two protected supply outputs. The input circuit is isolated from the backplane but not between channels or from L+. These distinctions matter when reviewing shared circuit references and external supplies; the 24 V label does not by itself demonstrate that an arbitrary sensor connection is suitable.
Assess the complete potential group rather than reading the maximum safety class as a standalone approval. Siemens explicitly distinguishes the older FA03 when assigning power modules. Keep that table with the safety assessment, and use the exact-model 2015 characteristic information only with its stated repair-time, mission-time and complete-function assumptions. The selected references do not authorize new field wiring.
Features:
- Interface-specific station review
- Shared field-reference assessment
- Power-group safety limitations
The Siemens 6ES7138-4FA03-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Read the full 6ES7138-4FA03-0AB0 marking before ordering a spare and compare it with the approved station documentation. Keep existing images, labels and configuration records together so that the supplier and maintenance team are discussing the same suffix. The sources reviewed here do not establish an unconditional substitute for this exact article number.
Before replacing the module, compare the existing single-channel or paired evaluation with the documented sensor connections and potential-group supply. Confirm that the replacement retains the input characteristic, protected sensor-supply arrangement and backplane isolation required by the project. These checks are particularly important when a station has been modified since its original validation or when a different power module is proposed.
After the hardware identity has been established, use the applicable original installation and project records to plan commissioning and validation. The 2020 datasheet and 2015 component-characteristic information serve different purposes and should not be treated as a complete wiring manual. Record unresolved interface, safety or documentation questions before release, rather than importing settings from the later FA05 chapter.
Features:
- Suffix-bound spare identification
- Supply and sensor continuity checks
- Original commissioning records required
The Siemens 6ES7138-4FA03-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4FA03-0AB0 provides product references with source editions identified. Installation documentation with unresolved conflicts is not provided . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7138-4FA03-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this an ordinary eight-channel digital input card?
No. Siemens identifies the exact FA03 as an ET 200S 4/8 F-DI PROFIsafe electronic module. Its single-channel and two-channel configurations are distinct evaluation arrangements. The system configuration and intended safety function must be checked rather than choosing it solely because eight physical inputs are present. -
Can FA03 be used in a PROFINET station?
The exact-model Siemens datasheet explicitly identifies use in a PROFINET configuration with IM 151-3 HF. This does not establish compatibility with every ET200S interface or every engineering-software revision. Compare the installed interface and approved project before changing the station configuration. -
What electrical limits matter when selecting sensors?
Check the published signal thresholds and typical 3.7 mA high-state input current, as well as the sensor-supply voltage and current budget. Each of the two protected supply outputs supports up to 300 mA. The datasheet excludes two-wire sensors, so a two-wire device should not be selected from the voltage rating alone. -
Are all input channels electrically isolated from one another?
No. Siemens states isolation between the input circuitry and the backplane bus, but no channel-to-channel isolation and no separation from the load supply L+. Do not treat the module as eight individually isolated measurement channels when reviewing field-circuit references. -
Does the input-delay range state the machine stopping time?
No. The datasheet's 0.3-17 ms bounds describe configurable input transition delay. They do not describe the complete response of sensors, communication, safety logic and final switching devices. Determine the required complete-function timing from the applicable engineering documentation rather than using this single value. -
Can the maximum safety class be claimed with any power module?
No. The official ET 200S assignment table explicitly limits modules up to FA03 when supplied by PM-E DC24V up to 6ES7138-4CA01-0AA0. Other documented supplies have different limits. The retained original table must be reviewed with the sensor evaluation and complete safety design; the datasheet maximum is not an unconditional application rating. -
How should the 2015 safety-characteristic information be used?
It lists the exact FA03 as a component and provides values under a 100-hour repair-time assumption and a 20-year mission time. Siemens requires adding the contributions of the CPU, I/O, communication, sensors and actuators for the safety function. Those conditions are neither a remaining-life promise for a used unit nor a certificate for the complete machine. -
Why is there no separate installation PDF in this package?
The verified sources provide exact FA03 product data and applicable power-assignment context, but the available later operating manual's detailed input chapter covers FA05. Its wiring and settings have not been transferred to FA03. Obtain the applicable FA03 installation documentation before commissioning or changing field wiring.
