- 6ES7134-7SD00-0AB0

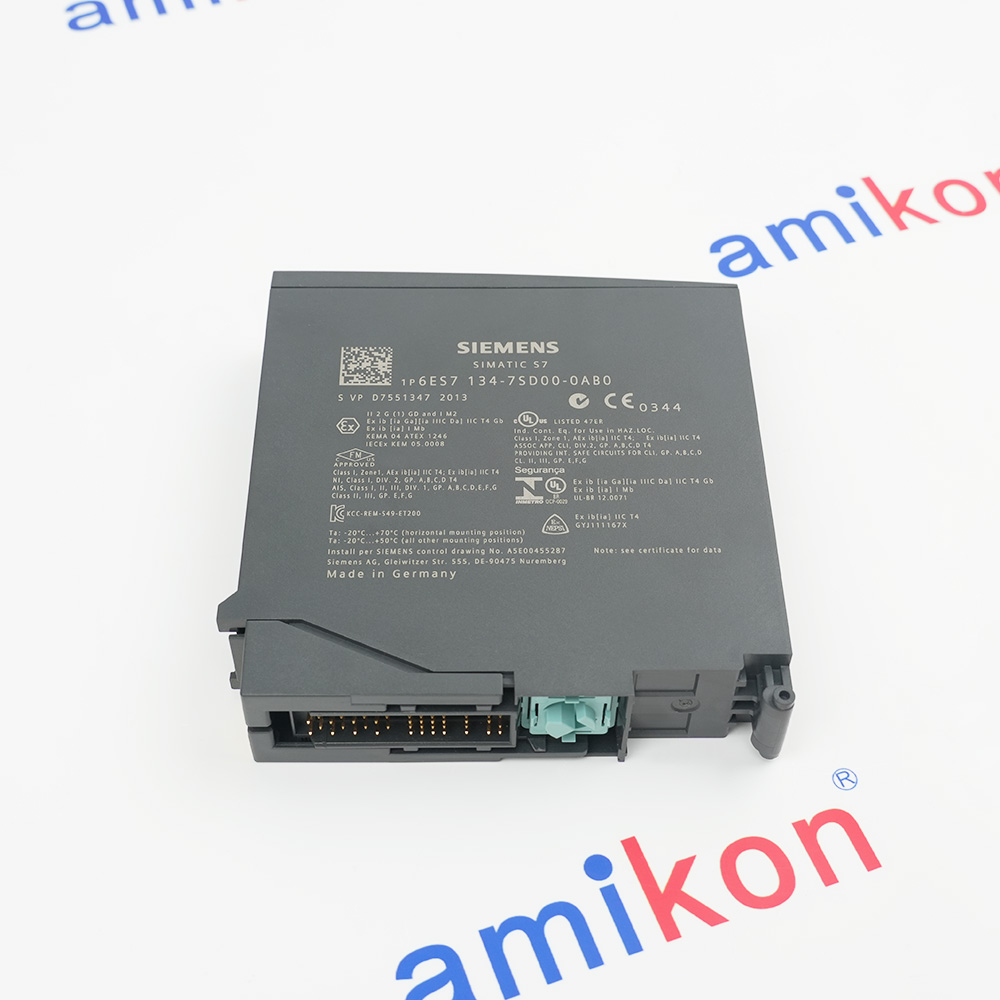

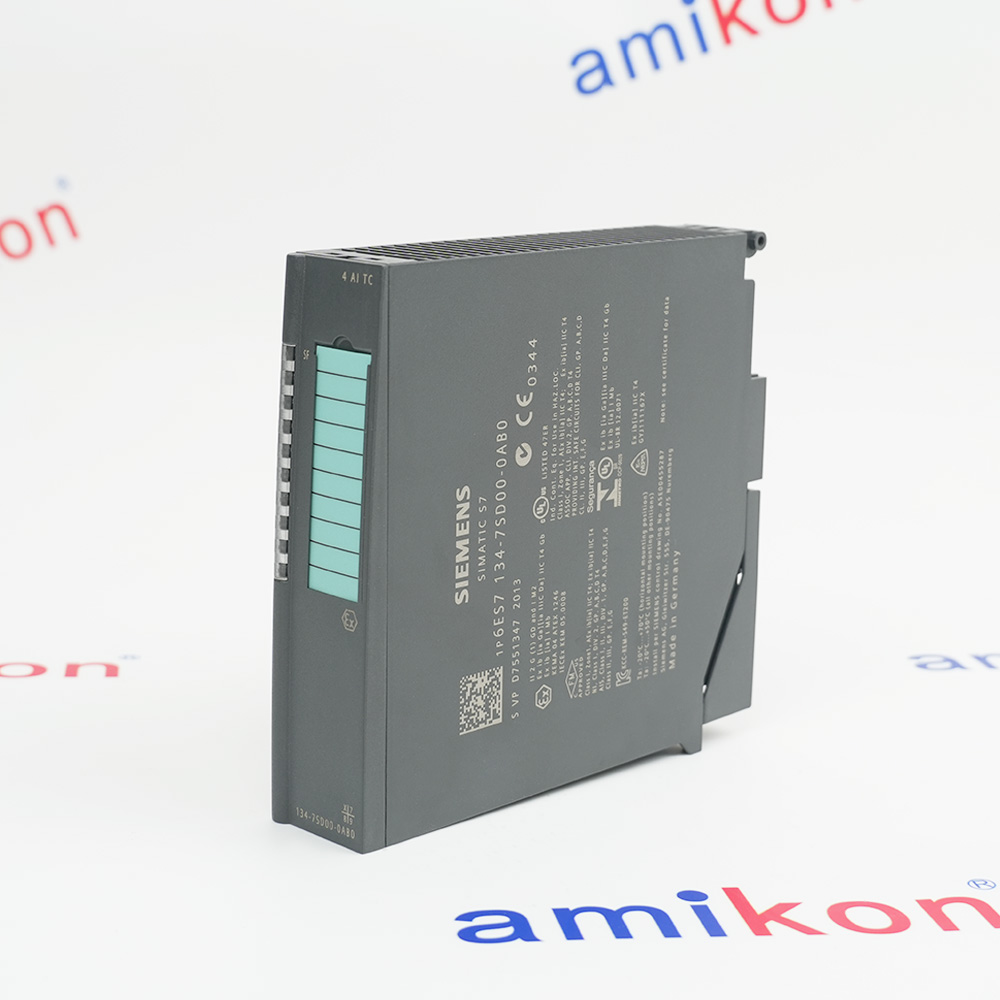

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7134-7SD00-0AB0
-
Product Model6ES7134-7SD00-0AB0
-
Product ParametersAnalog Input Module - TC
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3x13.3x12.8cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
from supply voltage L+, max.30 mA
-
Power loss, typ0.4 W
-
Number of analog inputs4
-
Input resistance (-80 mV to +80 mV)1 000 kΩ
-
shielded, max50 m
-
Common mode interference, min90 dB
-
Crosstalk between the inputs, min-50 dB
Description
6ES71347SD000AB0
SIMATIC DP
ELECTRONIC MODULE FOR ET200ISP
4 AI
TC: FOR CONNECTION OF
THERMOCOUPLES (VOLTAGE MEASUREMENT)
EX IB (IA GA) IIC T4 GB
EX IB [IA IIIC DA] IIC T4 GB
EX IB [IA] I MB
SIMATIC DP
ELECTRONIC MODULE FOR ET200ISP
4 AI
TC: FOR CONNECTION OF
THERMOCOUPLES (VOLTAGE MEASUREMENT)
EX IB (IA GA) IIC T4 GB
EX IB [IA IIIC DA] IIC T4 GB
EX IB [IA] I MB
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Connection
Features:
- SIMATIC DP
- SUBMODULE FOR ET200ISP
- VOLTAGEMEASUREMENT
The 6ES7134-7SD00-0AB0 SIEMENS Electronic module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7134-7SD00-0AB0 Electronic module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
4 inputs for thermocouple or thermoelectrical voltage
Input ranges– Thermal e.m.f. measurement: ± 80 mV– Thermocouples: Type B, E, J, K, L, N, R, S, T, U– Functional electric isolation, permissible common mode voltage 6.5 V DC, 30 V ACpp
Linearization of the sensor characteristic curves
Resolution of 15 bits + sign
Internal compensation of the reference junction temperature by means of TC sensor module(temperature sensor). The TC sensor module is supplied with the 4 AI TC. This is mountedon the terminal module of the 4 AI TC.
- Chemical & Petrochemical:Monitors reactor temps & distillation processes
- Oil & Gas:Offshore drilling & processing with gas-ex protection
- Pharmaceuticals & Paints:Temp control for sensitive mixing & production
- Technical Gases:Manages storage & distribution of volatile substances
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Inputs: Supports 4 analog inputs for thermocouples (Types E, N, J, K, L, S, R, B, T) or voltage measurement.
Cable Shielding: Use shielded cables with a maximum length of 200 meters to ensure signal integrity.
Temperature Compensation:
Internal: Using a compensation socket.
External: Via a temperature value acquired by another analog module in the same station.
FAQs
-
What is the 6ES7134-7SD00-0AB0?
+The Siemens 6ES7134-7SD00-0AB0 is a SIMATIC DP, electronic module designed for the ET 200iSP distributed I/O system, specifically used for analog input (4AI) in hazardous areas (TC - Thermocouple). -
What is the function of the 6ES7134-7SD00-0AB0?
+This is an electronic module for the ET 200iSP system with 4 analog inputs designed for connecting thermocouples (voltage measurement). It is suitable for hazardous environments, including Ex ib (ia Ga) IIC T4 Gb. -
What 6ES7134-7SD00-0AB0 types of thermocouples are supported?
+The module supports voltage measurement, typically used for thermocouples (TC) (e.g., types B, N, E, R, S, J, T, K, or custom voltage ranges). -
Does 6ES7134-7SD00-0AB0 module support HART?
+No, the 6ES7134-7SD00-0AB0 is a standard TC module. The HART-capable version is generally the 6ES7134-7TD00-0AB0 (4AI HART). -
What is the 6ES7134-7SD00-0AB0 power consumption?
+The power consumption from the backplane bus is low, typically around 30 mA.
