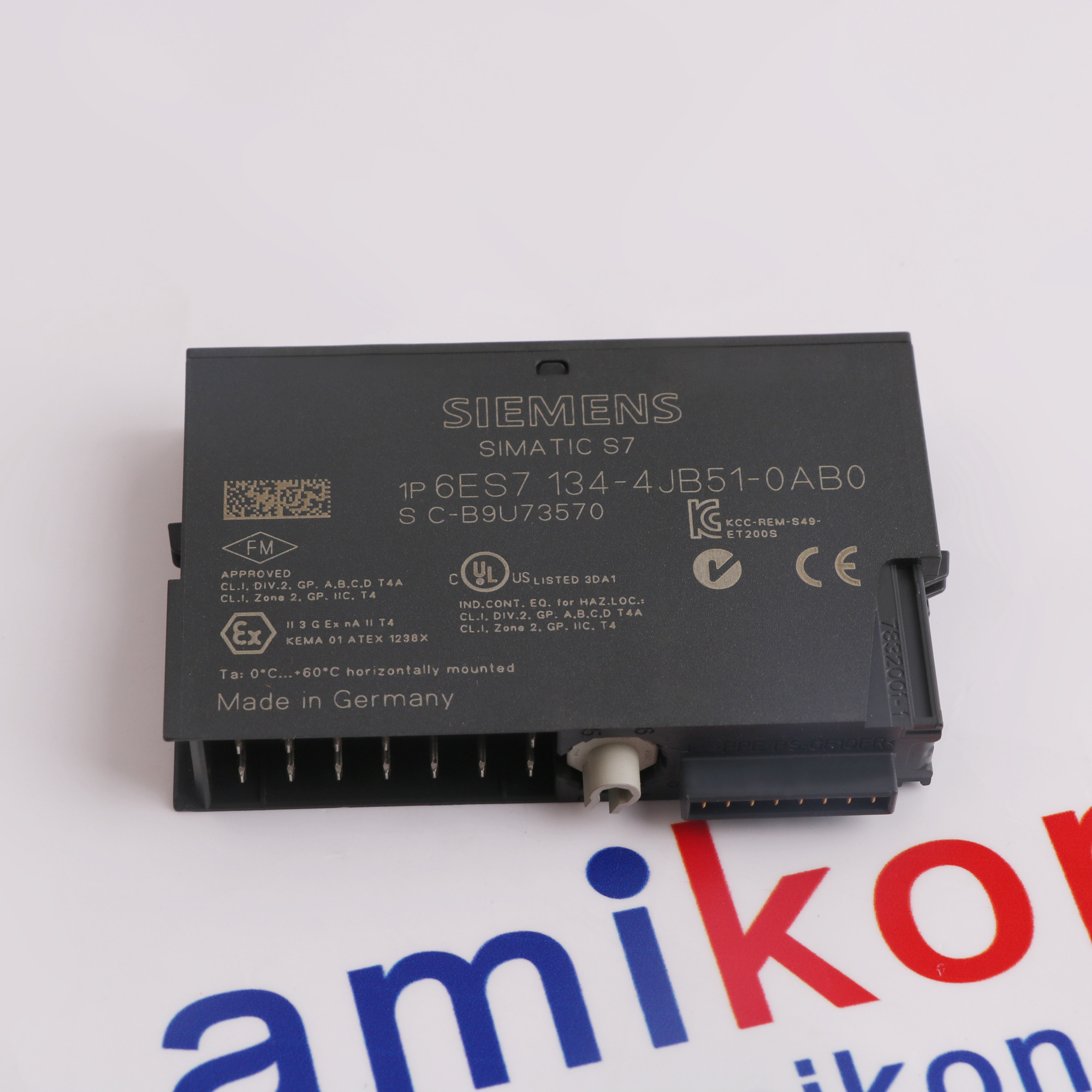

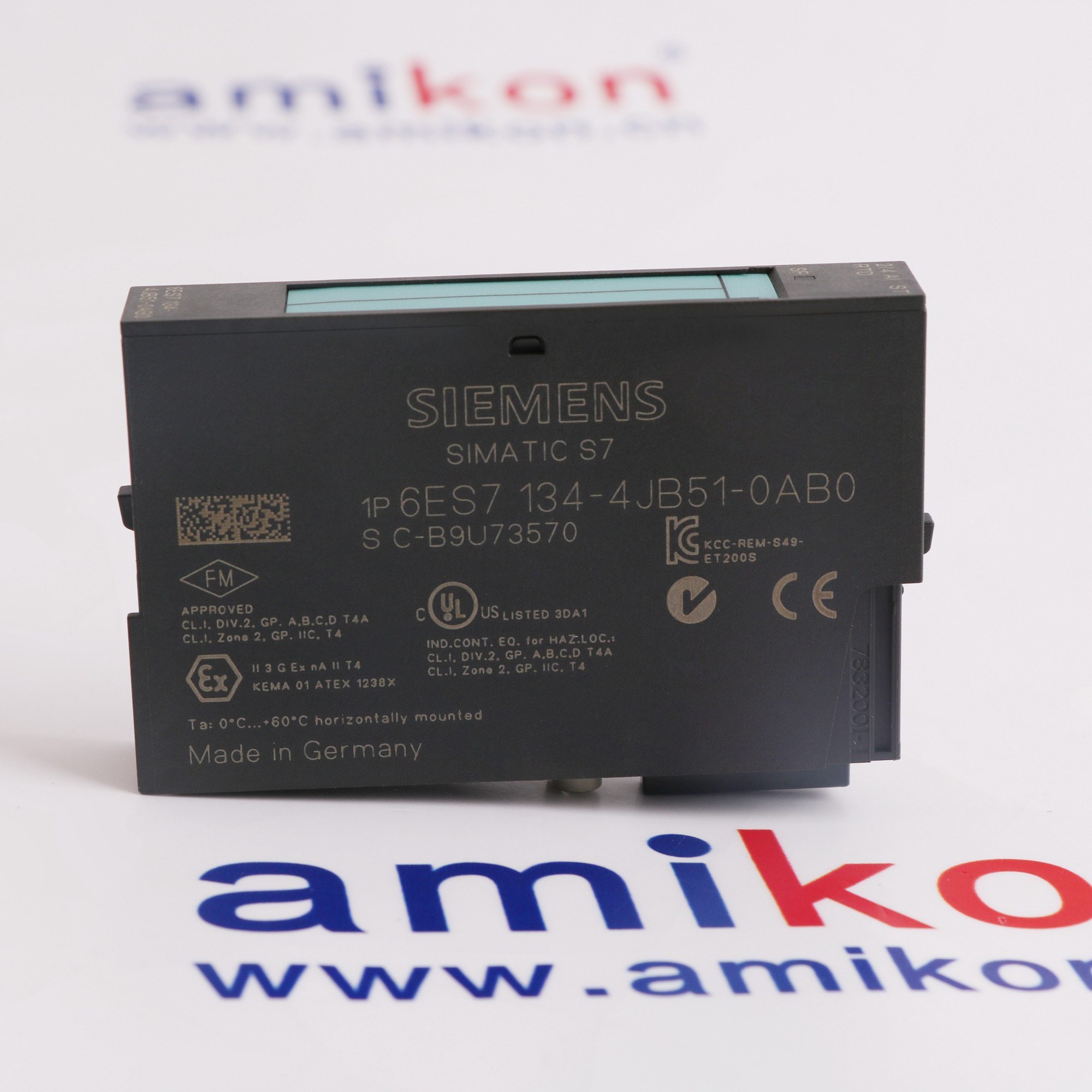

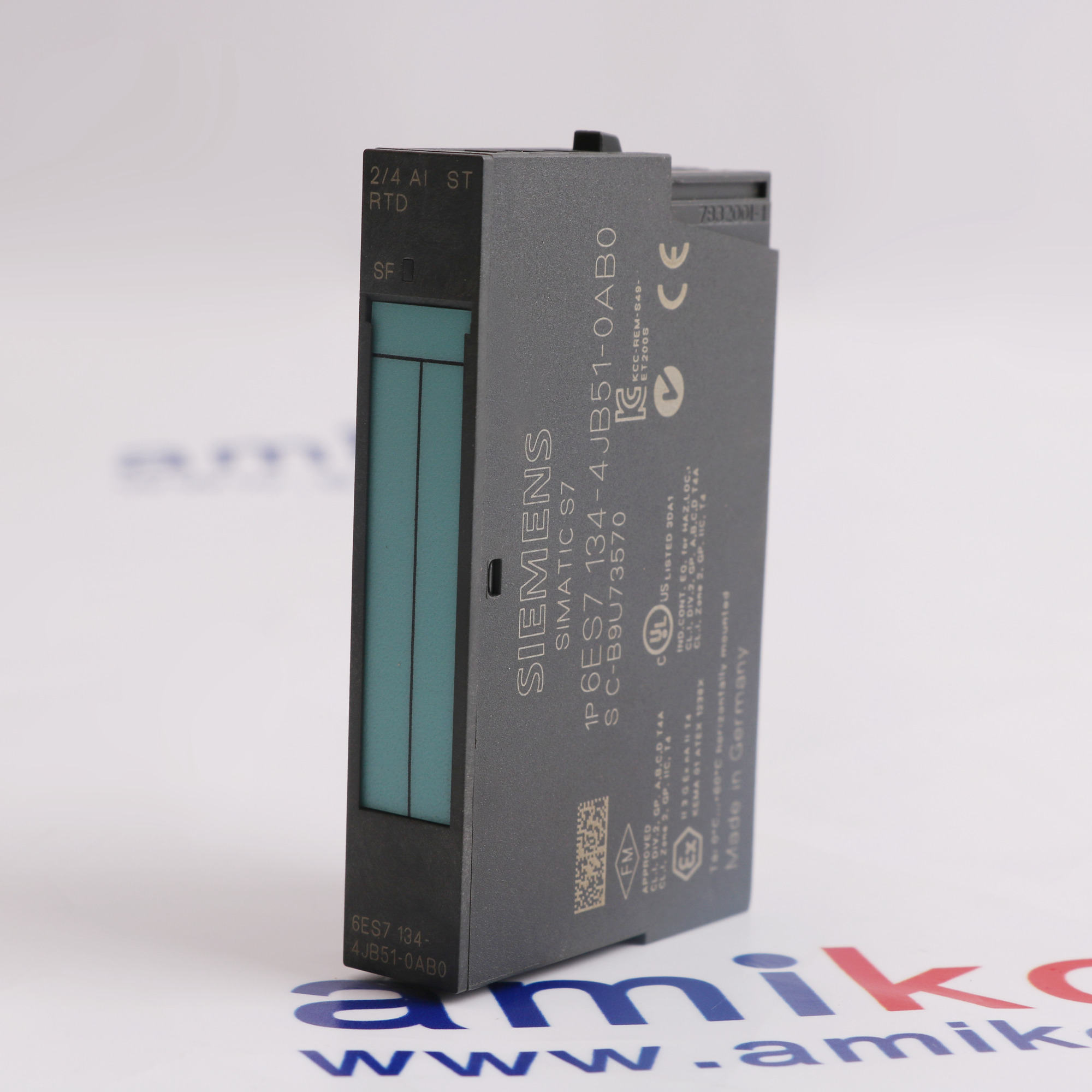

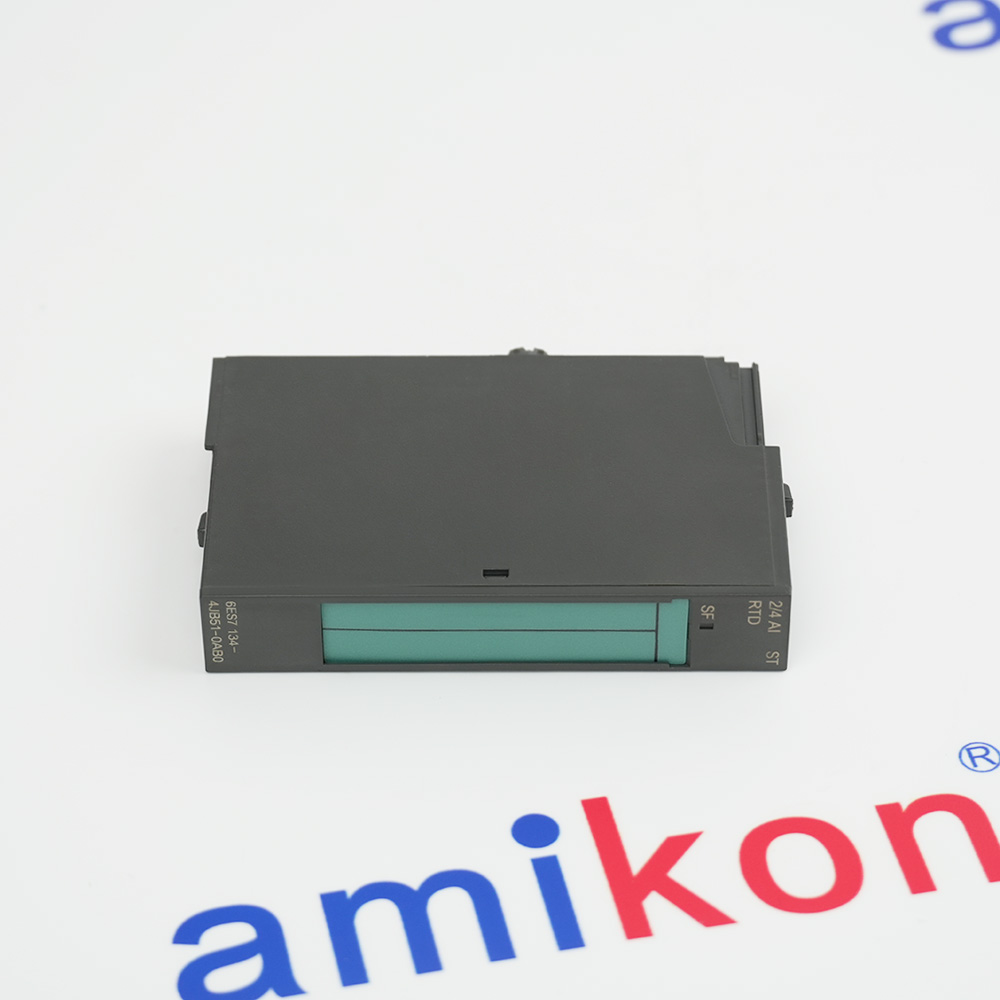

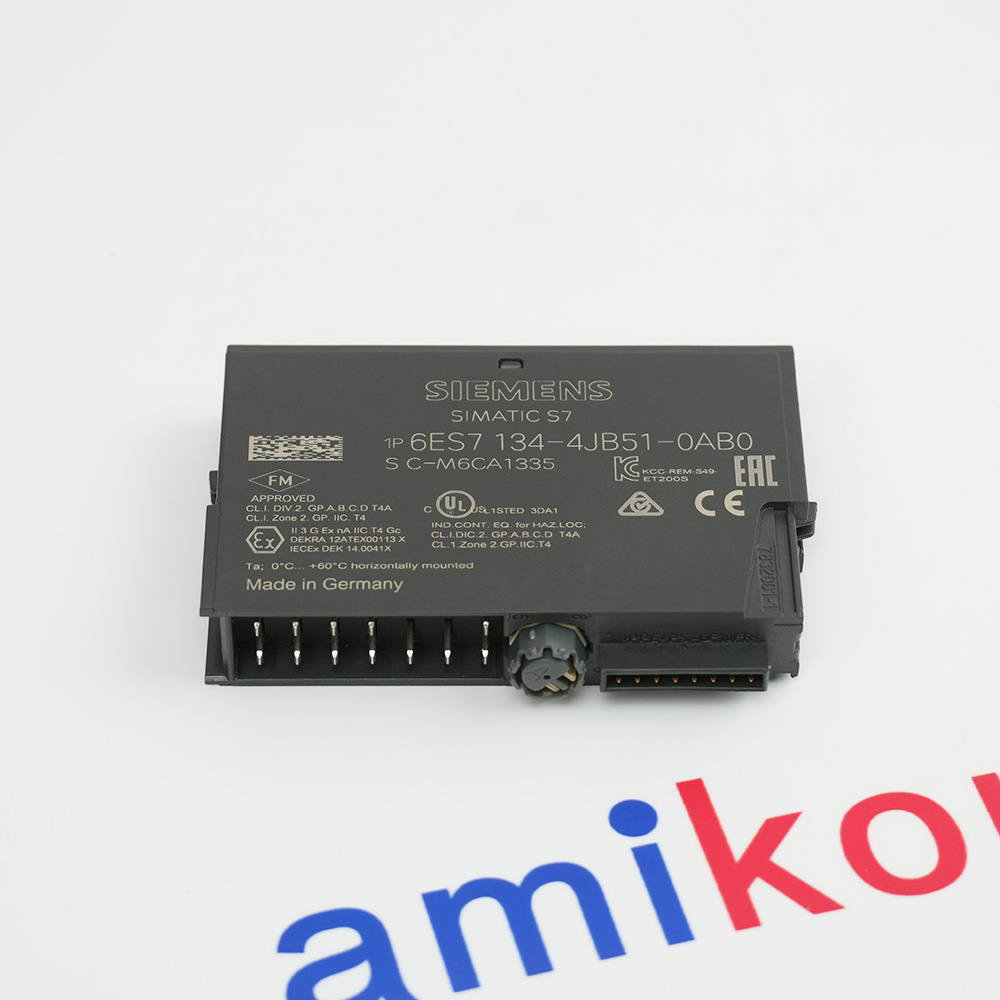

- 6ES7134-4JB51-0AB0
In Stock
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
RTD resistance input module
Siemens 6ES7134-4JB51-0AB0 is a Standard RTD and resistance-input module in the SIMATIC ET 200S distributed I/O series. It is used for industrial temperature and resistance measurement with Pt100 or Ni100 sensors and compatible resistance circuits.
The 15 mm-wide module uses integrating conversion and supports four two-wire inputs or two three- or four-wire inputs. It offers 150, 300 and 600 ohm measuring ranges, characteristic linearization, configurable digital smoothing and wire-break diagnostics. Up to eight input bytes carry measurement data, while a red SF indicator reports group faults. The analog inputs are isolated from the backplane bus and load voltage.
The 15 mm-wide module uses integrating conversion and supports four two-wire inputs or two three- or four-wire inputs. It offers 150, 300 and 600 ohm measuring ranges, characteristic linearization, configurable digital smoothing and wire-break diagnostics. Up to eight input bytes carry measurement data, while a red SF indicator reports group faults. The analog inputs are isolated from the backplane bus and load voltage.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Application context for 6ES7134-4JB51-0AB0
6ES7134-4JB51-0AB0 is an ET 200S input module for resistance and RTD temperature measurements. It fits food production, chemical processing and industrial thermal processes. Suitability depends on the selected sensor characteristic, wiring arrangement and terminal module in a correctly configured distributed I/O station.
-
01 · FOOD & BEVERAGE
Food Manufacturing and Beverage Production
Food Processing and PreservationBeverage Processing and Production -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Thermal Processing
Chemical Reaction ProcessingIndustrial Chemical Production -
03 · INDUSTRIAL MANUFACTURING
Industrial Production and Thermal Processing
Industrial Thermal ProcessingManufacturing Process Heating
Technical specifications for 6ES7134-4JB51-0AB0
-
Product Model6ES7134-4JB51-0AB0
-
Product ParametersRTD resistance input module
-
In stock10 units
-
ManufacturerSiemens
-
Channel configuration4 two-wire or 2 three-/four-wire inputs
-
Resistance thermometersPt100; Ni100, standard or climatic
-
Resistance measuring ranges0-150; 0-300; 0-600 ohm
-
Rated load voltage24 V DC
-
Maximum L+ current30 mA without load
-
Maximum backplane current10 mA at 3.3 V DC
-
Typical power loss0.6 W
-
Maximum input address area8 byte
-
Typical measuring current1.67 mA
-
Maximum permissible input voltage9 V destruction limit
-
Shielded sensor cable length200 m maximum
-
Maximum resolution with sign16 bit for Pt100/Ni100
-
Integration time16.7 / 20 ms
-
Conversion time per channel66 / 80 ms plus wire-break test
-
RTD basic error at 25 C+/-0.4% of input range
View all additional
Alternative Names
6ES7134-4JB51-0AB0
SIMATIC ET 200S rtd resistance input module
2/4AI RTD Standard
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7134-4JB51-0AB0 with its documented SIMATIC ET 200S
Install 6ES7134-4JB51-0AB0 in its configured ET 200S station and select the terminal assignment for two-, three- or four-wire sensors. Use four channels only with two-wire wiring; three- and four-wire measurements use two channels.
Choose the Pt100 or Ni100 characteristic, or the documented 150, 300 or 600 ohm range. The module is supplied from 24 V DC and supports shielded sensor cables up to 200 m. Reserve the configured input area, up to eight bytes.
Restore integration-time, linearization, smoothing and diagnostic settings in the engineering project. Compare the indicated resistance or temperature with a reference and verify the enabled wire-break and overrange diagnostics before operation.
Features:
- Channel configuration: 4 two-wire or 2 three-/four-wire inputs
- Resistance thermometers: Pt100; Ni100, standard or climatic
- Preserve the documented field configuration
The 6ES7134-4JB51-0AB0 rtd resistance input module requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify 6ES7134-4JB51-0AB0 before changing the installed configuration
Replacement of 6ES7134-4JB51-0AB0 requires the same measurement function and sensor connection arrangement. A similarly sized ET 200S input cannot be accepted solely because it fits the terminal module.
Record each sensor characteristic, wiring mode, channel assignment and input address before removing the electronics. Retain terminal identification and shielding details to prevent two-wire and four-wire circuits from being interchanged.
With the matching spare fitted, verify stable measurements at reference points and test the configured diagnostic responses. The module does not provide isochronous operation; preserve the process timing assumptions used by the installed application.
Features:
- Channel configuration: 4 two-wire or 2 three-/four-wire inputs
- Resistance thermometers: Pt100; Ni100, standard or climatic
- Preserve the documented field configuration
The 6ES7134-4JB51-0AB0 rtd resistance input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7134-4JB51-0AB0 rtd resistance input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product dimensions1.5 × 8.1 × 5.2 cm
-
Net weight0.04kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginChina
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4JB51-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
When does this RTD module provide four usable inputs?
6ES7134-4JB51-0AB0 provides four inputs for two-wire connections. Three- or four-wire connections provide two inputs. -
Can thermocouples connect to the resistance-input electronics?
No. 6ES7134-4JB51-0AB0 supports resistance thermometers and resistors, not thermocouple, voltage or current measurement. -
Which sensor characteristics can the temperature channels linearize?
6ES7134-4JB51-0AB0 provides parameterizable Pt100 and Ni100 linearization in standard or climatic ranges. Match the selected characteristic to the actual sensor. -
What changes when replacing a two-wire sensor with four-wire wiring?
With 6ES7134-4JB51-0AB0, the available channel count changes from four to two. Verify terminal assignment and input addressing before changing the wiring mode. -
How does wire-break testing affect conversion timing?
The 6ES7134-4JB51-0AB0 data sheet specifies 66/80 ms per channel plus additional time for the diagnostic wire-break test. Preserve the required update-time budget. -
Which reference test confirms a restored temperature channel?
Use a known resistance or temperature reference on 6ES7134-4JB51-0AB0, check the selected Pt100/Ni100 characteristic and verify enabled wire-break diagnostics. -
What details help a distributor identify the correct RTD spare?
Quote 6ES7134-4JB51-0AB0 with quantity, the complete installed label and the sensor wiring mode. Specify Pt100, Ni100 or the required resistance range. -
What should incoming inspection compare on an RTD replacement?
Check the delivered 6ES7134-4JB51-0AB0 identity, terminal contacts and physical condition, then confirm the intended sensor type and two-/three-/four-wire arrangement.
