PRODUCT DESCRIPTION
Switch four safety outputs with paired sourcing and sinking paths

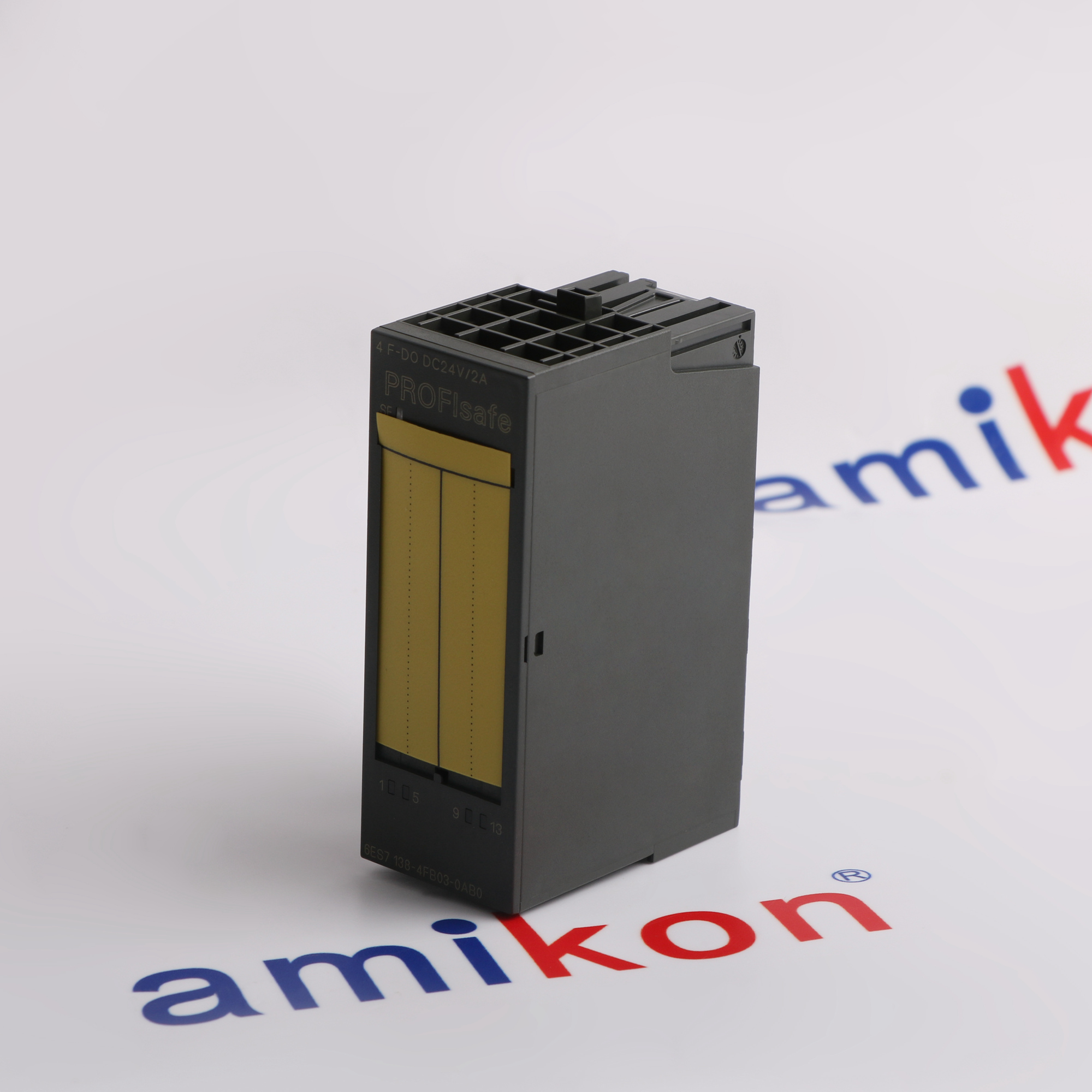

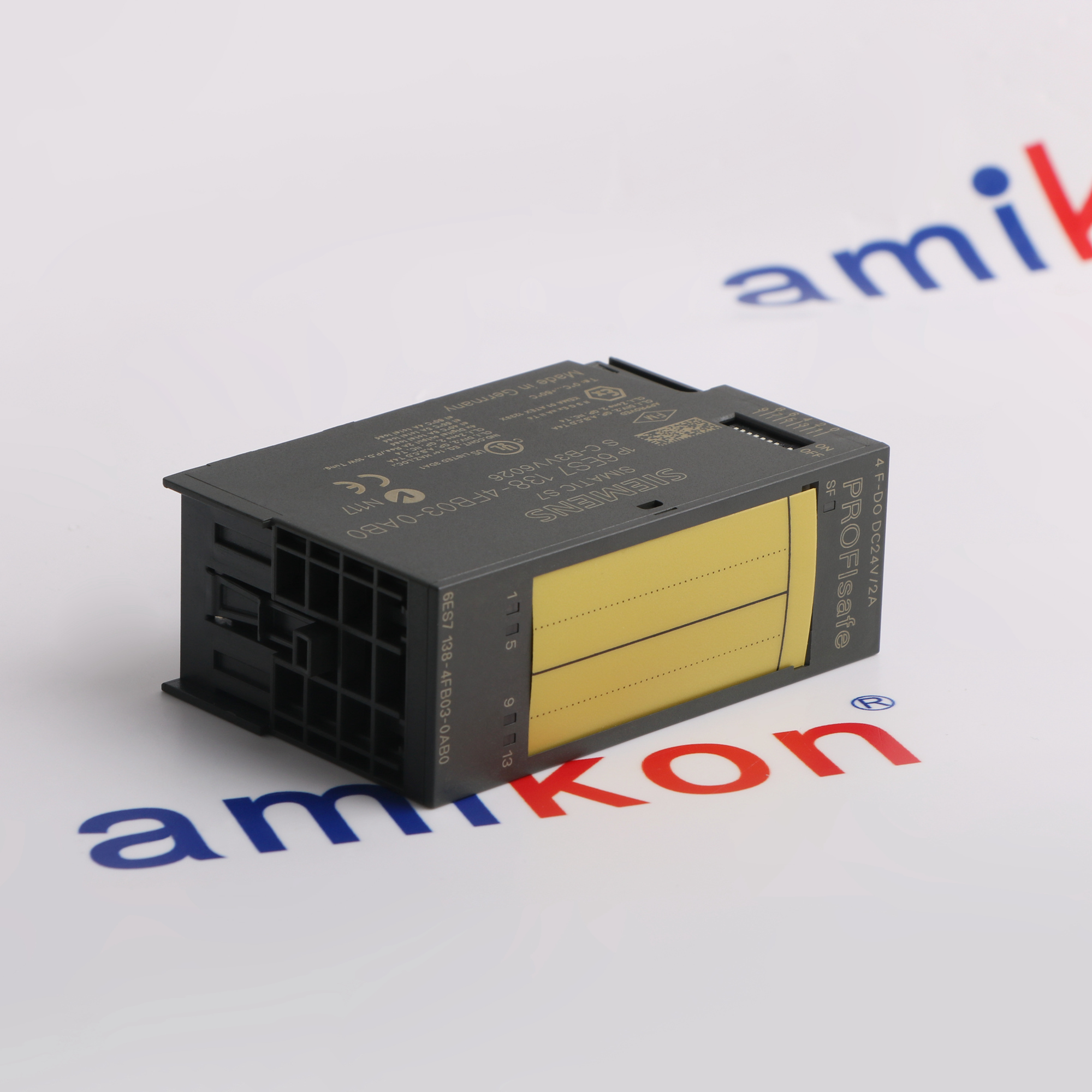

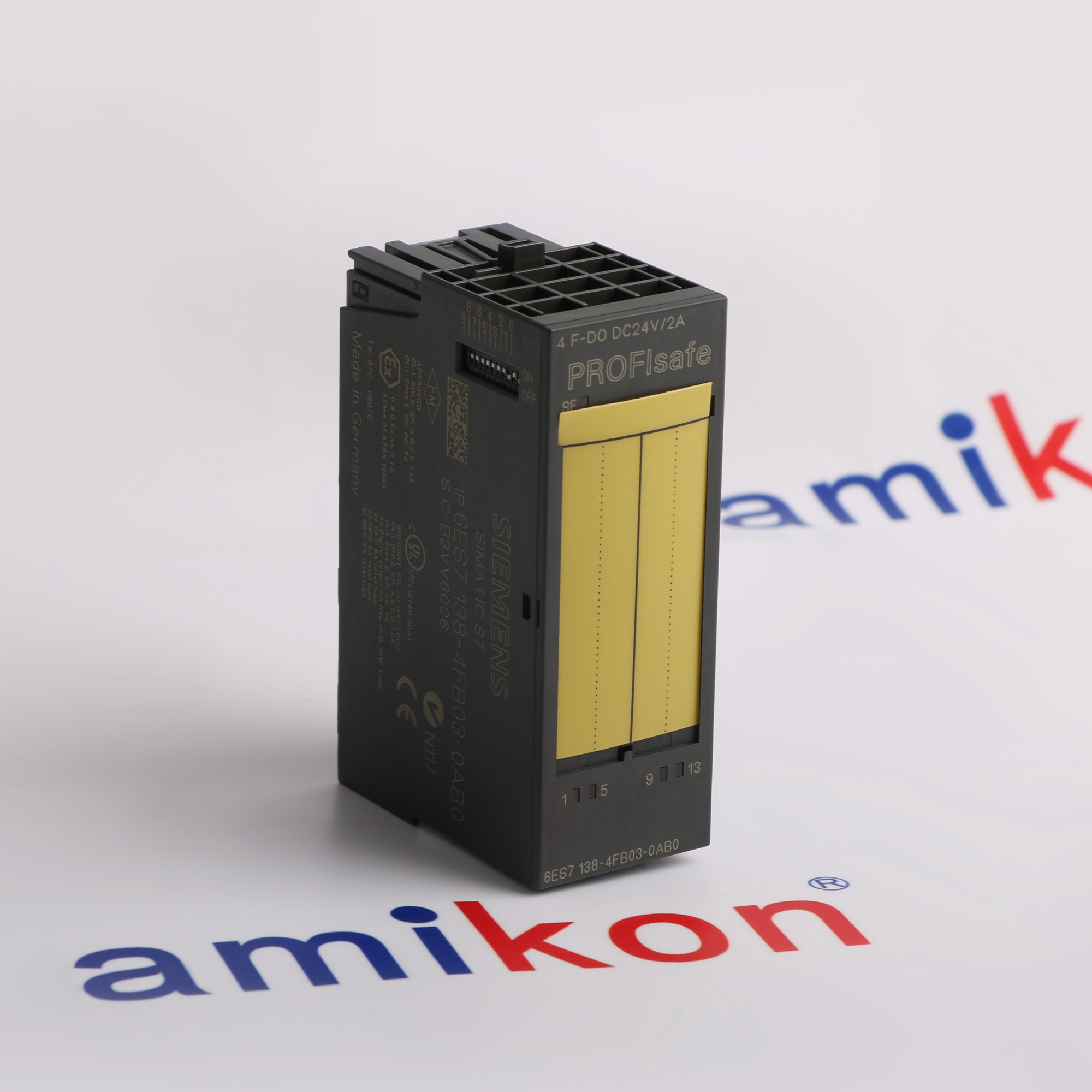

Siemens 6ES7138-4FB03-0AB0 is the ET 200S four-channel fail-safe digital output module for 24 V DC loads. Each output uses P/M switching and has a 2 A nominal rating, while the permissible module current depends on mounting orientation and ambient temperature.
The module operates through PROFIsafe with configurable channel diagnostics and readback timing. Load selection must account for the two-sided switching circuit, test pulses, residual current and the published thermal limits; four channels rated at 2 A do not imply an unrestricted 8 A module output.
The module operates through PROFIsafe with configurable channel diagnostics and readback timing. Load selection must account for the two-sided switching circuit, test pulses, residual current and the published thermal limits; four channels rated at 2 A do not imply an unrestricted 8 A module output.
BEFORE YOU BUY
Confirm the complete installed configuration
- Confirm the complete FB03 code, supported terminal module and maintained PROFIsafe project.
- Check each load against current, resistance, lamp-load and switching-frequency limits.
- Review residual current, test pulses, grounding and readback settings for the actual circuit.
- Plan load-voltage isolation, safe acknowledgment and complete-function validation before replacement.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · FOOD & BEVERAGE
Beer and Soft Drink Production
Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry. -
02 · TEXTILE MANUFACTURING
Natural Fibers and Fabric Production
Natural fiber production and processing within the textile industry.Fabric production spanning the wider commercial textile manufacturing sector. -
03 · PLASTICS PROCESSING
Molded Plastic Products
Injection molding for plastic product manufacturing across industrial markets.Blow molding within the wider plastic product manufacturing industry.
Technical specifications for 6ES7138-4FB03-0AB0
-
Product Model6ES7138-4FB03-0AB0
-
Product ParametersPROFIsafe Digital Output Module
-
ManufacturerSiemens
-
Output arrangement4 fail-safe P/M-switching digital outputs
-
Rated load supply24 V DC; permissible 20.4-28.8 V DC; no reverse-polarity protection
-
Channel current2 A nominal; permissible on-state current 20 mA to 2.4 A
-
Total-current deratingHorizontal: 6 A up to 40 C, 5 A up to 55 C, 4 A up to 60 C; vertical: 4 A up to 40 C
-
Load resistance12 ohm to 1 kohm
-
Lamp-load limitMaximum 10 W
-
Maximum switching frequencyResistive load 30 Hz; inductive load 0.1 Hz; lamp load 10 Hz
-
On-state voltage dropCombined output minimum L+ minus 2.0 V; P-switch minimum L+ minus 1.5 V; M-switch drop maximum 0.5 V
-
Off-state residual currentDirect-load value maximum 0.5 mA; with interface-relay arrangement, P-switch maximum 0.5 mA and M-switch maximum 4 mA
-
Output readback timeSelectable 1, 5, 10, 50, 100, 200 or 400 ms; default 1 ms; capacitive-load and interference restrictions apply
-
I/O address allocation5 input bytes and 5 output bytes; only documented useful-data addresses may be accessed
-
Output-cable limitMaximum 200 m shielded or unshielded, with corresponding P and M lines routed together as specified
-
Module supply consumptionTypical 100 mA from L+ without load; maximum 28 mA from the backplane; typical dissipation 3.5 W
-
Unsupported output connectionsDo not parallel separate output channels for higher current or redundant control; direct control of a digital input is not supported
-
Diagnostic functionsShort-circuit, overload, overtemperature and selectable wire-break diagnostics; SF and status indicators are not safety-function signals
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S P/M OUTPUT CONTROL
Qualify the complete load circuit before enabling the outputs
Each FB03 channel switches both the positive and return sides of a suitable 24 V load. This P/M arrangement must be retained in the circuit design; an external ground connection can bypass the return switch and produce a fault. Check the actual load resistance and current, and distinguish a direct load connection from an interface-relay circuit with different residual-current considerations.
Calculate simultaneous current at the installed orientation and temperature, not simply four times the 2 A channel rating. Horizontal operation allows 6 A only within its stated temperature range, with lower totals at higher temperatures; vertical operation has a separate 4 A limit. Do not parallel output channels to obtain additional capacity, and verify the switching-frequency limit for the particular load type.
Coordinate readback timing with load capacitance, test pulses and the required safety response. Too short a setting can passivate a channel that has not discharged, but extending it can affect fault detection and introduces the documented interference restriction. Retain process feedback where the selected circuit requires it, and validate the complete PROFIsafe output path instead of treating normal LED indications as safety proof.
Features:
- Preserved sourcing and sinking paths
- Temperature-based simultaneous-current budget
- Load-qualified readback and feedback
The Siemens 6ES7138-4FB03-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm that the spare is the complete FB03 article number and compare its installed terminal module and channel wiring with the maintained drawings. The later FB04 has documented functional changes, including reduced M-switch residual current, so a shared housing or similar description is not a substitution decision. Identify how each load is connected before comparing electrical suitability or restoring the output configuration.
Switch off the load voltage before removing or inserting this fail-safe output module. Record and reproduce the approved PROFIsafe destination address, then check it against the engineering project. Preserve channel activation, readback timing and wire-break settings for the actual loads. Do not raise current limits, bridge the M path or parallel channels to make an unsuitable spare appear compatible.
After installation, diagnose communication and channel faults before acknowledgment. Confirm the P/M shutdown path and any external feedback with the intended loads, then revalidate the safety function and document the result. The historical manual requires repair within 100 hours or removal/supply isolation of the affected module; the later safety-data supplement retains that repair-time basis for its component reliability figures.
Features:
- Exact FB03 and load-interface comparison
- Load-off exchange and address retention
- Corrected faults and recorded revalidation
The Siemens 6ES7138-4FB03-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4FB03-0AB0 provides product references with source editions identified. Installation documentation with unresolved conflicts is not provided . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
