PRODUCT DESCRIPTION
Timed voltage and current outputs with version-dependent oversampling

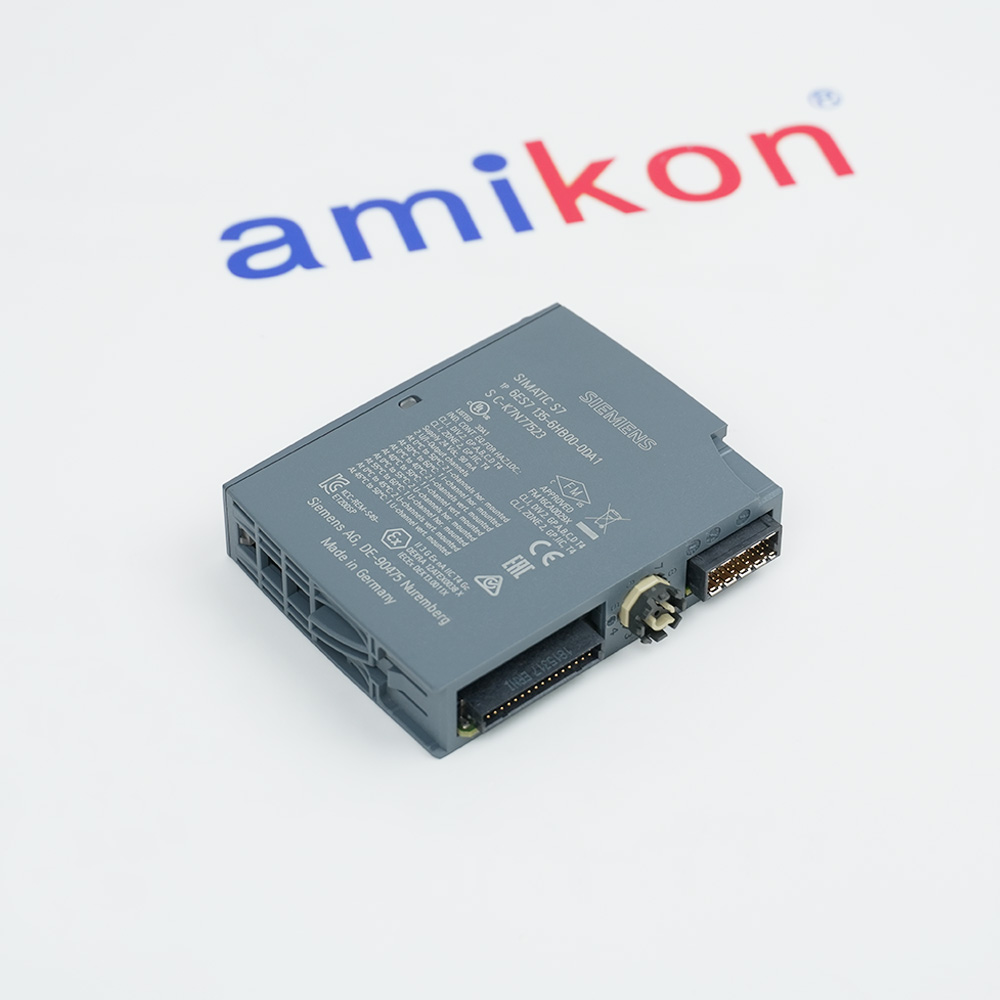

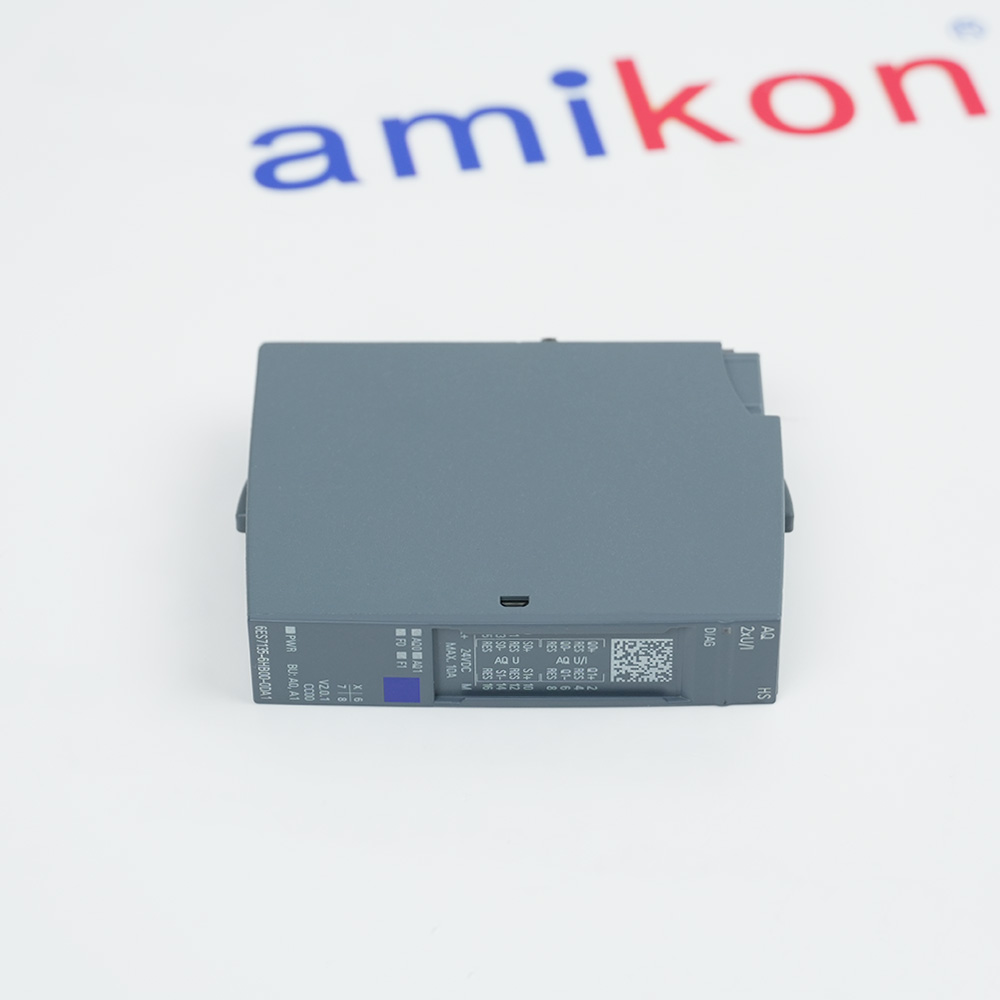

Siemens 6ES7135-6HB00-0DA1 is a SIMATIC ET 200SP High Speed analog output module with two configurable voltage or current channels. It fits type A0 or A1 BaseUnits and uses color code CC00. Output resolution depends on the selected signal range.
For time-coordinated setpoints, the module supports isochronous operation and oversampling subject to documented hardware and firmware requirements. Normal operation and oversampling have different cycle and address-space rules. Voltage-load sensing, current-loop impedance and diagnostic thresholds must be checked against the selected operating mode.
For time-coordinated setpoints, the module supports isochronous operation and oversampling subject to documented hardware and firmware requirements. Normal operation and oversampling have different cycle and address-space rules. Voltage-load sensing, current-loop impedance and diagnostic thresholds must be checked against the selected operating mode.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets. -
02 · PLASTICS PROCESSING
Molded Plastic Products
Injection molding for plastic product manufacturing across industrial markets.Blow molding within the wider plastic product manufacturing industry. -
03 · FOOD & BEVERAGE
Dairy, Bakery and Confectionery
Dairy production and processing within the commercial food industry.Bakery and confectionery manufacturing across diverse consumer food categories.
Technical specifications for 6ES7135-6HB00-0DA1
-
Product Model6ES7135-6HB00-0DA1
-
Spare ModelNot available
-
Product ParametersHigh-Speed Analog Output Module
-
ManufacturerSiemens
-
Analog outputs2 configurable voltage/current channels
-
Voltage output ranges±10 V, ±5 V, 0-10 V and 1-5 V
-
Current output ranges±20 mA, 0-20 mA and 4-20 mA
-
Range-dependent resolution13-16 bits depending on range; 16 bits including sign for ±10 V and ±20 mA
-
Usable BaseUnitsType A0 or A1; color code CC00
-
Supply voltage24 V DC rated; permissible 19.2-28.8 V DC
-
Current consumption45 mA without load; maximum 90 mA with two 20 mA outputs
-
Typical power loss0.9 W
-
Normal output cycle125 µs minimum; product version 2 and firmware V2.0.1 or later
-
Oversampling operation2-16 subcycles on one channel or 2-8 on two; isochronous mode required
-
Address allocation4 output bytes normally; optional 1 QI input byte; 32 output bytes for oversampling
-
Voltage loadMinimum 2 kohm; maximum capacitance 1 µF
-
Current loadMaximum 500 ohm and 1 mH
-
Shielded cable lengthMaximum 200 m for voltage or 1,000 m for current; observe load and settling limits
-
Operational error limit±0.2% of selected output range; basic error ±0.1% at 25 °C
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200SP HIGH-SPEED OUTPUT
Coordinate timing, output wiring and configuration ownership
Select the circuit from the actual output mode before wiring the BaseUnit. Current output uses two wires, while voltage output can use the documented sensing arrangements to compensate cable drop. A potential group begins with a light-colored BaseUnit, and reserved terminals remain unused. The minimum voltage-load resistance and maximum current-loop impedance are different constraints, so they must be checked separately for each connected device.
Oversampling is a specific synchronized operating mode, not simply a faster normal output setting. It requires isochronous operation and at least a 250 µs PROFINET cycle, divided into the configured subcycles. The controller provides a data packet that the module outputs in the cycle after the next. Allow for that scheduling and the 32-byte output allocation; QI is not available in this mode.
Coordinate fault detection with the selected range and the intended process response. Current channels provide wire-break diagnostics, while voltage channels provide short-circuit diagnostics, with documented detection deadbands around zero. CPU STOP can shut down, retain the last command or issue a substitute value. The PROFIBUS GSD configuration has parameter-scope restrictions, so confirm the actual station configuration instead of assuming every setting is independently channel-based.
Features:
- Mode-specific load and sensing checks
- Synchronized packet and address planning
- Diagnostic and STOP-response coordination
The Siemens 6ES7135-6HB00-0DA1 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Compare the complete 0DA1 order code, product version and firmware with the configured function before choosing a spare. The manual assigns different minimum versions to single-channel oversampling, dual-channel oversampling and the 125 µs normal send clock. A physically fitting two-channel module therefore does not establish functional equivalence. Preserve the installed BaseUnit and potential-group arrangement unless the approved station design explicitly requires a change.
Record both the startup configuration and any parameters written dynamically by the application. The manual states that WRREC updates do not modify the STEP 7 parameters retained in the CPU, which take effect again after restart. After a firmware update the module must also be reconfigured to use new functions. Check restart behavior and clock synchronization, not only the steady output observed before removal.
Commission the replacement against the actual load and commanded signal, then verify the intended fault response under controlled site procedures. Review cable length, voltage-load resistance or current-loop impedance and the installation-specific derating curves together. The two channels are not mutually isolated. A diagnostic indication during an update or interrupted update can mean the channel is temporarily unavailable and producing neither process nor substitute values.
Features:
- Exact-version function matching
- Startup and dynamic parameter reconciliation
- Loaded-output and fault-response verification
The Siemens 6ES7135-6HB00-0DA1 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model specifications from the Siemens product page
- Product data sheet and independently prepared manufacturer product information
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7135-6HB00-0DA1 includes two product references based on Siemens documentation; no installation PDF is provided. Confirm the applicable full installation manual before wiring, mounting or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
