PRODUCT DESCRIPTION
Eight basic source outputs with supply-voltage diagnostics

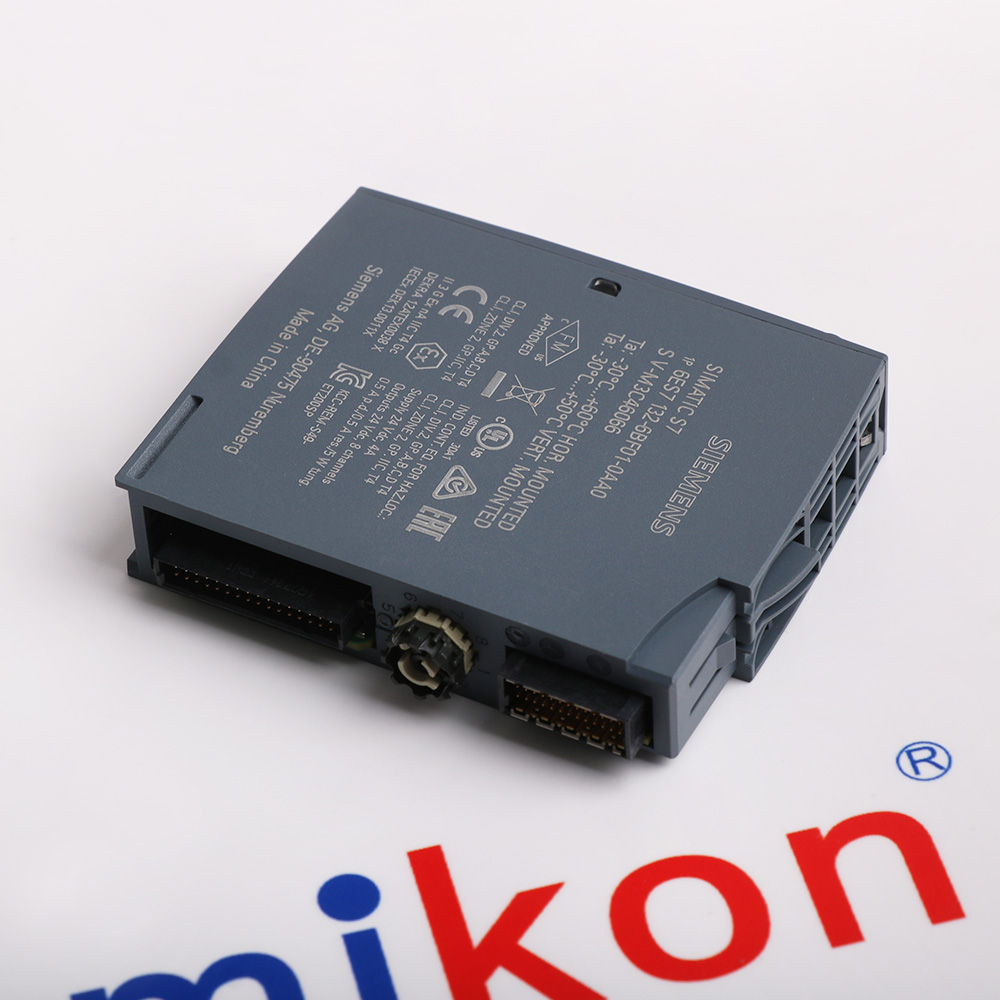

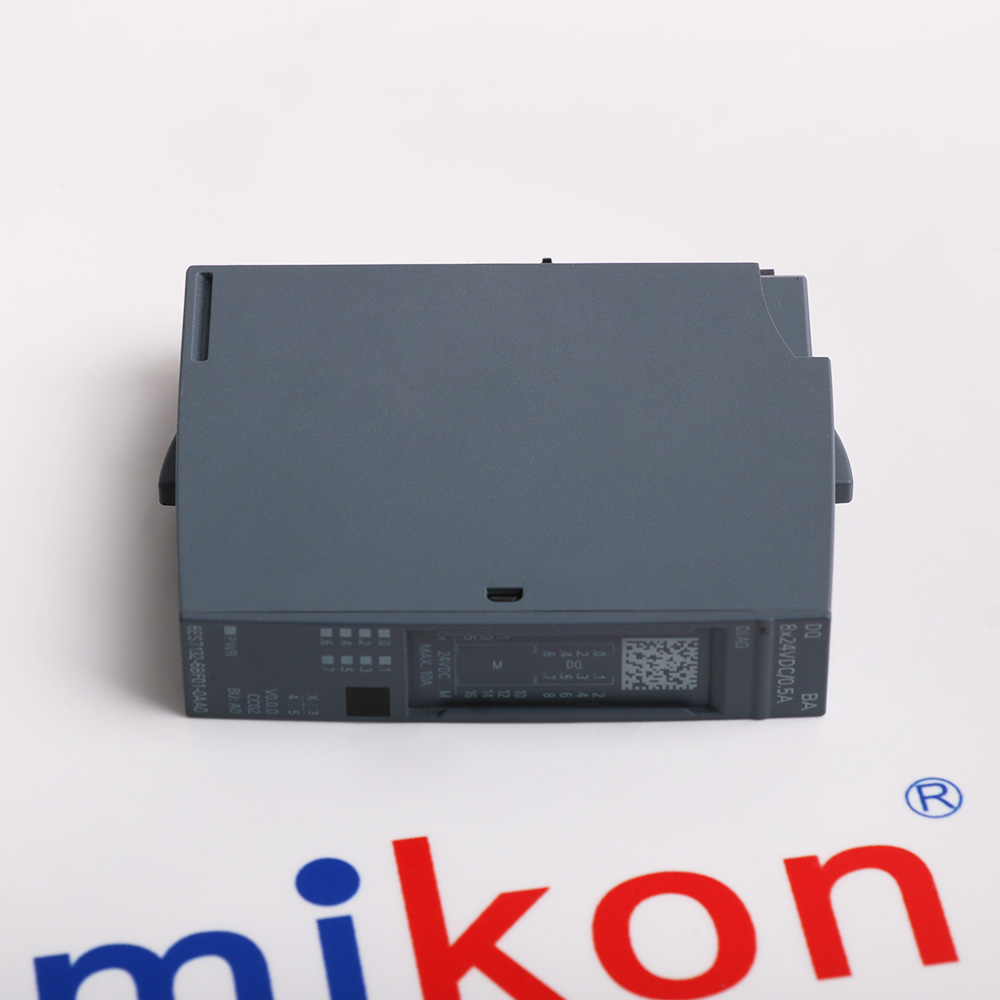

Siemens 6ES7132-6BF01-0AA0 is a Basic digital output module for SIMATIC ET 200SP. It provides eight current-sourcing channels for 24 V DC loads, each rated at 0.5 A. The electronics fit an A0 BaseUnit and use color code CC02.
The module supports configurable substitute values and supply-voltage diagnostics, together with channel state, power and module indicators. Electronic short-circuit protection operates per channel, but channel wire-break and short-circuit diagnostic reporting are not provided. The process output data occupy one byte.
The module supports configurable substitute values and supply-voltage diagnostics, together with channel state, power and module indicators. Electronic short-circuit protection operates per channel, but channel wire-break and short-circuit diagnostic reporting are not provided. The process output data occupy one byte.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7132-6BF01-0AA0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · TEXTILE MANUFACTURING
Textile Material Production and Commercial Fabric Finishing
Fiber processing and yarn manufacturing for industrial textile production.Fabric production and finishing for commercial textile product supply. -
02 · WATER & WASTEWATER
Public Water Supply and Industrial Wastewater Treatment
Treatment and distribution of drinking water for public supply.Collection and processing of wastewater from communities and industries. -
03 · PACKAGING
Consumer Product Packaging and Commercial Goods Packing
Consumer product packaging for retail presentation and market distribution.Commercial goods packing for storage, shipment and industrial supply.
Technical specifications for 6ES7132-6BF01-0AA0
-
Product Model6ES7132-6BF01-0AA0
-
Product ParametersET 200SP Basic Output Module
-
ManufacturerSiemens
-
Output type8 current-sourcing PNP channels
-
Supply voltage24 V DC nominal; permitted range 19.2–28.8 V DC
-
Output current0.5 A per channel; 4 A maximum module total
-
No-load consumptionMaximum 45 mA
-
Power lossTypically 1 W
-
Off-state residual currentMaximum 10 microamperes
-
Output delay at rated resistive loadMaximum 100 microseconds on; 150 microseconds off
-
Load-resistance range48 ohm to 100 kohm
-
Lamp loadMaximum 5 W
-
Short-circuit protectionElectronic per channel; typical response threshold 1 A
-
Switching frequency100 Hz resistive; 2 Hz inductive; 10 Hz lamp load
-
Process address space1 byte; no value status in the documented configuration
-
BaseUnit and codingA0; CC02
-
Diagnostic reportingSupply-voltage monitoring; no channel wire-break or short-circuit reporting
-
Firmware update capabilityFirmware V0.0; firmware update not supported
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200SP BASIC OUTPUTS
Eight output channels with a defined BaseUnit potential group
Eight PNP outputs connect through an A0 BaseUnit. CC02 identifies the output terminal arrangement, and the selected BaseUnit determines whether AUX terminals are available.
The potential group begins on a light-colored BaseUnit and supplies adjacent dark-colored BaseUnits. An output cross-circuit can feed voltage back to L+, so the field circuit must be assessed accordingly.
Supply-voltage diagnostics and configurable stop behavior provide the documented Basic functions. Per-channel protection must not be mistaken for channel-specific diagnostic reporting.
Features:
- A0 BaseUnit and CC02 identification
- One-byte process output data
- Supply-voltage diagnostic reporting
The Siemens 6ES7132-6BF01-0AA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the exact -0AA0 order number, BaseUnit type and hardware version. Do not infer compatibility from the physically similar Standard output module.
Verify potential-group boundaries, polarity and individual load currents. Confirm the selected arrangement provides the required reference and AUX connections.
Restore channel activation and stop-state settings, then check PWR, DIAG and channel indicators. Confirm that the installation does not rely on unsupported wire-break or short-circuit diagnostics.
Features:
- Exact Basic identity verification
- Potential-group and wiring checks
- Stop-state and indication verification
The Siemens 6ES7132-6BF01-0AA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original A0 BaseUnit terminal diagrams with CC02 coding, potential-group and L+ backfeed conditions, load limits and configurable stop behavior.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7132-6BF01-0AA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7132-6BF01-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this the Basic or Standard version?
The -0AA0 order number identifies DQ 8x24VDC/0.5A Basic. It must not be described using the feature set of the -0BA0 Standard module. -
Does electronic short-circuit protection mean that a short-circuit diagnostic is available?
No. Each output has electronic protection, but the diagnostic specification explicitly excludes channel short-circuit and wire-break reporting. -
How must a new potential group begin?
The load group starts with a light-colored BaseUnit. Subsequent dark-colored BaseUnits obtain their potential from the left, according to the configured arrangement. -
What output behavior can be selected for CPU STOP?
The documented choices are turn off, keep the last value, or output a substitute value. Configuration scope differs between PROFINET and PROFIBUS GSD configurations. -
Can two outputs be paralleled to increase current?
No. The specification excludes uprating by parallel outputs, although a documented redundant-load arrangement is permitted. -
Is this a safety output module?
No. The exact datasheet states that it is not suitable for safety functions. Conditional safety-related shutdown of standard modules is a separate arrangement and must not be presented as an intrinsic safety-output rating.
