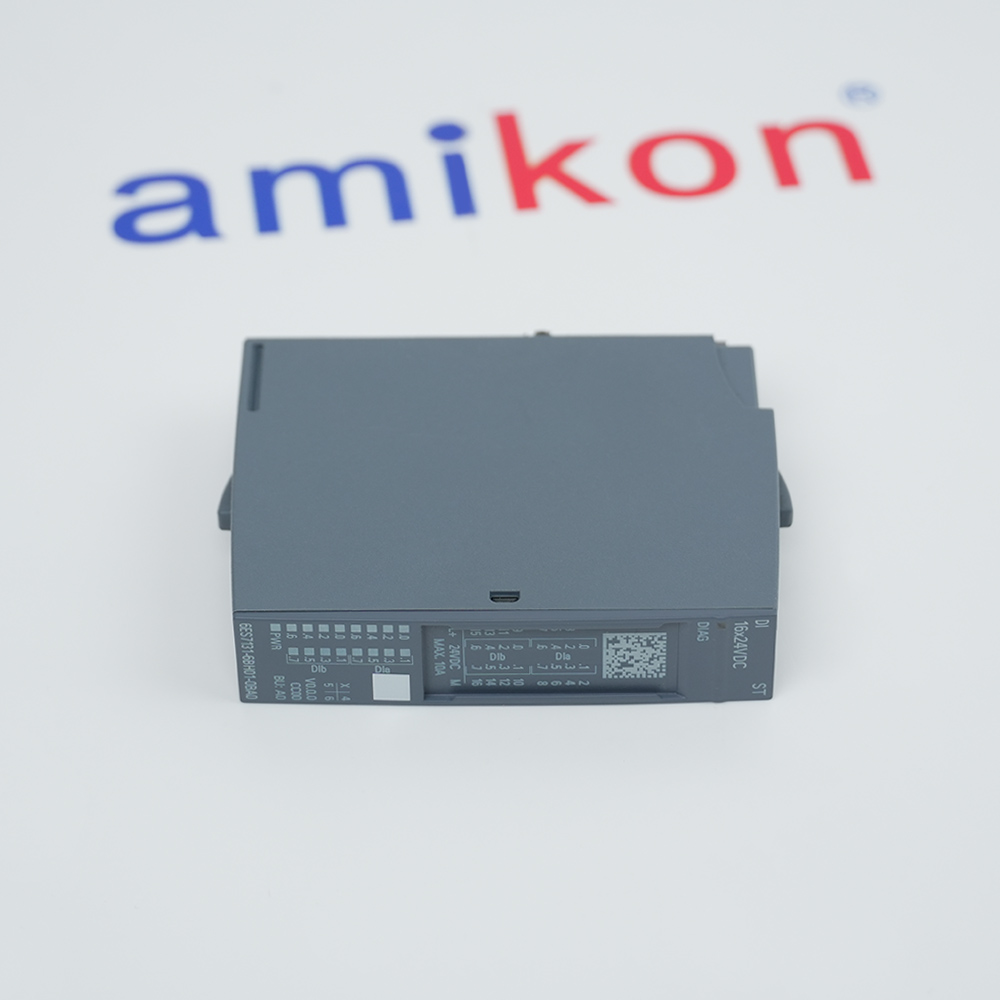

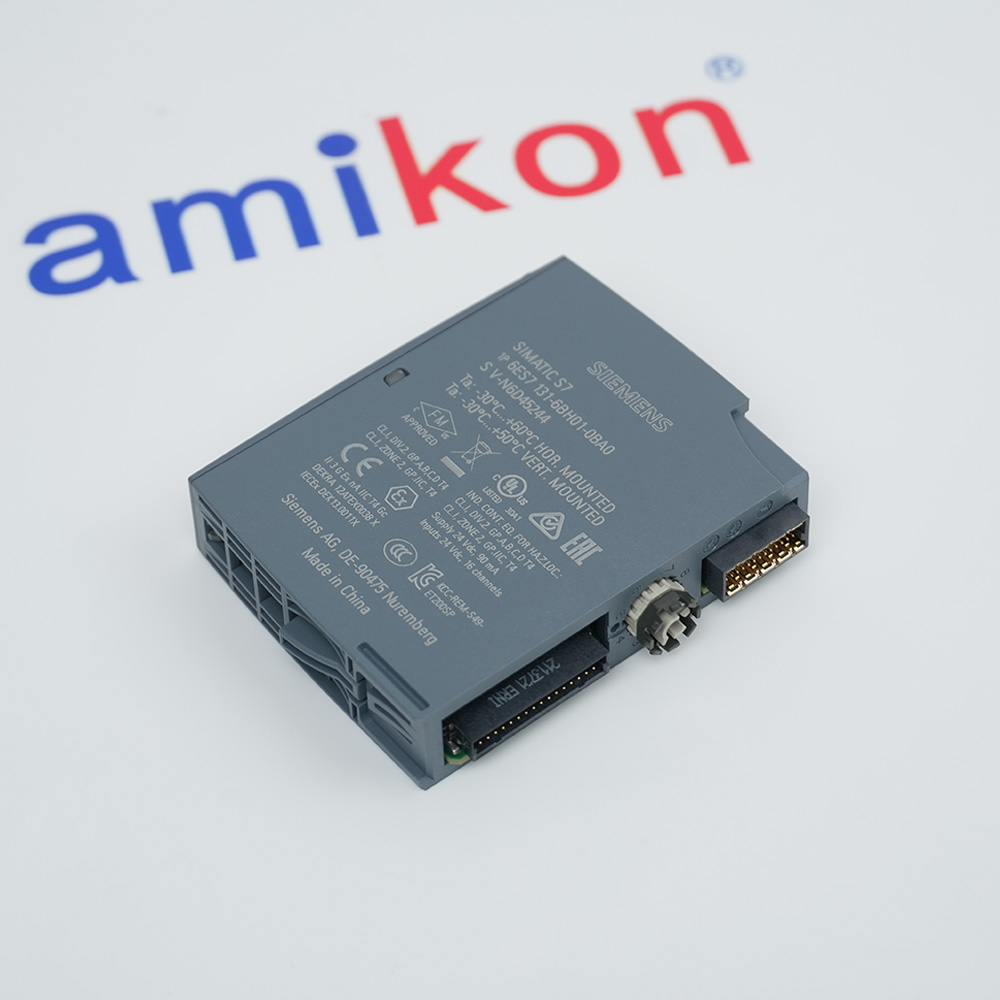

- 6ES7131-6BH01-0BA0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7131-6BH01-0BA0
-
Product Model6ES7131-6BH01-0BA0
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.5x5.7x7.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Product type designationDQ 16x24VDC/0.5A ST
-
HW functional status FromFS03
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption, max60 mA; without load
-
Power loss, typ1 W
-
Address space per module, max2 byte; + 2 bytes for QI information
Description
6ES71316BH010BA0
DIGITAL INPUT MODULE
SIMATIC ET 200SP
16X 24 VDC
PNP
0.05-20 MS DELAY TIME
LED INDICATOR
DIGITAL INPUT MODULE
SIMATIC ET 200SP
16X 24 VDC
PNP
0.05-20 MS DELAY TIME
LED INDICATOR
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Installation Steps
Features:
- High-Density 16-Channel Design
- 24 V DC Sink Input
- Configurable Input Delay
- Isochronous Mode Support
The 6ES7131-6BH01-0BA0 Siemens Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7131-6BH01-0BA0 CPU MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module is designed for "Standard" (ST) level performance, making it suitable for a wide variety of industrial applications that require reliable digital signal detection. It supports Type 3 input characteristics according to IEC 61131, ensuring compatibility with a broad range of mechanical switches and electronic proximity sensors. One of its significant advantages is the support for Isochronous Mode, which ensures that signal sampling occurs at equidistant intervals, a critical requirement for high-speed motion control and synchronized process applications.
- Automotive Engineering:Sub-assembly, powertrain & body-in-white lines
- Food & Beverage Plants:Syrup/dosing/mixing: hygienic control for soft drinks
- Textile and Fashion Manufacturing:High-speed spinning, weaving & knitting machines
- Electrical and Electronics Factories:Testing benches & high-speed consumer electronics assembly
- Water & Wastewater Treatment:Filtration skids & chemical dosing in industrial treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the BaseUnit: Hook a BU type A0 onto a standard TH35 DIN rail and swivel it back until it clicks. Slide it to the left to connect it to the preceding module.Light-colored BaseUnits: Required to start a new potential group (opens a new 24V DC supply bus).Dark-colored BaseUnits: Used to continue the potential group from the module on its left.
Connect the Wiring: Insert wires into the BaseUnit's push-in terminals. For standard 1-wire connections, connect your sensor signal to terminals 1 through 16.
FAQs
-
What is the 6ES7131-6BH01-0BA0?
+It is a SIMATIC ET 200SP, Digital Input Module, DI 16x 24V DC Standard. It has 16 digital inputs with 24V DC, packed in 1 unit. -
What type of input is it?
+It is a Type 3 (IEC 61131) sink input (PNP, P-reading). -
What diagnostics are supported?
+The module supports diagnostics for wire break and supply voltage. -
What is the difference between 6ES7131-6BH01-0BA0 and 6ES7131-6BH00-0BA0?
+The 6ES7131-6BH01-0BA0 is the successor product to the cancelled 6ES7131-6BH00-0BA0 and is a direct, compatible replacement.
