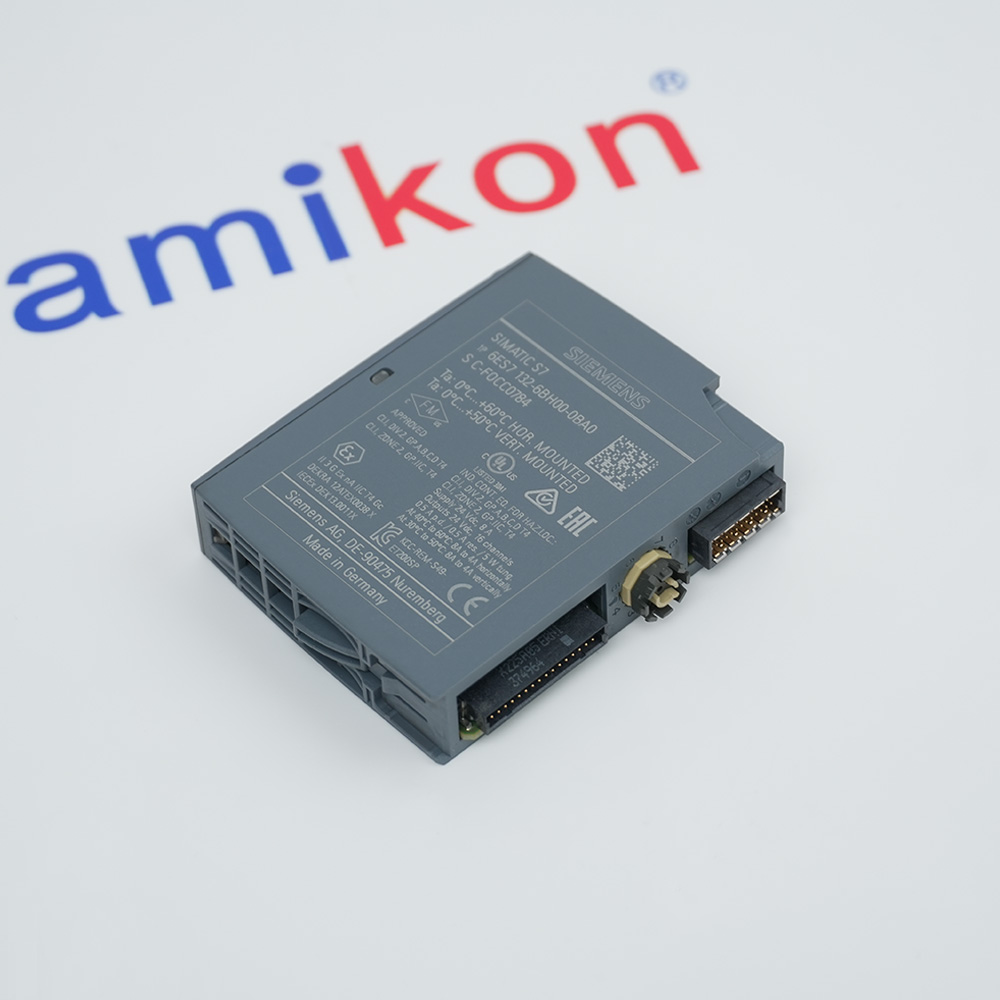

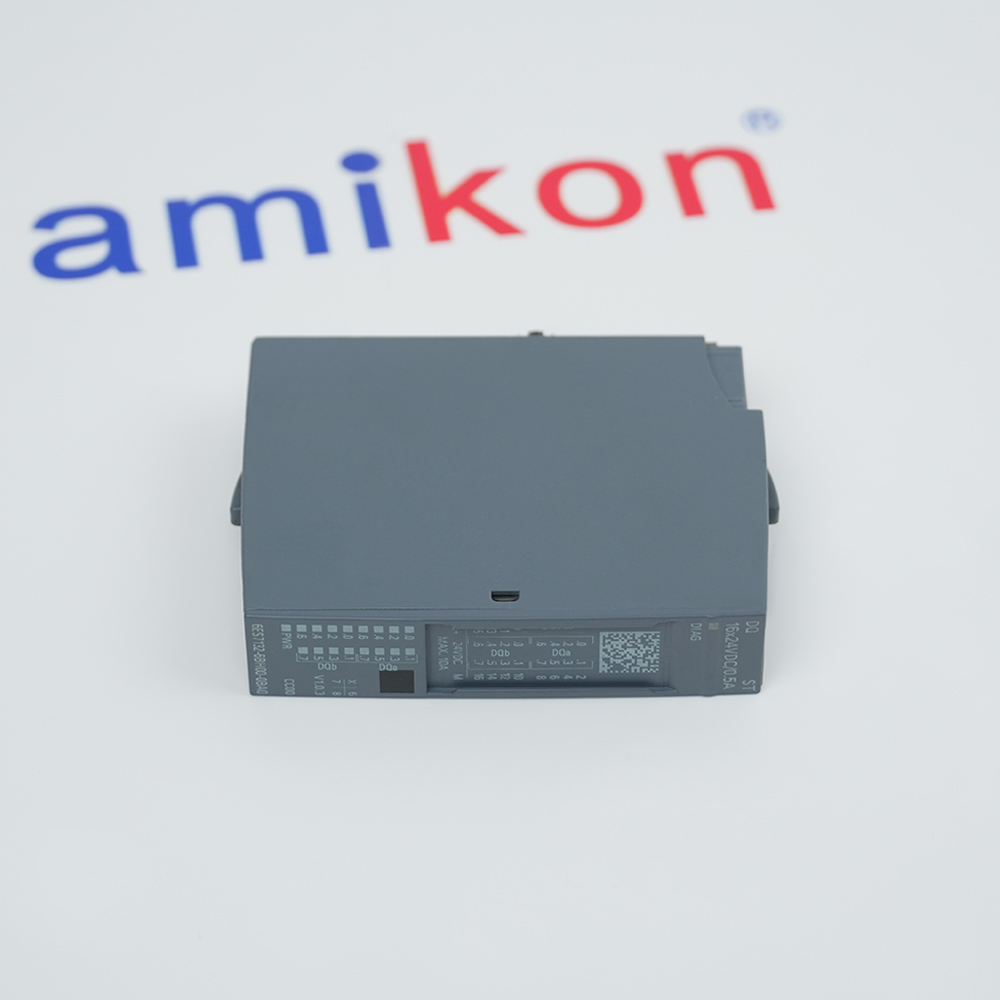

- 6ES7132-6BH00-0BA0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7132-6BH00-0BA0
-
Product Model6ES7132-6BH00-0BA0
-
Product ParametersDigital Output Module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.5x5.7x7.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Product type designationET 200SP, DQ 16x 24 V DC/0.5 A ST, PU 1
-
usable BaseUnitsBU type A0
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption, max.60 mA; without load
-
Power loss, typ.1 W
-
Address space per module, max2 byte
-
between different circuits75 V DC/60 V AC
Description
DIGITAL OUTPUT MODULE
SIMATIC ET 200SP
16 POINT
24 VDC
0.5 AMP
SUITABLE FOR BU TYPE A0
COLOR CODE CC00
MODULE DIAGNOSTICS
SIMATIC ET 200SP
16 POINT
24 VDC
0.5 AMP
SUITABLE FOR BU TYPE A0
COLOR CODE CC00
MODULE DIAGNOSTICS
Information
Overview
Manuals
Technical notes
Product Applications
Key Installation Steps
Features:
- High-Density 16-Channel Output
- Short-Circuit & Overload Protection
- Energy-Efficient Design
- Advanced Diagnostics & Feedback
The 6ES7132-6BH00-0BA0 Siemens Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7132-6BH00-0BA0 DIGITAL OUTPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module is for the "Standard" (ST) performance class, providing a robust and cost-effective solution for everyday automation tasks. It operates on a nominal $24\text{ V DC}$ supply and is capable of switching resistive, inductive, and lamp loads up to a frequency of $100\text{ Hz}$. To ensure maximum system availability, the module incorporates a "Substitute Value" function, allowing the outputs to be pre-programmed to a safe state (On, Off, or Keep Last Value) in the event of a CPU stop or communication loss.
- Automotive Engineering:Sub-assembly, powertrain & body-in-white lines
- Food & Beverage Plants:Syrup/dosing/mixing: hygienic control for soft drinks
- Textile and Fashion Manufacturing:High-speed spinning, weaving & knitting machines
- Electrical and Electronics Factories:Testing benches & high-speed consumer electronics assembly
- Water & Wastewater Treatment:Filtration skids & chemical dosing in industrial treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Install on a 35mm DIN rail via the BaseUnit (BU type A0).Wiring: Connect 24VDC to the BaseUnit (terminals P1/P2/U1/U2 depending on configuration).Voltage Supply: Ensure a light-colored BaseUnit is used if starting a new load group.
FAQs
-
What are the main specifications of 6ES7513-1AL02-0AB0?
+The 6ES7132-6BH00-0BA0 is a 16-channel digital output module with 24VDC voltage and 0.5A output current per channel. -
What is the maximum current capacity?
+Each of the 16 channels can handle 0.5 A, with a total module current maximum of 8 A. -
What is 6ES7132-6BH00-0BA0?
+The Siemens SIMATIC ET 200SP, Digital Output Module 6ES7132-6BH00-0BA0 (DQ 16x24VDC/0.5A Standard) is a high-density, 16-channel digital output module designed for use with the ET 200SP distributed I/O system. -
What diagnostics does this module support?
+The module supports configurable diagnostics, including short-circuit to ground, short-circuit to L+, wire break, and supply voltage issues.
