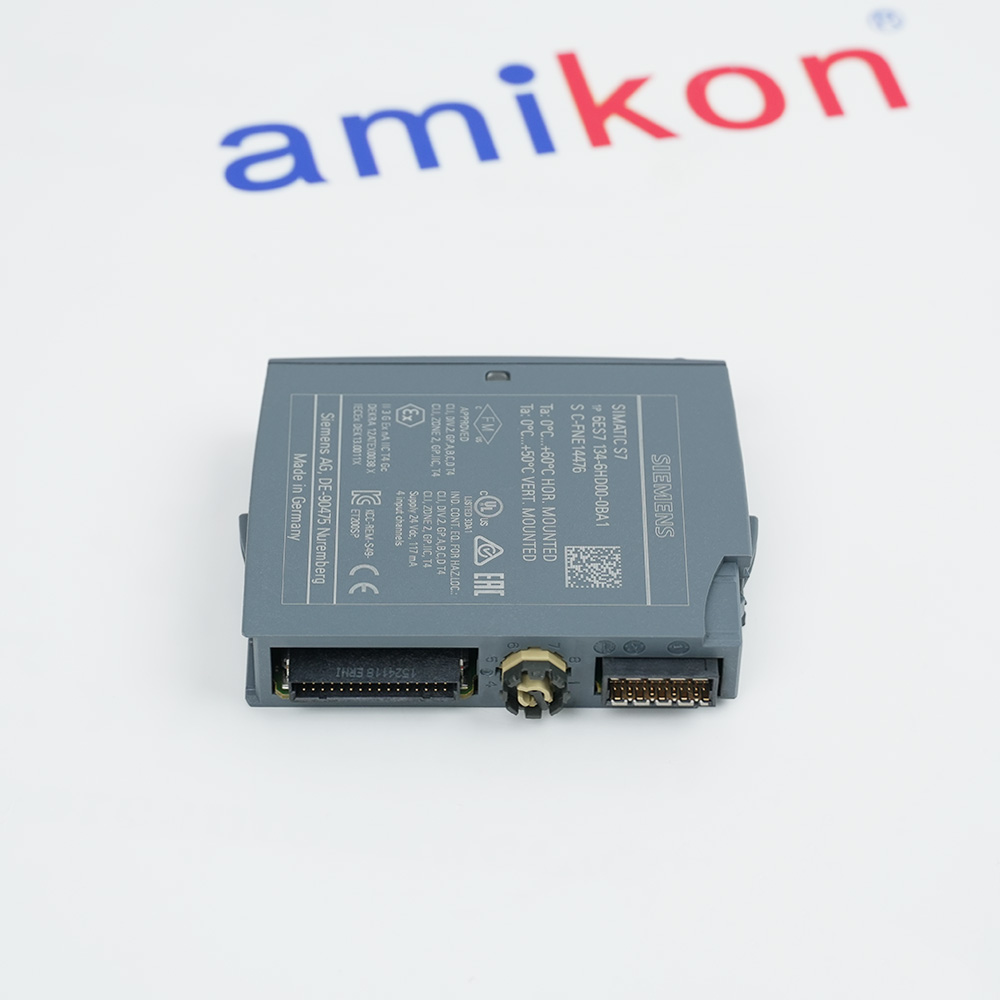

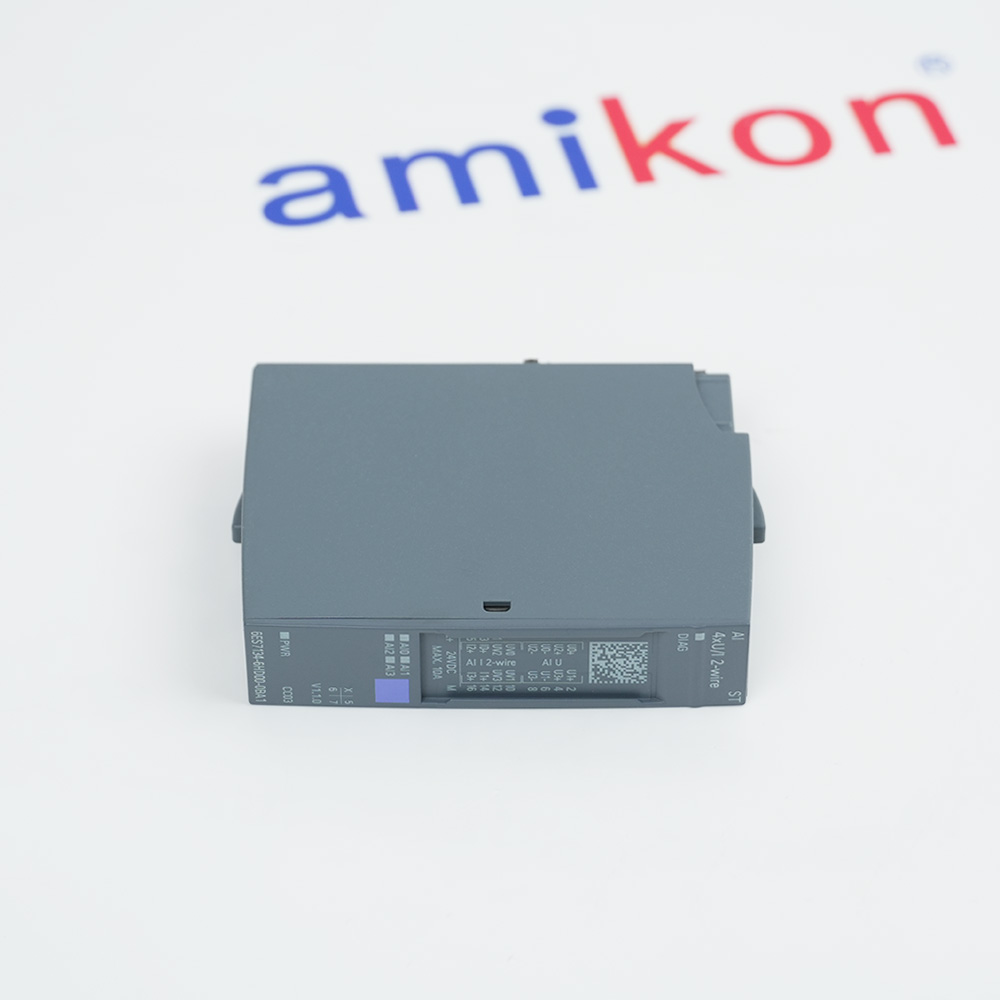

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7134-6HD00-0BA1
-
Product Model6ES7134-6HD00-0BA1
-
Product ParametersAnalog Input Module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.5x5.8x7.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Product type designationAI 4xU/I 2-wire ST
-
Firmware versionV1.1
-
usable BaseUnitsBU type A0, A1
-
Input current37 mA; without sensor supply
-
Encoder supply24 V encoder supply
-
Input ranges (rated values), voltages0 to 20 mA
-
Input resistance (0 to 10 V)120 kΩ
Description
6ES71346HD000BA1
INPUT MODULE
ANALOG
SIMATIC ET 200SP
AI 4 X U/I 2-WIRE STANDARD
SUITABLE FOR BU TYPE A0 / A1
COLOR CODE CC03
MODULE DIAGNOSTICS
16 BIT
REPLACED BY 6ES7134-6HD01-0BA1
INPUT MODULE
ANALOG
SIMATIC ET 200SP
AI 4 X U/I 2-WIRE STANDARD
SUITABLE FOR BU TYPE A0 / A1
COLOR CODE CC03
MODULE DIAGNOSTICS
16 BIT
REPLACED BY 6ES7134-6HD01-0BA1
Information
Overview
Manuals
Technical notes
Product Applications
Diagnostic & Monitoring Functions
Features:
- 4-channel, 16-bit resolution
- Voltage/current measurement
- 2-wire transducer support
- Fits BU-Type A0/A1 BaseUnit
The 6ES7134-6HD00-0BA1 SIEMENS Analog Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7134-6HD00-0BA1 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7134-6HD00-0BA1 is a Siemens SIMATIC ET 200SP analog input module. It is designed for standard voltage and current measurements (specifically 2-wire transducers) with 4 independent input channels
- Electricity and Energy: Monitoring voltage and current parameters of transformers and generator sets
- Automobile Manufacturing and Logistics: Monitoring the operating status of automated warehouse equipment
- Water Treatment and Environmental Protection: Monitoring water pool levels and pipeline pressures
- Metallurgy and Glass Industry: Monitoring pressure of combustion systems and high-temperature furnace chambers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Wire-Break Detection: Specifically available for the 4 to 20 mA measuring range. If the current falls below a specific threshold (typically around 1.18 mA), a diagnostic alarm is triggered.
Overflow/Underflow Monitoring: The module monitors if the measured value exceeds or falls below the permitted range (e.g., above 20 mA or below 4 mA) to prevent incorrect process calculations.
Supply Voltage Monitoring: The module continuously monitors its own 24V DC supply voltage; if it falls below the lower limit (approx. 19.2V), a "missing supply voltage" diagnostic is reported.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the 6ES7134-6HD00-0BA1, and how is it used in real-world automation?
+The 6ES7134-6HD00-0BA1 is a discontinued Siemens SIMATIC ET 200SP analog input module (4xU/I 2-wire ST) used to convert continuous physical signals into digital data for PLC processing. -
Which BaseUnit (BU) is compatible with the 6ES7134-6HD00-0BA1?
+Which BaseUnit (BU) is compatible with the 6ES7134-6HD00-0BA1? A: It requires a Type A0 or Type A1 BaseUnit. The most common choice is the 6ES7193-6BP00-0BA0 (A0), which uses color code CC03 for terminal identification. -
Can I replace a 6ES7134-6HD00-0BA1 with the newer 6ES7134-6HD01-0BA1?
+Yes. The -6HD01- model is the direct successor. It is "backward compatible," meaning you can physically plug the new module into the old base and it will work with the existing hardware configuration in your PLC. -
What is the digital range (raw value) for the 6ES7134-6HD00-0BA1 in TIA Portal?
+For standard Siemens scaling, the module converts the analog signal (like 4-20mA or 0-10V) into a digital integer range of 0 to 27648. Values above 27648 indicate an "Overshoot" or "Overflow." -
How many 2-wire current sensors can one 6ES7134-6HD00-0BA1 module support?
+It supports up to 4 channels. Each channel provides its own loop power (from the BaseUnit's L+ supply) to drive a 2-wire transmitter.
