      Siemens 6ES7155-6BU00-0CN0
      Siemens 6ES7155-6BU00-0CN0
      Siemens 6ES7155-6BU00-0CN0
      Siemens 6ES7155-6BU00-0CN0
      Siemens 6ES7155-6BU00-0CN0
      Siemens 6ES7155-6BU00-0CN0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7155-6BU00-0CN0

      High Feature PROFIBUS Interface

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          PROFIBUS communication for distributed ET 200SP stations

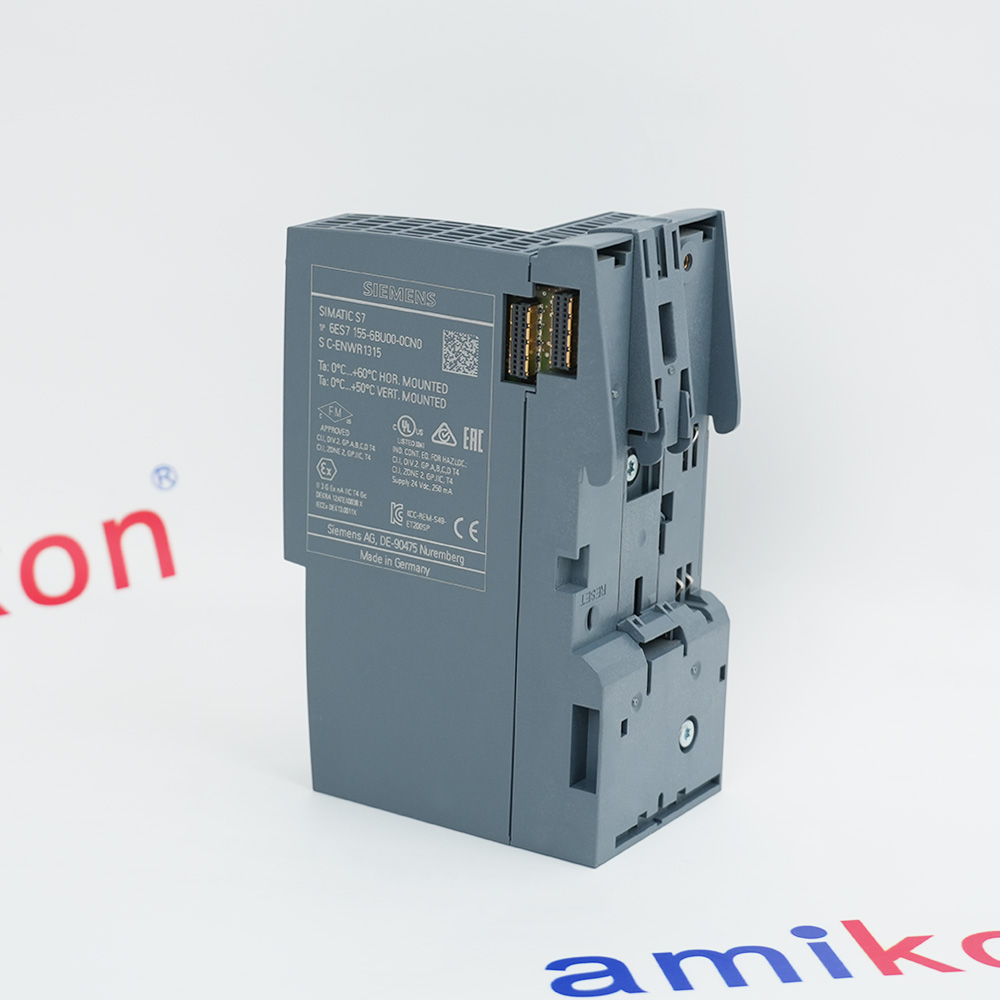

          Siemens 6ES7155-6BU00-0CN0 is the IM 155-6 DP High Feature interface for SIMATIC ET 200SP. It connects a distributed station to PROFIBUS DP and supports up to 32 I/O modules, with Multi Hot Swap identified for this exact interface in Siemens' released-module documentation.

          The interface provides communication, identification and diagnostic functions for station integration. Siemens' 2019 bundle data sheet explicitly identifies this component and documents its PROFIBUS services and engineering options. The standalone interface is distinct from the complete bundle, so included accessories and delivered firmware require separate confirmation.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · WATER & WASTEWATER

            Desalination and Water Distribution

            Seawater desalination for additional freshwater supply within water utilities.Drinking water distribution through networks serving public supply needs.
          • 02 · PLASTICS PROCESSING

            Molded Plastic Products

            Injection molding for plastic product manufacturing across industrial markets.Blow molding within the wider plastic product manufacturing industry.
          • 03 · FOOD & BEVERAGE

            Beer and Soft Drink Production

            Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry.

          Technical specifications for 6ES7155-6BU00-0CN0

          • Product Model
            6ES7155-6BU00-0CN0
          • Product Parameters
            High Feature PROFIBUS Interface
          • Manufacturer
            Siemens
          • Fieldbus connection
            1 PROFIBUS DP slave interface, RS 485
          • Maximum transmission rate
            12 Mbit/s
          • Station I/O capacity
            Up to 32 I/O modules
          • Maximum address space per I/O module
            32 bytes each for input and output
          • Maximum station address space
            244 bytes each for input and output
          • Identification and maintenance data
            I&M0 to I&M3
          • Module swapping during operation
            Multi Hot Swap; applicable system procedure required
          • TIA Portal engineering reference
            STEP 7 TIA Portal V13 SP1, as documented for the V3.1 reference
          • STEP 7 engineering reference
            STEP 7 V5.5 SP4 and higher, as documented for the V3.1 reference
          • PROFIBUS GSD revisions
            One GSD file each for revision 3 and revision 5 or higher
          • Configuration control
            Supported via data set
          • PROFIBUS services
            DPV0 and DPV1; SYNC and FREEZE supported
          • Isochronous operation
            Not supported in the documented reference
          • Diagnostic indicators
            RUN, ERROR, MAINT, PWR and DP LEDs
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          ET 200SP PROFIBUS STATION INTEGRATION

          Plan the DP station around communication and address limits

          The IM 155-6 DP HF provides the PROFIBUS connection for an ET 200SP station rather than executing the controller's application program. Siemens identifies the complete 6BU00 article for up to 32 I/O modules and Multi Hot Swap. Keep that interface identity separate from PN variants and from the complete 6BA00 sales bundle when defining the station.
          Station planning also needs an address-space check. The interface reference allows up to 32 bytes per input and output module and 244 bytes per input and output station. Its PROFIBUS services include DPV0, DPV1, SYNC and FREEZE, while isochronous operation is not listed as supported. Review these distinct limits against the configured I/O requirements.
          Engineering options in the 2019 V3.1 reference include TIA Portal V13 SP1, STEP 7 V5.5 SP4 and higher, and the stated GSD revisions. Configuration control uses a data set, and I&M0 through I&M3 provide identification and maintenance data. Match the reference to the actual firmware and project before adopting its configuration options.

          Features:

          • Separate module-count and address checks
          • DPV0/DPV1 with SYNC and FREEZE
          • Firmware-aware engineering configuration
          The Siemens 6ES7155-6BU00-0CN0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Start with the complete 6ES7155-6BU00-0CN0 order number and the installed interface's version information. The manufacturer distinguishes this component from the 6BA00 bundle containing a server module and a PROFIBUS connector. An interface-only purchase therefore requires an explicit check of the existing accessories and the items included in the replacement supply.
          Compare the existing project, I/O allocation and engineering environment before changing the interface. The data sheet's V3.1 reference is not proof of the firmware fitted to a spare. The historical Siemens tool matrix lists several 6BU00 firmware versions, so a matching family name does not establish identical firmware, configuration or update conditions.
          After the authorized replacement procedure, use the documented status and diagnostic facilities to assess the station, including RUN, ERROR, MAINT, PWR and DP indication. Multi Hot Swap is a supported feature, not a substitute for the missing installation procedure. Retain the applicable system safety instructions and verify communication through the engineering diagnostics before returning the station to service.

          Features:

          • Standalone interface versus bundle contents
          • Actual firmware and project comparison
          • Station diagnostics after authorized maintenance
          The Siemens 6ES7155-6BU00-0CN0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • Verified manufacturer product reference; separate installation document not supplied
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7155-6BU00-0CN0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          6ES7136-6BA00-0CA0 6ES7131-6BF01-0BA0 6ES7132-6BF01-0AA0 6ES7155-6BU00-0CN0 6ES7155-6AU01-0BN0

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            Confirm final packed dimensions
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8517623990
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7155-6BU00-0CN0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is 6ES7155-6BU00-0CN0 the complete 6BA00 bundle?

            No. The Siemens bundle sheet lists 6BU00 as its interface module, alongside a 6ES7193-6PA00-0AA0 server module and a 6ES7972-0BB70-0XA0 PROFIBUS connector. Those accessories should not be assumed to accompany a standalone 6BU00 order; confirm the supplied items explicitly.

          • Does this interface use PROFIBUS or PROFINET?

            It is the IM 155-6 DP High Feature PROFIBUS interface. The documented interface uses RS 485 as a PROFIBUS DP slave, with a maximum transmission rate of 12 Mbit/s. The similarly named PN interface variants have a different network identity.

          • How should the station's module and address limits be checked?

            Check both limits independently. The exact 6BU00 interface is listed for up to 32 I/O modules. The 2019 interface reference additionally gives 32 bytes per input/output module and 244 bytes per input/output station; meeting the module count alone does not establish that the configured address allocation fits.

          • Which engineering references are documented?

            For the V3.1 reference, the 2019 sheet lists STEP 7 TIA Portal V13 SP1, STEP 7 V5.5 SP4 and higher, and GSD files for revisions 3 and 5 or higher. Compare these references with the actual device firmware and existing project rather than assuming every older device has the same software support.

          • Does Multi Hot Swap mean the interface can always be removed under power?

            No unconditional removal instruction follows from that feature name. Siemens identifies Multi Hot Swap for the exact interface, but the supplied functional sheet is not an installation procedure. Use the applicable system instructions and operational safeguards before performing any maintenance or module exchange.

          • What diagnostic information is provided locally?

            The reference lists status indication, alarms and diagnostics, with RUN, ERROR, MAINT, PWR and DP LEDs. These provide different status categories; interpreting a particular combination still requires the applicable device documentation and engineering diagnostics, not an assumed LED meaning from another interface.

          • Is firmware V3.1 guaranteed on the supplied module?

            No. V3.1 is the reference shown in the 2019 sheet, not a verification of the offered unit. Siemens' historical Automation Tool V3.1 matrix lists 6BU00 firmware versions V1.1, V3.0 and V3.1 for firmware-update support, so identify the actual device version before planning a replacement or update.
