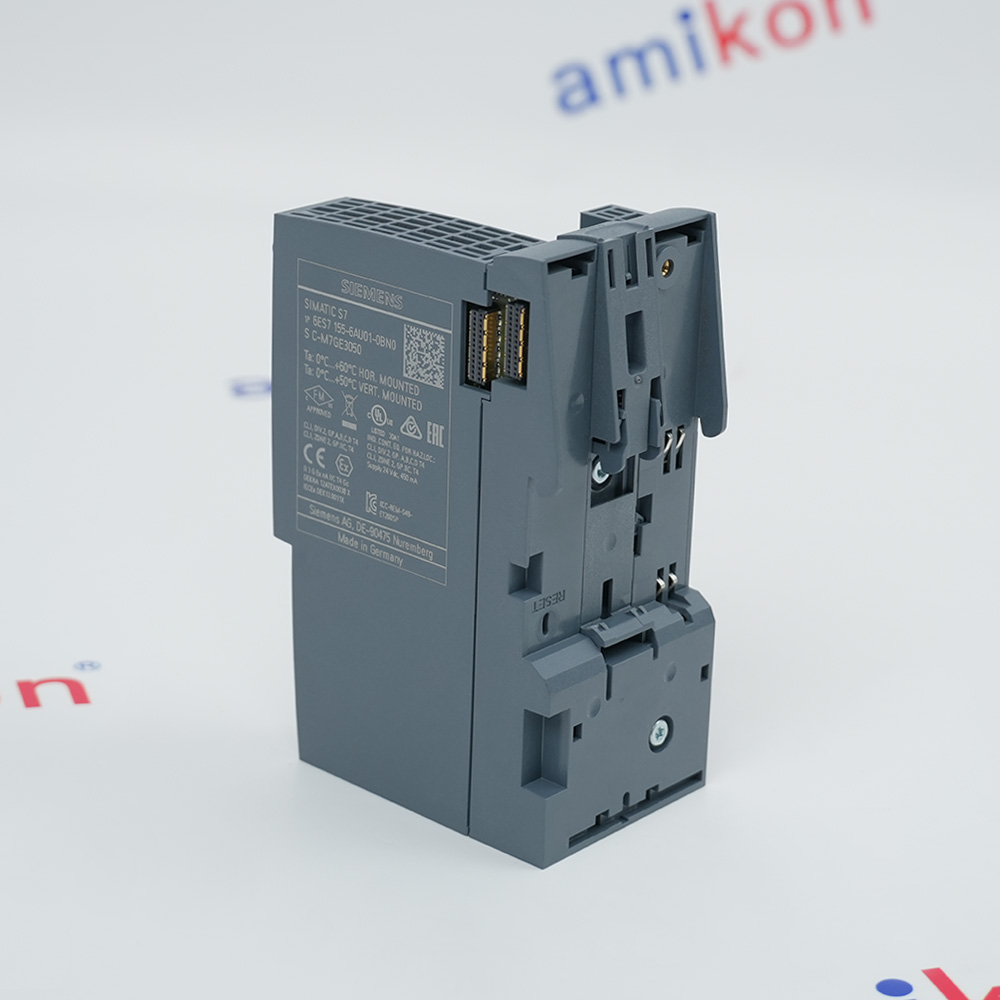

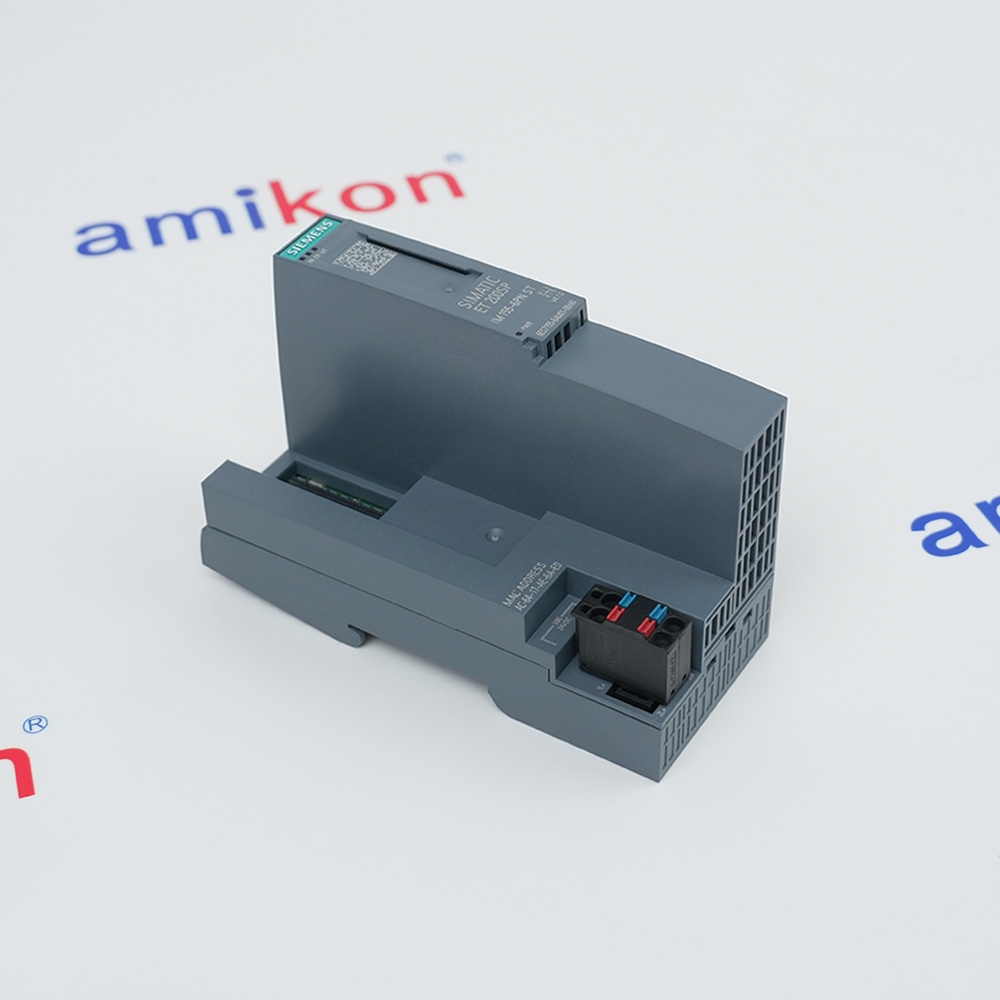

- 6ES7155-6AU01-0BN0
In Stock
Ships by Sunday, June 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7155-6AU01-0BN0
-
Product Model6ES7155-6AU01-0BN0
-
Product ParametersSIMATIC ET 200SP, PROFINET Interface-Module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5x7.3x11.7cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
Product type designationIM 155-6 PN ST
-
HW functional statusFrom FS03
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption (rated value)450 mA
-
Current consumption, max550 mA
-
Inrush current, max3.7 A
-
Infeed power to the backplane bus4.5 W
-
Power loss, typ1.9 W
-
Isolation tested with707 V DC
Description
The SIEMENS 6ES7155-6AU01-0BN0 is a PROFINET interface module for the SIMATIC ET 200SP distributed I/O system. It supports up to 32 peripheral modules and up to 16 ET 200AL modules in a single configuration. The module includes a server module (6ES7193-6PA00-0AA0) and supports single hot swap for module replacement without system interruption.
The IM 155-6PN Standard features a PROFINET interface with two integrated switch ports (RJ45) operating at 100 Mbps. It supports PROFINET IO Device, I-Device, Shared Device, MRP, and MRPD functions. Open user communication is available via TCP/IP, ISO-on-TCP, UDP, and Modbus TCP protocols.
The module operates from 24 V DC supply with a typical current consumption of 0.25 A. It supplies 5 V DC to the backplane bus for I/O modules. Maximum input and output data capacity is 256 bytes each.
The IM 155-6PN Standard features a PROFINET interface with two integrated switch ports (RJ45) operating at 100 Mbps. It supports PROFINET IO Device, I-Device, Shared Device, MRP, and MRPD functions. Open user communication is available via TCP/IP, ISO-on-TCP, UDP, and Modbus TCP protocols.
The module operates from 24 V DC supply with a typical current consumption of 0.25 A. It supplies 5 V DC to the backplane bus for I/O modules. Maximum input and output data capacity is 256 bytes each.
Alternative Names
6ES7 155-6AU01-0BN0
6ES7155 6AU01 0BN0
6ES7155-6AU01-0BNO
6ES7155-6AU01-OBN0
6ES7155-6AU0I-0BN0
6ES7I55-6AUO1-0BN0
6ES7I55-6AUOI-OBNO
6ES7I55 6AU01 0BN0
6ES7I55 6AUOI 0BN0
6ES7I55 6AU01 OBNO
6ES7 155-6AU0I-0BNO
6ES7 I55-6AUOI-OBNO
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Wiring & Grounding
Features:
- Maximum 32 I/O Modules Plus 16 ET 200AL Modules
- Single Hot Swap Capability
- Integrated 2-Port Switch with PROFINET Support
- Media Redundancy Protocol (MRP) Support
- Complete Diagnostic Support with LED Indicators
The IM 155-6PN Standard features a PROFINET interface with two integrated switch ports (RJ45) operating at 100 Mbps. It supports PROFINET IO Device, I-Device, Shared Device, MRP, and MRPD functions. Open user communication is available via TCP/IP, ISO-on-TCP, UDP, and Modbus TCP protocols.
The 6ES7155-6AU01-0BN0 SIEMENS SIMATIC ET 200SP, PROFINET Interface-Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7155-6AU01-0BN0 SIMATIC ET 200SP, PROFINET Interface-Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7155-6AU01-0BN0 has a rated current consumption of 450 mA, maximum current consumption of 550 mA, and maximum inrush current of 3.7 A. The 6ES7155-6AU01-0BN0 delivers infeed power to the backplane bus of 4.5 W with typical power loss of 1.9 W. The 6ES7155-6AU01-0BN0 supports address spaces of up to 256 bytes per module and 512 bytes per station, with a maximum of 256 submodules per station. The 6ES7155-6AU01-0BN0 includes the server module 6ES7193-6PA00-0AA0 as standard, providing necessary backplane bus termination.
- Pumping Stations: Manages telemetry, level transmitters, and VFDs across distributed infrastructure
- Filtration Monitoring: Collects pressure differential and turbidity data to maintain water quality
- CNC Machining: Routes encoder data and tool positions to SINUMERIK controllers via local fieldbus
- Stamping/Pressing: Provides shock/vibration resistance for heavy metal forming machinery
- Substation Automation: Monitors voltage, breaker status, and transformer diagnostics via PROFINET
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
System Power: A light-colored BaseUnit (BU) must be used to route the 24V DC supply voltage via an internal self-assembling fuse. Dark-colored BUs tap into this established bus.
Grounding: Proper grounding of the DIN rail is critical for electromagnetic compatibility (EMC) and electrical safety. The DIN rail should be connected to a central grounding busbar.
Cable Routing: Segregate power cables, signal/data cables, and network (PROFINET) cables into separate cable ducts to prevent electromagnetic interference.
Technical notes
Configuration and parameterization are performed using TIA Portal software. The module supports topology recognition via LLDP and SNMP, and includes an integrated web server for diagnostics.
The 6ES7155-6AU01-0BN0 operates in temperatures from −30°C to +60°C for horizontal mounting and carries CE, UL, and cULus certifications. Typical applications include distributed I/O in machine building, process automation, and conveyor systems where modular and flexible I/O configurations are required.
FAQs
-
What is the 6ES7155-6AU01-0BN0?
+The Siemens 6ES7155-6AU01-0BN0 is a SIMATIC ET 200SP PROFINET interface module (IM 155-6 PN ST) designed to connect I/O modules to a PROFINET network. -
What is included with the interface module?
+The package includes the interface module itself and a 6ES7193-6PA00-0AA0 server module. The BusAdapter (such as BA 2xRJ45) is typically built-in or ordered separately depending on the bundle -
How many modules can it support?
+It can support up to 32 standard I/O modules and up to 16 ET 200AL modules simultaneously. -
What is the difference between 6ES7155-6AU01-0BN0 and 6ES7155-6AA01-0BN0?
+The 6ES7155-6AU01-0BN0 is the standalone interface module part number. The 6ES7155-6AA01-0BN0 is a bundled package that includes the interface module alongside a pre-configured BusAdapter (BA 2xRJ45).
