PRODUCT DESCRIPTION

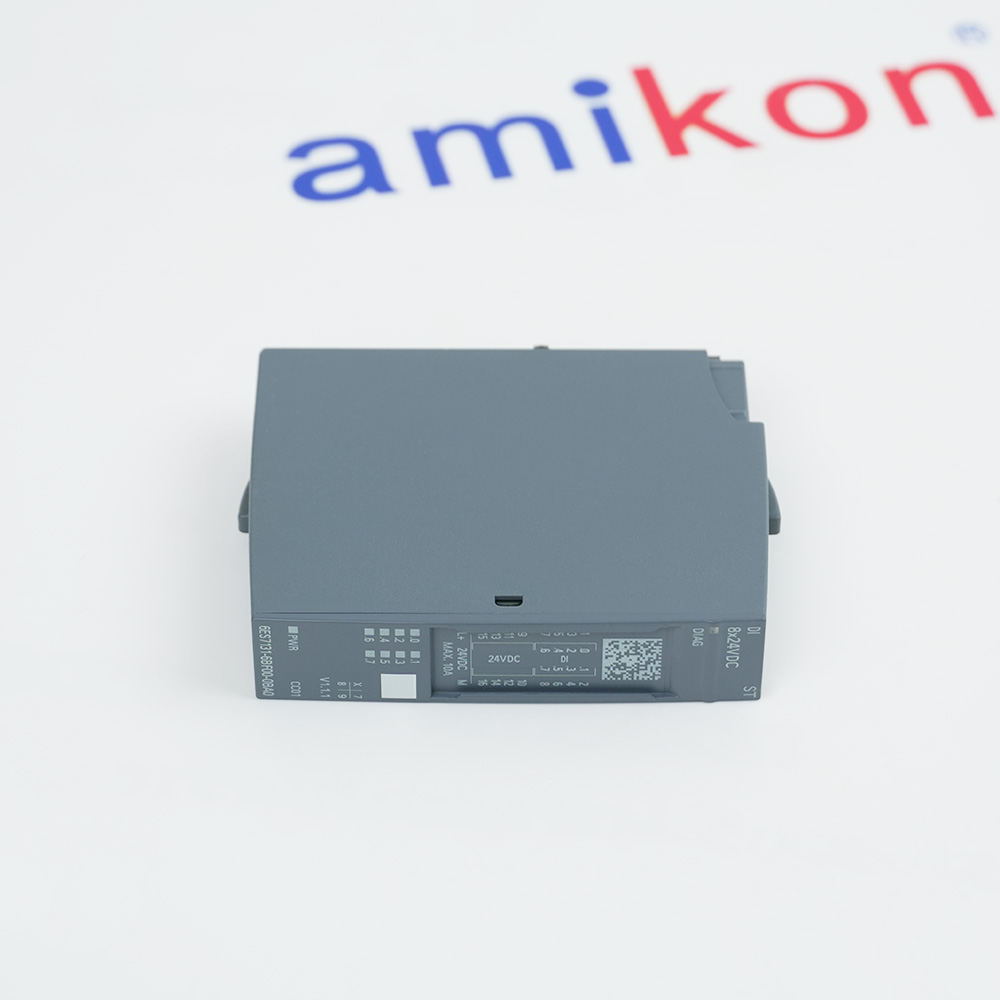

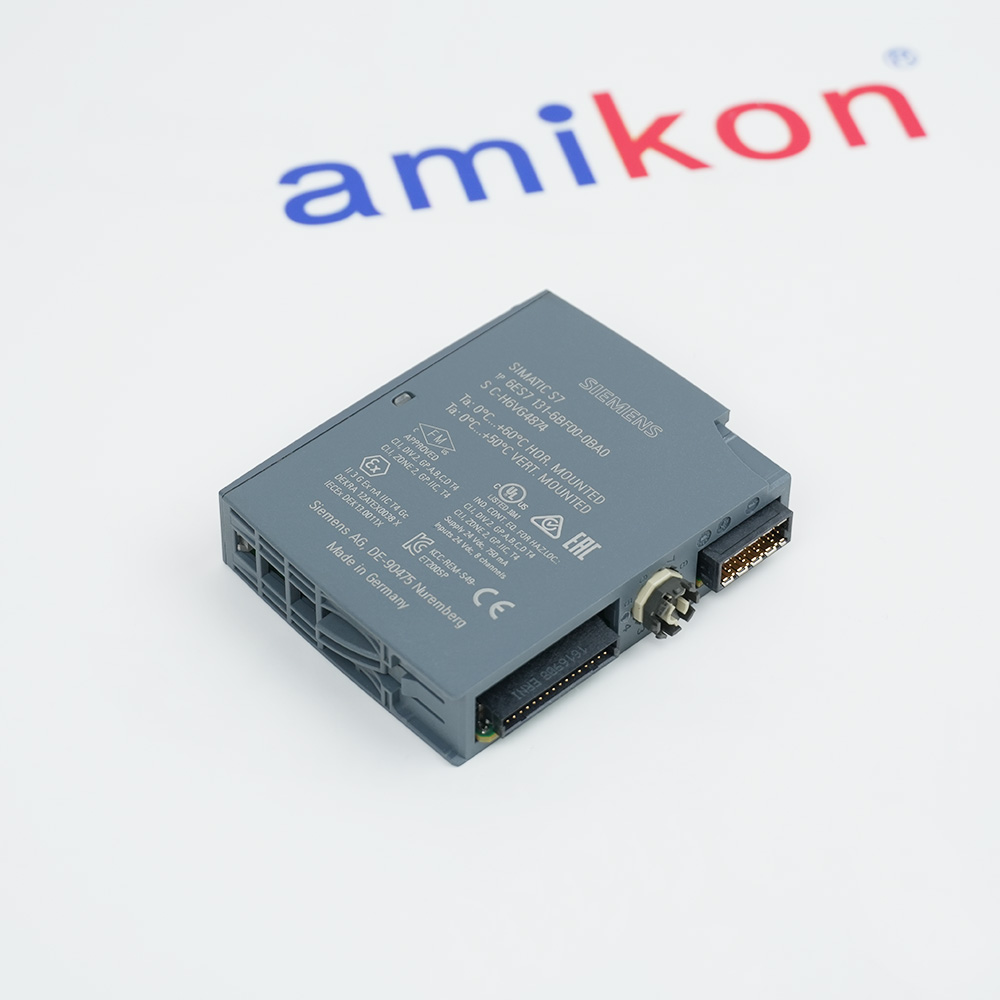

6ES7131-6BF00-0BA0 SIMATIC ET 200SP DI 8x24VDC standard input module
Siemens 6ES7131-6BF00-0BA0 is a SIMATIC ET 200SP DI 8x24VDC standard input module designed for SIMATIC ET 200SP automation equipment. It provides the documented interfaces, electrical characteristics and installation format associated with this exact order number.
Use the applicable Siemens data for wiring, configuration and replacement. Match the complete suffix, terminal arrangement and operating limits, then perform controlled functional checks before returning the connected process or machine to service.
Use the applicable Siemens data for wiring, configuration and replacement. Match the complete suffix, terminal arrangement and operating limits, then perform controlled functional checks before returning the connected process or machine to service.
BEFORE YOU BUY
Confirm the complete simatic et 200sp di 8x24vdc standard input module
ACTUAL APPLICATIONS
Application context for 6ES7131-6BF00-0BA0
6ES7131-6BF00-0BA0 supports industry applications that use the documented simatic et 200sp di 8x24vdc standard input module within SIMATIC ET 200SP. Its digital inputs is 8 channels, and its rated input voltage is 24 V DC. These characteristics are used in industrial automation, utility process control and facility automation where the installed system and complete order code have been confirmed.
-
01 · MARINE & OFFSHORE
Marine, Offshore and Port Infrastructure Facilities
Commercial marine and offshore energy sector facility infrastructureShipyard, harbor and coastal port infrastructure facility networks -
02 · POWER GENERATION
Electric Power Generation, Transmission and Distribution
Thermal, hydroelectric and renewable electricity generation facility infrastructureRegional electrical transmission and distribution infrastructure facility networks -
03 · CHEMICALS
Chemical, Polymer and Specialty Materials Industries
Bulk chemical manufacturing and specialty materials industry facilitiesPolymer, fertilizer and industrial gas sector facility infrastructure
Technical specifications for 6ES7131-6BF00-0BA0
-
Product Model6ES7131-6BF00-0BA0
-
Product ParametersSIMATIC ET 200SP DI 8x24VDC standard input module
-
In stock5 units
-
ManufacturerSiemens
-
Module TypeET 200SP DI 8x24 V DC Standard
-
Firmware VersionV1.1
-
Firmware UpdateSupported
-
Compatible BaseUnitType A0
-
Color CodeCC01
-
I&M DataI&M0 to I&M3
-
Digital Inputs8
-
Rated Supply Voltage24 V DC
-
Permissible Voltage Range19.2–28.8 V DC
-
Maximum Current Consumption50 mA
-
Power Loss1 W typical
-
Input StandardIEC 61131 Type 1 and Type 3
-
Signal 0 Voltage-30 to +5 V
-
Signal 1 Voltage11–30 V
-
Signal 1 Current2.5 mA typical
View all additional
Alternative Names
6ES7131-6BF00-0BA0
SIMATIC ET 200SP SIMATIC ET 200SP DI 8x24VDC standard input module
ET 200SP 8 channels digital inputs
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7131-6BF00-0BA0 simatic et 200sp di 8x24vdc standard input module
6ES7131-6BF00-0BA0 is a SIMATIC ET 200SP DI 8x24VDC standard input module in the SIMATIC ET 200SP family. Confirm the complete order code, installed position and documented digital inputs of 8 channels before wiring or mechanical installation.
Integrate the unit according to its documented rated input voltage of 24 V DC. Match terminal allocation, supply, addressing and adjacent hardware to the accepted system drawing, and preserve the configured signal or drive relationships.
Commission 6ES7131-6BF00-0BA0 by checking the specified feature class of Standard, status indications and diagnostics. Test every affected channel, communication path or controlled load, then record the final configuration and results.
Features:
- Digital inputs: 8 channels
- Rated input voltage: 24 V DC
- Feature class: Standard
The 6ES7131-6BF00-0BA0 simatic et 200sp di 8x24vdc standard input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7131-6BF00-0BA0 simatic et 200sp di 8x24vdc standard input module
Select a replacement using the full 6ES7131-6BF00-0BA0 order code and the SIMATIC ET 200SP equipment definition. Verify the documented digital inputs of 8 channels; a related family number does not establish interchangeability.
Before removal, photograph the label, terminals, connector orientation and adjacent module arrangement. Compare the rated input voltage of 24 V DC, retain the installed project settings and identify any separately ordered terminal or mounting accessories.
After fitting the verified replacement, restore the approved configuration and validate the feature class of Standard. Check power-up diagnostics and all affected functions before returning the equipment to service.
Features:
- Input type: IEC Type 3 digital inputs
- Diagnostics: Module and channel diagnostics
- Width: 15 mm
The 6ES7131-6BF00-0BA0 simatic et 200sp di 8x24vdc standard input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7131-6BF00-0BA0 simatic et 200sp di 8x24vdc standard input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size1.5 × 7.3 × 5.8 cm
-
Shipping weight0.03 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7131-6BF00-0BA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which BaseUnit and project version are required for 6ES7131-6BF00-0BA0?
Siemens identifies 6ES7131-6BF00-0BA0 as DI 8x24 V DC Standard for BU Type A0. Check the station configuration and supported STEP 7 or PCS 7 version before exchange. -
What can maintenance read from 6ES7131-6BF00-0BA0 when a sensor fails?
The 6ES7131-6BF00-0BA0 supports module diagnostics, readable diagnostic information and supply monitoring. Check the channel indication and sensor supply before interpreting a missing input as module failure. -
How should the field sensors be reconnected to 6ES7131-6BF00-0BA0?
Preserve the eight-channel assignment on 6ES7131-6BF00-0BA0 and select the proper one- to four-wire connection for the installed BU Type A0 arrangement. -
Can 6ES7131-6BF00-0BA0 be swapped with the Basic DI8 variant?
Do not assume Basic and Standard editions are equivalent. The 6ES7131-6BF00-0BA0 Standard module has different diagnostics and input behavior; confirm project settings and the complete order suffix. -
What tests confirm 6ES7131-6BF00-0BA0 after installation?
Cycle the affected sensors, confirm PLC input states and review the 6ES7131-6BF00-0BA0 DIAG and power indications. Check that configured input delays still suit the application. -
What should be checked when 6ES7131-6BF00-0BA0 reports a supply fault?
Measure the 24 V feed and encoder supply at the station, inspect wiring and review the 6ES7131-6BF00-0BA0 module diagnostic record before replacing hardware. -
What should a distributor request before quoting 6ES7131-6BF00-0BA0?
Ask for the full 6ES7131-6BF00-0BA0 suffix, BU Type A0, quantity and the installed engineering environment so Standard and Basic variants are not confused. -
How should a supplied 6ES7131-6BF00-0BA0 be accepted?
Check the 6ES7131-6BF00-0BA0 label for the Standard variant, inspect module contacts and compare the delivered part with the purchase order and accompanying documents.
