PRODUCT DESCRIPTION

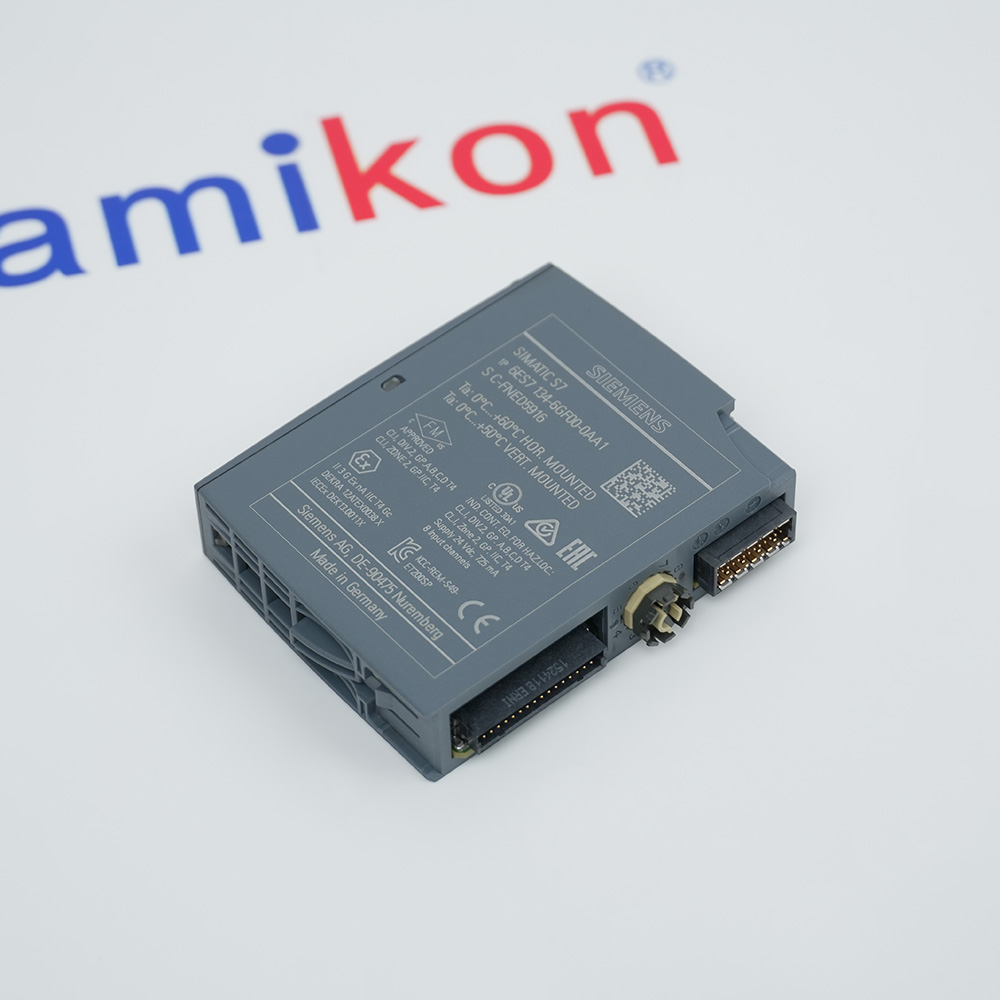

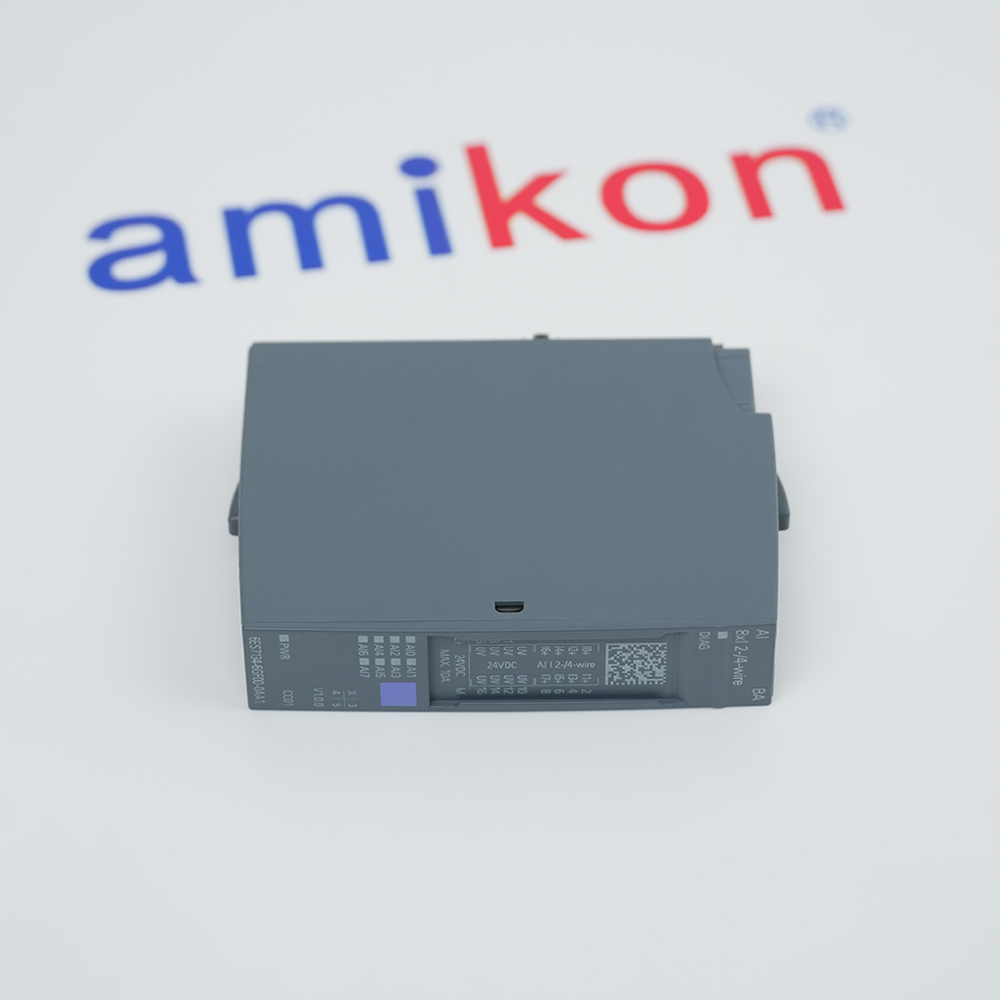

6ES7134-6GF00-0AA1 Eight-Channel Current Input Module
Siemens 6ES7134-6GF00-0AA1 is the ET 200SP AI 8xI 2-/4-wire Basic module with eight single-ended current inputs. It supports 0 to 20 mA, +/-20 mA and 4 to 20 mA measurement and occupies 16 input bytes. The module uses a 24 V DC supply and the A0 or A1 BaseUnit arrangement with the specified CC01 coding.
The input resistance is 100 ohm, and conversion provides 16 bits including sign in the bipolar range or 15 bits in the unipolar ranges. Two-wire encoder operation permits a maximum 650 ohm burden, while shielded signal cable can extend to 200 m. Configurable smoothing and wire-break diagnostics for the 4 to 20 mA range support signal conditioning and fault identification. The stated basic and operational error limits are +/-0.3% and +/-0.5% of the input range.
The input resistance is 100 ohm, and conversion provides 16 bits including sign in the bipolar range or 15 bits in the unipolar ranges. Two-wire encoder operation permits a maximum 650 ohm burden, while shielded signal cable can extend to 200 m. Configurable smoothing and wire-break diagnostics for the 4 to 20 mA range support signal conditioning and fault identification. The stated basic and operational error limits are +/-0.3% and +/-0.5% of the input range.
BEFORE YOU BUY
Confirm the complete 6ES7134-6GF00-0AA1 identity
ACTUAL APPLICATIONS
Application fields for 6ES7134-6GF00-0AA1
These broad application fields reflect the documented function and technical characteristics of 6ES7134-6GF00-0AA1.
-
01 · METALS
Ferrous Metallurgy and Nonferrous Metals
Primary ferrous metallurgy and secondary ferrous metallurgyPrimary nonferrous metallurgy and secondary nonferrous metallurgy -
02 · OIL & GAS
Offshore Oil and Onshore Natural Gas
Offshore petroleum and conventional offshore natural gasOnshore natural gas and associated onshore petroleum -
03 · POWER GENERATION
Thermal Energy and Renewable Electricity
Industrial thermal energy and conventional electricityRenewable electricity generation and hydroelectric energy
Technical specifications for 6ES7134-6GF00-0AA1
-
Product Model6ES7134-6GF00-0AA1
-
Product ParametersEight-Channel Current Input Module
-
In stock1 unit
-
ManufacturerSiemens
-
Analog input channels8; single-ended
-
Current measuring ranges0 to 20 mA; +/-20 mA; 4 to 20 mA
-
Supply voltage24 V DC; permissible 19.2 to 28.8 V
-
Maximum supply current25 mA; excluding encoder supply
-
Encoder supply total currentMaximum 0.7 A
-
Typical power loss0.7 W; excluding encoder supply
-
Input address allocation16 bytes
-
Input resistance100 ohm
-
Bipolar resolution16 bits including sign
-
Unipolar resolution15 bits
-
Maximum shielded signal cable200 m
-
Two-wire encoder burdenMaximum 650 ohm
-
Basic error limit+/-0.3% of input range
-
Operational error limit+/-0.5% of input range
-
Linearity error+/-0.01% of input range
View all additional
Alternative Names
6ES7134-6GF00-0AA1
SIMATIC ET 200SP
Eight-Channel Current Input Module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7134-6GF00-0AA1 within SIMATIC ET 200SP
Select the A0 or A1 BaseUnit and CC01 coding required for this eight-channel current-input module. Allocate 16 input bytes in the ET 200SP station and select the correct current range for each connected transmitter. A voltage-input module must not be substituted through range settings alone.
Wire the transmitters using the documented two-wire or four-wire connection scheme. Include the 100 ohm input resistance and other loop loads in the current-loop budget; the specified two-wire encoder burden is limited to 650 ohm. The module encoder supply permits a maximum aggregate current of 0.7 A.
Route and terminate shielded analog cables under the ET 200SP installation rules, with a maximum stated length of 200 m. Configure smoothing and applicable wire-break diagnostics, then scale the process values using the selected range and resolution. Include the basic and operational error limits in the measurement allowance.
Features:
- Analog input channels: 8; single-ended
- Current measuring ranges: 0 to 20 mA; +/-20 mA; 4 to 20 mA
- SIMATIC ET 200SP
Use 6ES7134-6GF00-0AA1 only within the documented SIMATIC ET 200SP arrangement and applicable installation instructions.
INTERCHANGEABILITY
Replace 6ES7134-6GF00-0AA1 within SIMATIC ET 200SP
Record the full 6ES7134-6GF00-0AA1 order code, BaseUnit coding, channel ranges and input addresses. A differently coded or differently ranged ET 200SP analog module may fit the same station width but does not preserve the current-input configuration.
Place the connected process in its approved exchange state and follow the ET 200SP module-removal procedure. Retain the transmitter polarity, two-wire or four-wire arrangement, and shield termination. Inspect any channel with a wire-break indication for field-loop faults before installing replacement electronics.
After replacement, confirm the hardware configuration and channel diagnostics before using the values for control. Inject or compare representative current signals and verify scaling at the selected range endpoints. Restore the intended smoothing and wire-break settings and confirm stable readings.
Features:
- 6ES7134-6GF00-0AA1 complete order code
- Linearity error: +/-0.01% of input range
- Retain the documented SIMATIC ET 200SP connection arrangement
Use 6ES7134-6GF00-0AA1 only within the documented SIMATIC ET 200SP arrangement and applicable installation instructions.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact-model technical data for 6ES7134-6GF00-0AA1
- Document applicability checked against the complete identity
- Directory links by subcategory and brand
Documentation for 6ES7134-6GF00-0AA1 must match the installed product identity and supplied configuration.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product size1.50 x 7.30 x 5.80 cm
-
Net weight0.03 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-6GF00-0AA1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which current ranges are supported by 6ES7134-6GF00-0AA1?
6ES7134-6GF00-0AA1 supports 0 to 20 mA, +/-20 mA and 4 to 20 mA on its eight current-input channels. -
How many input bytes should be assigned to 6ES7134-6GF00-0AA1?
Allocate 16 input bytes for 6ES7134-6GF00-0AA1 in the ET 200SP station configuration. -
What is the input resistance of 6ES7134-6GF00-0AA1?
The specified input resistance of 6ES7134-6GF00-0AA1 is 100 ohm. Include that value in the transmitter loop calculation. -
Does 6ES7134-6GF00-0AA1 provide the same resolution for bipolar and unipolar signals?
No. 6ES7134-6GF00-0AA1 provides 16 bits including sign for bipolar input and 15 bits for unipolar input. -
What total encoder-supply current is available from 6ES7134-6GF00-0AA1?
The encoder supply of 6ES7134-6GF00-0AA1 is limited to a total of 0.7 A; this is separate from the electronics-current figure. -
Which diagnostics should be reviewed for an open loop on 6ES7134-6GF00-0AA1?
Check the configured 4 to 20 mA wire-break diagnostics and inspect the affected transmitter wiring on 6ES7134-6GF00-0AA1 before assuming the module is defective. -
Which BaseUnit information should accompany a request for 6ES7134-6GF00-0AA1?
Include the installed BaseUnit type and CC01 coding with the complete 6ES7134-6GF00-0AA1 order code, especially if connection hardware is also required. -
Can a distributor quote only AI 8xI for 6ES7134-6GF00-0AA1?
Use the full 6ES7134-6GF00-0AA1 code and identify the Basic 2-/4-wire current-input version. State the condition, quantity and whether the BaseUnit is included.
