PRODUCT DESCRIPTION
Four temperature channels with configurable reference compensation

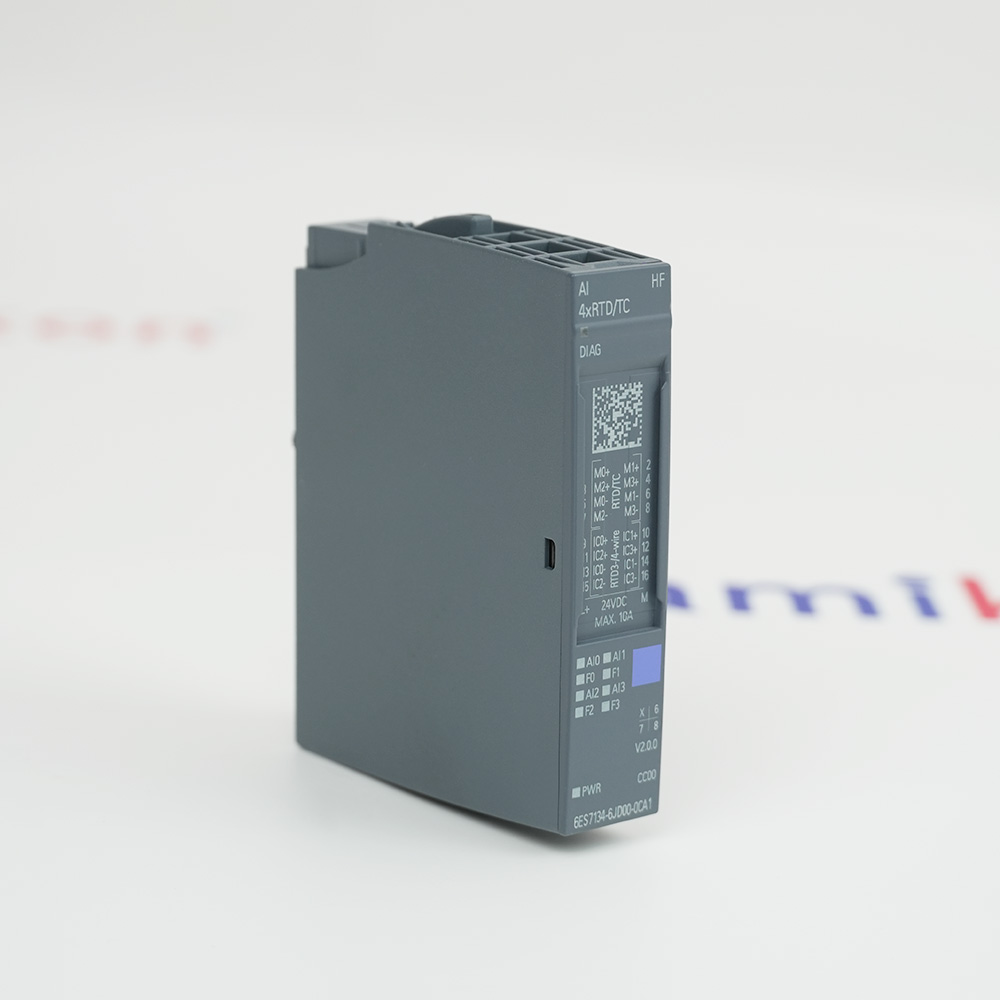

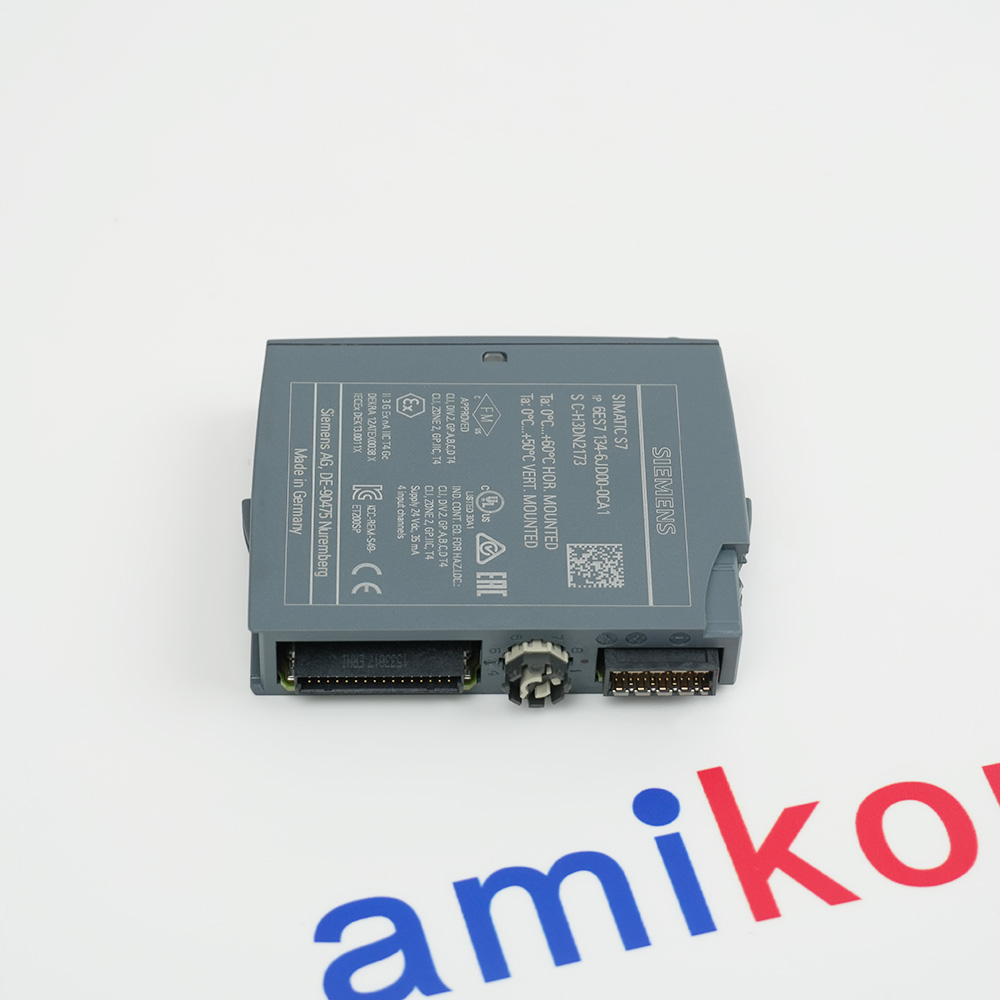

Siemens 6ES7134-6JD00-0CA1 is the SIMATIC ET 200SP High Feature analog input module for four RTD, thermocouple, resistance or low-voltage measurements. Each channel has a configurable measurement type, with resolution up to 16 bits including sign and selectable interference-frequency suppression.
The module supports two-, three- and four-wire resistance measurement, with defined compensation methods for lead resistance and thermocouple reference temperature. Channel diagnostics, limit interrupts and optional value status help distinguish valid measurements from wiring or configuration faults when integrated into an ET 200SP station.
The module supports two-, three- and four-wire resistance measurement, with defined compensation methods for lead resistance and thermocouple reference temperature. Channel diagnostics, limit interrupts and optional value status help distinguish valid measurements from wiring or configuration faults when integrated into an ET 200SP station.
BEFORE YOU BUY
Confirm the complete installed configuration
- Confirm the complete order number and the installed hardware and firmware versions.
- Match the sensor type, temperature coefficient and two-, three- or four-wire circuit.
- Use a type A1 BaseUnit when internal thermocouple reference compensation is required.
- Check the existing QI address allocation and engineering support for optional functions.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · FOOD & BEVERAGE
Bakery, Confectionery and Sugar Manufacturing
Bakery and confectionery manufacturing across diverse consumer food categories.Sugar manufacturing and processing within the commercial food industry. -
02 · TEXTILE MANUFACTURING
Natural Fibers and Fabric Production
Natural fiber production and processing within the textile industry.Fabric production spanning the wider commercial textile manufacturing sector. -
03 · PLASTICS PROCESSING
Molded Plastic Products
Injection molding for plastic product manufacturing across industrial markets.Blow molding within the wider plastic product manufacturing industry.
Technical specifications for 6ES7134-6JD00-0CA1
-
Product Model6ES7134-6JD00-0CA1
-
Product ParametersET 200SP Temperature Input Module
-
In stock1 unit
-
ManufacturerSiemens
-
Analog inputs4 channels; RTD, thermocouple, resistance or voltage per channel
-
Maximum resolution16 bits including sign; resistance ranges use 15 bits
-
Voltage measuring ranges±50 mV, ±80 mV, ±250 mV and ±1 V
-
Resistance measuring ranges150, 300, 600, 3000 and 6000 ohm
-
Thermocouple typesB, C, E, J, K, L, N, R, S, T, U and TXK
-
Resistance wiring2-, 3- or 4-wire for supported RTDs/resistors; Cu10 requires 3-wire
-
BaseUnit compatibilityA0 or A1; internal thermocouple reference requires A1
-
Supply voltage24 V DC rated; permissible 19.2-28.8 V DC
-
Typical power loss0.75 W
-
Input address space8 bytes; an additional byte with enabled value status
-
Input impedance1 Mohm for the documented voltage ranges
-
Signal smoothingNone, weak, medium or strong; 1, 4, 8 or 16 module cycles
-
Interference suppression16.6, 50 or 60 Hz; shorter conversion settings require FW V2.1.0 and appropriate engineering support
-
Hardware interruptsTwo upper and two lower limit thresholds per channel; configuration restrictions apply
-
Shielded cable lengthMaximum 200 m; thermocouple circuits maximum 50 m
View all additional
Alternative Names
6ES7134-6JD00-0CAI
6ES7134-6JD00-OCA1
6ES7134-6JDOO-0CA1
6ES7I34-6JD00-0CA1
6ES7 134-6JD00-0CA1
6ES7 134-6JD00-0CAI
6ES7 134-6JD00-OCA1
6ES7 134-6JDOO-0CA1
6ES7 I34-6JD00-0CA1
6ES71346JD000CA1
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200SP RTD AND THERMOCOUPLE INPUTS
Match sensor wiring, reference temperature and process-image interpretation
Configure each channel for its actual sensor, connection method and temperature coefficient before evaluating the measurement words. The four channels occupy eight input bytes, while QI adds a separate byte whose channel bits indicate validity. A disabled channel reports 7FFFH, so controller logic must distinguish disabled or faulty data from an ordinary temperature value instead of scaling every received word indiscriminately.
An A0 or A1 BaseUnit accepts this module, but internal thermocouple compensation specifically needs the temperature sensor in an A1 unit. External reference arrangements have their own channel and group settings; a fixed reference selects zero degrees Celsius without performing temperature compensation. Check the reference source and the station's potential group together, including the light-colored BaseUnit that begins the supplied group.
For resistance measurements, the two-wire conductor-resistance setting and automatic three-wire compensation address different circuit arrangements. Three-wire leads should share routing and cross-section, and Cu10 has its own three-wire requirement. Conversion settings and smoothing determine response time, while enabled wire-break checks add processing time; deactivate unused channels and select filtering around the actual sensor circuit and electrical-noise environment.
Features:
- Sensor-specific channel configuration
- A1 internal reference compensation
- Conversion and filtering coordination
The Siemens 6ES7134-6JD00-0CA1 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
For a same-order-number spare, record the installed hardware and firmware before selecting the replacement. Siemens ties value status, runtime calibration, scalable ranges and the faster conversion settings to specific firmware and engineering support. The full 6ES7134-6JD00-0CA1 designation establishes product identity, but it does not prove that every supplied unit exposes every function used by the existing project.
Retain the sensor type, temperature coefficient, wiring mode and reference-junction settings when restoring the channel. An unchanged terminal strip can still produce incorrect temperature values if its compensation configuration changes. Where a reference channel is shared through a group, verify the sender and receiver assignments and the participating controllers; Siemens identifies additional data-exchange conditions for this Shared Device arrangement.
Before returning measurements to control logic, check supply and channel diagnostics and test a known sensor value with the configured units. A reference-junction error calls for checking the BaseUnit and reference configuration, whereas an internal module error has a different remedy. Review QI and invalid-value handling, then confirm the existing smoothing and interrupt thresholds so the restored measurement has the intended dynamic behavior.
Features:
- Hardware and firmware function review
- Sensor and reference settings retained
- Diagnostic and known-value commissioning
The Siemens 6ES7134-6JD00-0CA1 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model data with source edition and revision identified
- Product data sheet and manufacturer product information reference
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7134-6JD00-0CA1 includes two product references. Installation information with unresolved source conflicts is not provided; confirm the applicable manufacturer revision against the supplied hardware and approved project documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-6JD00-0CA1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can 6ES7134-6JD00-0CA1 measure a Pt1000 directly?
Yes. The exact manual lists Pt1000 in climatic and standard ranges with two-, three- or four-wire connections. Select the sensor's temperature coefficient as well as its range; a matching resistance value alone does not define the complete configuration. -
Does every compatible BaseUnit provide internal thermocouple compensation?
No. A0 and A1 are compatible BaseUnit types, but the internal temperature sensor used for reference compensation is in type A1. A wrong BaseUnit with internal-reference mode selected can trigger a reference-junction diagnostic. -
How is resistance-cable error compensated?
For a two-wire circuit, configure the supported conductor-resistance parameter where the installed firmware permits it. Three-wire measurement automatically compensates lead resistance and requires consistent routing and conductor cross-sections. Cu10 specifically requires the documented three-wire arrangement. -
Why does a disabled channel return 7FFFH?
Siemens defines 7FFFH as the value returned by a deactivated channel. Deactivating unused channels improves cycle time. Evaluate channel configuration and, where enabled, value status before treating the input word as a process temperature. -
Are the fastest conversion settings available on every unit?
No. The shorter 18.75, 22.5 and 67.5 ms settings are tied to firmware V2.1.0 or higher and the engineering support listed in the manual. They also reduce interference attenuation; choose them only after checking the application's noise and response requirements. -
Does changing to QI leave the input address allocation unchanged?
No. The four measurement words use eight bytes, and enabling QI adds one input byte. Its low four bits report the individual channels' value validity. Check the controller mapping before selecting a different configuration variant.
