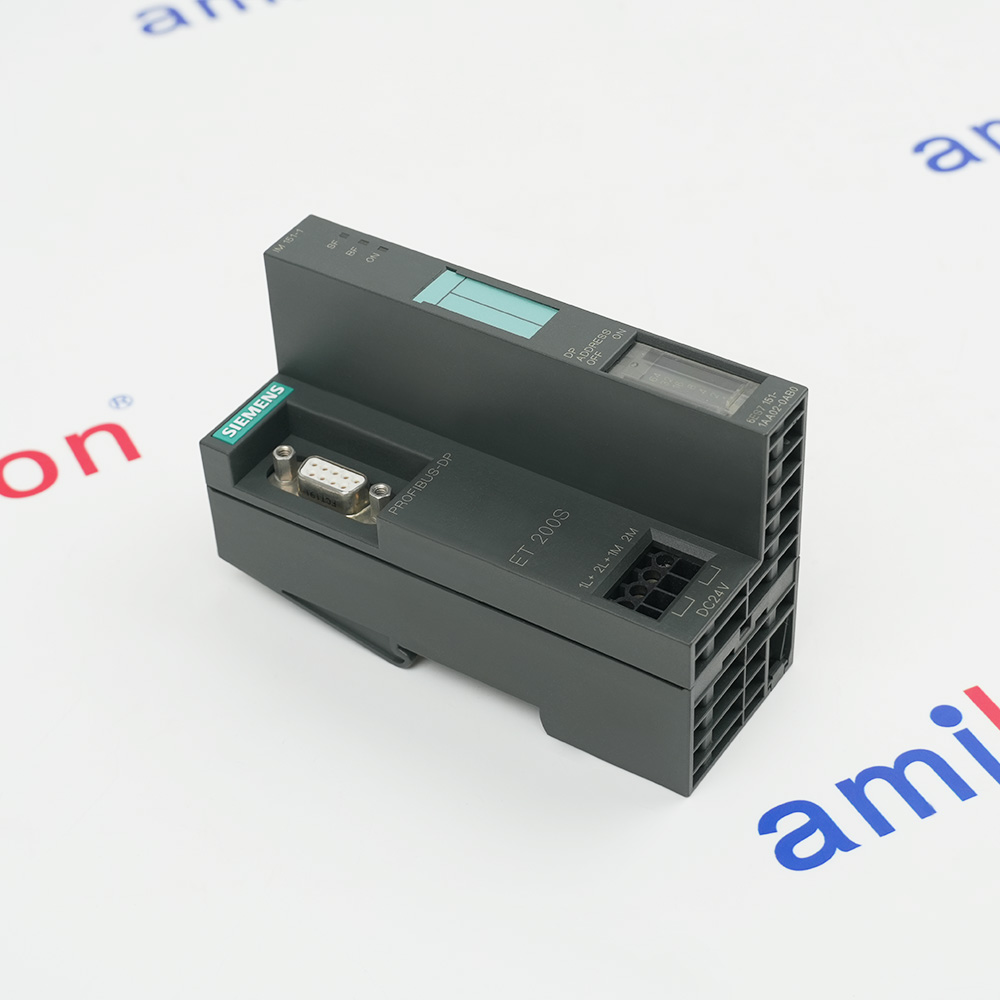

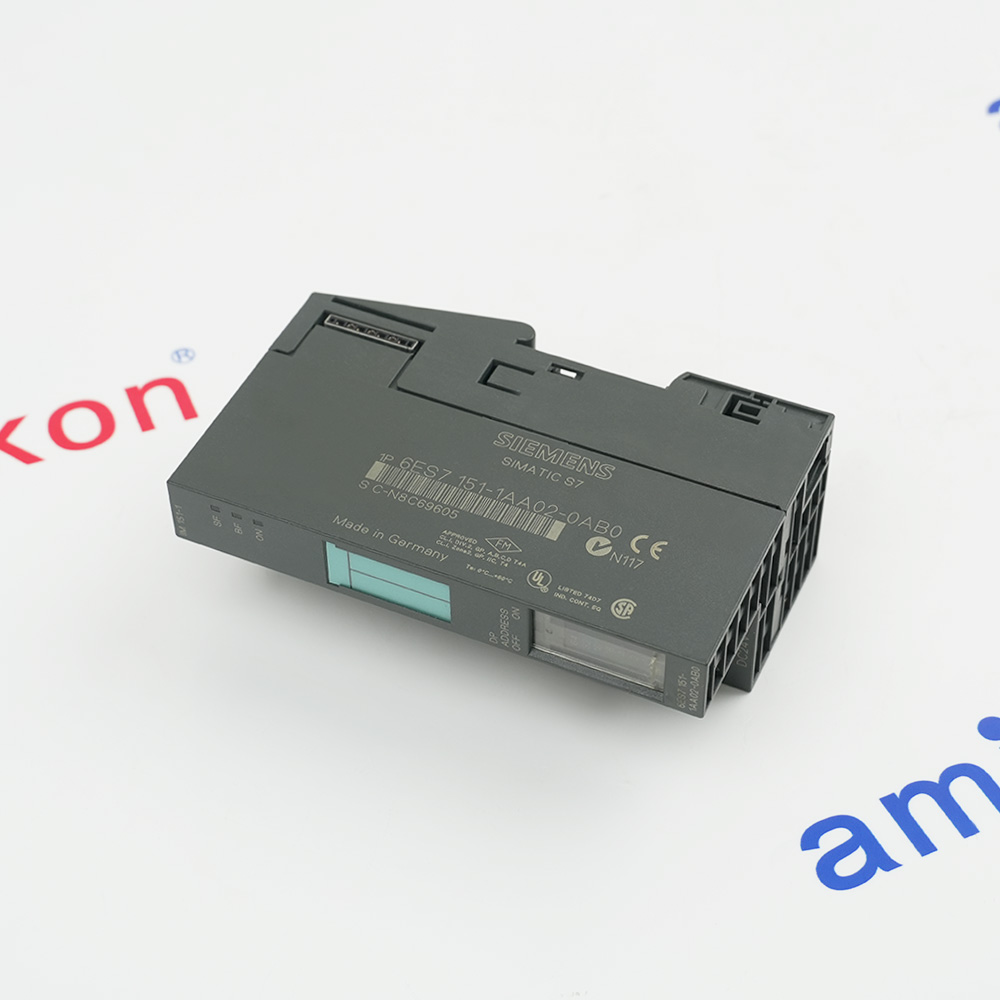

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7151-1AA02-0AB0
-
Product Model6ES7151-1AA02-0AB0
-
Spare ModelIM151-1
-
Product ParametersSimatic DP Interface Module IM151-1
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x7.4x11.8cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
Mains buffering, min.20 ms
-
from supply voltage 1L+, max200 mA
-
Current output to backplane bus (DC 5 V), max.700 mA
-
Addressing volume128 byte
-
Interface physicsRS 485 Yes ; 9-pin sub D socket
-
Transmission rate, max12 Mbit/s ; 9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s; 1.5 / 12Mbit/s ; IM 151 also 3 / 6 Mbit/s
-
between different circuits75 VDC / 60 VAC
-
Isolation checked with500 V DC
Description
SIMATIC DP
INTERFACE MODULE IM151-1
STANDARD FOR ET200S
TRANSMISS. RATE UP TO 12MBIT/S
DATA VOLUME 128BYTE FOR
EACH INPUT ANDOUTPUT
MAX. OF 63 POWER,ELECTR
OR MOTOR STARTER MODULESCONNECTABLE
BUS INTERFACING VIA 9-WAY SUB-D CONN
INCL.TERMINATING MODULE
INTERFACE MODULE IM151-1
STANDARD FOR ET200S
TRANSMISS. RATE UP TO 12MBIT/S
DATA VOLUME 128BYTE FOR
EACH INPUT ANDOUTPUT
MAX. OF 63 POWER,ELECTR
OR MOTOR STARTER MODULESCONNECTABLE
BUS INTERFACING VIA 9-WAY SUB-D CONN
INCL.TERMINATING MODULE
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Installation
Features:
- SIMATIC DP
- INTERFACE MODULE IM151-1 STANDARD FORET200S
- TERMINATING MODULE
- 9-WAY SUB-D CONN
The 6ES7151-1AA02-0AB0 is the standard interface module of the IM 151-1 series. As a PROFIBUS DP slave, it is the core communication interface of the Siemens SIMATIC ET 200S distributed I/O system. It is responsible for connecting the I/O modules of the ET 200S workstation (such as digital, analog, and motor starters) to higher-level automation systems (such as PLCs), thereby enabling data exchange between the central controller and the distributed I/O.
The 6ES7151-1AA02-0AB0 Siemens INTERFACE MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7151-1AA02-0AB0 INTERFACE MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7151-1AA02-0AB0 is a SIMATIC DP Interface Module (IM151-1 Standard) for the ET 200S distributed I/O system, enabling connectivity via PROFIBUS DP at speeds up to 12 Mbit/s. It supports up to 63 peripheral modules, features a 128-byte data volume for inputs/outputs, and is designed for 24V DC.
- Automation Technology:Decentralized peripheral in PLC systems for factory automation
- Drive Technology:Controls motor starters & manages data for frequency converters
- Building Technologies:Integrates HVAC, lighting & access into PROFIBUS networks
- Energy Management:Monitors power modules & distributes energy data across facilities
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Snap the module onto a standard 35 mm DIN rail.
Station Assembly: Slide the module to the far left of your ET 200S configuration.
Terminating Module: You must install a termination module (typically included) at the end of the rack to complete the backplane bus; otherwise, the station will not start.
FAQs
-
What is the 6ES7151-1AA02-0AB0?
+It is an Interface Module (IM151-1 Standard) for the ET 200S distributed I/O system, used to connect the I/O system to a PROFIBUS DP network. -
Is this product brand new?
+Yes, SIEMENS 6ES7151-1AA02-0AB0 is brand new, original, unused, and factory sealed -
How do I get the price of 6ES7151-1AA02-0AB0?
+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786. -
What are the key communication specs?
+It supports transmission rates up to 12 Mbit/s and handles a data volume of 128 bytes for each input and output. -
How many modules can I connect?
+You can connect a maximum of 63 power, electronic, or motor starter modules to a single interface.
