Technical specifications for 6ES7151-1BA01-0AB0
-
Product Model6ES7151-1BA01-0AB0
-
Product ParametersSIMATIC DP, INTERFACE MODULE
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.4x7.3x11.8cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
Product FamilySIMATIC ET 200S
-
Module DesignationIM151-1 HIGH FEATURE
-
Communication ProtocolPROFIBUS DP
-
Interface TypeRS-485
-
PROFIBUS VersionDPV0 / DPV1 Slave
-
Transmission RateUp to 12 Mbit/s
-
Bus Connector9-Pin Sub-D Connector
-
Maximum I/O Data Volume244 Bytes Input / 244 Bytes Output
-
Maximum Expandable Modules63 ET 200S Modules
Description

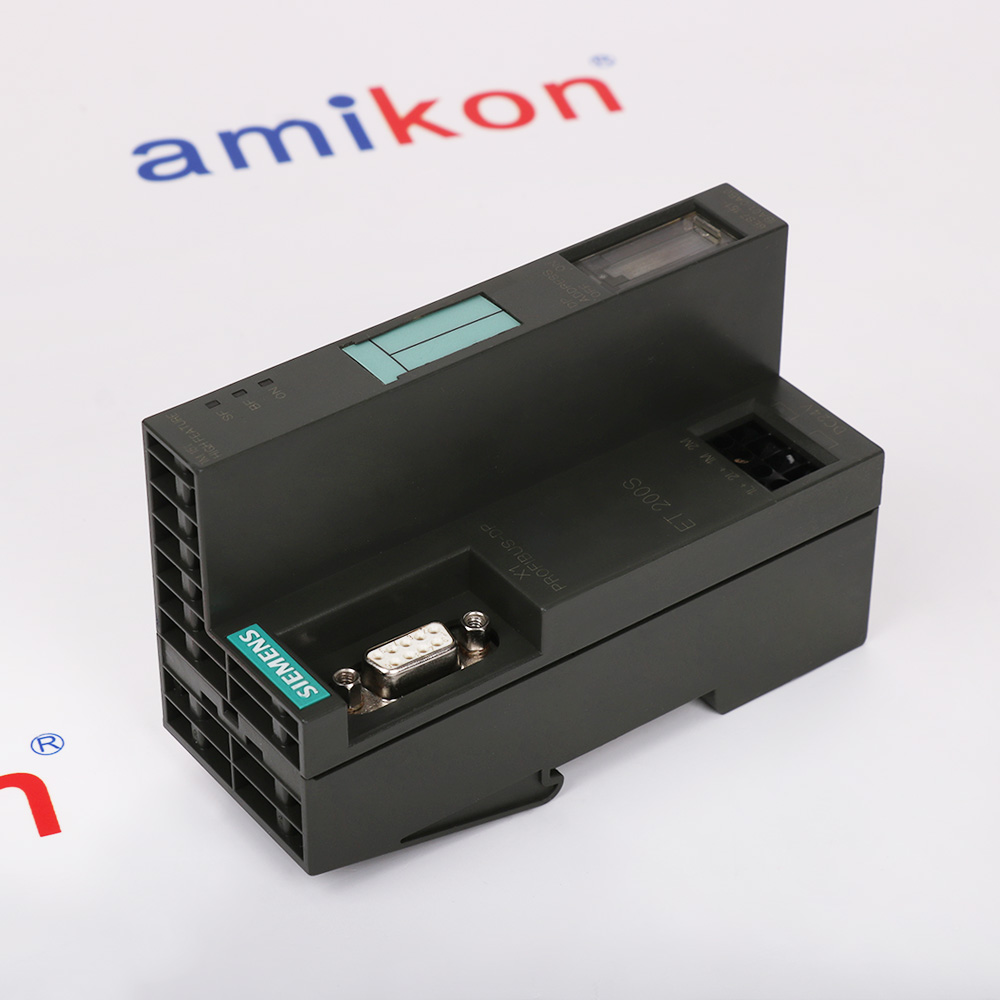

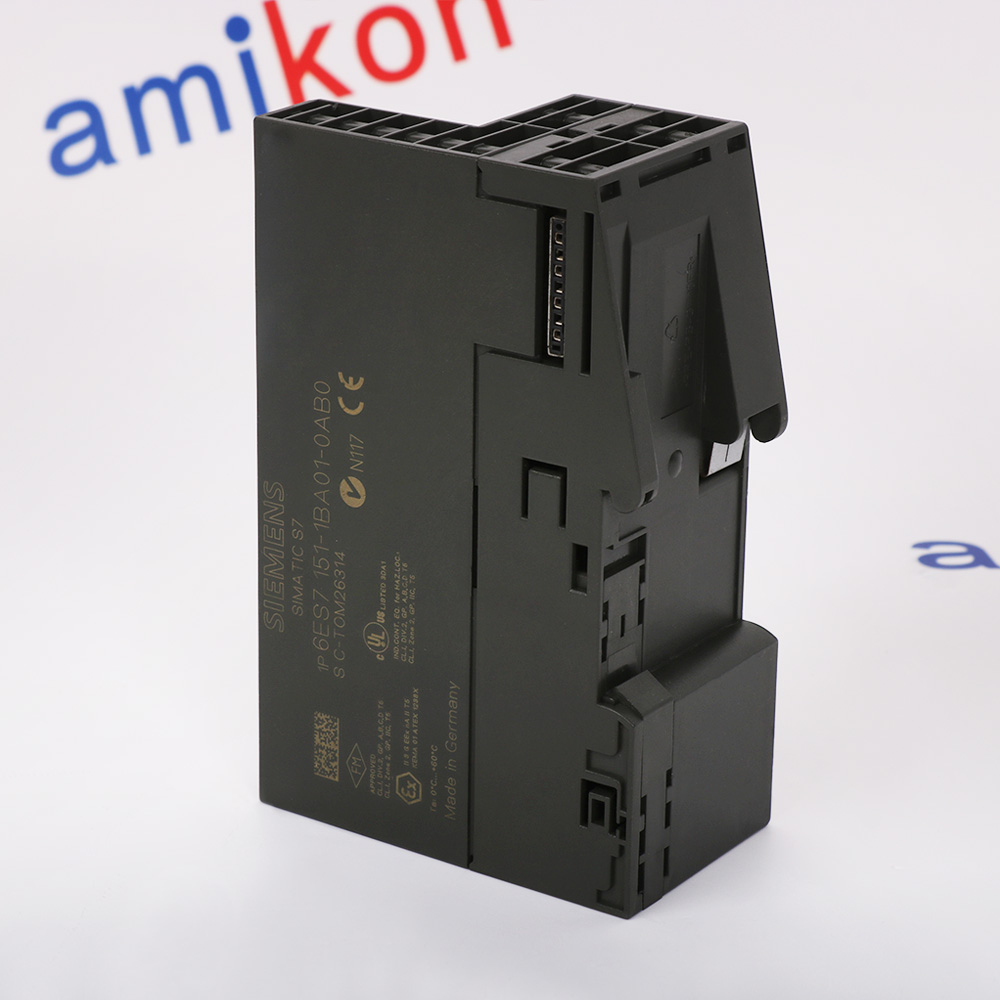

The SIEMENS 6ES7151-1BA01-0AB0 is a SIMATIC DP interface module. The SIEMENS 6ES7151-1BA01-0AB0 is an IM151-1 High Feature module for the ET 200S distributed I/O system. The SIEMENS 6ES7151-1BA01-0AB0 provides PROFIBUS DP connectivity between the ET 200S station and the central SIMATIC controller.
The SIEMENS 6ES7151-1BA01-0AB0 supports transmission rates up to 12 Mbit/s. The SIEMENS 6ES7151-1BA01-0AB0 handles a data volume of 244 bytes for I/O. The SIEMENS 6ES7151-1BA01-0AB0 supports a maximum of 63 connectable modules per ET 200S station.
The SIEMENS 6ES7151-1BA01-0AB0 supports transmission rates up to 12 Mbit/s. The SIEMENS 6ES7151-1BA01-0AB0 handles a data volume of 244 bytes for I/O. The SIEMENS 6ES7151-1BA01-0AB0 supports a maximum of 63 connectable modules per ET 200S station.
Alternative Names
6ES71511BA010AB0
6ES7 151-1BA01-0AB0
6ES7I5I-IBA0I-0AB0
6ES7151-1BAO1-OABO
6ES7 151-1BAO1-OABO
6ES7 I5I-IBAOI-OABO
Information
Overview
Manuals
Engineering Considerations
Product Applications
PROFIBUS Network Connection
Features:
- PROFIBUS DP High Feature Interface Module for ET 200S
- Transmission Rate Up to 12 Mbit/s
- 244 Byte I/O Data Volume
- Isochronous Mode Support
- 9-Pin Sub-D Connector for Bus Interface
The SIEMENS 6ES7151-1BA01-0AB0 is part of the SIMATIC ET 200S product family. The SIEMENS 6ES7151-1BA01-0AB0 is mounted on a 35 mm DIN rail. The SIEMENS 6ES7151-1BA01-0AB0 is installed in the ET 200S station as the first module. The SIEMENS 6ES7151-1BA01-0AB0 connects to the PROFIBUS DP network via the 9-pin Sub-D connector.
The 6ES7151-1BA01-0AB0 SIEMENS SIMATIC DP, INTERFACE MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7151-1BA01-0AB0 SIMATIC DP, INTERFACE MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SIEMENS 6ES7151-1BA01-0AB0 is compatible with STEP 7 engineering software. The SIEMENS 6ES7151-1BA01-0AB0 is configured as a standard slave on the PROFIBUS DP network. The SIEMENS 6ES7151-1BA01-0AB0 exchanges process data with the central controller through cyclic data transmission.
The SIEMENS 6ES7151-1BA01-0AB0 has been discontinued. The product stop sale date for the SIEMENS 6ES7151-1BA01-0AB0 was October 1, 2011. The successor product to the SIEMENS 6ES7151-1BA01-0AB0 is the 6ES7151-1BA02-0AB0. The successor product is also a SIMATIC DP interface module IM151-1 High Feature for ET 200S with the same transmission rate and data volume specifications.
- Automotive Assembly Lines:Sync data cycles for welding & assembly
- Packaging and Bottling Machinery:Microsecond consistency for sensors & valves
- Material Handling and Logistics:PROFIBUS reduces wiring for ASRS & conveyors
- Chemical and Food Processing:PROFIsafe analog & ESD for temp/pressure
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Insert the Sub-D connector: Plug a standard 9-pin Sub-D PROFIBUS connector into the dedicated RS485 front interface.Set bus termination resistors: If this interface module sits at either physical end of your PROFIBUS segment, switch the termination resistor on the Sub-D connector to the ON position. Turn it OFF if the cable routes through to another device.Observe bending radius: Keep strict bend tolerances on the purple PROFIBUS cable to prevent internal signal attenuation and communication failures.
Technical notes
SIMATIC DP, INTERFACE MODULE IM151-1 HIGH FEATURE F. ET200S; TRANSMISS. RATE UP TO 12MBIT/S; DATA VOLUMEN 244 BYTE FOR I/O, MAX. 63 MODULES CONNECTABLE; ISOCHRONE MODE, BUS INTERFACING VIA 9-WAY SUB-D CONNECTOR, INCL. TERMINATING MODULE
FAQs
-
What is the 6ES7151-1BA01-0AB0?+The Siemens 6ES7151-1BA01-0AB0 is a SIMATIC DP High Feature Interface Module used in the ET 200S distributed I/O system. It handles synchronization and data communication between the PLC and connected I/O modules over PROFIBUS DP.
-
Can I update the firmware on a 6ES7151-1BA01-0AB0?+Yes. Firmware updates are supported over the PROFIBUS DP network using STEP 7 or TIA Portal software. This capability is available starting with this specific hardware release (1BA01) and newer.
