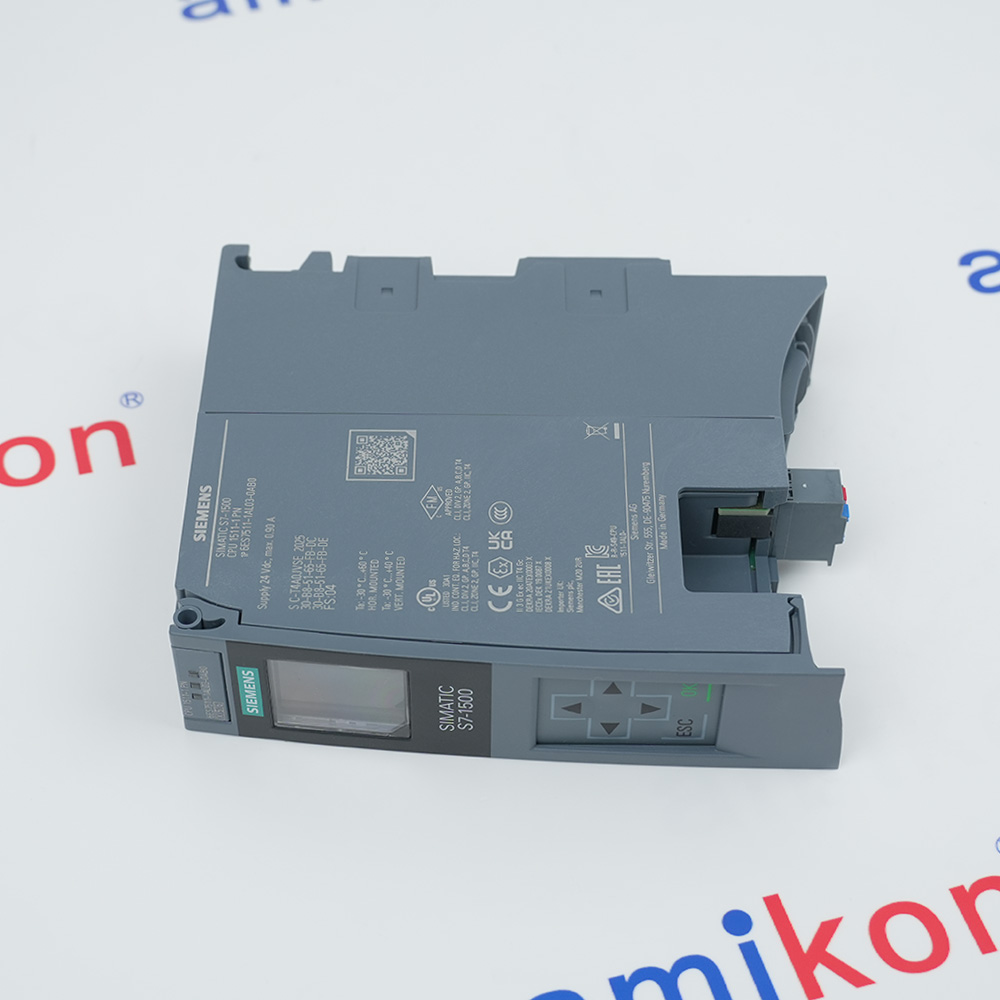

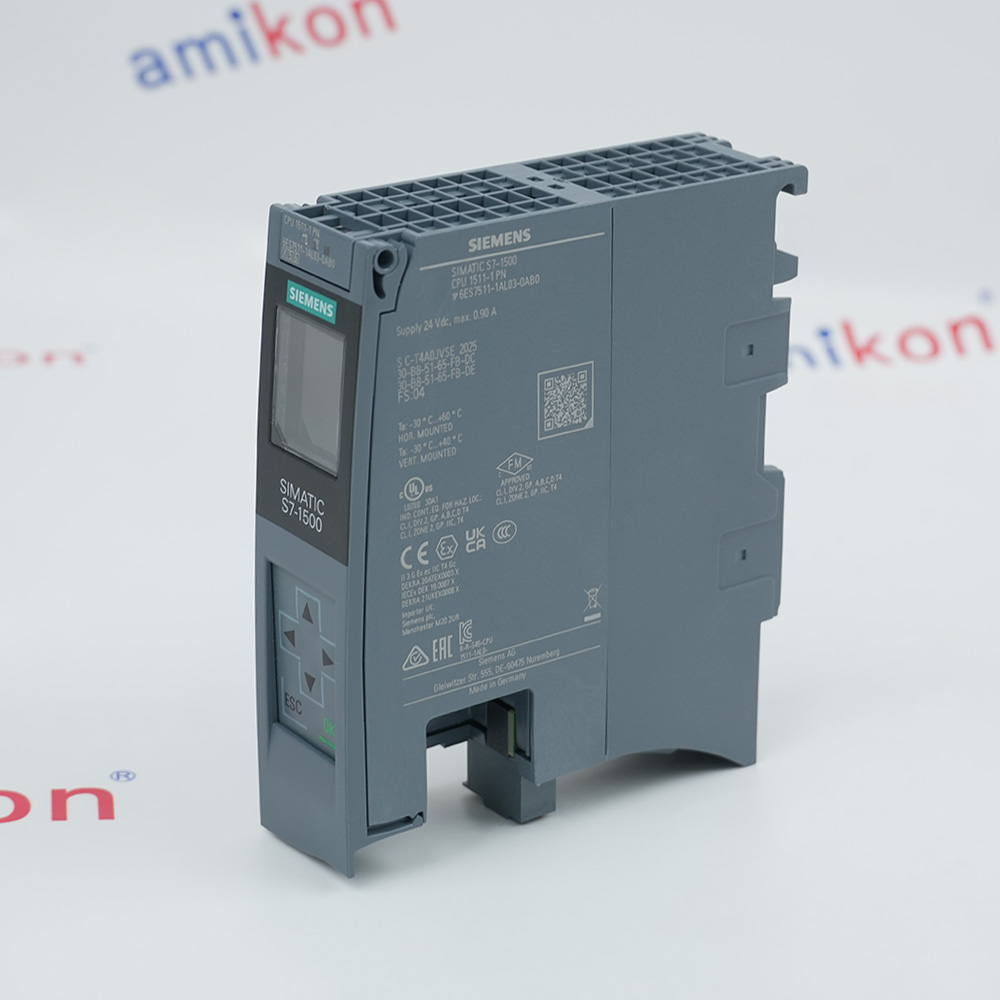

- 6ES7511-1AL03-0AB0
In Stock
Ships by Monday, August 17
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7511-1AL03-0AB0
-
Product Model6ES7511-1AL03-0AB0
-
Product ParametersSIMATIC S7-1500, CPU 1511-1 PN, central processing unit
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x12.5x14.8cm
-
ManufacturerSiemens
-
Weight0.35 kg
-
Product type designationCPU 1511-1 PN
-
HW functional statusFS01
-
Firmware versionV3.0
-
Screen diagonal3.45 cm
-
Number of keys8
-
Mode buttons2
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption (rated value)0.73 A
-
Current consumption, max0.9 A
-
Inrush current, max1.15 A; Rated value
-
Infeed power to the backplane bus10 W
-
Power consumption from the backplane bus (balanced)5.5 W
Description
The SIEMENS 6ES7511-1AL03-0AB0 SIMATIC S7-1500 CPU 1511-1 PN is a compact central processing unit for demanding industrial automation applications. As part of the SIMATIC S7-1500 controller family, it performs the main control, logic, data processing, and communication functions of an automation system.
The 6ES7511-1AL03-0AB0 provides 300 KB of work memory for programs and 1.5 MB of work memory for data. With a specified 6 ns bit performance, the CPU is designed for fast execution of control programs and efficient processing of automation tasks.
The CPU includes one PROFINET IRT interface with an integrated 2-port switch. This interface supports PROFINET-based industrial communication and enables the CPU to operate as a PROFINET IO Controller. The interface also supports isochronous operation for applications requiring synchronized and deterministic control processes.
The 6ES7511-1AL03-0AB0 provides 300 KB of work memory for programs and 1.5 MB of work memory for data. With a specified 6 ns bit performance, the CPU is designed for fast execution of control programs and efficient processing of automation tasks.
The CPU includes one PROFINET IRT interface with an integrated 2-port switch. This interface supports PROFINET-based industrial communication and enables the CPU to operate as a PROFINET IO Controller. The interface also supports isochronous operation for applications requiring synchronized and deterministic control processes.
Information
Overview
Manuals
Application Notes
Product Applications
Hardware Insertion & Mounting
Features:
- 300 KB Program Memory and 1.5 MB Data Memory
- PROFINET IRT Interface with Integrated 2-Port Switch
- 24 VDC Power Supply with Wide Permissible Range
- SIMATIC Memory Card Required
- Compact S7-1500 Form Factor
The 6ES7511-1AL03-0AB0 features 300 KB of work memory for program and 1.5 MB for data. The 6ES7511-1AL03-0AB0 delivers 6 ns bit performance for fast logic execution, making it suitable for mid-range automation projects requiring real-time control capabilities.
The 6ES7511-1AL03-0AB0 Siemens SIMATIC S7-1500, CPU 1511-1 PN, central processing unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7511-1AL03-0AB0 SIMATIC S7-1500, CPU 1511-1 PN, central processing unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7511-1AL03-0AB0 operates over a temperature range of -30°C to 60°C with horizontal installation and -30°C to 40°C with vertical installation. The 6ES7511-1AL03-0AB0 has a storage temperature range of -40°C to 70°C and is rated for altitudes up to 5000 m.
The 6ES7511-1AL03-0AB0 features compact dimensions of 35 x 147 x 129 mm (W x H x D) and weighs approximately 0.377 kg. The 6ES7511-1AL03-0AB0 is manufactured in Germany and complies with RoHS directive substance restrictions.
The 6ES7511-1AL03-0AB0 is configured using TIA Portal engineering software (version V18 and above). The 6ES7511-1AL03-0AB0's current firmware version is V4.1 FS04 for new stock units. The 6ES7511-1AL03-0AB0 is an active product (PM300) in the SIMATIC S7-1500 series with full support from Siemens.
- Automated Assembly/Pick-and-Place: Ideal for pick-and-place, handling, and assembly lines requiring rapid precise motion control
- Packaging/Labeling: Utilized in cartoning, wrapping, filling, and labeling with deterministic PROFINET IRT support
- Conveyor/Material Handling: Controls pallet conveyors, sorters, and AGVs with distributed I/O connection
- Special-Purpose Machines: Perfect for custom toolmaking and test benches with high EMC/shock/vibration resistance
- Water/Wastewater: Deployed in pumping stations, purification, and filtration networks with robust communication
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the S7-1500 Mounting Rail: Ensure your standard S7-1500 aluminum rail is securely grounded to your control cabinet layout.
Attach the U-Connector: Plug the rear U-connector (bus connector) into the right side of the CPU to bridge backplane communications with any subsequent I/O modules.
Hook and Swivel: Hook the top of the CPU onto the mounting rail lip, swivel it downward until it seats flat, and secure the integrated bottom fastening screw using a screwdriver.
Insert the Memory Card: Open the front door and slide a mandatory SIMATIC Memory Card into the designated slot until it clicks into place. The CPU will not run without this card.
Alternative Names
6ES7511-1AL03-0ABO
6ES7511-1AL03-OAB0
6ES7511-1AL03-0A80
6ES7511-1ALO3-0AB0
6ES7511-IAL03-0AB0
6ES75II-1AL03-0AB0
6ES7511 1AL03 0AB0
6ES7511 1AL03 0ABO
6ES7511 1AL03 0A80
6ES7511 1AL03 OAB0
6ES7511 1ALO3 0AB0
6ES7511 IAL03 0AB0
6ES751I 1AL03 0AB0
6ES75I1 1AL03 0AB0
6ES7511AL030AB0
Technical notes
The CPU operates from a 24 V DC power supply, with a permissible voltage range of 19.2 to 28.8 V DC. The rated current consumption is 0.56 A, while the maximum current consumption is specified as 0.9 A. The typical power loss is approximately 3.4 W. The 6ES7511-1AL03-0AB0 has hardware functional status FS04 and firmware version V4.1 according to Siemens product data.
FAQs
-
Is a SIMATIC Memory Card mandatory?
+Yes, an external SIMATIC Memory Card is required to operate the CPU. -
What are the communication interfaces?
+It has a 1st interface featuring PROFINET IRT with an integrated 2-port switch -
Can I use it with older versions of TIA Portal (like V15, V16, or V17)?
+Yes. You can configure it in older versions by selecting its predecessor part number, 6ES7511-1AK02-0AB0, in your hardware configuration catalog. -
What is the difference between 6ES7511-1AL03-0AB0 and 6ES7511-1AK02-0AB0?
+The 1AL03 model is a hardware innovation phase update. It increases program memory from 150 KB to 300 KB and data memory from 1 MB to 1.5 MB, while offering faster cycle processing speeds.
