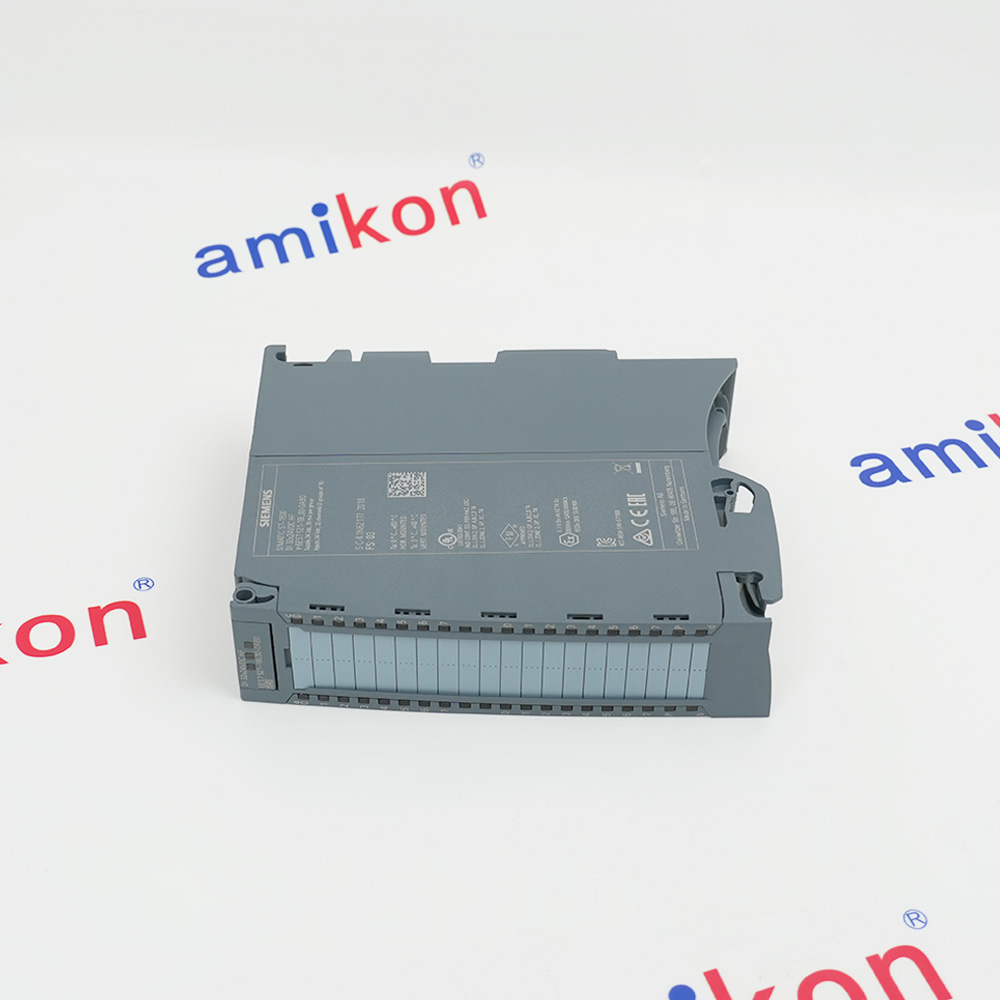

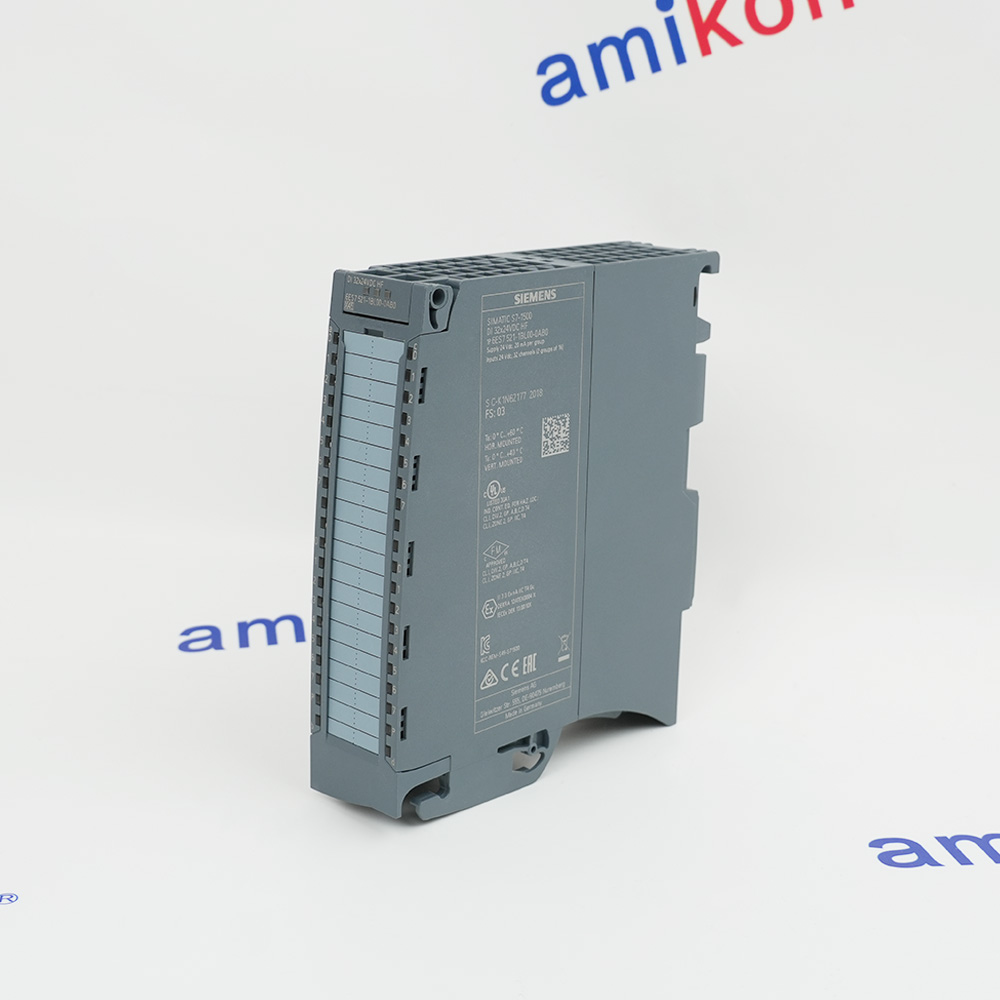

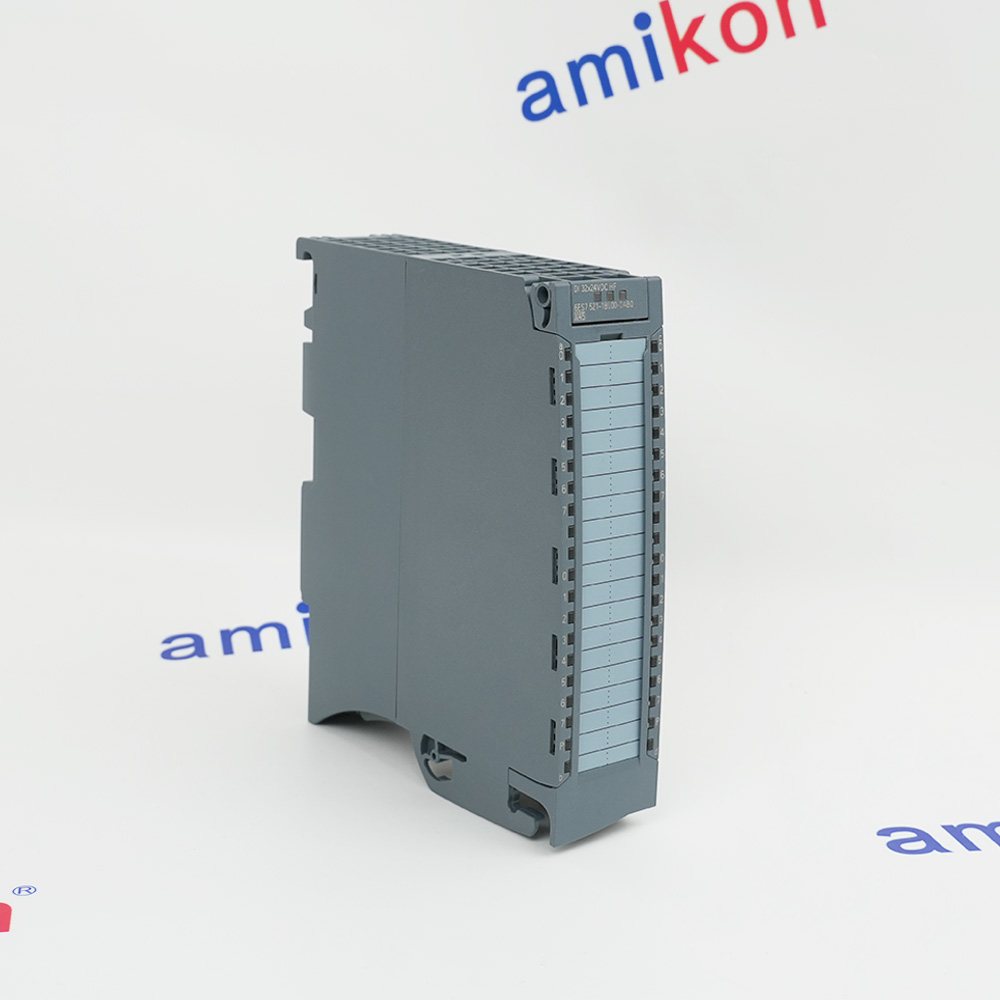

Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BL00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Saturday, November 21

6ES7521-1BL00-0AB0

High feature digital input

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7521-1BL00-0AB0 High feature digital input

Siemens 6ES7521-1BL00-0AB0 is a High Feature digital input module for SIMATIC S7-1500. It provides thirty-two 24 V DC inputs arranged in two groups of sixteen. Parameterized filtering, channel diagnostics and hardware interrupts support configurable input handling.

Input delay is adjustable from 0.05 to 20 ms. Two channels can operate as 32-bit counters at up to 6 kHz with hardware status FS04 and firmware V2.2.1 or later. The module also supports isochronous operation, while the screw-terminal or push-in front connector is a separate component.
ACTUAL APPLICATIONS

Application fields for 6ES7521-1BL00-0AB0

6ES7521-1BL00-0AB0 is a High Feature digital input module for SIMATIC S7-1500. Its application context includes power generation, transport, and pulp and paper. Suitability depends on the full part number, hardware and firmware versions, input characteristics and configured channel functions.
  • 01 · POWER GENERATION

    Thermal Electricity and Renewable Generation

    Conventional Power and Thermal GenerationHydroelectric Power and Renewable Generation
  • 02 · TRANSPORT

    Urban Mobility and Regional Transport

    Public Transport and Urban MobilityRegional Railways and Freight Transport
  • 03 · PULP & PAPER

    Pulp and General Paper Materials

    Commercial Pulp and Paper MaterialsGeneral Paper and Fiber Materials

Technical specifications for 6ES7521-1BL00-0AB0

  • Product Model
    6ES7521-1BL00-0AB0
  • Spare Model
    6ES7521-1BL00-0AB0
  • Product Parameters
    High feature digital input
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • Input channel count
    32 in groups of 16
  • Nominal electronics supply
    24 V DC, 19.2-28.8 V
  • Maximum supply current
    40 mA, 20 mA per group
  • Typical power loss
    4.2 W
  • Counter channels
    2, from FS04 / firmware V2.2.1
  • Counter frequency ceiling
    6 kHz, FS04 / firmware V2.2.1 or later
  • Counter width
    32 bit, up-counting
  • Typical active input demand
    2.5 mA
  • Input signal thresholds
    0: -30 to +5 V; 1: +11 to +30 V
  • Selectable input delay
    0.05-20 ms
  • Signal cable allowance
    1000 m shielded; 600 m unshielded
  • Minimum isochronous bus cycle
    250 microseconds
  • Wire-break threshold
    Below 350 microampere
  • Group isolation test
    707 V DC type test
  • Interrupt capability
    Hardware and diagnostic interrupts
View all additional

Alternative Names

6ES7521-1BL00-0AB0 SIMATIC S7-1500 DI 32x24VDC HF High feature digital input
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7521-1BL00-0AB0 within SIMATIC S7-1500 DI 32x24VDC HF

Assign the DI 32x24VDC HF to the supported S7-1500 hardware configuration. Record hardware status and firmware when using the optional counter functions.
Wire the two groups of sixteen inputs through the correct separate front connector. Select input filters and wire-break diagnostics for the actual field circuits.
Validate channel states and interrupt behavior. Counter operation at 6 kHz requires FS04 and firmware V2.2.1 or later; verify those conditions on the installed module.

Features:

  • Input channel count: 32 in groups of 16
  • Nominal electronics supply: 24 V DC, 19.2-28.8 V
  • SIMATIC S7-1500 DI 32x24VDC HF
Use 6ES7521-1BL00-0AB0 only within the documented SIMATIC S7-1500 DI 32x24VDC HF arrangement and applicable installation instructions.
INTERCHANGEABILITY

Replace 6ES7521-1BL00-0AB0 within SIMATIC S7-1500 DI 32x24VDC HF

Export the thirty-two-channel configuration, filtering, interrupts and any counter assignments. Retain the front-connector identity and potential grouping.
Isolate the affected field supplies and exchange the matching HF electronics. Inspect the separate screw or push-in connector and preserve its channel order.
Confirm module recognition, channel status and diagnostic responses after restoration. If counters are used, test counting behavior against the retained hardware/firmware requirement.

Features:

  • 6ES7521-1BL00-0AB0 complete order code
  • Interrupt capability: Hardware and diagnostic interrupts
  • Retain the documented SIMATIC S7-1500 DI 32x24VDC HF connection arrangement
Use 6ES7521-1BL00-0AB0 only within the documented SIMATIC S7-1500 DI 32x24VDC HF arrangement and applicable installation instructions.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Exact-model technical data for 6ES7521-1BL00-0AB0
  • Document applicability checked against the complete identity
  • Directory links by subcategory and brand
Documentation for 6ES7521-1BL00-0AB0 must match the installed product identity and supplied configuration.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Product size
    3.50 x 14.70 x 12.90 cm
    Net weight
    0.25 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7521-1BL00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • When can 6ES7521-1BL00-0AB0 use its two counter inputs at 6 kHz?

    The 6ES7521-1BL00-0AB0 6 kHz counter capability requires hardware status FS04 and firmware V2.2.1 or later. Earlier installed revisions need separate capability confirmation.
  • What filtering range does 6ES7521-1BL00-0AB0 support?

    6ES7521-1BL00-0AB0 offers input delays from 0.05 to 20 ms. The selected filtering affects responsiveness and isochronous timing.
  • What causes an 6ES7521-1BL00-0AB0 wire-break indication?

    The 6ES7521-1BL00-0AB0 wire-break threshold is below 350 microampere when the corresponding diagnostic function is enabled for the configured input.
  • Does 6ES7521-1BL00-0AB0 provide safety-rated input channels?

    No. 6ES7521-1BL00-0AB0 is the standard DI 32x24VDC HF module and is not suitable for safety functions.
  • How are the 6ES7521-1BL00-0AB0 input potentials grouped?

    6ES7521-1BL00-0AB0 has thirty-two inputs in two groups of sixteen, with separation between groups and from the backplane.
  • Is a front connector integrated into 6ES7521-1BL00-0AB0?

    The 6ES7521-1BL00-0AB0 screw-terminal or push-in front connector is ordered separately. The electronics article alone does not identify the chosen connector construction.
  • Which revision evidence belongs in an 6ES7521-1BL00-0AB0 distributor offer?

    State 6ES7521-1BL00-0AB0 together with actual hardware status and firmware, especially when the buyer requires the two 6 kHz counters.
  • What cable and connector scope should an 6ES7521-1BL00-0AB0 quotation include?

    An 6ES7521-1BL00-0AB0 offer should specify the separate front connector and any agreed labeling or wiring accessories, retaining the thirty-two-channel HF identity.
