In Stock
Ships by Monday, August 17
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7592-1AM00-0XB0
-
Product Model6ES7592-1AM00-0XB0
-
Product ParametersSIMATIC S7-1500, Front connector
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size13x4.3x2.5cm
-
ManufacturerSiemens
-
Weight0.1 kg
-
Product type designationFront connector
-
Connection SystemScrew-type connection
-
Number of Poles40-pole
-
Compatible Module Width35 mm wide S7-1500 modules
-
Potential Bridges4 included
-
Cable TiesIncluded
Description

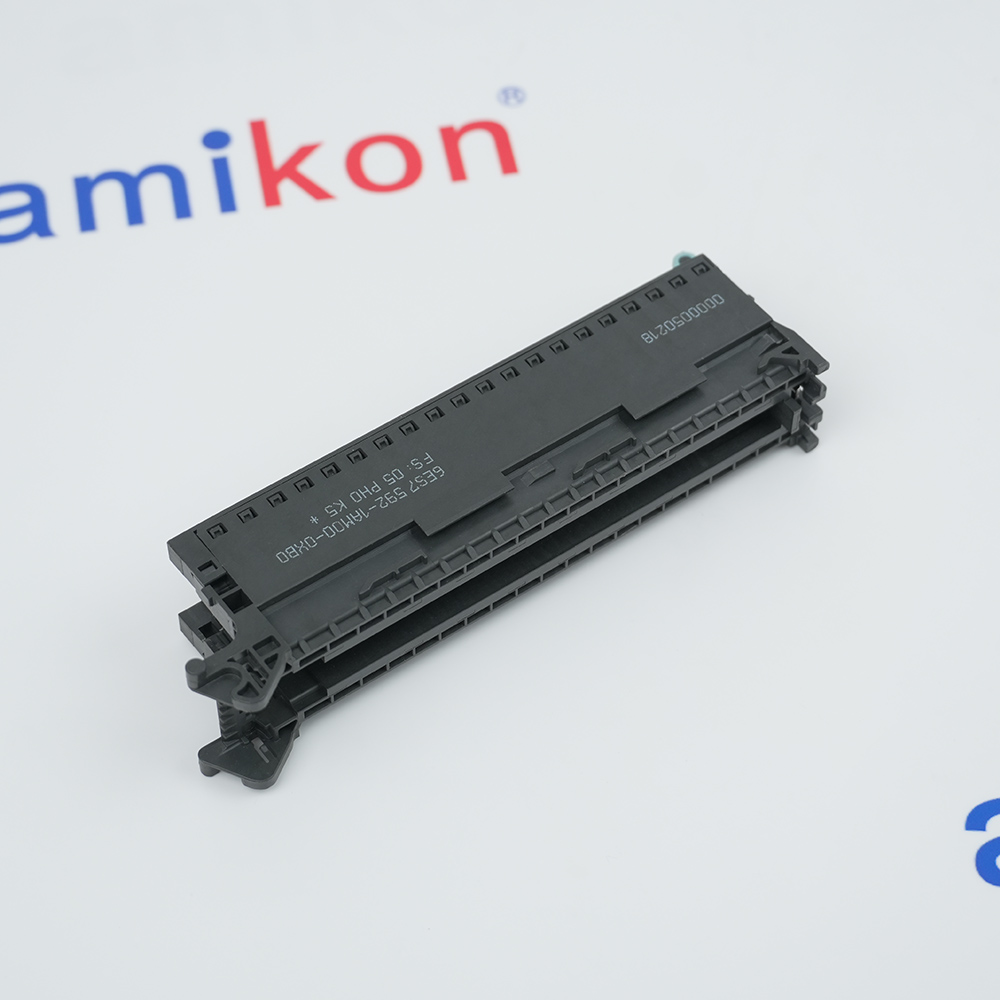

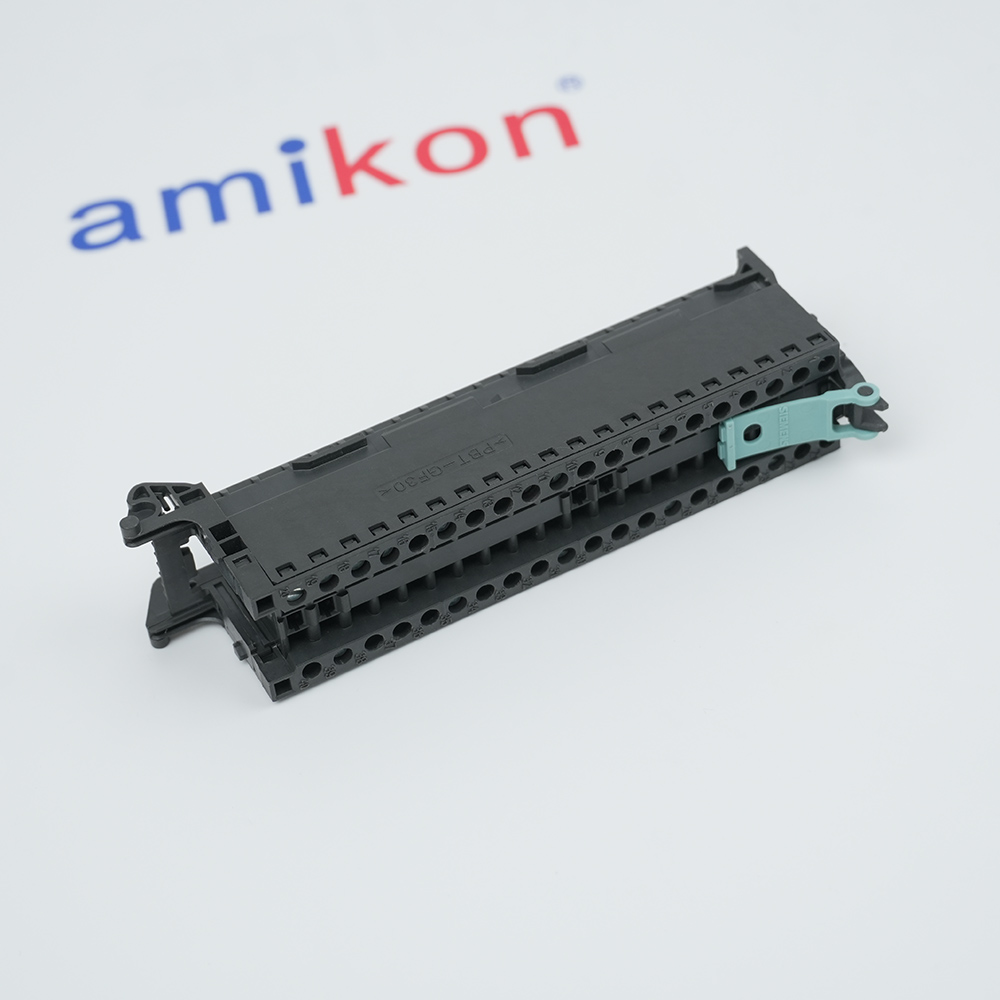

The 6ES7592-1AM00-0XB0 is a Siemens SIMATIC S7-1500 Front Connector for industrial automation applications. The 6ES7592-1AM00-0XB0 features a screw-type connection system that provides secure and reliable wire termination for S7-1500 I/O modules.
The 6ES7592-1AM00-0XB0 is a 40-pole connector specifically designed for 35mm wide modules in the SIMATIC S7-1500 series. The 6ES7592-1AM00-0XB0 enables connection of up to 40 signal lines from field devices such as sensors and actuators to the I/O modules. The 6ES7592-1AM00-0XB0 is compatible with both digital and analog modules, providing versatile connection capability across the S7-1500 product range.
The 6ES7592-1AM00-0XB0 is delivered including 4 potential bridges. The 6ES7592-1AM00-0XB0 also includes cable ties for strain relief, ensuring organized cable management and preventing wire disconnections due to mechanical stress or vibration in industrial environments.
The 6ES7592-1AM00-0XB0 is a 40-pole connector specifically designed for 35mm wide modules in the SIMATIC S7-1500 series. The 6ES7592-1AM00-0XB0 enables connection of up to 40 signal lines from field devices such as sensors and actuators to the I/O modules. The 6ES7592-1AM00-0XB0 is compatible with both digital and analog modules, providing versatile connection capability across the S7-1500 product range.
The 6ES7592-1AM00-0XB0 is delivered including 4 potential bridges. The 6ES7592-1AM00-0XB0 also includes cable ties for strain relief, ensuring organized cable management and preventing wire disconnections due to mechanical stress or vibration in industrial environments.
Information
Overview
Manuals
Application Notes
Product Applications
Wiring and Connection Rules
Features:
- Screw-Type Connection System
- 40-Pole Connector for 35mm Wide Modules
- Includes Cable Ties for Strain Relief
- Compatible with Massive Cables from 0.25 mm²
The SIEMENS 6ES7592-1AM00-0XB0 uses a screw-type connection system and supports conductors with cross-sections from 0.25 mm² to 1.5 mm². It can accommodate one conductor per connection, or a combination of two conductors with a total cross-section of up to 1.5 mm² when using a shared ferrule.
The 6ES7592-1AM00-0XB0 SIEMENS SIMATIC S7-1500, Front connector may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7592-1AM00-0XB0 SIMATIC S7-1500, Front connector Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SIEMENS 6ES7592-1AM00-0XB0 supports both solid and flexible conductors, with or without ferrules, within the specified conductor-size range. The permitted stripping length is 10 to 11 mm, and the specified screw-terminal tightening torque is 0.4 to 0.7 N·m.
The SIEMENS 6ES7592-1AM00-0XB0 has a width of 29.8 mm and a height of 130.5 mm. The connector is intended for compatible 35 mm wide SIMATIC S7-1500 modules, and the product includes four potential bridges and cable ties for installation and wiring management.
- Chemical/Petrochemical: Monitors pipeline pressures, vessel levels via 4-20mA, and reactor temperatures
- Factory Automation: Interfaces with displacement sensors, weight transmitters, and speed controllers on assembly lines
- Thermal Treatment/Metallurgy: Accurate furnace/kiln/oven temperature profiles using TC or RTD sensors
- Water/Wastewater: Tracks flow rates, pH, dissolved oxygen, and tank levels across dispersed I/O stations
- Food/Beverage/Pharma: Supports hygienic temperature regulation for pasteurization, batching, and climate-controlled storage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Stripped length: Strip wire insulation down to a minimum of 10 mm.
Conductor cross-section: Use massive or flexible cables from 0.25 mm² to 1.5 mm². Two conductors up to 1.5 mm² total can share a single twin wire end sleeve/ferrule.
Potential bridges: Use the 4 included potential jumpers to loop internal power rails across terminals (such as connecting 30 to 40 or 29 to 39) without doubling up wires in a single clamp.
Strain relief: Fasten the bundled cable tie around the routed wire bundle to reduce mechanical tension on individual screw terminals.
Alternative Names
6ES7592-1AM00-0XBO
6ES7592-1AM00-0X80
6ES7592-1AM00-OXB0
6ES7592-1AMOO-0XB0
6ES7592-IAM00-0XB0
6ES759Z-1AM00-0XB0
6ES7592 1AM00 0XB0
6ES7592 1AM00 0XBO
6ES7592 1AM00 0X80
6ES7592 1AM00 OXB0
6ES7592 1AMOO 0XB0
6ES7592 IAM00 0XB0
6ES759Z 1AM00 0XB0
6ES75921AM000XB0
6ES7 592-1AM00-0XB0
Technical notes
The 6ES7592-1AM00-0XB0 supports connectable cable cross-sections for massive cables from 0.25 mm² minimum. The 6ES7592-1AM00-0XB0 accommodates one conductor per connection or a combination of 2 conductors of up to 1.5 mm² total in a shared ferrule. The 6ES7592-1AM00-0XB0 requires a minimum stripped cable length of 10 mm for proper termination.
FAQs
-
Can this connector be used on any SIMATIC S7-1500 module?
+No. It is specifically rated for 35 mm wide modules with a 40-pole I/O configuration. Compact 20 mm wide modules or 70 mm wide modules require completely different connector variants. -
What comes included in the delivery package?
+The packaging contains the 40-pole front connector body, 4 potential bridges (jumpers) for looping power across terminals, and cable ties for proper wire strain relief. -
What are the connectable cable cross-sections?
+It supports both massive (solid) and flexible cables ranging from a minimum of 0.25 mm² to a maximum of 1.5 mm² (AWG 24 to AWG 16). -
What type of wiring termination does it use?
+It features a screw-type connection system. A push-in alternative is available under part number 6ES7592-1BM00-0XB0.
