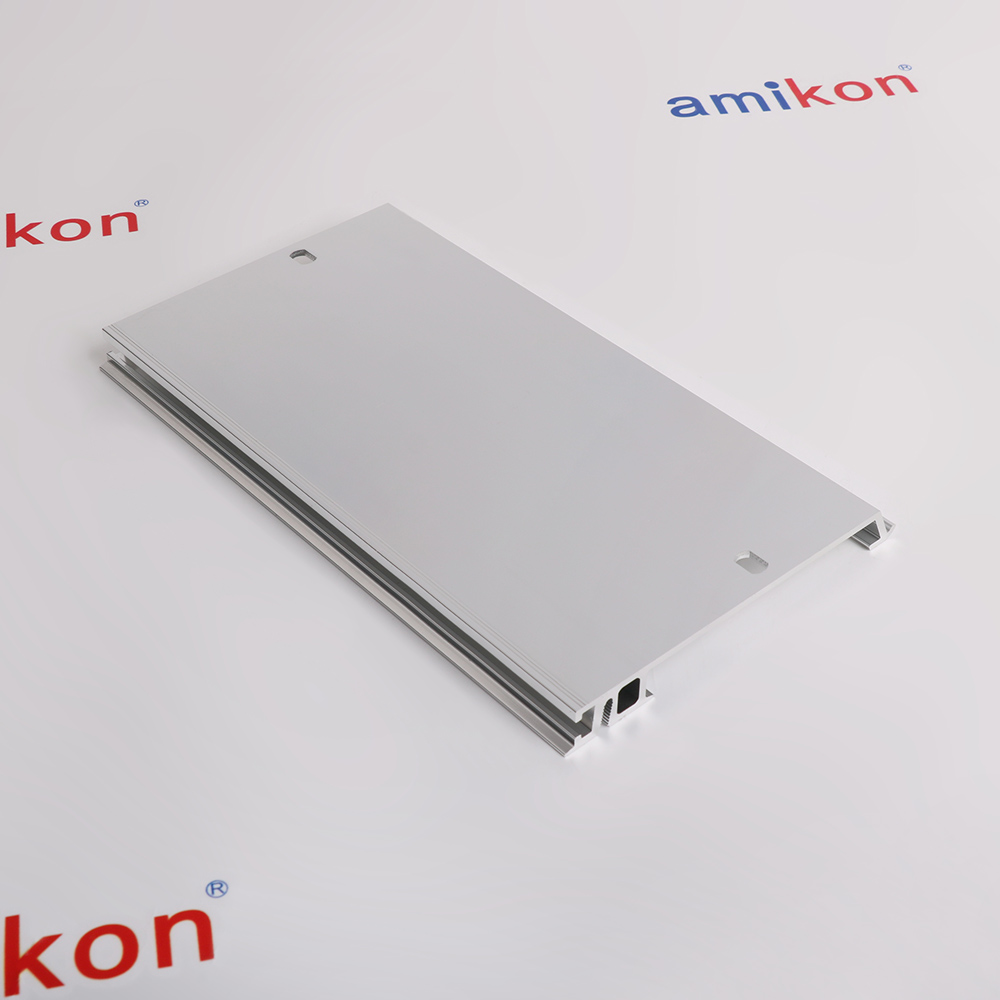

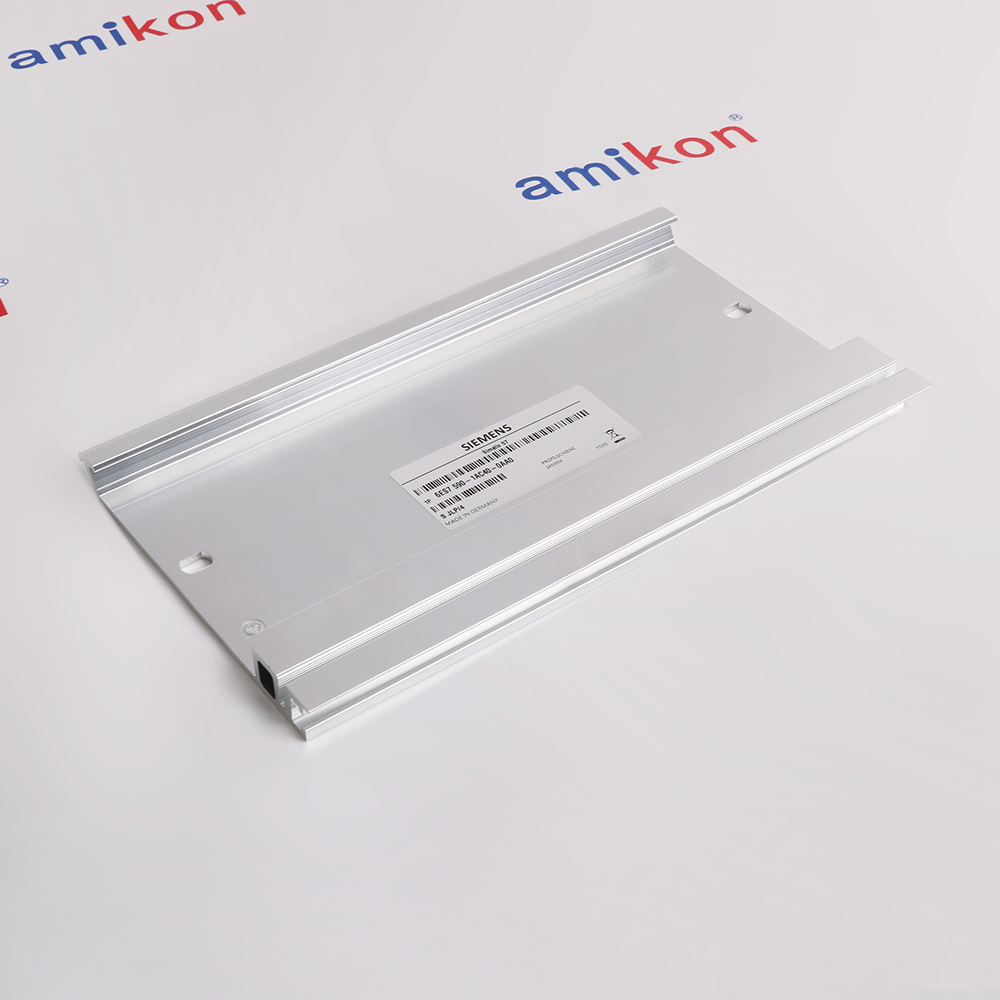

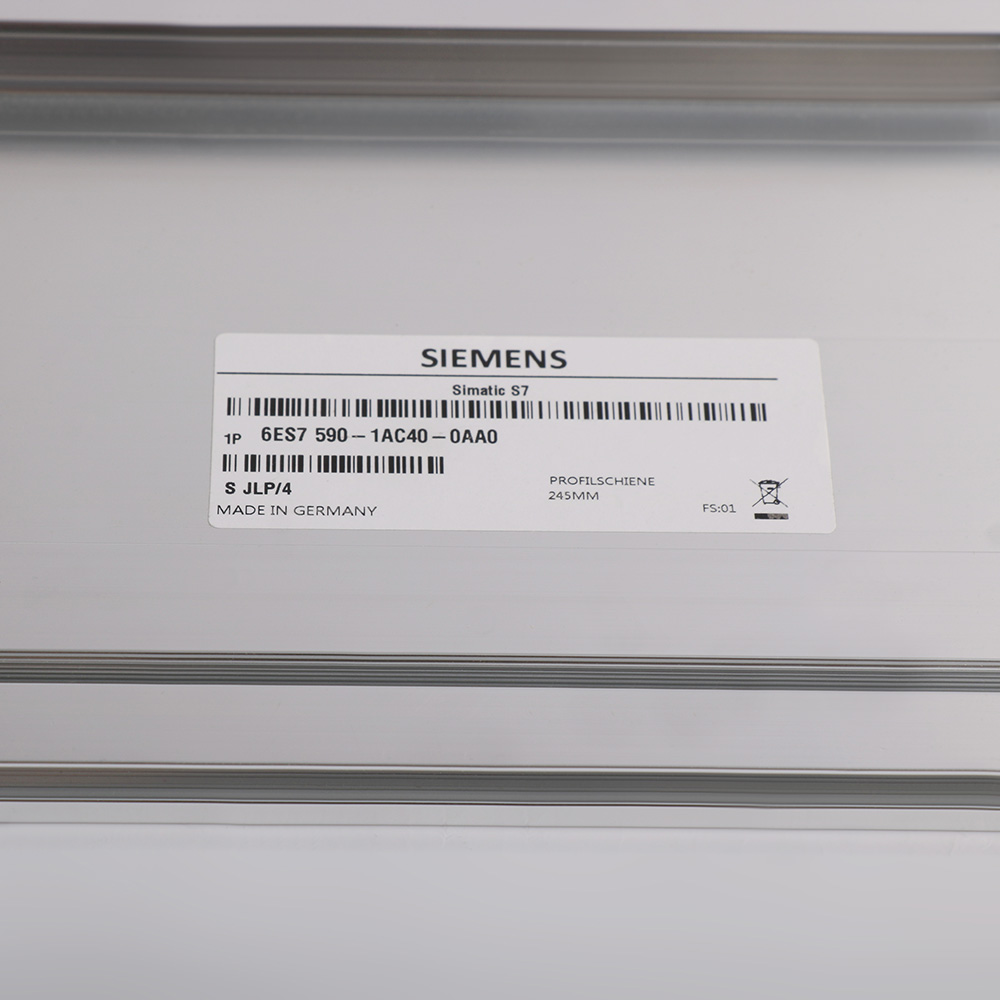

Siemens 6ES7590-1AC40-0AA0
Siemens 6ES7590-1AC40-0AA0
Siemens 6ES7590-1AC40-0AA0
Siemens 6ES7590-1AC40-0AA0
Siemens 6ES7590-1AC40-0AA0
Siemens 6ES7590-1AC40-0AA0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Saturday, November 21

6ES7590-1AC40-0AA0

245 mm aluminum mounting rail

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

A compact mounting foundation for S7-1500 and ET 200MP assemblies

The Siemens 6ES7590-1AC40-0AA0 provides a 245 mm aluminum mounting rail for SIMATIC S7-1500 and ET 200MP assemblies. Its integrated DIN rail also accommodates auxiliary components such as terminals, miniature circuit breakers and relays within the planned cabinet arrangement.

Two factory-drilled fixing holes provide a 225 mm mounting pitch, while the grounding connection supports the station's protective-conductor arrangement. Selection depends on the complete assembly width, fixing surface and required clearances; the rail alone does not define an electrically complete station.
ACTUAL APPLICATIONS

Where 6ES7590-1AC40-0AA0 Fits Across Industrial Sectors

Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
  • 01 · PACKAGING

    Consumer Packaging and Commercial Goods Packing

    Consumer goods packaging for retail presentation and market distribution.Commercial product packing throughout industrial manufacturing and supply operations.
  • 02 · TEXTILE MANUFACTURING

    Textile Production and Finished Fabric Processing

    Fiber and yarn production within industrial textile manufacturing operations.Fabric production and finishing for commercial textile product markets.
  • 03 · FOOD & BEVERAGE

    Food Production and Beverage Manufacturing

    Food preparation and production for packaged consumer goods markets.Beverage processing and filling within commercial drinks manufacturing operations.

Technical specifications for 6ES7590-1AC40-0AA0

  • Product Model
    6ES7590-1AC40-0AA0
  • Product Parameters
    245 mm aluminum mounting rail
  • Manufacturer
    Siemens
  • Rail construction
    Aluminum
  • Surface finish
    Galvanically tin-plated
  • Rail dimensions
    245 x 155 x 16 mm (W x H x D), not packed size
  • Auxiliary-component mounting
    Integrated DIN rail for terminals, miniature circuit breakers and relays
  • Fixing holes
    Two factory-drilled holes
  • Fixing-hole spacing
    225 mm centre-to-centre; 10 mm end offsets
  • Rail fixing hardware
    M6 screws; length selected for the actual assembly
  • Protective-conductor connection
    Grounding screw set provided for the 245 mm rail
View all additional
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
MECHANICAL STATION ASSEMBLY

Plan the mounting surface, auxiliary space and protective connection together

This rail provides the mechanical foundation for a compact S7-1500 or ET 200MP station. The 245 mm length and 225 mm fixing-hole pitch must suit the selected mounting surface. Allocate the complete module width before installation, then retain the clearances needed for module access, cable routing and heat dissipation.
The integrated DIN profile provides space for auxiliary equipment such as terminal blocks, circuit breakers and relays. These items can affect the distance to cable ducts even when the automation modules fit on the rail. The profile is a mounting provision, not a replacement for the station's electrical backplane connections.
Protective grounding is part of the installation design. Siemens requires the rail to connect to the protective-conductor system and documents a dedicated grounding-bolt arrangement. The enclosing cabinet must also meet the system's access restrictions. An equivalent permanent protective connection is permitted only under the conditions stated in the manufacturer manual.

Features:

  • 245 mm rail with defined fixing geometry
  • Integrated mounting provision for auxiliary components
  • Protective grounding and enclosure-access requirements
The Siemens 6ES7590-1AC40-0AA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

Compare the complete rail order number and the cabinet's existing fixing geometry before ordering a replacement. The 1AC40 version is 245 mm long with a 225 mm hole pitch. A longer rail from the same family changes the mounting dimensions and should not be treated as a direct mechanical substitute.
Review the mounting surface, selected M6 fasteners and protective-conductor connection as separate items. The grounding connection must remain compliant after the exchange; a screw that secures the rail mechanically does not by itself demonstrate an adequate protective bond. Qualified personnel must isolate the equipment before disturbing the mounted assembly.
Check the space occupied by automation modules and auxiliary DIN-rail components before restoring the assembly. Keep cable access and heat-dissipation clearances in the comparison, and confirm the actual hardware supplied with the spare. The catalogue's conflicting mass entries are not used here to promise a delivery weight or packing configuration.

Features:

  • Full order code and fixing-pitch comparison
  • Separate fastening and protective-bond checks
  • Cabinet clearance and supplied-hardware review
The Siemens 6ES7590-1AC40-0AA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Rail-specific fixing and protective-grounding instructions
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7590-1AC40-0AA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    30.00 x 16.1 x 2.7 cm
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    7616991090
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7590-1AC40-0AA0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • What does the 1AC40 version identify?

    It is the 245 mm mounting rail in the S7-1500/ET 200MP range. Siemens lists several different rail lengths, so a shared rail family or similar profile does not establish the correct fixing-hole spacing for a replacement.
  • What is the distance between the fixing holes?

    The manufacturer specifies 225 mm between the two fixing holes for the 245 mm rail, with 10 mm end offsets. Use the exact row in the original drawing; the 160 mm and 482.6 mm rails have different dimensions.
  • Can auxiliary components be mounted on it?

    Yes. The integrated DIN rail is intended for auxiliary components such as terminals, miniature circuit breakers and relays. Their position still affects cabinet space and cable-duct clearance; the mounting feature does not establish electrical compatibility between those components.
  • Are rail fixing screws the same as the grounding connection?

    No. The manual treats mounting-surface fastening and protective-conductor attachment separately. It specifies suitable M6 fixing hardware and a separate grounding arrangement; choose fixing-screw length for the actual assembly and verify all supplied items against the quotation.
  • Must the mounting rail be protectively grounded?

    The system manual requires connection to the installation's protective-conductor system. It describes a grounding-bolt connection and allows an alternative only where an equivalent permanent, standards-compliant protective connection is ensured. This is not permission to omit protective grounding.
  • Does this rail replace the station backplane bus?

    No. It is the mechanical mounting component. Siemens documents U connectors separately for the electrical connections between conventional S7-1500/ET 200MP modules; any active-backplane arrangement needs its own applicable documentation and parts.
  • Which dimensions and weight should be used for shipping?

    The current Siemens page lists packaging dimensions of 30.00 x 16.1 x 2.7 cm. Its technical and commercial sections show different mass values, neither of which establishes gross shipping weight. Confirm the final packed weight for the supplied item.
