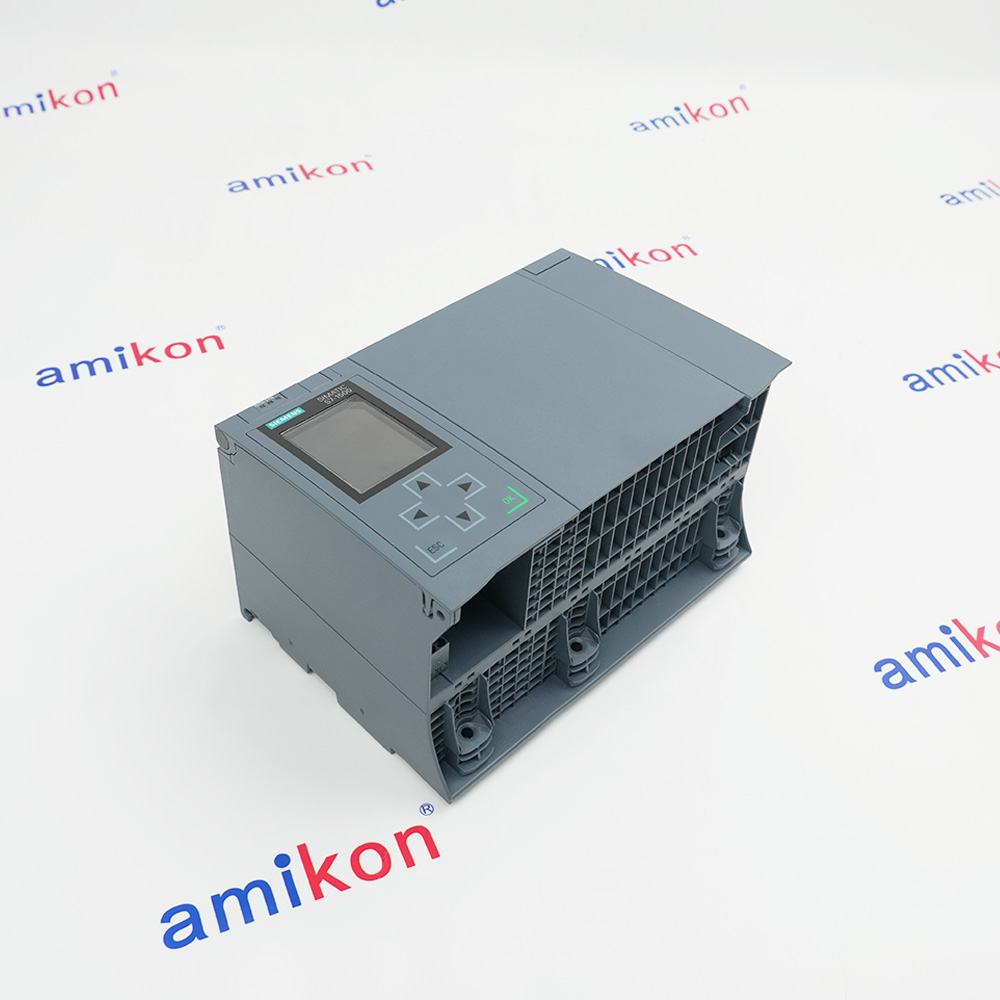

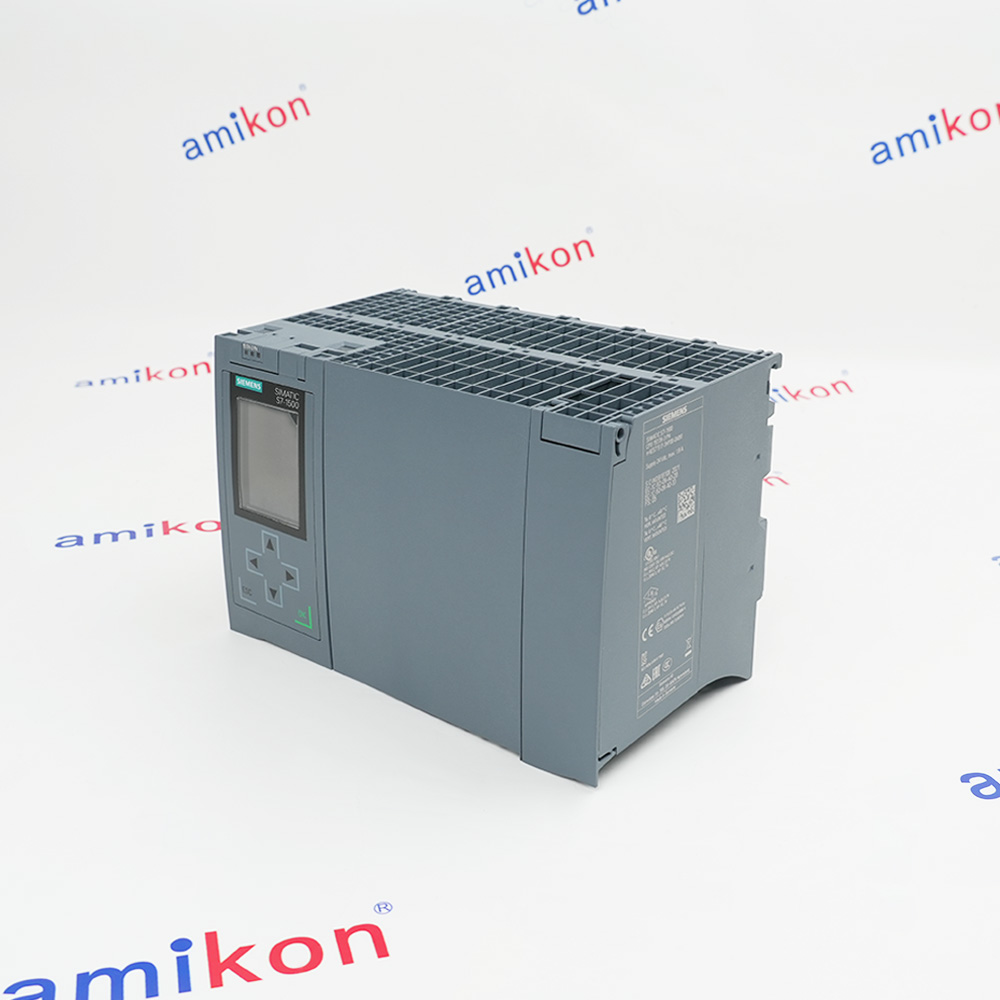

Siemens 6ES7517-3HP00-0AB0
Siemens 6ES7517-3HP00-0AB0
Siemens 6ES7517-3HP00-0AB0
Siemens 6ES7517-3HP00-0AB0
Siemens 6ES7517-3HP00-0AB0
Siemens 6ES7517-3HP00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Saturday, November 21

6ES7517-3HP00-0AB0

Redundant CPU 1517H-3 PN

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

Paired processing with dedicated fiber-optic synchronization

Siemens 6ES7517-3HP00-0AB0 is the CPU 1517H-3 PN for S7-1500H redundant control. Its architecture uses two synchronized CPUs, with one acting as primary and the other as backup, and dedicated fiber-optic connections carrying the information needed for coordinated operation.

The CPU provides separate program and data work memories, two PROFINET interfaces and two H-Sync interfaces. A SIMATIC Memory Card is required. Network functions, engineering compatibility and available expansion depend on the installed firmware, so the complete system configuration matters when selecting a replacement.
ACTUAL APPLICATIONS

Industry Sectors for Redundant Control

Industry directions documented for the Siemens S7-1500R/H platform; suitability depends on the installed configuration.
  • 01 · TRANSPORT INFRASTRUCTURE

    Urban Passenger Transport and Road Tunnel Operations

    Urban passenger transport supporting regular subway services and mobility.Road tunnel operations supporting daily regional road transport services.
  • 02 · SHIPBUILDING

    Commercial Vessel Construction and Marine Outfitting

    Commercial vessel construction supporting maritime transport and industrial shipping.Marine vessel outfitting supporting shipbuilding completion and maritime operations.
  • 03 · AIRPORTS & LOGISTICS

    Airport Baggage Logistics and Warehouse Distribution

    Airport baggage logistics supporting organized passenger terminal transport operations.High-bay warehousing supporting goods storage and distribution across businesses.

Technical specifications for 6ES7517-3HP00-0AB0

  • Product Model
    6ES7517-3HP00-0AB0
  • Product Parameters
    Redundant CPU 1517H-3 PN
  • Manufacturer
    Siemens
  • Ethernet transmission rate
    100 Mbps
  • Supply voltage
    24 V DC nominal; 19.2–28.8 V DC permitted
  • Rated current consumption
    1.5 A; maximum 1.9 A
  • Power loss
    24 W typical
  • Program work memory
    2 MB integrated
  • Data work memory
    8 MB integrated
  • Load memory
    SIMATIC Memory Card required; up to 32 GB
  • Bit operation time
    4 ns typical
  • Floating-point operation time
    24 ns typical
  • I/O address area
    32 KB input and 32 KB output
  • PROFINET interfaces
    2; X1 has 2 ports, X2 has 1 port
  • Synchronization interfaces
    X3 and X4 for plug-in fiber-optic synchronization modules
  • Maximum connected PROFINET I/O devices
    256; update time depends on network and configuration
  • Operating temperature
    Horizontal 0–60°C; vertical 0–40°C; display limits 50°C/40°C
  • Safety-function suitability
    Not a fail-safe CPU; PROFIsafe not supported
View all additional
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
S7-1500H REDUNDANT CONTROL

Coordinate the CPU pair, network and synchronization paths

The processor is one element of an S7-1500H pair, not an independent redundancy package. Siemens defines a primary CPU and a backup CPU that exchange relevant data through two fiber-optic connections. Plan the memory cards, synchronization modules and connected I/O alongside the two processor positions.
Interface roles are deliberately separated. X1 provides two ports for PROFINET I/O communication and the supported network topology, while X2 provides a separate basic communications interface. X3 and X4 are reserved for synchronization modules, so these connections should not be counted as additional ordinary Ethernet ports.
The January 2024 manual describes firmware V3.1 capabilities, including Web API, OPC UA server operation and additional active-backplane options. These are version-dependent features, not proof of the offered CPU's firmware. Match the engineering software, relevant licenses and system configuration before including those functions in a project.

Features:

  • Primary and backup processor roles
  • Dedicated H-Sync connections
  • Firmware-specific network capabilities
The Siemens 6ES7517-3HP00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

Record the complete order number, hardware functional status and firmware of the installed CPU before selecting a spare. Also capture the partner CPU and synchronization-module identities. A processor with a similar front panel does not establish compatibility with the configured redundant pair or its installed communication options.
Preserve the engineering project and the required SIMATIC Memory Card contents as part of the replacement preparation. Compare the X1 and X2 network assignments, device names and redundancy arrangement with the project documentation. The two H-Sync paths must remain consistent with the selected synchronization modules and fiber connections.
Check the 24 V supply arrangement, physical mounting and environmental limits against the exact manual and the S7-1500R/H system documentation. Do not treat a newer firmware function list as confirmation that an older offered unit already supports it. Qualified personnel must apply the documented commissioning and redundancy procedures.

Features:

  • Full CPU and firmware comparison
  • Memory card and project preservation
  • Partner CPU and H-Sync checks
The Siemens 6ES7517-3HP00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Verified manufacturer product reference; separate installation document not supplied
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7517-3HP00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    Confirm final packed dimensions
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8537101190
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7517-3HP00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Is one CPU a complete S7-1500H redundant system?

    No. Siemens describes two CPUs, two memory cards, four synchronization modules and two fiber-optic redundancy connections, together with the configured I/O. This product reference does not imply that all those components are included.
  • What is the difference between X1 and X2?

    X1 has two ports and supports PROFINET I/O controller communication. X2 is a separate single-port interface for basic communications and is not a second I/O controller.
  • Can the H-Sync ports be used as ordinary Ethernet connections?

    They are reserved for synchronization between the two CPUs. Their plug-in synchronization modules and fiber-optic links are part of the redundancy architecture.
  • Does this CPU require a SIMATIC Memory Card?

    Yes. Program and data work memory are integrated, while load memory uses the required SIMATIC Memory Card. Confirm the card and project contents separately from the CPU supply.
  • Which firmware is needed for OPC UA server operation?

    The January 2024 manual introduces OPC UA server support from firmware V3.1 and requires a runtime license. The earlier V3.0 data sheet lists no OPC UA server. Neither document establishes the firmware or license supplied with an offered unit.
  • Can firmware V3.1 expansion limits be applied to every installed CPU?

    No. Active backplane use and support for additional power supplies and communications processors are firmware-dependent. Confirm the actual firmware and the system-manual configuration rather than transferring a newer specification to an older installation.
  • Does redundant processing make this a fail-safe CPU?

    No. The technical table does not identify the CPU as suitable for safety functions and lists no PROFIsafe support. Availability redundancy and functional safety are different selection criteria.
  • How should the display temperature note be interpreted?

    The horizontal operating limit is 60°C, but the display switches off at approximately 50°C. In vertical installation the operating and display limits are 40°C. Display behavior should not be confused with a different CPU temperature rating.
