          PRODUCT DESCRIPTION

          A 19-inch rail format for planned cabinet assemblies

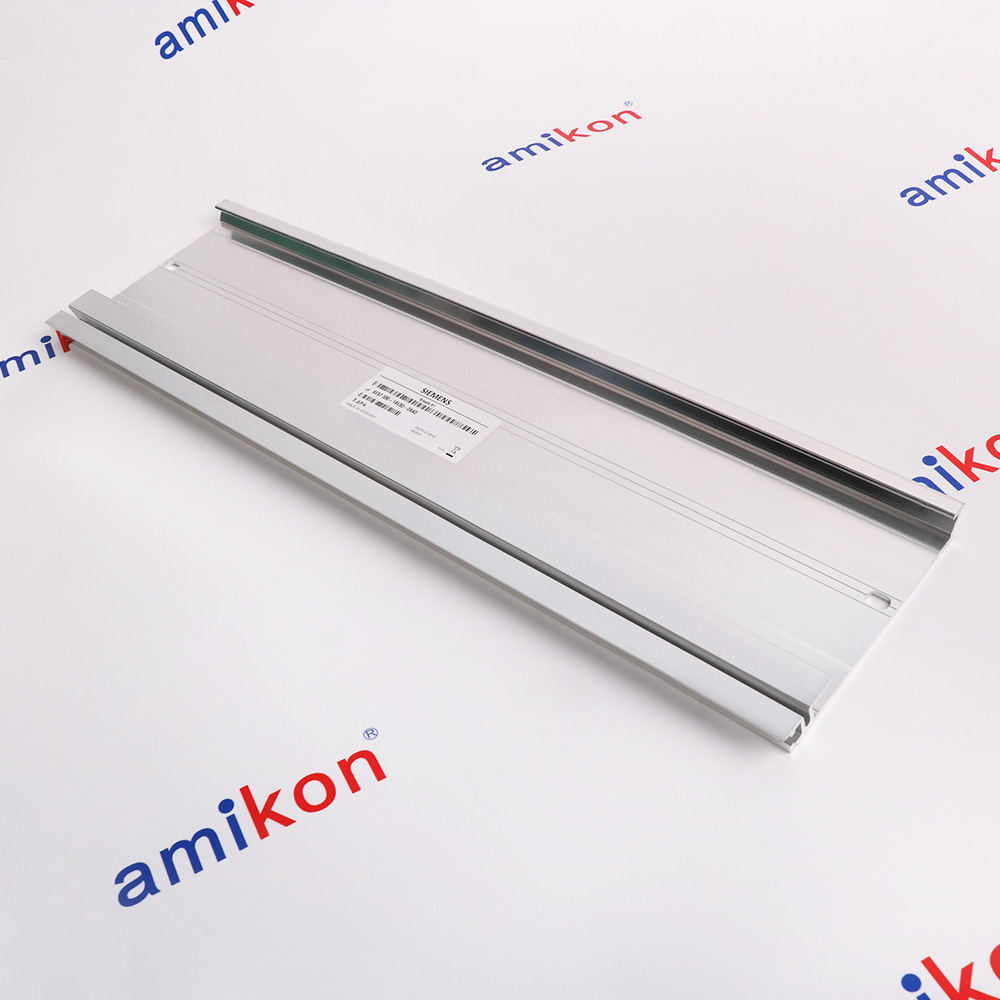

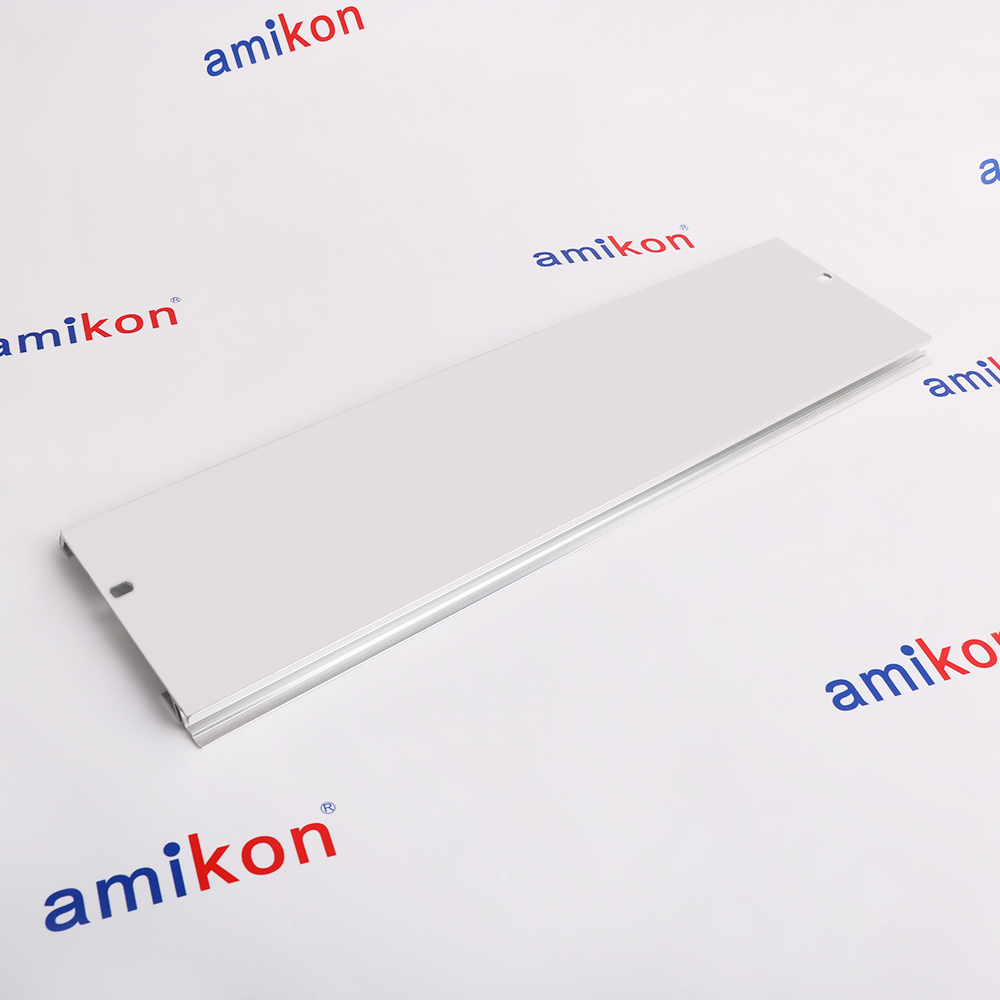

          The Siemens 6ES7590-1AE80-0AA0 is the nominal 482.6 mm, 19-inch mounting rail for SIMATIC S7-1500 and ET 200MP assemblies. An integrated DIN profile supports auxiliary terminals, miniature circuit breakers and relays alongside the planned automation hardware.

          Its predrilled fixing points use a 466 mm spacing with 8.3 mm end offsets. The aluminum rail combines mechanical support with a dedicated protective-grounding provision, so cabinet selection must consider both the mounting geometry and the required electrical safety arrangement.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Where 6ES7590-1AE80-0AA0 Fits Across Industrial Sectors

          Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
          • 01 · WATER & WASTEWATER

            Water Supply and Wastewater Treatment Services

            Drinking water treatment and supply for public utility services.Wastewater processing and recovery throughout municipal and industrial operations.
          • 02 · AUTOMOTIVE MANUFACTURING

            Vehicle Manufacturing and Automotive Component Production

            Vehicle production and assembly within the automotive manufacturing sector.Automotive component manufacturing for passenger and commercial vehicle markets.
          • 03 · TEXTILE MANUFACTURING

            Yarn Manufacturing and Commercial Fabric Finishing

            Yarn preparation and production supporting industrial textile manufacturing activities.Fabric finishing and processing for commercial textile goods production.

          Technical specifications for 6ES7590-1AE80-0AA0

          • Product Model
            6ES7590-1AE80-0AA0
          • Product Parameters
            482.6 mm aluminum mounting rail
          • Manufacturer
            Siemens
          • Rail material and finish
            Aluminum; galvanically tin-plated
          • Nominal rail length
            482.6 mm (19 in), manufacturer product designation
          • Profile height and depth
            155 mm height; 16 mm depth, not packaging dimensions
          • Auxiliary mounting profile
            Integrated DIN rail for terminals, miniature circuit breakers and relays
          • Factory fixing holes
            Two predrilled fixing holes
          • Fixing-point geometry
            466 mm centre-to-centre; 8.3 mm end offsets
          • Mounting-surface fasteners
            M6 fixing screws; select screw length for the assembly
          • Protective-grounding provision
            Grounding screw set provided for this rail length
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          CABINET MOUNTING GEOMETRY

          Coordinate the 19-inch rail, fixing points and auxiliary space

          The 1AE80 rail offers a nominal 482.6 mm mounting format with two factory-drilled fixing holes. Its 466 mm hole pitch and 8.3 mm end offsets define the mounting-surface preparation. Plan the selected S7-1500 or ET 200MP assembly against this geometry rather than treating every rail in the family as interchangeable.
          An integrated DIN profile accommodates auxiliary terminals, circuit breakers and relays, but their installation uses additional cabinet space. Arrange these components together with the automation modules and cable ducts. Clearance for access and heat dissipation remains necessary even when the total component width fits within the available rail length.
          Mechanical attachment and protective bonding are separate installation checks. Siemens describes M6 mounting-surface fasteners and a dedicated protective-conductor connection, including its hardware sequence. The rail must form part of a compliant protective-conductor system inside the specified enclosure; electrical backplane connections and module commissioning remain outside the rail-only installation scope.

          Features:

          • Defined 466 mm fixing-hole pattern
          • Space planning for auxiliary DIN components
          • Separate mechanical fastening and protective bonding
          The Siemens 6ES7590-1AE80-0AA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Start a replacement comparison with the complete 6ES7590-1AE80-0AA0 designation and the actual cabinet mounting pattern. The nominal 19-inch format identifies a different fixing pitch from the shorter rails. Compare the hole locations directly with the original drawing before disturbing the installed assembly or preparing a replacement mounting surface.
          Inspect the fixing screws, mounting surface and protective-conductor hardware before transferring any modules. Screw length depends on the cabinet assembly, while the documented grounding connection has its own terminal, washer sequence and tightening requirement. Isolate the equipment for the work and keep the protective connection compliant throughout the approved replacement procedure.
          Retain the arrangement of mounted modules and auxiliary parts in the replacement record, including cable routes and required clearances. The manufacturer description and technical-width field are not identical, so use the exact installation drawing for dimensional decisions. Catalogue mass entries also disagree and cannot establish the gross weight of the delivered spare.

          Features:

          • Exact code and original drawing comparison
          • Fastener and protective-conductor inspection
          • Cable-route and cabinet-clearance preservation
          The Siemens 6ES7590-1AE80-0AA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • 482.6 mm rail fixing geometry and protective-grounding instructions
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7590-1AE80-0AA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          6ES7531-7KF00-0AB0 6ES7511-1AK01-0AB0 6ES7515-2AM00-0AB0 6ES7515-2AN03-0AB0 6EP1332-4BA00

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            53.8 x 15.9 x 2.7 cm
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            7616991090
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7590-1AE80-0AA0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is this the 19-inch mounting-rail version?

            Yes. Siemens identifies 6ES7590-1AE80-0AA0 as the nominal 482.6 mm (19-inch) rail. The fixing-hole table uses this length and specifies a 466 mm pitch. Do not use another rail length simply because its profile looks similar.

          • Why is a 482 mm width also shown in the catalogue?

            Siemens uses 482.6 mm in the product description and installation table, and 482 mm in the technical-width field. For mounting-surface preparation, follow the original 482.6 mm rail drawing with its 466 mm fixing-hole pitch and 8.3 mm end offsets. Confirm the supplied rail dimensions before machining.

          • Does the rail require cutting or drilling?

            Siemens lists this length with two factory-drilled holes. The manual separately describes cutting and drilling the 2000 mm rail; that procedure is not presented as a requirement for this 1AE80 product. Match the existing mounting surface to the documented fixing pattern.

          • What can use the integrated DIN profile?

            The manufacturer lists auxiliary terminals, miniature circuit breakers and relays. Their placement must leave the required room for the automation assembly, heat dissipation and cable access. The rail does not establish an electrical connection between the mounted components.

          • What must be checked at the protective-conductor connection?

            The system manual specifies a protective-conductor arrangement with an M6 ring terminal and a minimum 10 mm2 grounding conductor. Its 4 Nm torque applies to the documented grounding assembly, not an unspecified mounting-surface screw. Qualified personnel must follow the complete manufacturer instructions.

          • Are fixing screws and all accessories included?

            The original system manual specifies a grounding screw set for this predrilled rail length. It also calls for mounting-surface fixing screws chosen for the assembly. Confirm the actual supplied hardware in the quotation; auxiliary electrical components are not included merely because they can mount on the rail.

          • Which values apply to shipment planning?

            The current manufacturer page lists packaging dimensions of 53.8 x 15.9 x 2.7 cm. Its technical and commercial mass values differ, so no mass is published here as a confirmed shipping weight. The final shipment dimensions and gross weight must be confirmed for the supplied package.
