PRODUCT DESCRIPTION

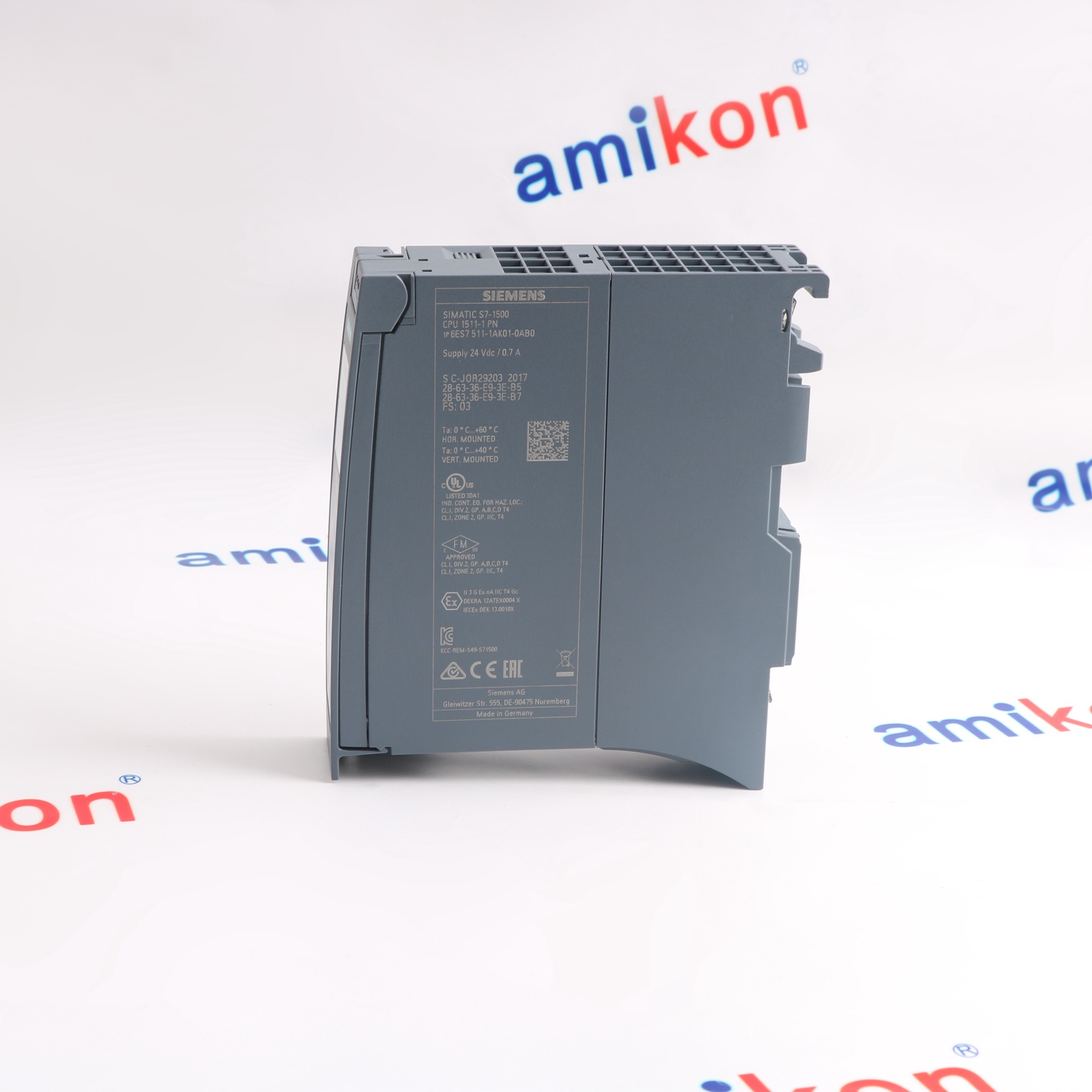

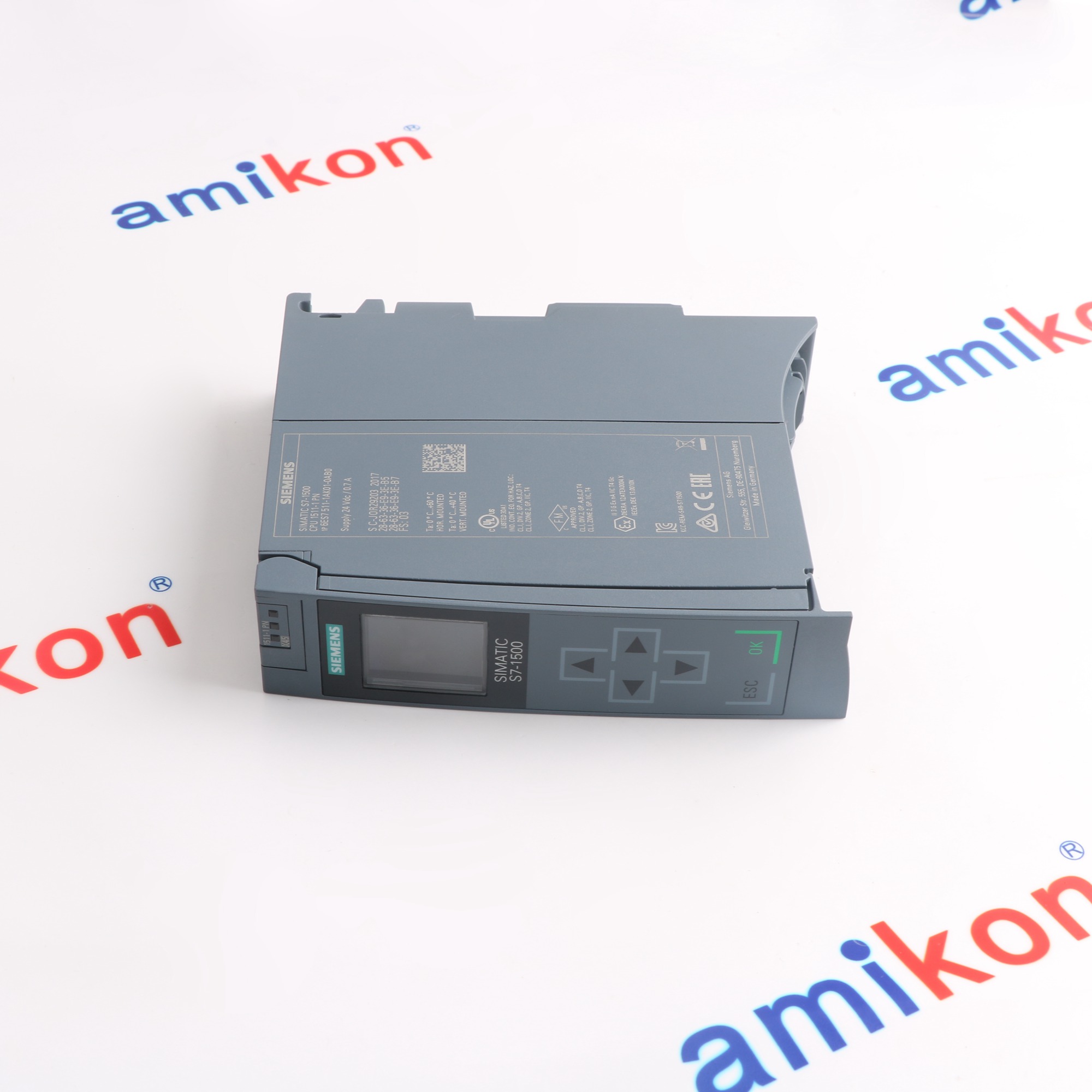

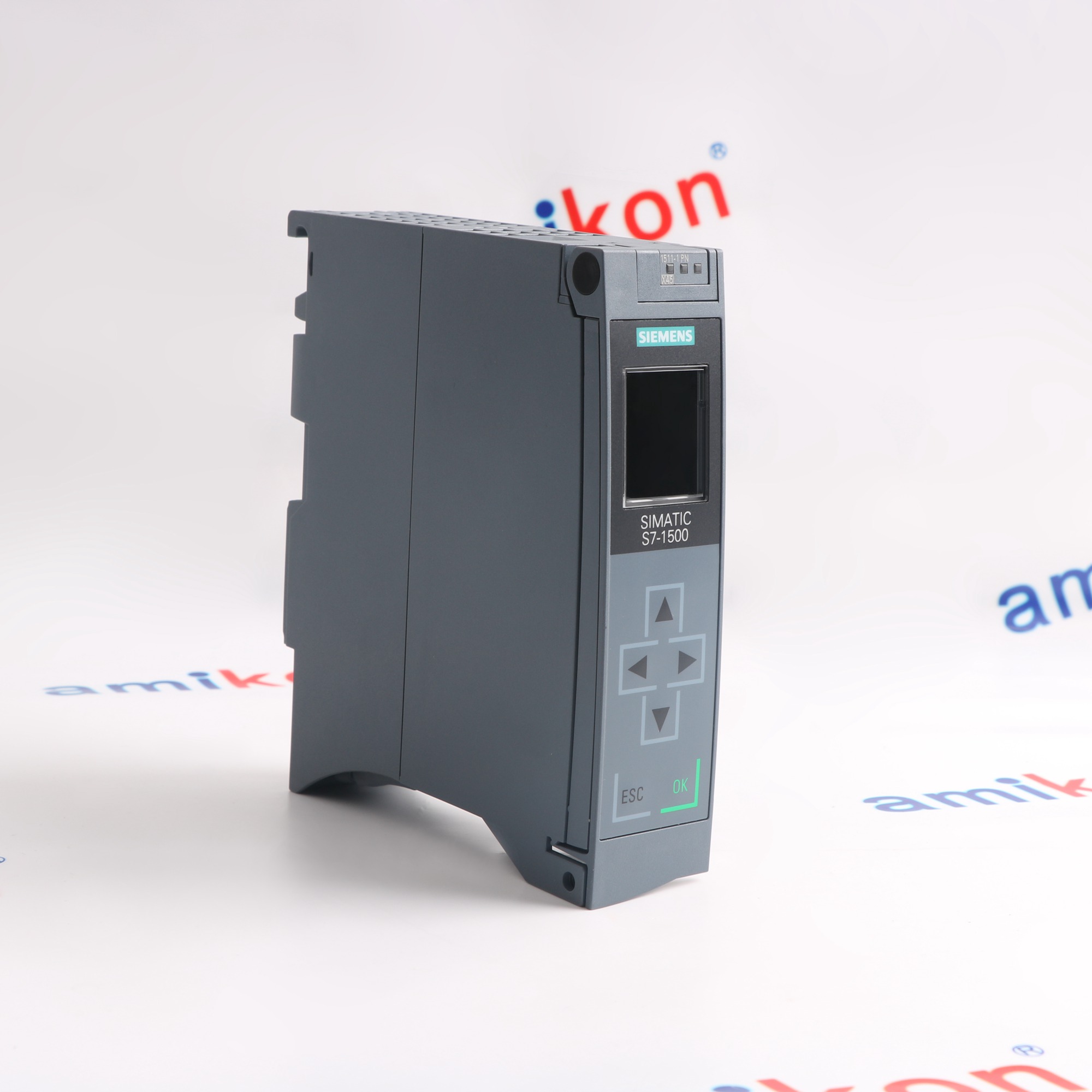

6ES7511-1AK01-0AB0 PROFINET PLC central processor
Siemens 6ES7511-1AK01-0AB0 is the CPU 1511-1 PN central controller in the SIMATIC S7-1500 family. It executes configured automation programs and coordinates compatible distributed devices through PROFINET.
The CPU separates 150 KB program work memory from 1 MB data work memory and uses a SIMATIC memory card for load storage. Its PROFINET interface has an integrated two-port switch, while a front display supports documented local status and settings. Instruction timings, project version and connected module resources determine the engineered controller capacity.
The CPU separates 150 KB program work memory from 1 MB data work memory and uses a SIMATIC memory card for load storage. Its PROFINET interface has an integrated two-port switch, while a front display supports documented local status and settings. Instruction timings, project version and connected module resources determine the engineered controller capacity.
BEFORE YOU BUY
Confirm the complete profinet plc central processor
ACTUAL APPLICATIONS
Application context for 6ES7511-1AK01-0AB0
Siemens 6ES7511-1AK01-0AB0 is the CPU 1511-1 PN central controller in the SIMATIC S7-1500 family. It serves compatible automation in automotive, food and beverage, packaging. Suitable use requires the documented companion hardware, electrical connections and configured production process.
-
01 · AUTOMOTIVE
Automotive Manufacturing and Vehicle Component Production
Vehicle Body ManufacturingAutomotive Component Production -
02 · FOOD & BEVERAGE
Food Manufacturing and Beverage Packaging Production
Industrial Food ProductionBeverage Processing and Packaging -
03 · PACKAGING
Packaging Manufacturing and Product Packaging Production
Packaging Material ConvertingIndustrial Product Packaging
Technical specifications for 6ES7511-1AK01-0AB0
-
Product Model6ES7511-1AK01-0AB0
-
Product ParametersPROFINET PLC central processor
-
In stock5 units
-
ManufacturerSiemens
-
Program work memory150 KB
-
Data work memory1 MB
-
Maximum memory-card capacity32 GB
-
Supply voltage24 V DC, 19.2 to 28.8 V
-
Supply interruption bridging5 ms
-
Maximum supply current0.7 A
-
Inrush current1.9 A
-
Supply I²t0.02 A²s
-
Power loss5.7 W
-
Bit instruction time60 ns
-
Word instruction time72 ns
-
Fixed-point instruction time96 ns
-
Floating-point instruction time384 ns
-
PROFINET interface2-port integrated switch
-
Display diagonal3.45 cm
View all additional
Alternative Names
6ES7511-1AK01-0AB0
SIMATIC S7-1500 CPU 1511-1 PN PROFINET PLC central processor
S7-1500 CPU 1511-1 PN 150 KB program work memory
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7511-1AK01-0AB0 profinet plc central processor
Siemens 6ES7511-1AK01-0AB0 is the CPU 1511-1 PN central controller in the SIMATIC S7-1500 family. It executes configured automation programs and coordinates compatible distributed devices through PROFINET.
Compare program work memory (150 KB), data work memory (1 MB) and maximum memory-card capacity (32 GB) with the installed SIMATIC S7-1500 CPU 1511-1 PN configuration. Match the supply connections and documented companion hardware before connection.
Use the applicable SIMATIC S7-1500 CPU 1511-1 PN instructions for wiring and commissioning. Test the affected functions of 6ES7511-1AK01-0AB0, review its status indications and record the accepted settings with the equipment documentation.
Features:
- Program work memory: 150 KB
- Data work memory: 1 MB
- Maximum memory-card capacity: 32 GB
The 6ES7511-1AK01-0AB0 profinet plc central processor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7511-1AK01-0AB0 profinet plc central processor
Replace 6ES7511-1AK01-0AB0 only after matching its complete article, SIMATIC S7-1500 CPU 1511-1 PN role and installed interface configuration. Related order numbers do not establish interchangeability.
Record the existing profinet plc central processor connections and preserve the configured SIMATIC S7-1500 CPU 1511-1 PN settings before removal. Photograph connector keying, cable labels and the supplied article identification.
After fitting the verified 6ES7511-1AK01-0AB0, restore the documented settings and test the affected functions at a safe operating point. Retain its receiving inspection and functional acceptance results with the asset record.
Features:
- Program work memory: 150 KB
- Data work memory: 1 MB
- Maximum memory-card capacity: 32 GB
The 6ES7511-1AK01-0AB0 profinet plc central processor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7511-1AK01-0AB0 profinet plc central processor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.5 × 14.7 × 12.9 cm
-
Shipping weight0.43kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7511-1AK01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is CPU 1511 work memory divided?
The AK01 CPU provides 150 KB for programs and 1 MB for data. -
What network interface is integrated into this CPU?
It has a PROFINET interface with an integrated two-port switch. -
What is the published bit-instruction processing time?
The stated CPU 1511 bit-operation time is 60 ns. -
How long can its supply interrupt without the listed power failure?
The documented supply-interruption bridging interval is 5 ms. -
What memory-card capacity is listed as the maximum?
The AK01 technical data lists a maximum supported memory-card capacity of 32 GB. -
Does the front display replace the engineering project?
No. The display supports local status and settings; the matching configured automation project remains necessary. -
Which project details are useful for an AK01 replacement inquiry?
Provide the complete CPU article, TIA Portal version and installed S7-1500 module configuration. -
What should be verified on a delivered CPU 1511-1 PN?
Check the AK01 label, front display, memory-card connection and two PROFINET sockets.
