PRODUCT DESCRIPTION

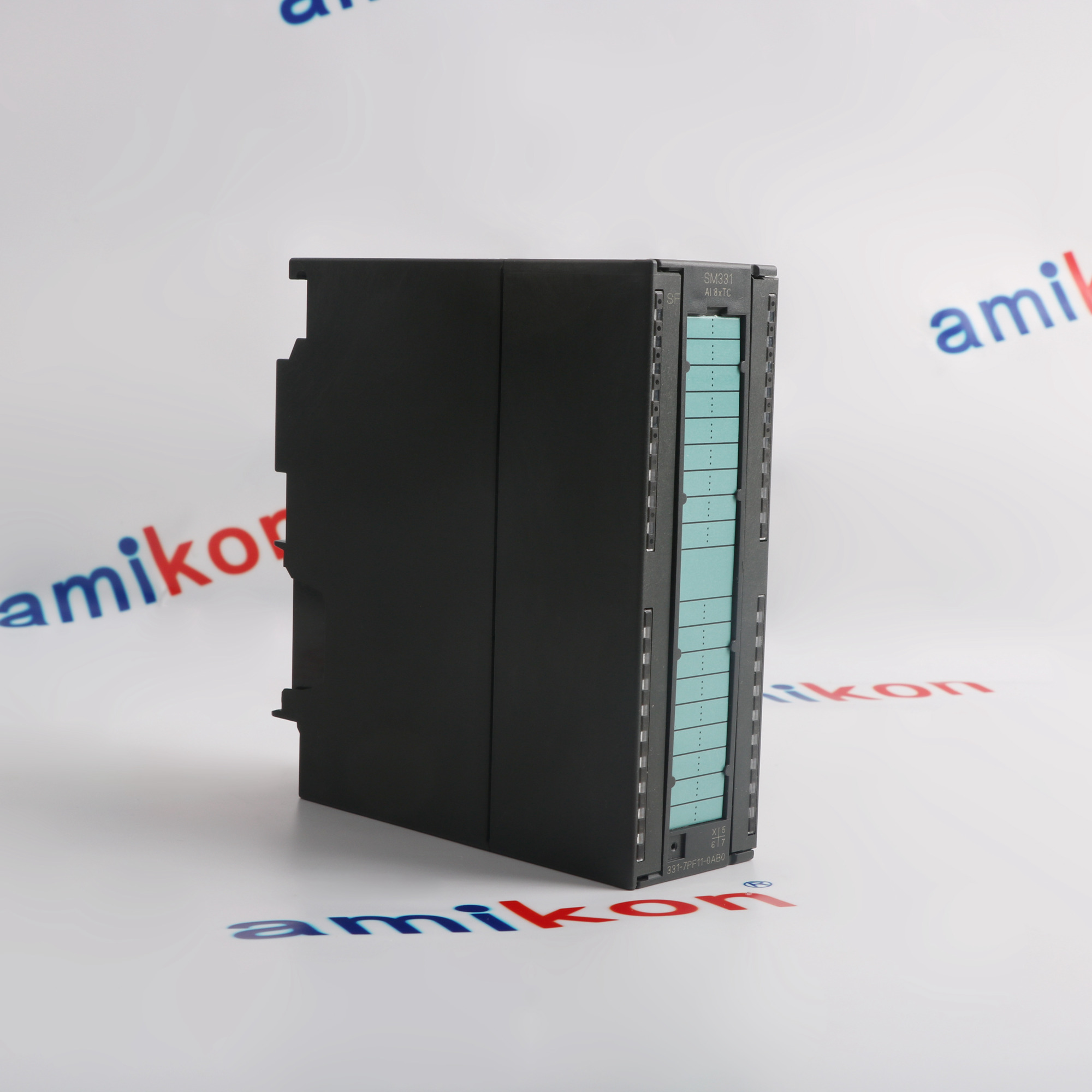

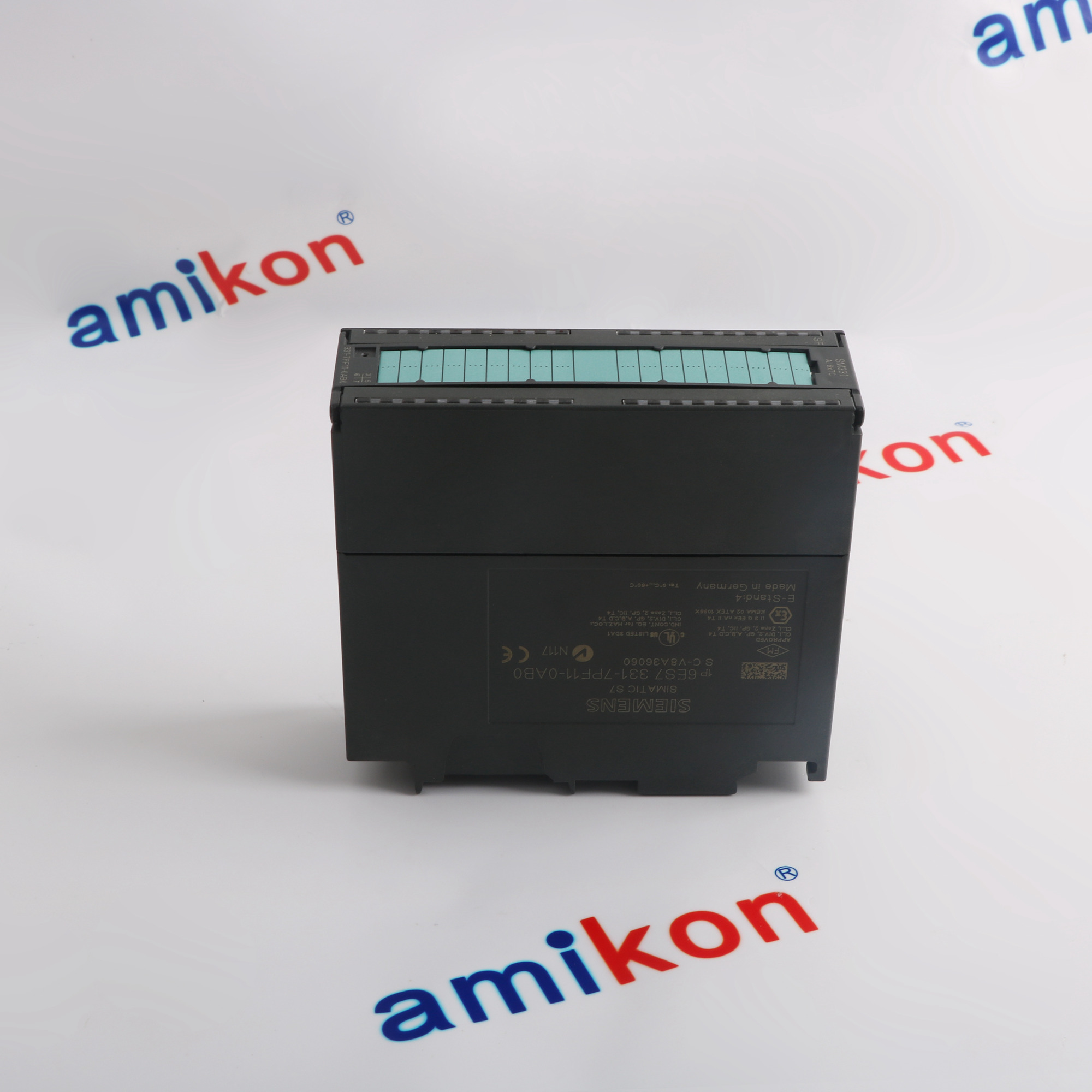

6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module
Siemens 6ES7331-7PF11-0AB0 is a eight-channel isolated thermocouple input module in the SIMATIC S7-300 SM 331 family. The complete article identifies its documented electrical, communication and functional arrangement.
Its technical profile includes module type: SM 331 isolated analog input; analog inputs: 8; sensor type: Thermocouples; and supported thermocouples: B, E, J, K, L, N, R, S, T, TXK and TXK(L). These values support exact-model engineering and maintenance review.
Its technical profile includes module type: SM 331 isolated analog input; analog inputs: 8; sensor type: Thermocouples; and supported thermocouples: B, E, J, K, L, N, R, S, T, TXK and TXK(L). These values support exact-model engineering and maintenance review.
BEFORE YOU BUY
Confirm the complete eight-channel isolated thermocouple input module
ACTUAL APPLICATIONS
Application context for 6ES7331-7PF11-0AB0
6ES7331-7PF11-0AB0 supports use across the three industry fields below. The documented role is eight-channel isolated thermocouple input module; selection depends on the complete article and installed system context.
-
01 · MARINE
Marine, Shipbuilding and Port Industries
Shipbuilding and marine sitesPort and coastal facilities -
02 · POWER GENERATION
Power Generation and Grid Infrastructure
Thermal and hydroelectric facilitiesRenewable energy and grid facilities -
03 · FIRE & LIFE SAFETY
Fire Protection and Life Safety Industries
Commercial fire protection sitesPublic safety and emergency facilities
Technical specifications for 6ES7331-7PF11-0AB0
-
Product Model6ES7331-7PF11-0AB0
-
Product Parameterseight-channel isolated thermocouple input module
-
In stock1 unit
-
ManufacturerSiemens
-
Module typeSM 331 isolated analog input
-
Analog inputs8
-
Sensor typeThermocouples
-
Supported thermocouplesB, E, J, K, L, N, R, S, T, TXK and TXK(L)
-
Resolution16 bit
-
Conversion time50 ms
-
Front connectorOne 40-pole connector
-
Rated load voltage24 V DC
-
Reverse-polarity protectionYes
-
Load-voltage current240 mA maximum without load
-
Backplane current100 mA maximum at 5 V DC
-
Power loss3 W typical
-
Destruction limit20 V DC continuous; 75 V DC for 1 s
-
Galvanic isolationIsolated
View all additional
Alternative Names
6ES7331-7PF11-0AB0
SIMATIC S7-300 SM 331 eight-channel isolated thermocouple input module
S7-300 SM 331 SM 331 isolated analog input module type
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module
6ES7331-7PF11-0AB0 provides the documented role of eight-channel isolated thermocouple input module within SIMATIC S7-300 SM 331. Match the complete article with the installed host and system architecture.
Engineering should compare module type (SM 331 isolated analog input), analog inputs (8) and sensor type (Thermocouples) with the project requirements.
Apply the documented connection and supply limits, then validate supported thermocouples (B, E, J, K, L, N, R, S, T, TXK and TXK(L)) and record the accepted test results.
Features:
- Confirm module type: SM 331 isolated analog input
- Match analog inputs: 8
- Validate sensor type: Thermocouples
The 6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module
Before removal, identify 6ES7331-7PF11-0AB0 and record the installed wiring, connectors and configuration. Isolate the applicable supply using the system maintenance procedure.
Compare the replacement article's analog inputs (8) and resolution (16 bit) with the removed unit and purchase record.
After installation, inspect connection integrity and verify conversion time (50 ms). Complete controlled functional checks before return to service.
Features:
- Record supported thermocouples: B, E, J, K, L, N, R, S, T, TXK and TXK(L)
- Inspect resolution: 16 bit
- Test conversion time: 50 ms
The 6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7331-7PF11-0AB0 eight-channel isolated thermocouple input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size13.10 x 15.00 x 5.00cm
-
Shipping weight0.32 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538909100
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7331-7PF11-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which rated load voltage of the eight-channel isolated thermocouple input module must a distributor quote for 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm rated load voltage as 24 V DC against the applicable documentation and installed label before supply or service. -
How should incoming inspection verify load-voltage current of the eight-channel isolated thermocouple input module on 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm load-voltage current as 240 mA maximum without load against the applicable documentation and installed label before supply or service. -
Why does engineering need to compare power loss of the eight-channel isolated thermocouple input module for 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm power loss as 3 W typical against the applicable documentation and installed label before supply or service. -
What maintenance record should retain galvanic isolation of the eight-channel isolated thermocouple input module for 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm galvanic isolation as Isolated against the applicable documentation and installed label before supply or service. -
Which analog inputs of the eight-channel isolated thermocouple input module belongs in the spare-parts register for 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm analog inputs as 8 against the applicable documentation and installed label before supply or service. -
How is supported thermocouples of the eight-channel isolated thermocouple input module checked before installing 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm supported thermocouples as B, E, J, K, L, N, R, S, T, TXK and TXK(L) against the applicable documentation and installed label before supply or service. -
What commissioning evidence confirms conversion time of the eight-channel isolated thermocouple input module on 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm conversion time as 50 ms against the applicable documentation and installed label before supply or service. -
Which order review should validate rated load voltage of the eight-channel isolated thermocouple input module for 6ES7331-7PF11-0AB0?
Use the complete 6ES7331-7PF11-0AB0 identity and confirm rated load voltage as 24 V DC against the applicable documentation and installed label before supply or service.
