PRODUCT DESCRIPTION
Compact CPU with integrated digital I/O and PROFIBUS DP

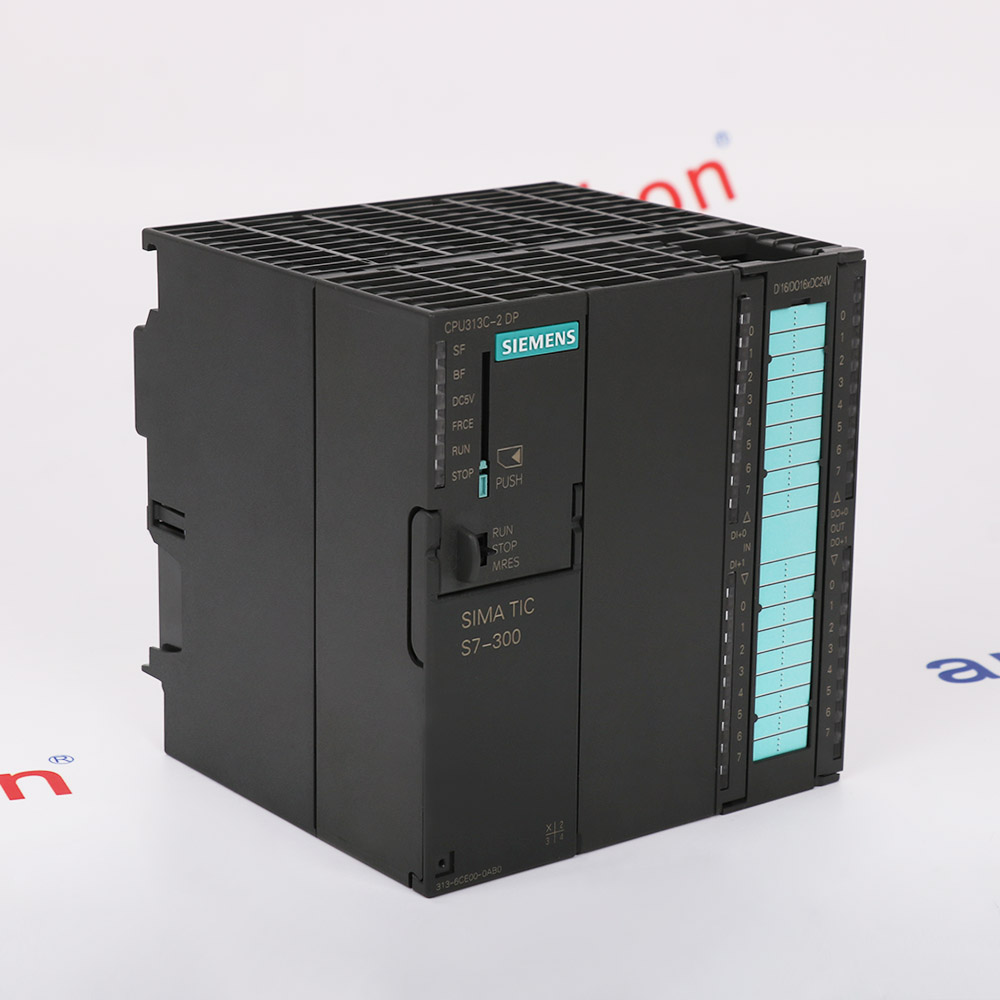

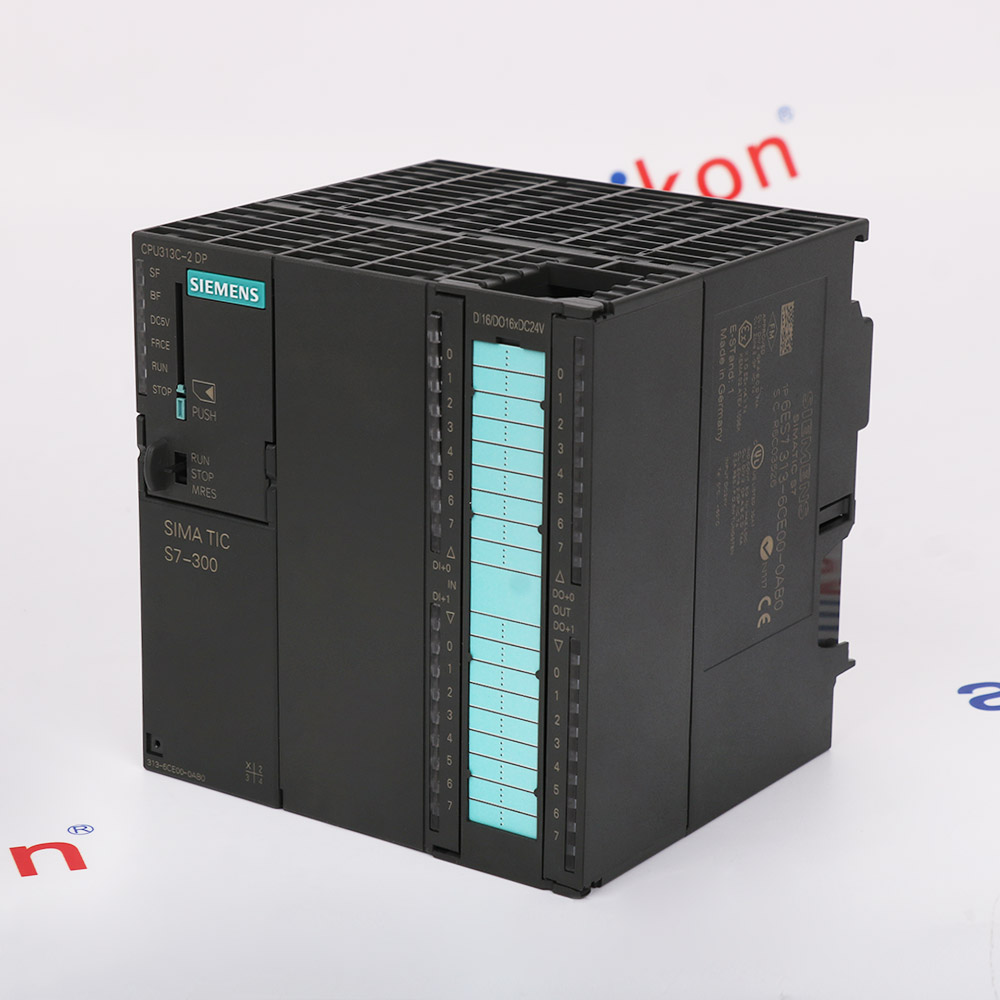

Siemens 6ES7313-6CE00-0AB0 is the SIMATIC S7-300 CPU 313C-2 DP compact processor. It combines 32 KB of working memory with sixteen digital inputs, sixteen digital outputs, MPI communication and an integrated PROFIBUS DP interface in one programmable module.
Three high-speed counters support frequencies up to 30 kHz, alongside pulse outputs and a documented PID function. The CPU operates from nominal 24 V DC and requires a SIMATIC Micro Memory Card, which provides load memory and battery-free retention of program and data.
Three high-speed counters support frequencies up to 30 kHz, alongside pulse outputs and a documented PID function. The CPU operates from nominal 24 V DC and requires a SIMATIC Micro Memory Card, which provides load memory and battery-free retention of program and data.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7313-6CE00-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · WATER & WASTEWATER
Municipal Drinking Water and Wastewater Processing Services
Drinking water treatment and distribution for communities and businesses.Municipal and industrial wastewater collection for treatment and reuse. -
02 · METALS PRODUCTION
Metal Materials Manufacturing and Commercial Aluminum Processing
Metal rolling and finishing for commercial industrial material production.Aluminum processing and sheet production for downstream manufacturing markets. -
03 · FOOD & BEVERAGE
Packaged Food Production and Commercial Beverage Processing
Production of packaged foods for commercial and consumer markets.Processing and preparation of beverages for retail distribution.
Technical specifications for 6ES7313-6CE00-0AB0
-
Product Model6ES7313-6CE00-0AB0
-
Product ParametersCompact PROFIBUS Central Processor
-
ManufacturerSiemens
-
Working memory32 KB for program and data; not expandable
-
Load memoryRequired SIMATIC MMC; 4 MB maximum FEPROM load memory
-
Supply and load voltage24 V DC nominal; 20.4-28.8 V permitted
-
Rated input current900 mA
-
Typical power loss10 W
-
Integrated digital inputs16; nominal 24 V DC
-
Digital input signal levelsSignal 0: -3 to +5 V; signal 1: +15 to +30 V
-
Input delay settings0.1, 0.3, 3 or 15 ms
-
Integrated digital outputs16; maximum 0.5 A per output for signal 1
-
Output short-circuit protectionElectronic, clocked
-
MPI interfaceNon-isolated; 187.5 kbit/s maximum; eight connections
-
Second interfaceIsolated PROFIBUS DP; master and slave capability
-
High-speed countersThree; maximum counting frequency 30 kHz
-
Pulse outputsThree; maximum pulse frequency 2.5 kHz
-
S7 counters and timers256 counters and 256 timers
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SIMATIC S7-300 COMPACT CPU
Onboard digital signals with local and distributed communication
The CPU 313C-2 DP combines program execution and digital I/O in one compact S7-300 assembly. Its integrated inputs and outputs support local signal processing without implying that another compact CPU's analog channels are present.
MPI supports programming and operator communication, while the separate PROFIBUS DP interface connects the processor in a configured master or slave role. Network settings and signal addresses form part of the STEP 7 project.
The available counter, pulse-output and PID functions complement the user program. Select their configured channels and operating limits from the exact CE00 documentation rather than from newer CE01 or CF03 descriptions.
Features:
- Integrated sixteen-channel digital I/O
- Separate MPI and PROFIBUS roles
- Onboard counting and pulse functions
The Siemens 6ES7313-6CE00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the full 6ES7313-6CE00-0AB0 identifier and installed hardware/firmware before replacing the CPU. Similar 313C-2 DP names span more than one hardware generation.
Preserve the project and MMC contents, including the DP role, network addresses and onboard-I/O configuration. Check the replacement's memory, supported blocks and technology functions individually.
Review the removable power connection, forty-pin I/O connector and load wiring before recommissioning. The evidence does not establish an unconditional direct successor, present inventory condition or current lifecycle date for the offered device.
Features:
- Exact CE00 identity review
- Program and network preservation
- Connector and load verification
The Siemens 6ES7313-6CE00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original power and connector references are not a complete I/O pinout
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7313-6CE00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7313-6CE00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is CE00 interchangeable with a CE01 specification?
Not by assumption. The exact CE00 datasheet defines its own memory, block and processing limits. The later CE01 technical manual must not be used as a substitute solely because both are called CPU 313C-2 DP. -
Which field I/O is built into this compact CPU?
The exact model has sixteen digital inputs and sixteen digital outputs. The outputs are electronically protected against short circuits and are rated up to 0.5 A each for signal 1. -
Are MPI and PROFIBUS the same physical CPU interface?
No. The first interface provides non-isolated MPI. The second interface is isolated and supports PROFIBUS DP master and slave roles. -
How many fast counting channels are available?
The manufacturer lists three counters with a maximum counting frequency of 30 kHz. It separately lists three pulse outputs with a 2.5 kHz limit; these are different functions and limits. -
Does this CPU require a memory card?
Yes. Its manufacturer description requires a SIMATIC Micro Memory Card. The exact CE00 data specifies up to 4 MB of MMC load memory and battery-free backup of program and data. -
What needs attention before wiring the compact I/O?
Isolate all relevant supplies before wiring. The original installation instructions require 40-pin front connectors for the 31xC CPUs. Use the terminal allocation for the installed CE00 hardware; this reference does not substitute a later CPU's I/O pinout.
