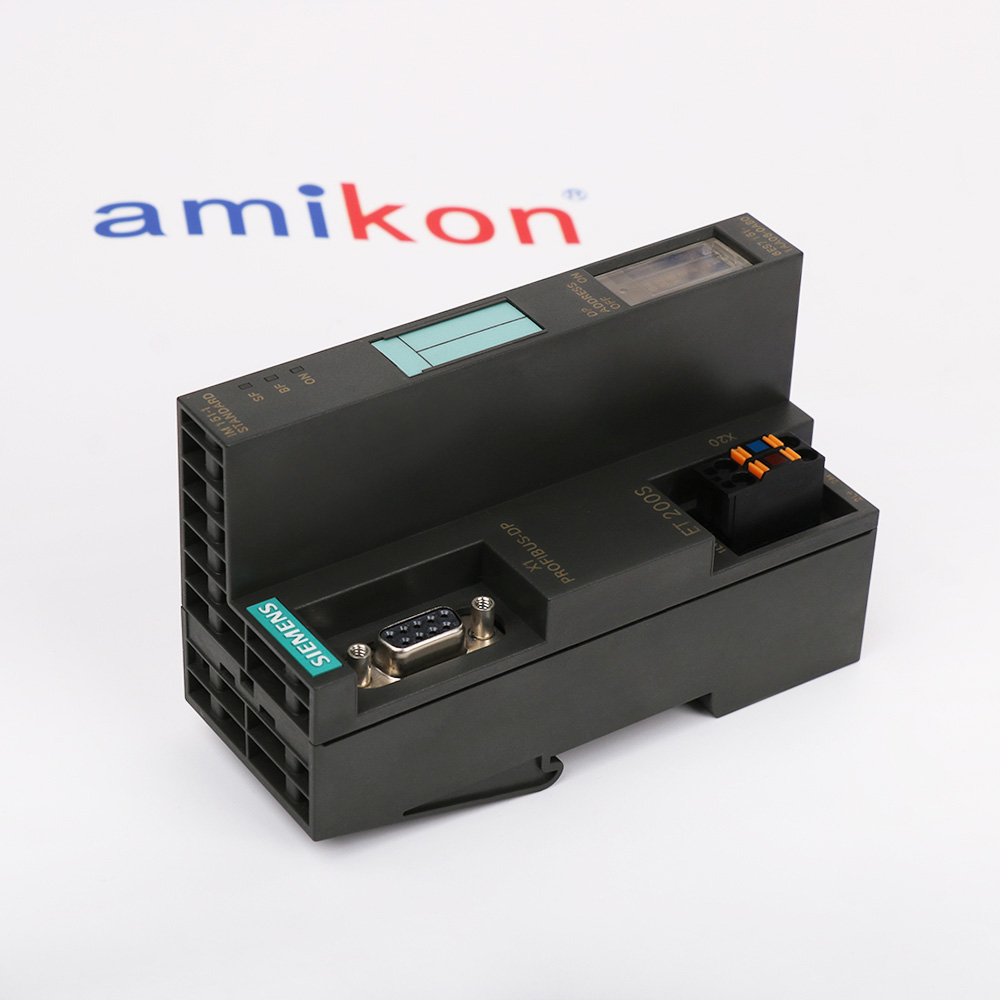

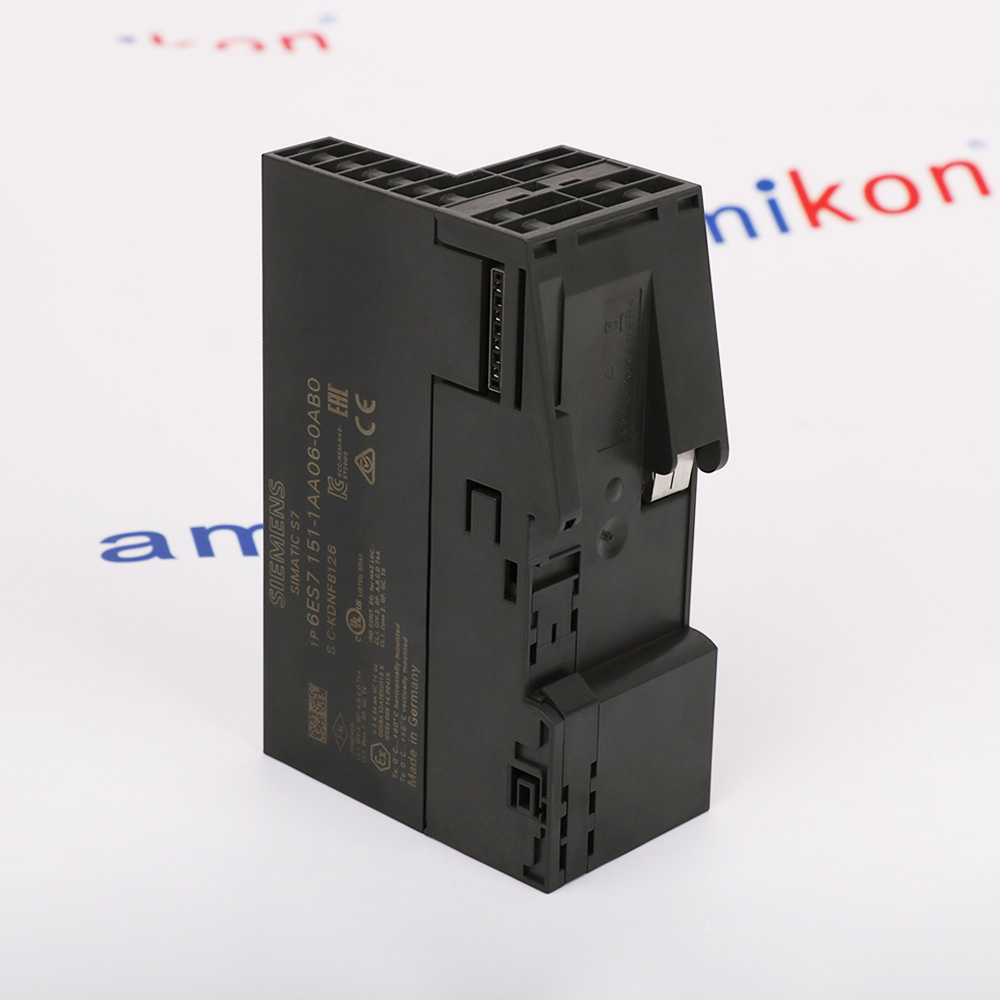

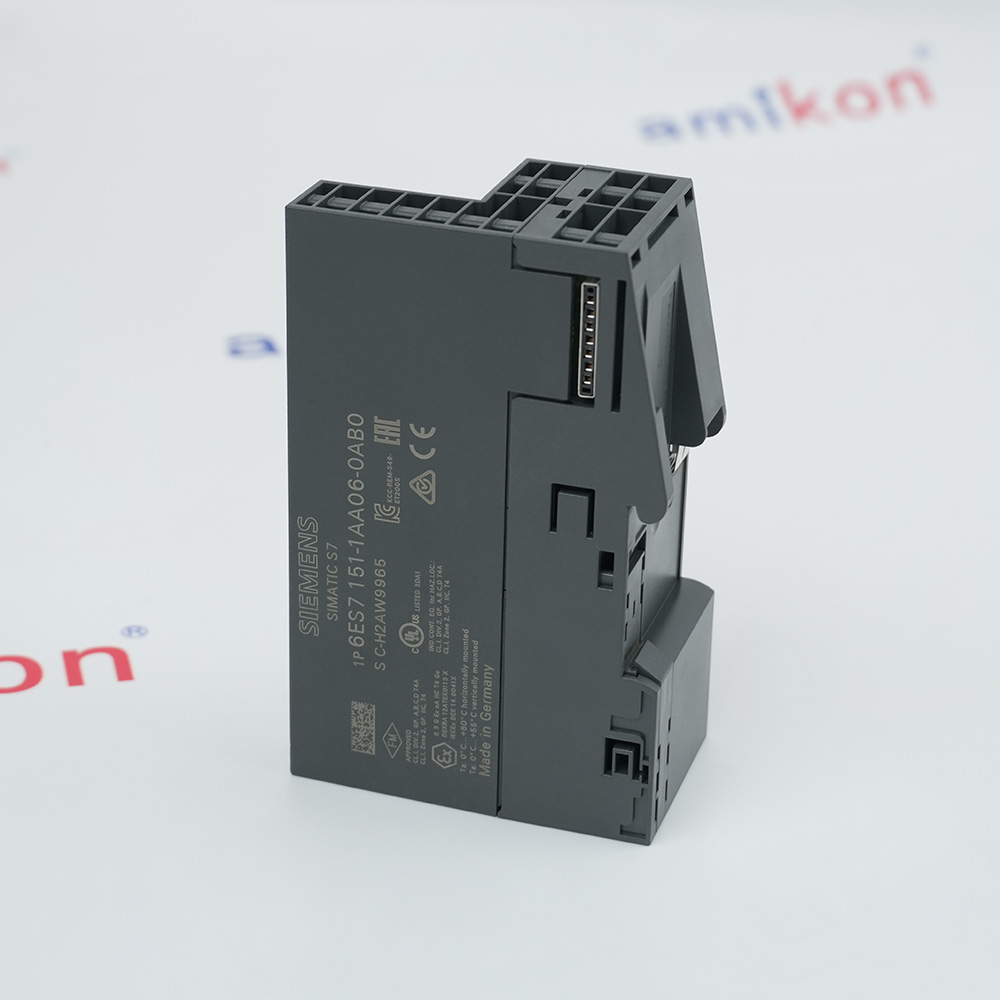

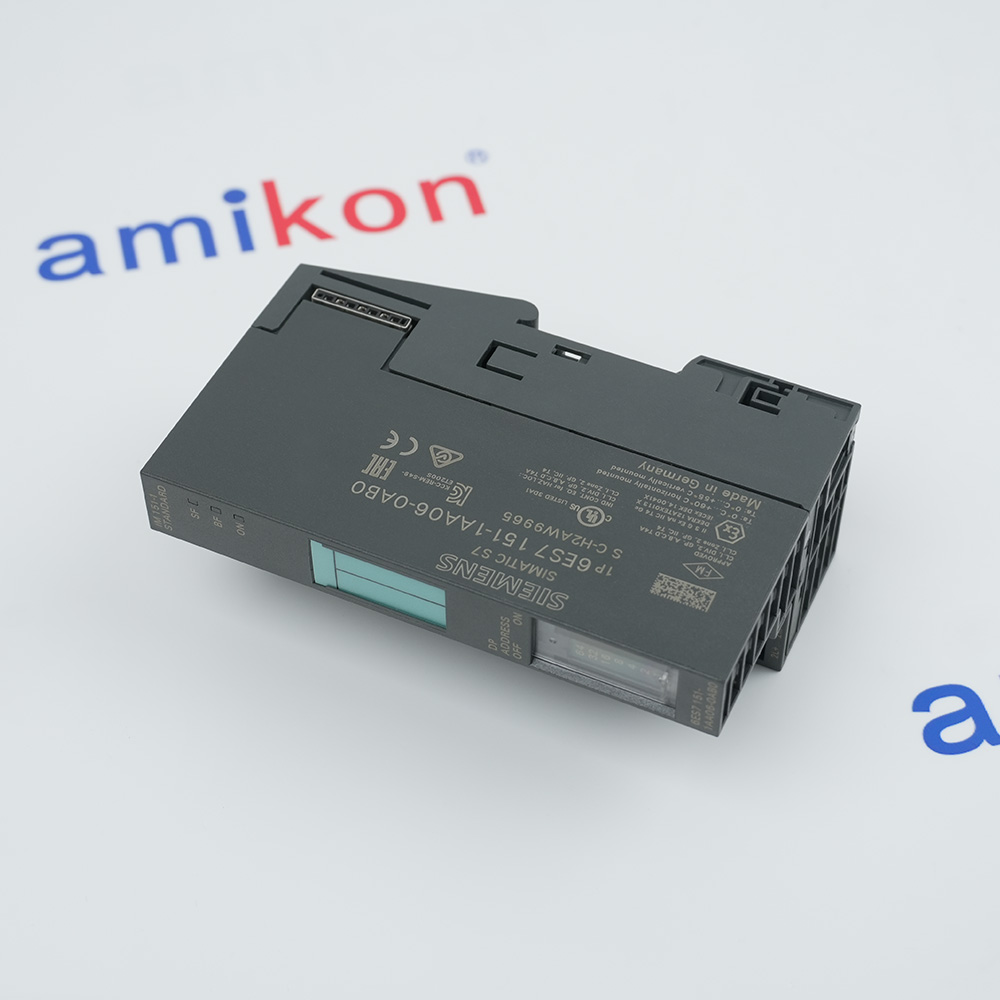

- 6ES7151-1AA06-0AB0
In Stock
Ships by Sunday, August 30
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7151-1AA06-0AB0
-
Product Model6ES7151-1AA06-0AB0
-
Product ParametersSIMATIC DP, interface module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.5x7.4x12cm
-
ManufacturerSiemens
-
Weight0.1 kg
-
Product type designationIM 151-1 ST
-
Vendor identification (VendorID)806Ah
-
Isochronous modeNo
-
from supply voltage 1L+, max200 mA
-
Power loss, typ.3.3 W
-
Output current of the interface, max.80 mA
Description
The SIEMENS 6ES7151-1AA06-0AB0 SIMATIC DP Interface Module is an IM 151-1 Standard interface module for the SIMATIC ET 200S distributed I/O system. It serves as the communication head of an ET 200S station, connecting distributed digital and analog I/O modules to a central SIMATIC controller through the PROFIBUS DP fieldbus.
The module uses an RS-485 PROFIBUS DP interface with a 9-pin Sub-D connector. It supports PROFIBUS transmission rates from 9.6 kbit/s up to 12 Mbit/s, providing compatibility with a wide range of industrial control system configurations. The interface module supports PROFIBUS DP-V0 and DP-V1 functions, including SYNC, FREEZE, direct data exchange, diagnostics, and alarm functions.
The IM 151-1 Standard can connect up to 63 ET 200S I/O modules within a station, with a maximum station width of approximately 2 m. The available process image address area is up to 244 bytes for inputs and 244 bytes for outputs, allowing a substantial number of distributed I/O points to be managed through a single PROFIBUS DP station
The module uses an RS-485 PROFIBUS DP interface with a 9-pin Sub-D connector. It supports PROFIBUS transmission rates from 9.6 kbit/s up to 12 Mbit/s, providing compatibility with a wide range of industrial control system configurations. The interface module supports PROFIBUS DP-V0 and DP-V1 functions, including SYNC, FREEZE, direct data exchange, diagnostics, and alarm functions.
The IM 151-1 Standard can connect up to 63 ET 200S I/O modules within a station, with a maximum station width of approximately 2 m. The available process image address area is up to 244 bytes for inputs and 244 bytes for outputs, allowing a substantial number of distributed I/O points to be managed through a single PROFIBUS DP station
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion & Mounting
Features:
- PROFIBUS DP Interface via RS485 up to 12 Mbps
- Up to 63 I/O Modules with 244 Bytes Each for Inputs and Outputs
- DPV0 and DPV1 Slave Operation with SYNC/FREEZE Capability
- Option Handling with and without RESERVE Modules
The 6ES7151-1AA06-0AB0 connects the ET 200S with PROFIBUS DP via the RS485 interface. The transmission rate of the 6ES7151-1AA06-0AB0 is configurable from 9.6 kBd to 12 Mbps, allowing optimization of network performance based on cable length and system requirements. The 6ES7151-1AA06-0AB0 operates as both a DPV0 and DPV1 slave, supporting standard cyclic data exchange as well as acyclic data record services for parameterization and diagnostics. The SYNC and FREEZE capabilities of the 6ES7151-1AA06-0AB0 enable coordinated control of multiple outputs simultaneously, essential for applications requiring precise timing such as motion control and camming operations.
The 6ES7151-1AA06-0AB0 SIEMENS SIMATIC DP, interface module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7151-1AA06-0AB0 SIMATIC DP, interface module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7151-1AA06-0AB0 features comprehensive option handling capabilities. The 6ES7151-1AA06-0AB0 supports option handling both with RESERVE modules and without RESERVE modules, enabling flexible system configuration. When using option handling with RESERVE modules, the 6ES7151-1AA06-0AB0 allows slots to be reserved for future expansion without generating diagnostic messages. When using option handling without RESERVE modules, the 6ES7151-1AA06-0AB0 requires a PM-E 24..48 VDC or PM-E 24..48 VDC/24..230 VAC power module with option handling capability (.O or .SO suffix) to manage slot configurations dynamically. The option information is stored retentively in the 6ES7151-1AA06-0AB0, ensuring persistence across power cycles.
- Water/Wastewater: Collects pump status, float switch thresholds, and valve feedback
- HVAC/Building: Monitors airflow switches, filter-clog indicators, and damper confirmations
- Maritime: Deployed in vessel monitoring with DNV/Bureau Veritas type approvals
- Conveyor/Handling: Reads proximity/photo-eye signals for track, position, and sorting
- Packaging/Bottling: Processes high-speed sensor feedback for filling, capping, and labeling
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the DIN Rail: Ensure a standard 35 mm DIN rail is grounded properly.Snap on the IM 151-1: Hang the module onto the top of the DIN rail and push the bottom down until it securely clicks into place.
Slide Next Modules: Slide the subsequent ET 200S terminal modules (such as power modules and I/O modules) from the right side tightly against the IM 151-1 module to engage the internal backplane bus.
Insert the Termination Module: You must install the accompanying termination module at the far-right end of the entire ET 200S configuration.
The system will not boot without it because it closes the backplane loop.
Alternative Names
6ES7151-1AA06-0ABO
6ES7151-1AA06-0A80
6ES7151-1AA06-OAB0
6ES7151-1AAO6-0AB0
6ES7151-IAA06-0AB0
6ES715I-1AA06-0AB0
6ES7I51-1AA06-0AB0
6ES7151 1AA06 0AB0
6ES7151 1AA06 0ABO
6ES7151 1AA06 OAB0
6ES7151 1AA06 0A80
6ES7151 1AAO6 0AB0
6ES7151 IAA06 0AB0
6ES715I 1AA06 0AB0
6ES7I51 1AA06 0AB0
6ES7 151 1AA06 0AB0
6ES7 151 1AA06 0ABO
6ES7 151 1AA06 0ABO
6ES7 151 1AA06 OAB0
6ES7 151 1AAO6 0AB0
6ES7 151 IAA06 0AB0
6ES7 15I 1AA06 0AB0
6ES7 I51 1AA06 0AB0
6ES71511AA060AB0
Technical notes
The interface module is installed in the ET 200S station and works together with the required terminal and electronic modules. It manages communication between the PROFIBUS DP master and the connected ET 200S I/O modules, transferring process input and output data while also handling system diagnostics and communication status information.The specified operating temperature range is 0°C to +60°C. Siemens lists this product as a spare part, with the product lifecycle status indicating that the original product has been discontinued.
FAQs
-
What is the 6ES7151-1AA06-0AB0?
+The SIEMENS 6ES7151-1AA06-0AB0 is a highly popular IM 151-1 Standard Interface Module used in the SIMATIC ET 200S distributed I/O system -
What is the function of 6ES7151-1AA06-0AB0?
+It translates signals between your PLC (Master) and the remote I/O modules (Slaves). It does not process logic; rather, it packages sensor signals (discrete or analog inputs) into PROFIBUS DP data frames and sends them to the main controller. -
Can I replace an older ET 200S interface module with this one?
+Yes, this module is the direct successor and designated spare part for older models such as the 6ES7151-1AA05-0AB0 and 6ES7151-1AA04-0AB0. In most cases, you can physically swap the old module for this newer version without needing to change the hardware configuration in your Siemens STEP 7 software. -
How many I/O modules does it support?
+It supports up to 63 expansion modules with a maximum station width of 2 meters.
