PRODUCT DESCRIPTION
Two-channel voltage measurement with an analog reference connection

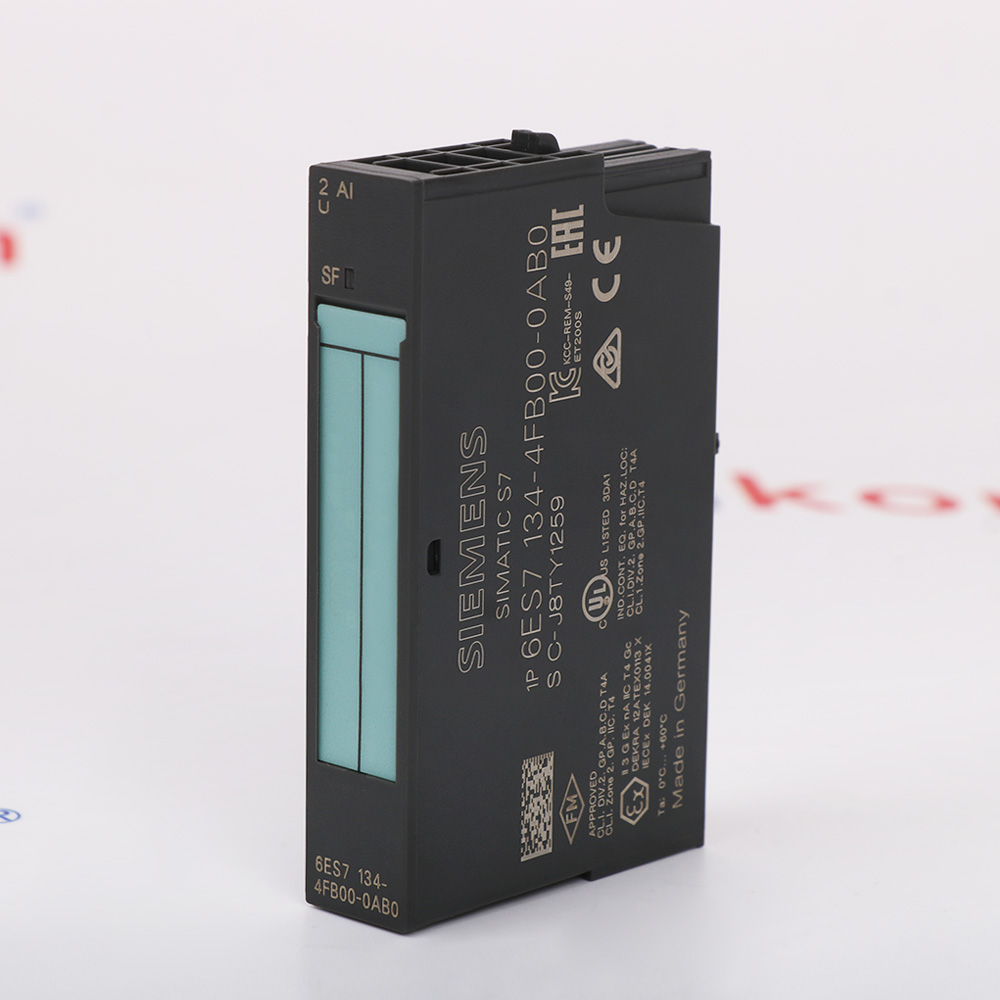

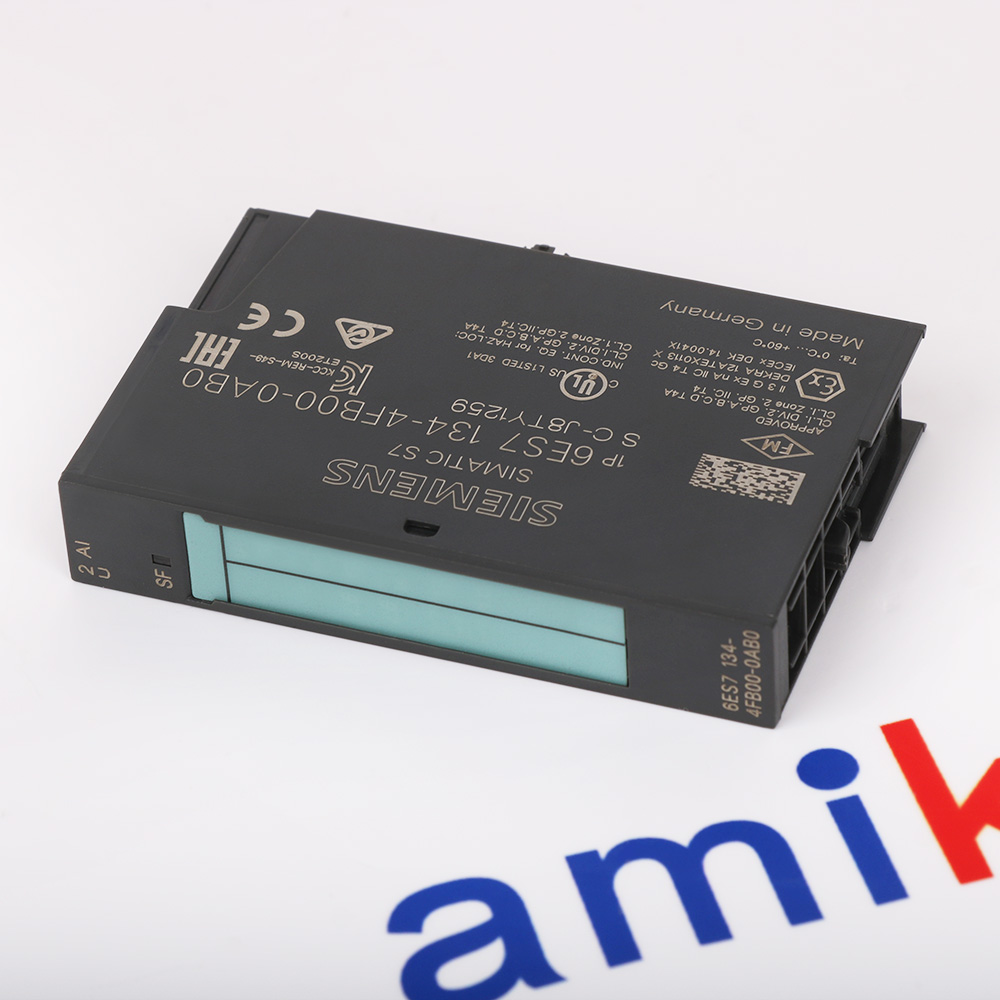

Siemens 6ES7134-4FB00-0AB0 is a Standard analog input module for SIMATIC ET 200S. Its two voltage channels support ±5 V, ±10 V and 1 to 5 V signals. The module uses integrating conversion and a configurable digital filter to supply measured values to the controller.
The module receives its 24 V DC load supply from the ET 200S power module. Its input circuitry is isolated from the backplane and supply, but the channels share reference-potential constraints. A red SF indicator and readable diagnostic information assist with configuration and signal-fault identification.
The module receives its 24 V DC load supply from the ET 200S power module. Its input circuitry is isolated from the backplane and supply, but the channels share reference-potential constraints. A red SF indicator and readable diagnostic information assist with configuration and signal-fault identification.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7134-4FB00-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · PACKAGING
Consumer Goods Packaging and Industrial Product Packing
Consumer goods packaging for retail distribution and product presentation.Industrial product packing and handling across commercial manufacturing operations. -
02 · METALS PRODUCTION
Metal Forming and Processing for Industrial Production
Metal forming and processing for industrial manufacturing material production.Sheet metal production and shaping for downstream manufacturing industries. -
03 · PLASTICS PROCESSING
Plastic Material Processing and Molded Product Manufacturing
Plastic extrusion and forming for industrial material production operations.Molded plastic product manufacturing for industrial and consumer markets.
Technical specifications for 6ES7134-4FB00-0AB0
-
Product Model6ES7134-4FB00-0AB0
-
Product ParametersET 200S Voltage Input Module
-
In stock1 unit
-
ManufacturerSiemens
-
Analog inputs2 voltage channels
-
Voltage ranges and resolution±10 V and ±5 V: 13 bits plus sign; 1–5 V: 13 bits, including overrange
-
Input address allocation4 input bytes in the exact-model configuration example
-
Rated load supply24 V DC from the power module; reverse-polarity protection
-
Load-supply currentMaximum 30 mA
-
Power dissipationTypically 0.6 W
-
Conversion time55 ms/channel at 60 Hz suppression; 65 ms/channel at 50 Hz
-
Module cycle timeActive-channel count multiplied by conversion time
-
Digital smoothingFour levels: time constants of 1, 4, 32 or 64 module cycles
-
Input resistanceMinimum 100 kohm in each voltage range
-
Common-mode limit2 V AC peak-to-peak between inputs and MANA
-
Electrical isolationChannels isolated from backplane and load supply, not from each other
-
Measurement error limits±0.4% at 25°C; ±0.6% across the temperature range, relative to input range
-
Signal diagnosticsConfigurable overflow/underflow; wire-break monitoring only in the 1–5 V range
-
Shielded signal cableMaximum 200 m
View all additional
Alternative Names
6ES7 134-4FB00-0AB0
6ES7134 4FB00 0AB0
6ES7134-4FBOO-OABO
6ES7 I34-4FB00-0AB0
6ES7 134-4FBOO-OABO
6ES7 I34-4FB00-0ABO
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S STANDARD VOLTAGE INPUTS
Configure two channels around the installed analog reference wiring
The 4FB00 occupies four input bytes in Siemens' exact-model configuration example and allows a separate voltage-range selection for each channel. Group diagnostics, overflow/underflow monitoring and channel smoothing are configurable, while wire-break detection is restricted to 1–5 V. Align the selected range with the controller's existing engineering-unit scaling rather than assuming every ET 200S analog input uses the same signal settings.
Terminals 3 and 7 form the MANA reference in the 4FB00 diagrams. The permitted potential difference between the measuring inputs and MANA is only 2 V AC peak-to-peak, despite isolation from the backplane and supply. Use the documented isolated or non-isolated sensor arrangement, including reference connections, shield treatment and potential equalization where required.
At 50 Hz suppression, conversion takes 65 ms for each active channel; at 60 Hz it takes 55 ms. The module cycle therefore depends on the number of active inputs, while smoothing adds its own response time. Deactivate and bridge unused channels as specified, and handle startup or missing-supply codes separately from valid measured process values.
Features:
- Four-byte analog input allocation
- MANA and common-mode constraints
- Channel count and smoothing response
The Siemens 6ES7134-4FB00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
For a like-for-like spare, confirm 6ES7134-4FB00-0AB0 and the terminal module before disturbing the wiring. Siemens' historical catalog lists 4FB01 as the successor, but its later documentation changes the treatment of terminals 3 and 7 from product version 003. Review that documented difference and the installed reference circuit before considering a change to the newer order number.
Preserve the voltage range, active-channel selection, smoothing and enabled diagnostics when restoring the installation. The configured range determines valid signal interpretation, and smoothing settings can substantially change the response time. Do not copy the High Feature module's calibration or interference-suppression options into this Standard module; Siemens documents those options under separate module types rather than the 4FB00 parameter table.
Follow the station's supported removal procedure and check the coding element when fitting a same-type replacement. The manual warns that changing module coding can create dangerous operating states. Before returning the channel to service, confirm supply, configuration and diagnostic response, then verify a known voltage after the first conversion; a startup 7FFFH code is not a valid process reading.
Features:
- Exact spare or reviewed successor
- Range, smoothing and diagnostics retained
- Coding and measured-value checks
The Siemens 6ES7134-4FB00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7134-4FB00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4FB00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 6ES7134-4FB00-0AB0 a current-input module?
No. The exact model is the 2AI U Standard voltage-input module. It supports ±5 V, ±10 V and 1–5 V; current ranges shown elsewhere in the general ET 200S manual belong to different modules. -
What are terminals 3 and 7 used for on this model?
The exact 4FB00 terminal diagrams identify terminals 3 and 7 as MANA, the module's analog reference. Do not apply the later 4FB01 version003 n.c. designation to this older module. -
How should an unused input be treated?
Deactivate it in the configuration and fit the jumpers shown for 2AI U Standard. The inactive channel returns 7FFFH, and using only one active channel halves the module cycle time. -
Does enabling wire-break monitoring cover ±10 V signals?
No. For this Standard voltage-input module, the manual limits wire-break diagnostics to 1–5 V. The range and diagnostic configuration must be checked together. -
Is 4FB01 identified by Siemens as a successor?
Yes. The historical official catalog entry names 6ES7134-4FB01-0AB0 as successor. This does not establish an unconditional wiring swap: compare the installed terminal arrangement, the successor product version and the retained configuration before a migration. -
Can an analog module always be exchanged while the station runs?
No blanket hot-swap claim is appropriate. The ET 200S manual permits removal and insertion only with the required interface-module support and parameter settings, and allows only one resulting gap when replacing multiple modules. Follow the station-specific procedure and safety conditions.
