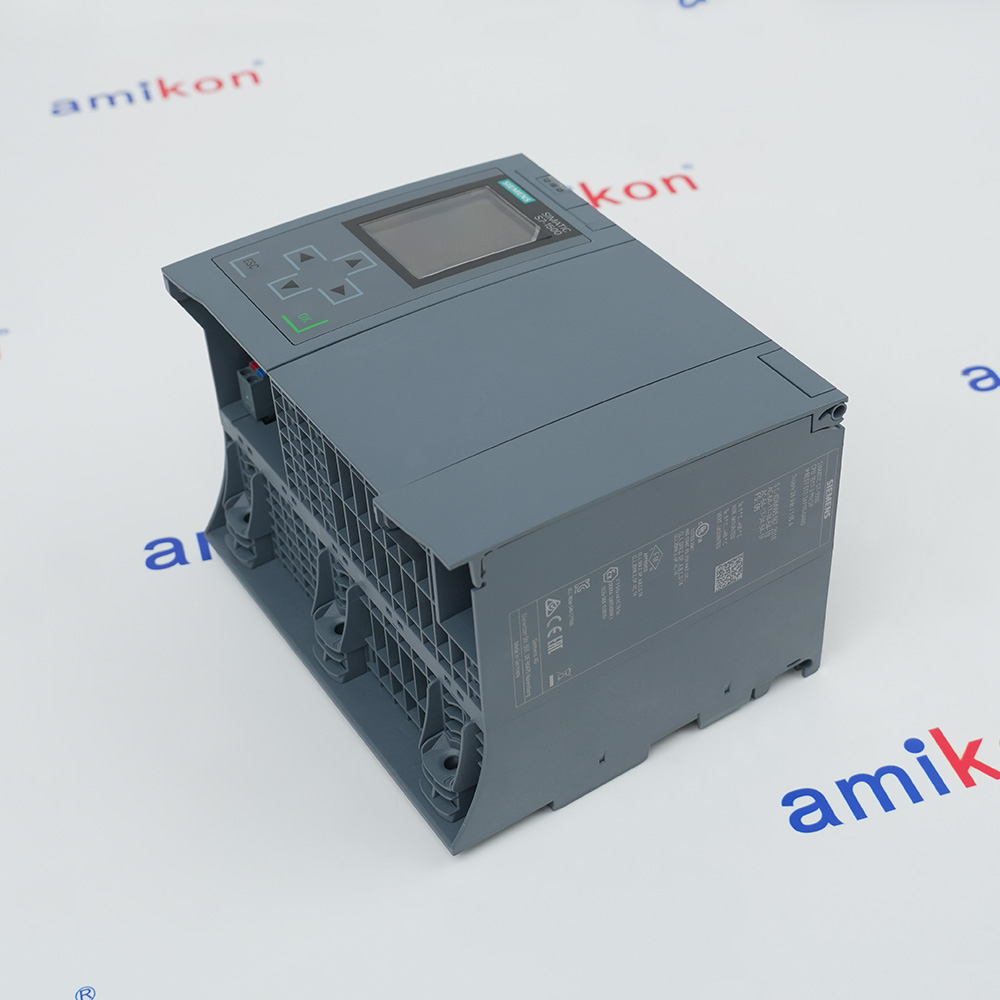

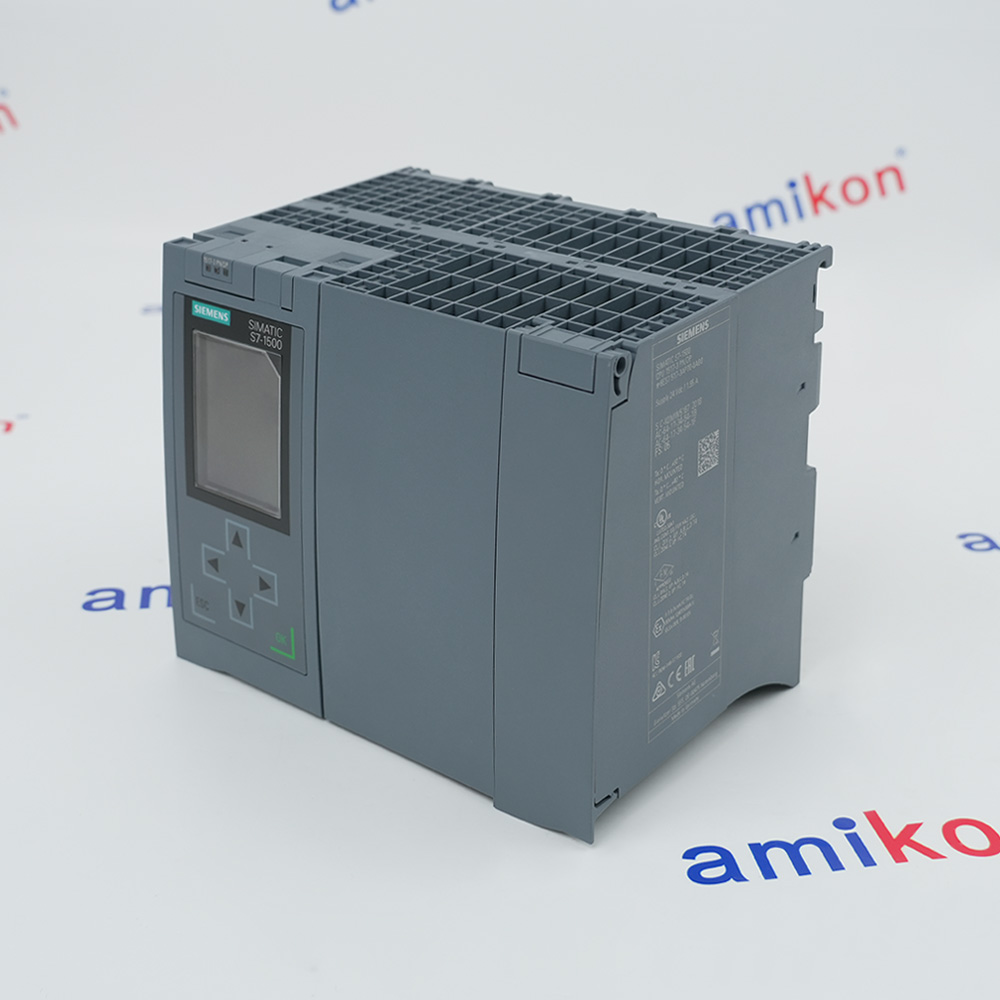

Siemens 6ES7517-3AP00-0AB0
Siemens 6ES7517-3AP00-0AB0
Siemens 6ES7517-3AP00-0AB0
Siemens 6ES7517-3AP00-0AB0
Siemens 6ES7517-3AP00-0AB0
Siemens 6ES7517-3AP00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Saturday, November 21

6ES7517-3AP00-0AB0

CPU 1517-3 PN/DP Controller

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

Coordinate PROFINET I/O and an integrated PROFIBUS master

Siemens 6ES7517-3AP00-0AB0 is the CPU 1517-3 PN/DP, combining two PROFINET interfaces and one PROFIBUS interface. It provides 2 MB of program memory and 8 MB of data memory, with a SIMATIC Memory Card required for load memory.

The first Ethernet interface supports IRT and RT, while the second supports RT communication. The integrated PROFIBUS connection operates as a DP master rather than a slave, making the three interfaces distinct resources that must be matched to the installed network architecture.
ACTUAL APPLICATIONS

Industrial Production and Service Sectors

These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
  • 01 · PACKAGING

    Pharmaceutical and Non-food Packaging

    Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets.
  • 02 · TEXTILE MANUFACTURING

    Fabric Production and Textile Finishing

    Fabric production spanning the wider commercial textile manufacturing sector.Textile finishing for materials within the commercial fabric industry.
  • 03 · FOOD & BEVERAGE

    Dairy, Bakery and Confectionery

    Dairy production and processing within the commercial food industry.Bakery and confectionery manufacturing across diverse consumer food categories.

Technical specifications for 6ES7517-3AP00-0AB0

  • Product Model
    6ES7517-3AP00-0AB0
  • Product Parameters
    CPU 1517-3 PN/DP Controller
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • Program work memory
    2 MB
  • Data work memory
    8 MB
  • Supply voltage
    24 V DC nominal; 19.2 to 28.8 V DC permitted
  • Rated current consumption
    1.55 A
  • Typical power loss
    24 W
  • Typical bit-operation time
    2 ns
  • Load memory
    SIMATIC Memory Card required; up to 32 GB
  • X1 interface
    Two-port PROFINET with RT and IRT
  • X2 interface
    Single-port PROFINET with RT
  • X3 interface
    PROFIBUS DP master; cannot operate as DP slave
  • Local rack capacity
    32 modules maximum: CPU plus 31 modules
  • X1 IO-device capacity
    512 maximum; up to 64 IRT devices, subject to configuration
  • Diagnostic-buffer capacity
    3200 entries; 1000 power-failure-proof in the 11/2023 specification
  • Operating temperature
    0 to 60 degrees C horizontal; 0 to 40 degrees C vertical; separate display limits apply
  • Safety-function suitability
    Not suitable for safety functions
View all additional

Alternative Names

6ES7517 3AP00 0AB0 6ES7517 3APOO OABO 6ES75I7 3AP00 0AB0 6ES75I7 3APOO OABO 6ES7517-3APOO-OABO 6ES75I7-3AP00-0AB0 6ES75I7-3APOO-OABO 6ES7 517-3AP00-0AB0 6ES7 517-3APOO-OABO 6ES7 5I7-3AP00-0AB0 6ES7 5I7-3APOO-OABO 6ES75173AP000AB0 6ES75173APOOOABO 6ES75I73AP000AB0
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
PROFINET AND PROFIBUS COORDINATION

Match three communication interfaces to their different network responsibilities

The CPU provides two independent PROFINET interfaces alongside an integrated PROFIBUS connection. X1 supports RT and IRT through its two-port switch, while X2 supports RT through a separate port. X3 serves the PROFIBUS network as a DP master; it cannot take the role of a DP slave in the documented configuration.
The two Ethernet interfaces must use different IP subnets. Preserve this separation when connecting distributed I/O, engineering stations and higher-level communication. Program execution uses the CPU work memory, while the required SIMATIC Memory Card supplies load memory; the installed program and communications design must fit both the memory resources and interface-specific I/O capacity.
PROFIBUS interface power is another practical distinction: X3 does not provide a 24 V DC supply for attached devices. Check any adapter's own power requirements rather than expecting the bus connector to energize it. The CPU display, diagnostics buffer and network status indications then provide separate information for reviewing controller state and communication faults.

Features:

  • Separate X1 IRT, X2 RT and X3 DP duties
  • Distinct Ethernet subnet requirements
  • Adapter power and diagnostics checked independently
The Siemens 6ES7517-3AP00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

A replacement assessment should begin with the complete 6ES7517-3AP00-0AB0 number and the actual hardware and firmware. The reviewed November 2023 manual specifies FS11 and firmware V3.1 with TIA Portal V19 for that firmware. These are document-edition references, not confirmation of the revision installed in the offered controller.
Review all three installed network connections before transferring the project. A PROFIBUS master configuration, the two Ethernet subnets and the required I/O data volumes each impose separate requirements. Compare the SIMATIC Memory Card, program and data memory demand, retained data and communications configuration; a similar CPU designation alone does not establish a suitable substitute.
Allow for the documented mounting dimensions, operating orientation and thermal conditions, and inspect the power connector and front panels before commissioning. The manual requires power isolation before removing or fitting the front panel in zone 2 hazardous areas. Retain that safety restriction and the system manual's installation requirements when planning maintenance access.

Features:

  • Revision-specific data kept separate
  • Three-network project comparison
  • Thermal and maintenance access checks
The Siemens 6ES7517-3AP00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Verified manufacturer product reference; separate installation document not supplied
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7517-3AP00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    Confirm final packed dimensions
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8537101190
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7517-3AP00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Can the integrated PROFIBUS interface work as a DP slave?

    No. The equipment manual identifies the CPU as a PROFIBUS DP master and explicitly states that it cannot assume the DP slave role.
  • Do X1 and X2 have identical PROFINET functions?

    No. X1 supports RT and IRT through two ports; X2 supports RT through one port. Their capacities and additional functions must be checked separately.
  • Can a PROFIBUS adapter take 24 V DC from X3?

    The CPU does not supply 24 V DC on that interface. Adapter operation depends on its documented external or USB power arrangement.
  • How are the Ethernet subnets arranged?

    The IP subnets of the two PROFINET interfaces must differ. Keep this requirement when transferring the installed network configuration.
  • What memory does this exact CPU provide?

    It provides 2 MB program work memory and 8 MB data work memory. A SIMATIC Memory Card is required for load memory.
  • Is this 3AP00 controller suitable for safety functions?

    No. The 11/2023 technical table says it is not suitable for safety functions. It must not inherit the safety claims of a similarly named fail-safe CPU.
