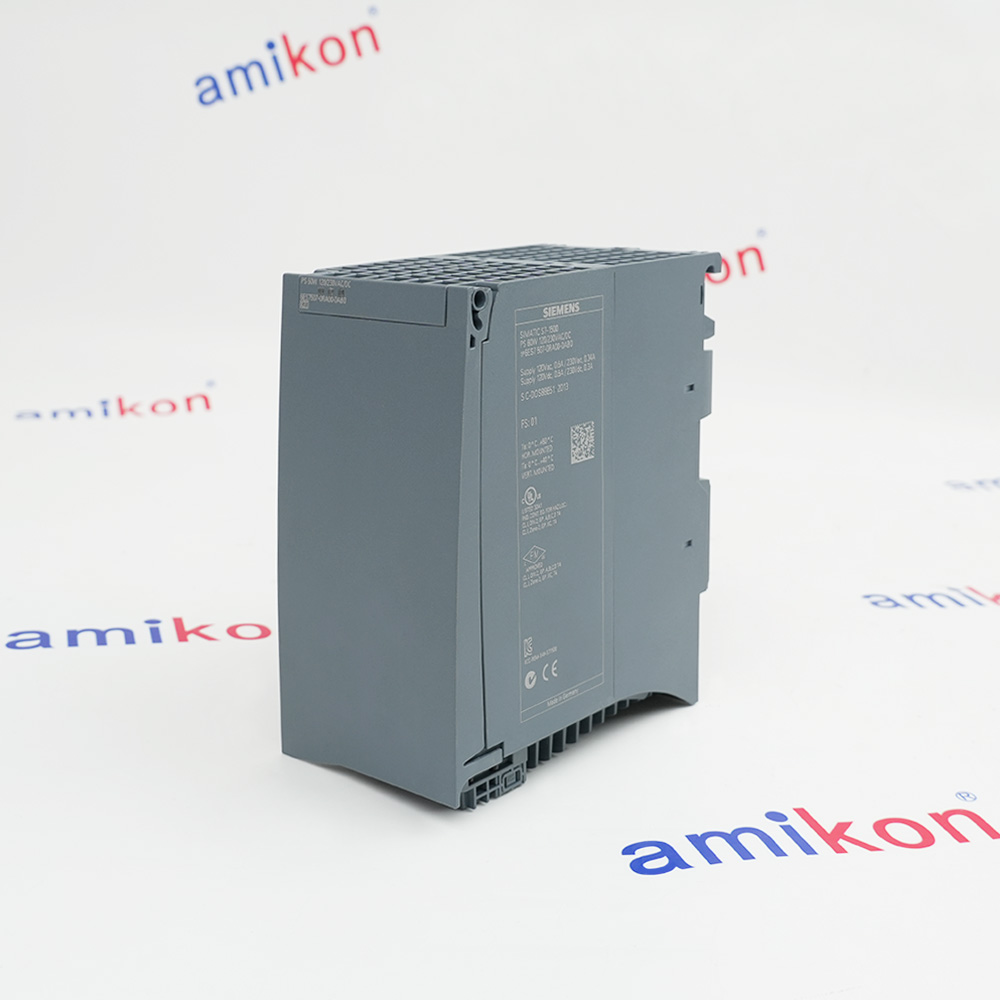

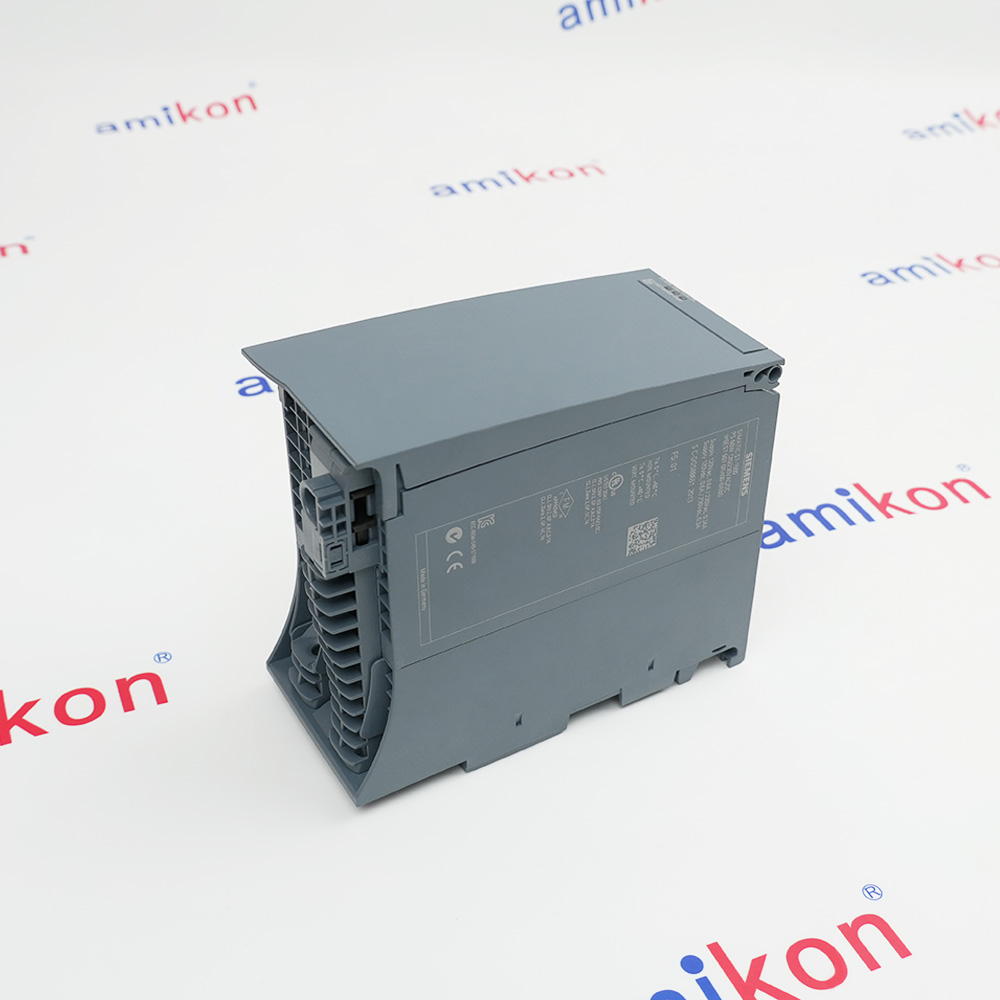

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
6ES7507-0RA00-0AB0 supplies the station from AC or DC
Siemens 6ES7507-0RA00-0AB0 is the SIMATIC S7-1500 PS 60W 120/230V AC/DC system power supply. It provides up to 60 W to the backplane bus and accepts 85 to 264 V AC or 88 to 300 V DC within the limits in its equipment manual.
The module supports additional station modules, electrical isolation to the bus, configurable diagnostics and identification data. Engineer the incoming AC or DC supply and the required power segments separately from field-load circuits; the 60 W rating is the system backplane infeed, not a general-purpose external load output.
The module supports additional station modules, electrical isolation to the bus, configurable diagnostics and identification data. Engineer the incoming AC or DC supply and the required power segments separately from field-load circuits; the 60 W rating is the system backplane infeed, not a general-purpose external load output.
BEFORE YOU BUY
Check the mains connection and station load
ACTUAL APPLICATIONS
Application context for 6ES7507-0RA00-0AB0
6ES7507-0RA00-0AB0 is an AC/DC System Power Supply for compatible S7-1500 systems. Its application context includes water and wastewater, automotive, food and beverage. Suitability depends on the complete part number, equipment revision, electrical interfaces and documented configuration.
-
01 · WATER & WASTEWATER
Drinking Water Production and Sewage Treatment
Municipal Drinking Water SupplyWastewater Collection and Treatment -
02 · AUTOMOTIVE
Vehicle Production and Automotive Part Manufacturing
Vehicle Body ProductionAutomotive Component Manufacturing -
03 · FOOD & BEVERAGE
Food Manufacturing and Beverage Processing
Industrial Food ProductionBeverage Processing and Packaging
Technical specifications for 6ES7507-0RA00-0AB0
-
Product Model6ES7507-0RA00-0AB0
-
Product ParametersAC/DC System Power Supply
-
ManufacturerSiemens
-
Nominal supply voltages120 or 230 V AC/DC
-
Permissible AC input85 to 264 V AC
-
Permissible DC input88 to 300 V DC
-
Permissible mains frequency47 to 63 Hz
-
Rated input current120 V AC/DC: 0.6 A; 230 V AC: 0.34 A; 230 V DC: 0.3 A
-
Backplane power infeed60 W
-
Rated power loss12 W
-
Power-failure backup time20 ms
-
Isolation routine-test rating2500 V DC for 2 s; primary/secondary isolated
-
Protective enclosure and classIP20; Class I with protective conductor
View all additional
Alternative Names
6ES7507-0RA00-0AB0
PS 60W 120/230V AC/DC
S7-1500 PS60W Universal Input
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
S7-1500 / ET 200MP UNIVERSAL INPUT
Match the incoming power to the system infeed
Siemens 6ES7507-0RA00-0AB0 is the SIMATIC S7-1500 PS 60W 120/230V AC/DC system power supply. It provides up to 60 W to the backplane bus and accepts 85 to 264 V AC or 88 to 300 V DC within the limits in its equipment manual.
The module supports additional station modules, electrical isolation to the bus, configurable diagnostics and identification data. Engineer the incoming AC or DC supply and the required power segments separately from field-load circuits; the 60 W rating is the system backplane infeed, not a general-purpose external load output.
The equipment manual specifies a coded L, N and protective-conductor connector for the illustrated mains connection. Keep its coding element intact. When a station uses infeed only through the PS, follow the system-manual CPU supply setting and the complete power-budget calculation.
Features:
- AC: 85-264 V at 47-63 Hz
- DC: 88-300 V
- 60 W system infeed with separate field-load power
The Siemens 6ES7507-0RA00-0AB0 requires input-source verification and the engineered backplane-power arrangement for system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the full 6ES7507-0RA00-0AB0 order number and the actual AC/DC input arrangement. Preserve the configured power segment and identify the original connector coding, earth connection and upstream circuit protection before exchanging the supply.
Isolate the incoming power and make the station safe before removing the connector. The equipment manual specifies flexible 1.5 mm2 conductors and external protection appropriate to its wiring instructions. Do not force or alter a connector coded for another supply type.
After replacement, verify the project identification, diagnostic indications and relevant interrupt response. For a latched shutdown, correct the cause and follow the documented power-disconnection procedure. The exact current Mall record is PM300 Active; confirm the power and U connectors included in the quotation.
Features:
- Retain exact AC/DC input and connector identity
- Use the documented mains wiring and protection
- Validate the configured diagnostic response
The Siemens 6ES7507-0RA00-0AB0 AC/DC system power supply requires replacement verification of incoming voltage, backplane loading and fault-response settings before recommissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Available Siemens document references are confirmed before order
- Software licensing and project backups remain the customer's responsibility
- Accessories are supplied only when listed in the quotation
Documentation for the Siemens 6ES7507-0RA00-0AB0 requires the exact AC/DC equipment-manual wiring and input limits, plus the applicable station instructions; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size15.6 × 15.9 × 8.0 cm
-
Shipping weightApprox. 0.60 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85044095
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7507-0RA00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Are the accepted AC and DC voltage ranges numerically identical?
No. The equipment manual permits 85-264 V AC and 88-300 V DC. Nominal input values are 120 V and 230 V for both supply types. Check the actual source, including the AC frequency requirement, instead of using one universal minimum and maximum for every installation. -
Can a panel current schedule use the same 230 V figure for AC and DC?
The manual lists 0.34 A at 230 V AC and 0.3 A at 230 V DC. At 120 V the listed input current is 0.6 A for either type. Select the appropriate source-specific rating and assess the other connected loads before finalizing the panel current schedule. -
When can the station draw its CPU power through the PS instead of a separate 24 V input?
The system manual permits PS-only infeed with the supply in slot 0 and the CPU or interface module drawing power from the backplane. In that arrangement it is not separately supplied with 24 V DC, and its configuration uses No connection to supply voltage L+. Verify the whole station design and any field loads before choosing this arrangement. -
How can application logic receive detailed information about a supply diagnostic event?
The manual describes diagnostic interrupt OB82 for the relevant events. The start information identifies the triggering event, and RALRM provides additional interrupt information. Engineer and test the CPU reaction using the system-diagnostics documentation; a power-supply alarm should not be treated as an automatically defined safe process response. -
What happens if a parameter-transfer request is rejected while the CPU is running?
The module continues with its previous parameter assignment and returns an error through WRREC RET_VAL. The appendix distinguishes a bad data-record header from invalid parameter data, including reserved fields. Inspect the returned result instead of assuming the requested change was accepted because the supply remains operational. -
What does safety-shutdown code 011DH require before a restart attempt?
Code 011DH means reliable module operation is no longer guaranteed. The manual directs the engineer to check ambient conditions, remove the cause and isolate the supply from mains, waiting about one minute before restoring power. A retentively latched shutdown is not resolved merely by repeating a software restart. -
Which connection items should an MRO quotation identify for a complete replacement?
The official delivery description includes a power connector and a U connector, also available as spare parts. Ask the supplier to state whether both are included with the offered unit and verify their identity and condition. Do not infer the actual stock-item contents solely from the equipment manual. -
Does the 2500 V DC isolation figure prescribe a routine test after installation?
The manual labels 2500 V DC for 2 seconds as the routine insulation test for the equipment. It is a product test specification, not an instruction to apply that voltage to an assembled control cabinet. Follow the applicable commissioning procedure and manufacturer restrictions for the installed system.
