In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6GK7542-1AX10-0XE0
-
Product Model6GK7542-1AX10-0XE0
-
Spare ModelNot available
-
Product ParametersCM 1542-1 S7-1500 PROFINET communications module, 2 x RJ45, 100 Mbit/s
-
Tariff Code85176200
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x12.5x14.6cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
Product familyCM 1542-1
-
Product type designationCM 1542-1
-
Module formatCompact module S7-1500 single width
-
NetworkPROFINET / Industrial Ethernet
-
PROFINET rolesIO Controller and IO Device
-
Industrial Ethernet interface1
-
Ethernet connections2 x RJ45
-
Transfer rate100 Mbit/s
-
Supported communicationTCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast/multicast, SNMPv1, NTP
-
Backplane supply voltage15 V DC
-
Typical backplane current0.22 A
-
Power loss3.3 W
-
Module dimensions35 x 142 x 129 mm
-
Degree of protectionIP20
-
Horizontal operating temperature-30 to +60 C
-
Vertical operating temperature-30 to +40 C
-
Engineering softwareSTEP 7 Professional V18 (TIA Portal) or higher
-
Lifecycle statusPM300 - Active Product
Description

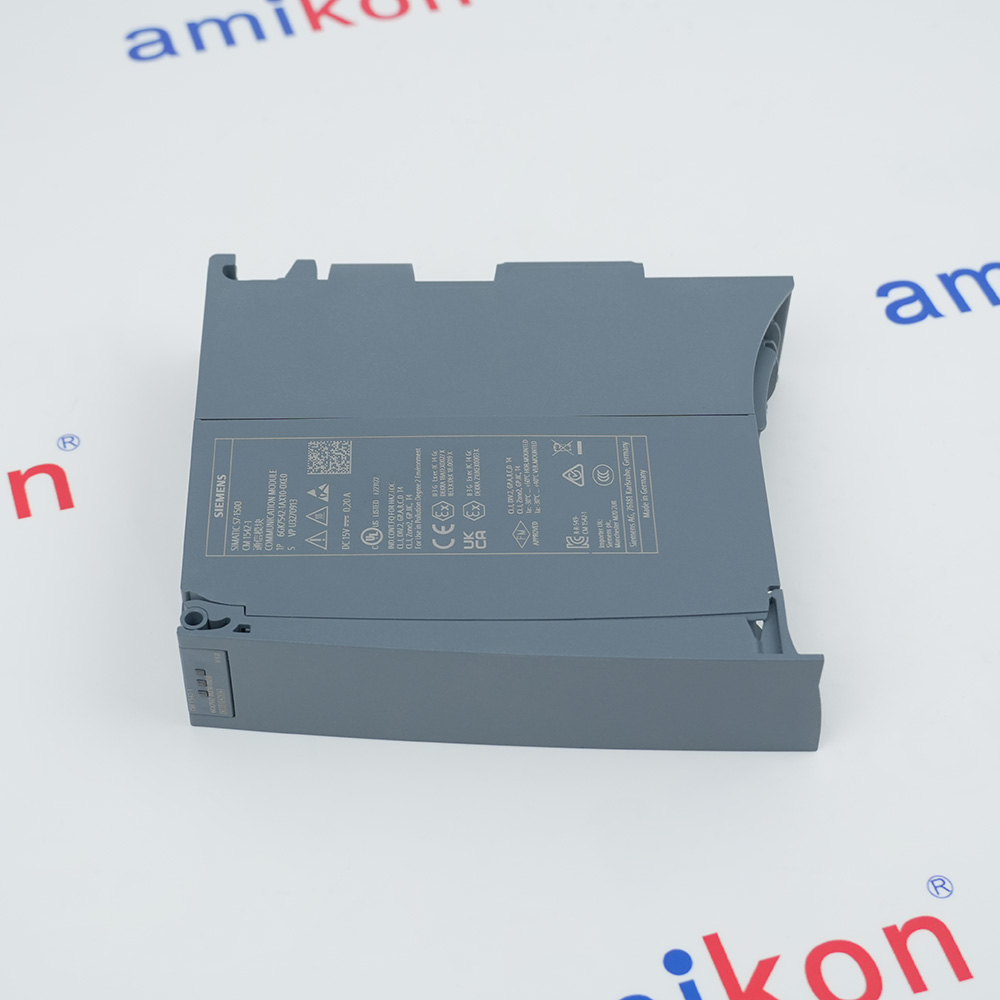

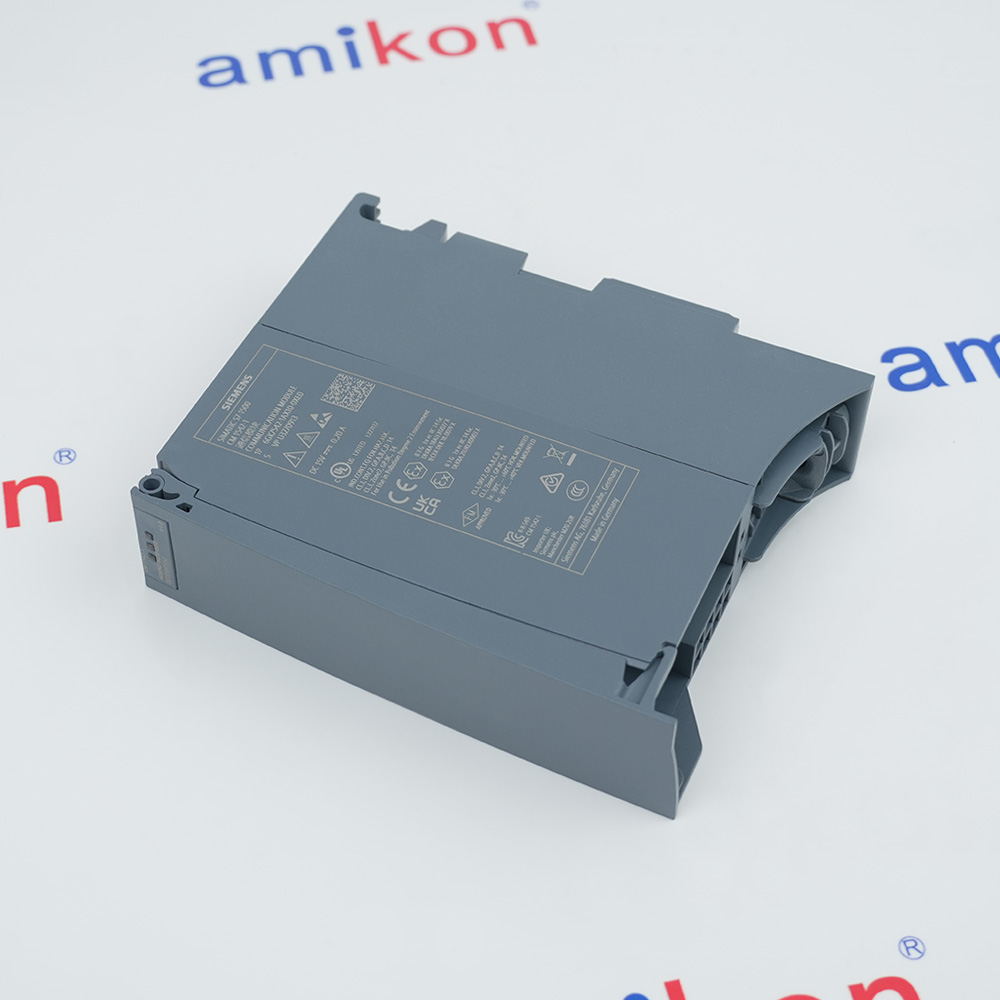

Siemens 6GK7542-1AX10-0XE0 is the CM 1542-1 communications module for connecting a SIMATIC S7-1500 system to PROFINET as an IO Controller or IO Device.
The module provides one Industrial Ethernet interface with two RJ45 connections operating at 100 Mbit/s.
Supported communication includes TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast and multicast, SNMPv1, and NTP time synchronization.
Official Siemens technical data specifies a 15 V DC backplane supply, 0.22 A typical current consumption, 3.3 W power loss, IP20 protection, and module dimensions of 35 x 142 x 129 mm.
The permitted operating range is -30 to +60 C for horizontal installation and -30 to +40 C for vertical installation, without condensation or icing.
Siemens classifies 6GK7542-1AX10-0XE0 as PM300 - Active Product and lists it as the successor to 6GK7542-1AX00-0XE0; migration requires STEP 7 Professional V18 or higher and verification of the CPU, rack, project, interfaces, and network configuration.
Information
Product Information
Key Features
Applications
Engineering & Compatibility
Lifecycle & Replacement
Siemens 6GK7542-1AX10-0XE0 is the CM 1542-1 communications module for SIMATIC S7-1500.
It connects an S7-1500 system to PROFINET as an IO Controller or IO Device.
One Industrial Ethernet interface provides two RJ45 connections at 100 Mbit/s.
Supported communication includes TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast and multicast, SNMPv1, and NTP.
The module uses a 15 V DC backplane supply, with 0.22 A typical current consumption and 3.3 W power loss.
Siemens lists the article as PM300 - Active Product.
The product family and type designation are CM 1542-1.
The hardware is a compact S7-1500 module in single-width format.
The module supports PROFINET IO Controller and PROFINET IO Device operation.
It has one Industrial Ethernet interface with two RJ45 connections.
The transfer rate is 100 Mbit/s.
Open communication and S7 services include TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast and multicast, SNMPv1, and NTP.
The enclosure protection rating is IP20.
The module is used to connect a compatible SIMATIC S7-1500 system to PROFINET.
It can add PROFINET IO Controller or IO Device functions when supported by the CPU, rack, and project.
TCP/IP, ISO-on-TCP, and UDP can support approved open Industrial Ethernet communication tasks.
S7 communication, IP broadcast and multicast, SNMPv1, and NTP can be used when configured in the engineering project.
Application suitability must be verified against the exact article number, CPU, rack, firmware, network topology, protocols, STEP 7 project, environmental limits, cybersecurity requirements, and current Siemens documentation.
Match the exact Siemens article number 6GK7542-1AX10-0XE0 before installation.
Confirm the 15 V DC backplane supply, 0.22 A typical current consumption, and 3.3 W power loss against the selected S7-1500 rack.
Verify whether the module will operate as a PROFINET IO Controller, IO Device, or both in the approved CPU and project configuration.
Check both RJ45 connections, 100 Mbit/s transfer rate, IP addressing, network topology, and the required communication protocols.
Siemens specifies STEP 7 Professional V18 in TIA Portal or higher for engineering.
The module measures 35 x 142 x 129 mm, uses the S7-1500 rail mounting method, and has IP20 protection.
Observe -30 to +60 C for horizontal installation, -30 to +40 C for vertical installation, and the stated altitude restrictions above 2000 m.
Verify firmware, diagnostics, time synchronization, cybersecurity measures, grounding, cabling, and current Siemens documentation before commissioning or migration.
Siemens lists 6GK7542-1AX10-0XE0 as PM300 - Active Product.
Siemens lists this article as the successor to the discontinued 6GK7542-1AX00-0XE0.
The successor relationship does not remove the need for an engineering check because STEP 7 Professional V18 or higher is required.
Verify the S7-1500 CPU and rack, firmware, project conversion, PROFINET roles, interfaces, protocols, addressing, and network topology before migration.
AMIKONG can assist with locating available 6GK7542-1AX10-0XE0 units according to the required quantity and destination.
Use the exact Siemens article number and validate the installation against current Siemens information and the installed machine.
Alternative Names
Technical notes
Match the exact article number, S7-1500 CPU, rack configuration, 15 V DC backplane supply, PROFINET IO Controller or IO Device role, two RJ45 ports, network topology, IP addressing, supported protocols, STEP 7 Professional V18 or higher project, firmware, diagnostics, cybersecurity measures, operating temperature, installation orientation, altitude restrictions, and current Siemens documentation before installation or migration.
FAQs
-
What is Siemens 6GK7542-1AX10-0XE0?
+It is the Siemens CM 1542-1 communications module for connecting a SIMATIC S7-1500 system to PROFINET and Industrial Ethernet. -
Can the CM 1542-1 operate as both a PROFINET controller and device?
+Yes. Siemens specifies operation as a PROFINET IO Controller or a PROFINET IO Device. -
How many Ethernet ports does it have and what is their speed?
+It provides one Industrial Ethernet interface with two RJ45 connections at 100 Mbit/s. -
Which communication services are officially supported?
+Siemens lists TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast and multicast, SNMPv1, and NTP time synchronization. -
What supply, power-loss, dimensions, and protection values apply?
+The module uses 15 V DC from the backplane, draws 0.22 A typically, dissipates 3.3 W, measures 35 x 142 x 129 mm, and has IP20 protection. -
Which engineering software is required?
+Siemens specifies STEP 7 Professional V18 in TIA Portal or higher. Confirm the CPU, rack, firmware, and project requirements before commissioning. -
What is the Siemens lifecycle status of this article?
+Siemens lists 6GK7542-1AX10-0XE0 as PM300 - Active Product. -
Is 6GK7542-1AX10-0XE0 the successor to 6GK7542-1AX00-0XE0?
+Yes. Siemens lists it as the successor, but migration is conditional: verify STEP 7 Professional V18 or higher, the S7-1500 CPU and rack, project conversion, interfaces, protocols, and network configuration.
