6ES7322-1BL00-0AA0
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

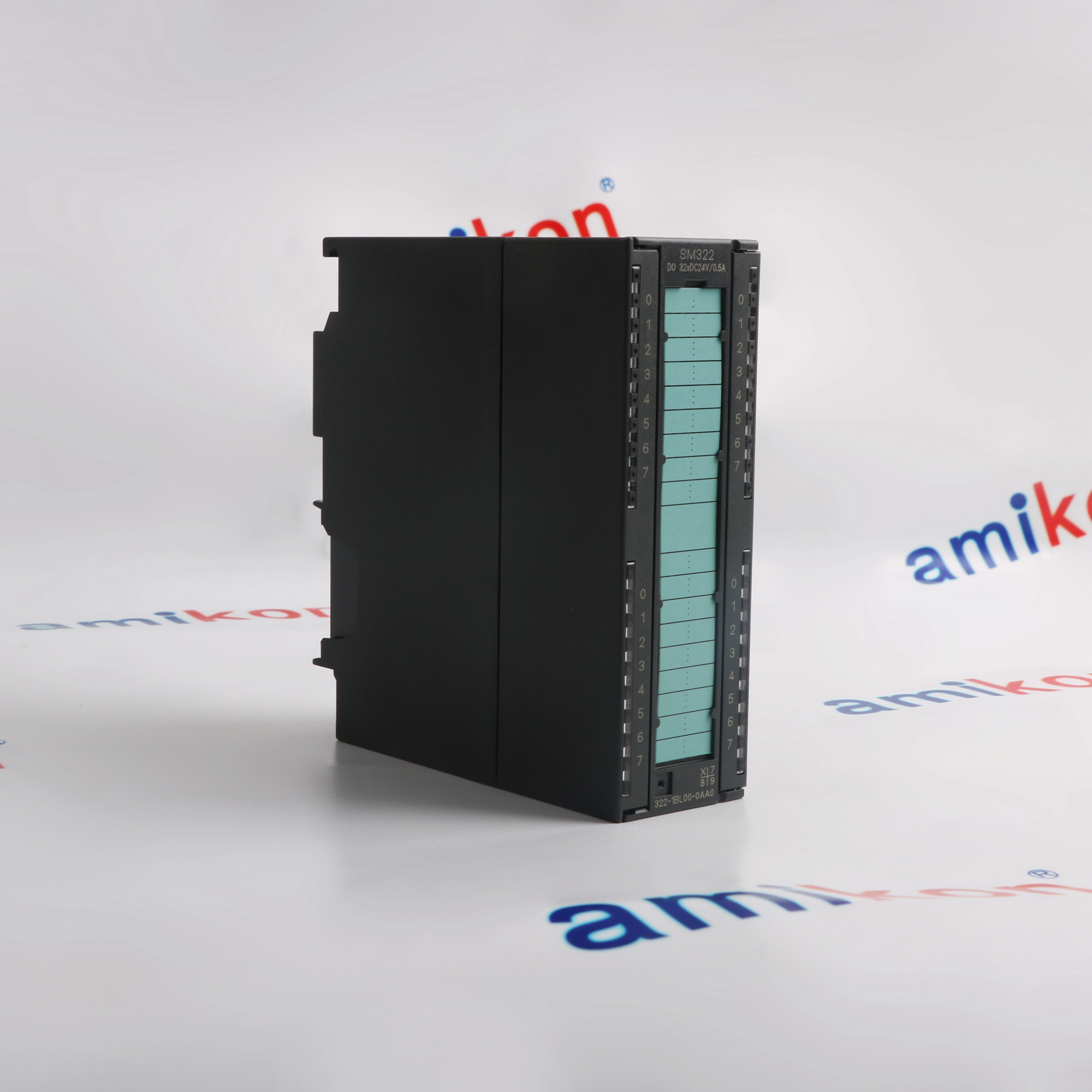

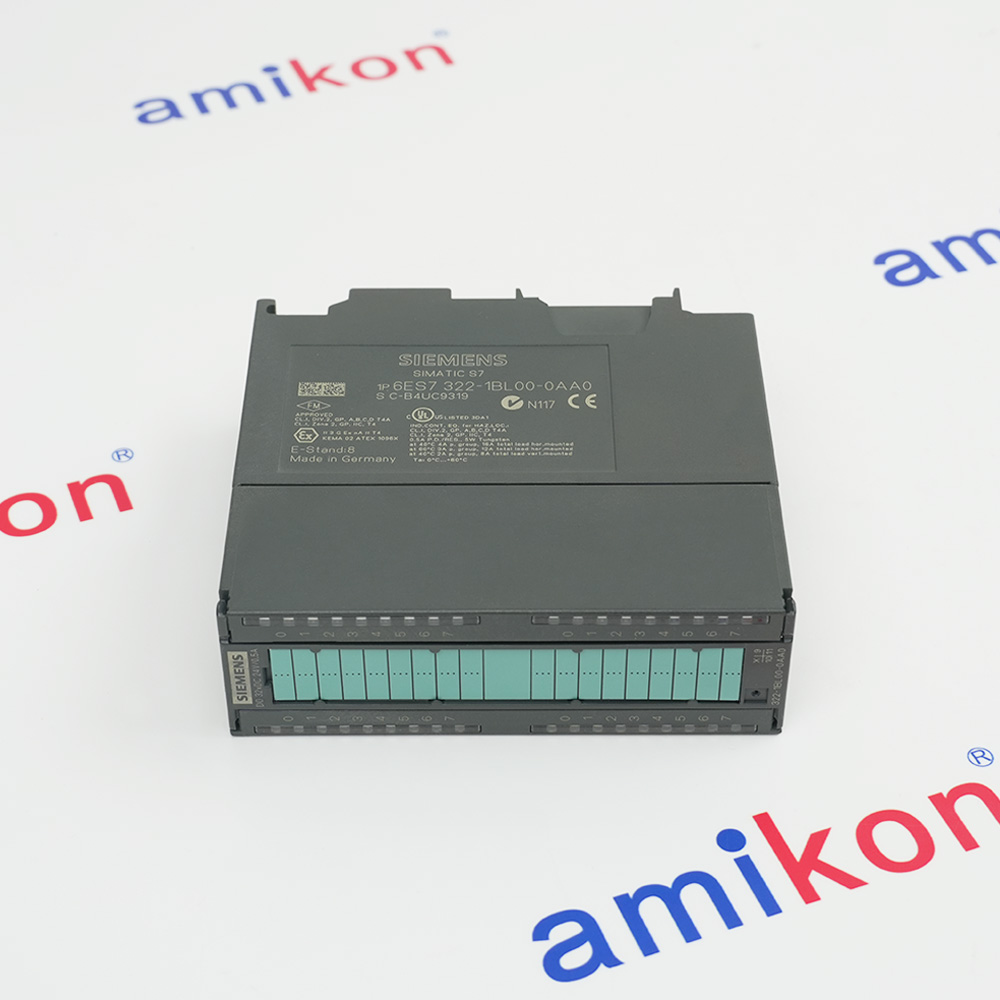

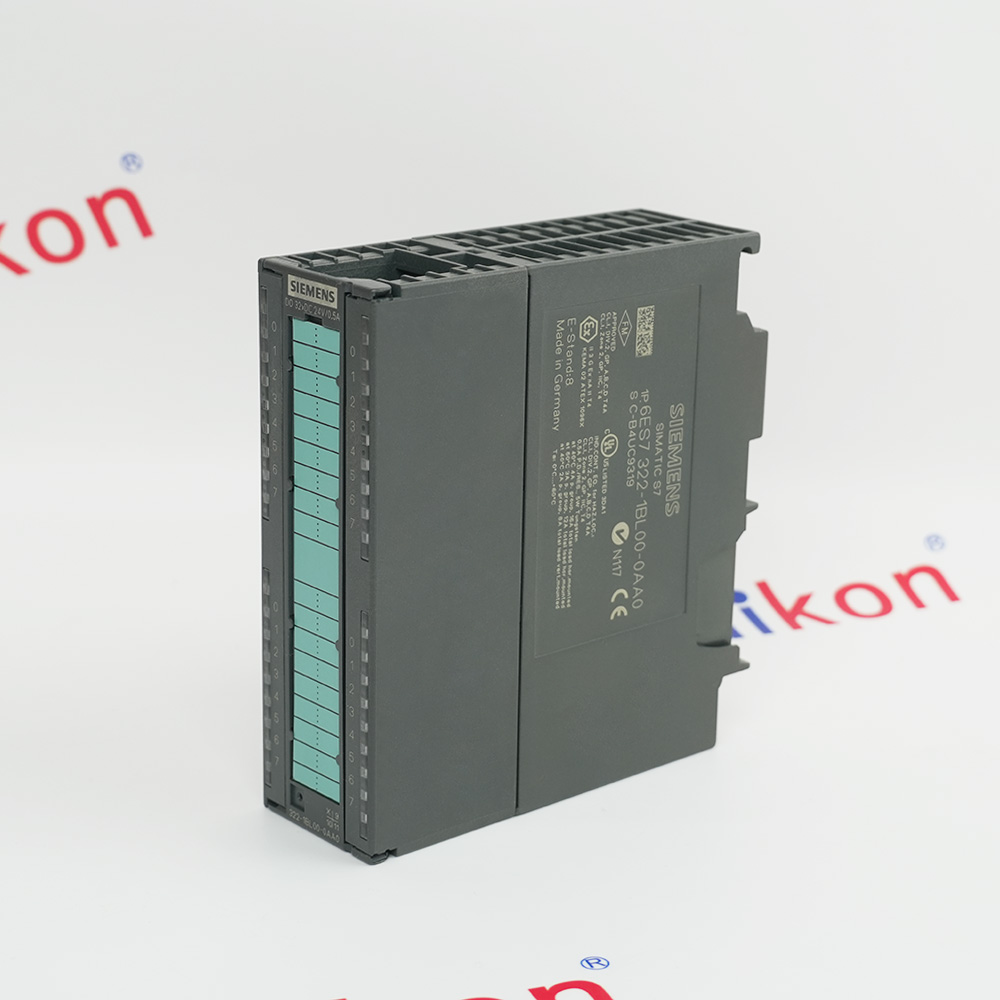

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
SIMATIC S7-300
Digital output SM 322
isolated, 32 DO
24 V DC, 0.5A
1x 40-pole
Total current 4 A/group (16 A/module)
Digital output SM 322
isolated, 32 DO
24 V DC, 0.5A
1x 40-pole
Total current 4 A/group (16 A/module)
Technical specifications for 6ES7322-1BL00-0AA0
-
Product Model6ES7322-1BL00-0AA0
-
Product ParametersDigital Output Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x11.6x12.4cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
from load voltage L+ (without load), max160 mA
-
Limitation of inductive shutdown voltage toL+ (-53 V)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the function of the 6ES7322-1BL00-0AA0 module?+It is a digital output (DO) module that provides 32 channels to control industrial actuators, such as solenoid valves, DC contactors, and signal lamps, using on/off signals
-
Is it a sinking or sourcing output module?+This module is a sourcing output type (P-switching), meaning it provides the positive voltage source (L+) to the load, with the other side of the load connected to ground (M).
-
Is this product brand new?+Yes,SIEMENS 6ES7322-1BL00-0AA0 is brand new, original, unused, and factory sealed
-
What is the 6ES7322-1BL00-0AA0?+It is a SM 322 digital output module for the SIMATIC S7-300 PLC, featuring 32 digital outputs (DC 24V/0.5A).
-
Is this module electrically isolated?+Yes, there is galvanic isolation between the channels and the backplane bus, and the outputs are isolated in groups of 8
Get a quick price fo 6ES7322-1BL00-0AA0
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Important Operational Notes
Features:
- SIMATIC S7-300
- Digital output SM 322
- Isolated, 32 DO, 24 V DC, 0.5A
- 1x 40-pole, Total current 4 A/group (16 A/module)
The 6ES7322-1BL00-0AA0 SIEMENS Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7322-1BL00-0AA0 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Engineered for robust industrial performance, the SM 322 provides short-circuit and overload protection for each output, ensuring high reliability and minimizing downtime in demanding applications. Its fast response time allows precise control of output devices, enabling real-time automation tasks to be executed efficiently. The module’s outputs are electrically isolated, providing protection against voltage spikes and improving the overall safety and stability of the system.
With a compact design, the 6ES7322-1BL00-0AA0 integrates seamlessly into SIMATIC S7-300 racks, allowing scalable system expansion. LED indicators on each channel provide visual status feedback, simplifying commissioning and diagnostics. Fully compatible with SIMATIC programming and diagnostic tools, this module enables comprehensive monitoring, troubleshooting, and configuration, supporting a wide range of industrial automation requirements
- Manufacturing Automation:Monitors machinery, proximity switches & sensors on production lines
- Process Control:High-density signal inputs for chemical & food/beverage industries
- Material Handling and Logistics:Detects positions, counts & manages conveyor/sorter inputs
- Packaging Machinery:Positioning & product detection sensors for high-speed packaging
- Industrial Machine Control:Interfaces with switches, pushbuttons & encoders
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
High-Speed Counters: When switching on the power supply with a mechanical contact, outputs may carry a "1" signal for approximately 50 µs due to circuit structure.
Status Indicators: Use the 32 green LEDs on the front panel to monitor the status of each output channel.
Inductive Loads: The module includes internal protection, but external flyback diodes are recommended for large inductive loads to prevent overvoltage.
