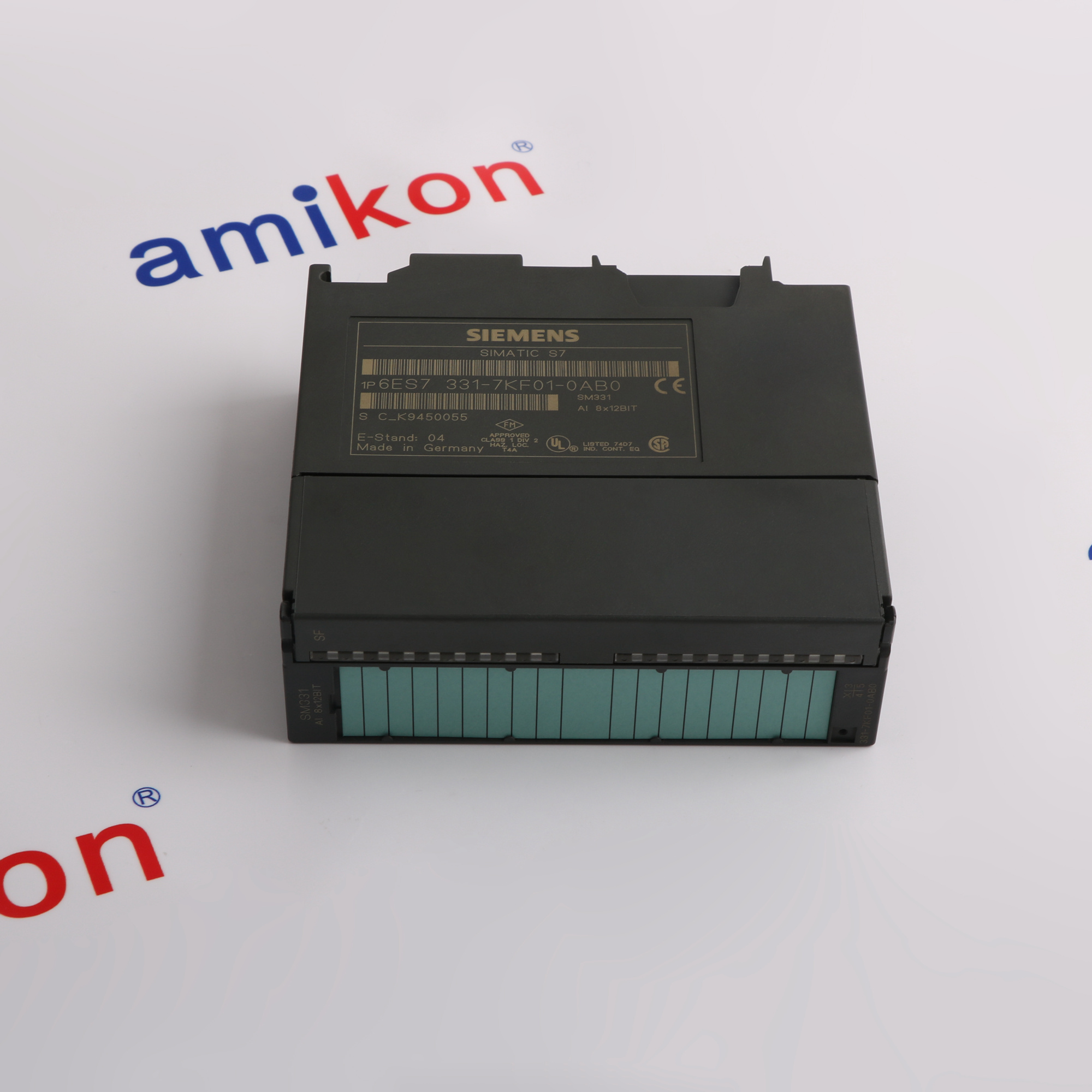

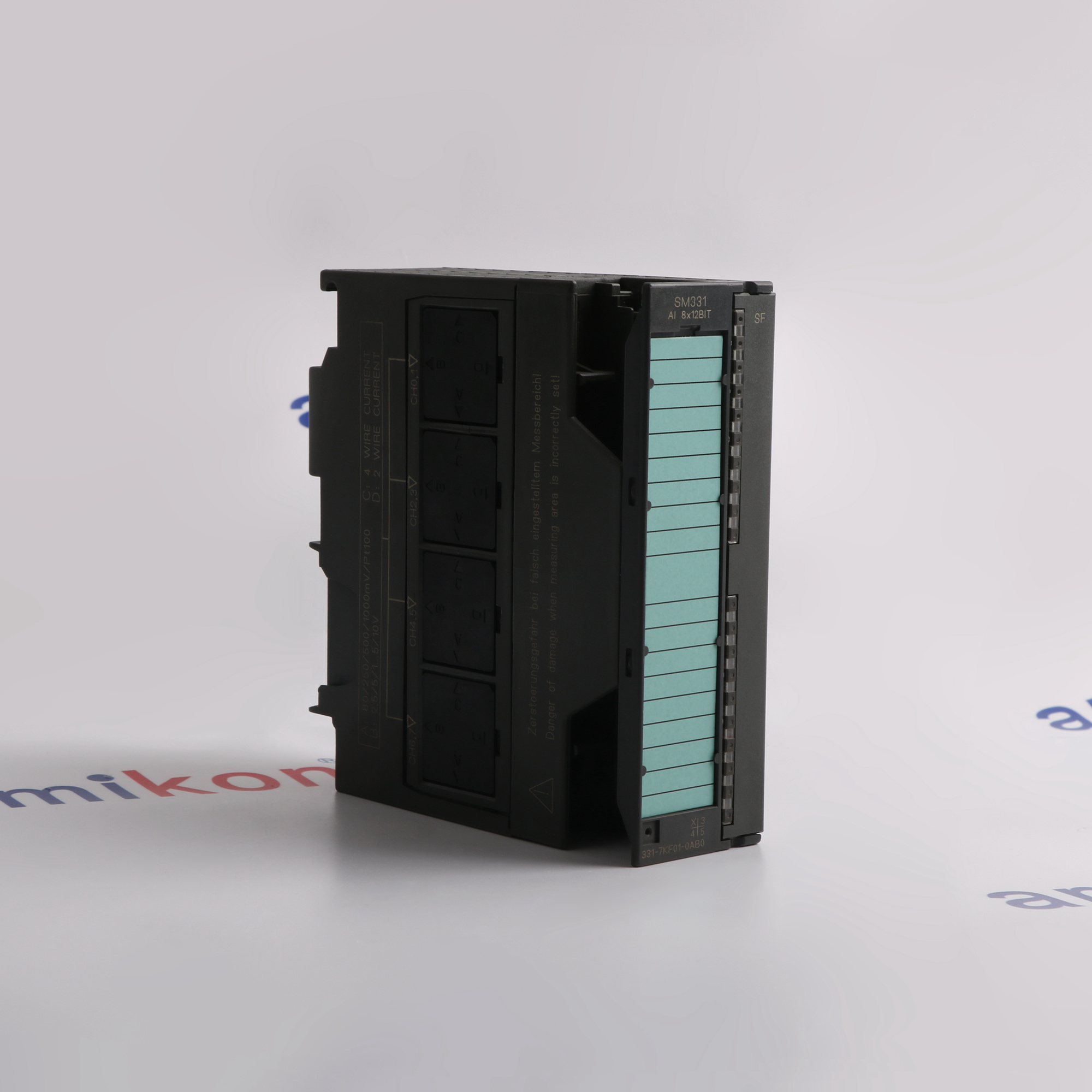

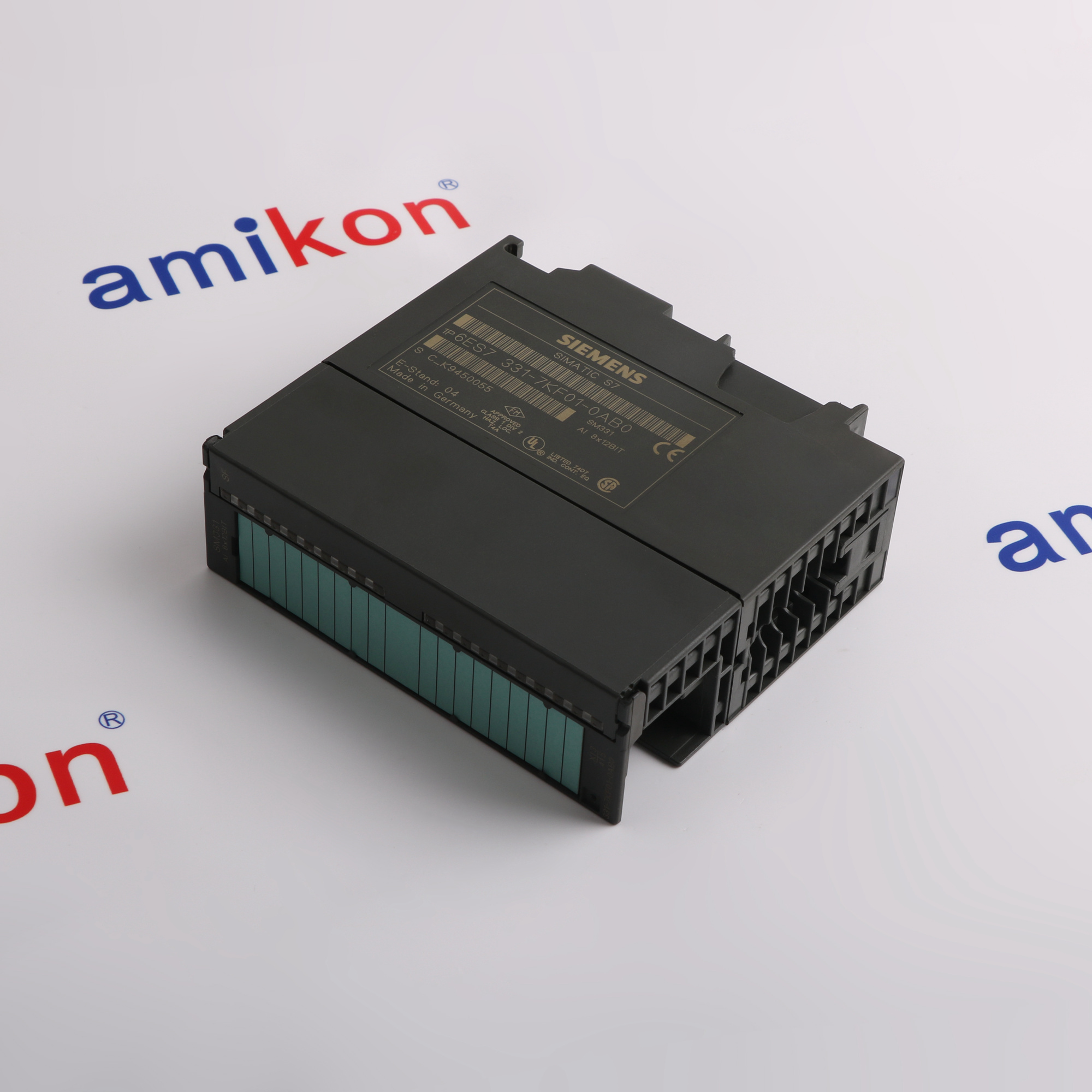

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Eight analog inputs with selectable measurement methods and resolution
Siemens 6ES7331-7KF01-0AB0 is an SM 331 analog input module with eight inputs arranged in four channel groups. It handles voltage, current, resistance and temperature measurements, with the measuring method and range selected for each group through hardware settings and configuration.
Resolution follows the selected integration time: nine, twelve or fourteen bits for unipolar ranges, with a sign bit added for bipolar ranges. Inputs are isolated from the CPU; isolation from load voltage does not apply to two-wire transmitters.
Resolution follows the selected integration time: nine, twelve or fourteen bits for unipolar ranges, with a sign bit added for bipolar ranges. Inputs are isolated from the CPU; isolation from load voltage does not apply to two-wire transmitters.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7331-7KF01-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · TEXTILE MANUFACTURING
Fiber Production and Textile Manufacturing Across Processing Stages
Fiber preparation and yarn production for textile manufacturing operations.Fabric manufacturing and finishing for commercial textile product production. -
02 · PLASTICS PROCESSING
Plastic Material Processing and Molded Product Manufacturing
Plastic extrusion and forming for industrial material production operations.Molded plastic product manufacturing for industrial and consumer markets. -
03 · WATER & WASTEWATER
Drinking Water Supply and Municipal Wastewater Treatment
Drinking water production and distribution for municipal supply services.Wastewater collection and treatment across municipal and industrial operations.
Technical specifications for 6ES7331-7KF01-0AB0
-
Product Model6ES7331-7KF01-0AB0
-
Spare ModelSM331
-
Product ParametersConfigurable Analog Input Module
-
ManufacturerSiemens
-
Analog input arrangement8 inputs in four groups of two; 4 inputs for resistance measurement
-
Measuring methodsVoltage, current, resistance and temperature
-
Resolution optionsUnipolar: 9, 12 or 14 bits; bipolar: 9, 12 or 14 bits plus sign; integration-time dependent
-
Integration time options2.5, 16 2/3, 20 or 100 ms
-
Rated load voltage24 V DC with reverse-polarity protection
-
Maximum current consumption60 mA from backplane; 200 mA from L+ without load
-
Typical module power loss1.3 W
-
Voltage input ranges+/-80, +/-250, +/-500 and +/-1,000 mV; +/-2.5, +/-5 and +/-10 V; 1 to 5 V
-
Current input rangesTwo-wire, position D: 4 to 20 mA; four-wire, position C: +/-3.2, +/-10, +/-20, 0 to 20 or 4 to 20 mA
-
Resistance measuring ranges150, 300 and 600 ohm
-
Supported temperature sensorsThermocouples E, N, J, K and L; Pt100 and Ni100 resistance thermometers
-
Shielded signal cable limits200 m maximum; 50 m for the 80 mV range and thermocouples
-
Isolation test voltage600 V DC
-
Diagnostic indicationProgrammable diagnostics with red SF group-fault LED and readable diagnostic data
-
Limit-interrupt channelsChannels 0 and 2, programmable
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SIMATIC S7-300 ANALOG MEASUREMENT
Grouped input configuration for electrical and temperature measurements
Eight input channels form four configuration groups of two; this grouping does not establish group-to-group electrical isolation. Each group has a measuring-range module. The physical range position and software configuration must agree with the connected signal: two-wire 4 to 20 mA uses D, while four-wire current measurement uses C.
Resistance measurement uses one channel in each pair for current injection, leaving four measured values. Follow the original terminal and compensation arrangements for resistance and temperature measurement. The module is isolated from the CPU, but the stated load-voltage isolation does not apply to two-wire transmitters.
Integration time determines resolution and interference rejection, with the sign bit added for bipolar measurement ranges. Programmable diagnostic interrupts and limit monitoring on channels 0 and 2 support signal evaluation. Follow the range-specific unused-input and COMP terminations, including the two-wire diagnostics conditions, before commissioning.
Features:
- Four configurable channel pairs
- Selectable integration time
- Electrical and temperature signals
The Siemens 6ES7331-7KF01-0AB0 requires the documented channel arrangement, electrical limits and connector assignment to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the complete 6ES7331-7KF01-0AB0 identity when checking a replacement. Similar SM 331 descriptions and later suffixes do not establish identical input arrangements, range settings, diagnostics or connector assignments.
Record the positions of all measuring-range modules, the configured integration times, sensor types and enabled diagnostic functions. Verify the existing 20-terminal wiring against the diagram for this exact historical order number.
For resistance or temperature measurement, confirm channel-pair allocation and any compensation wiring before recommissioning. The reviewed original manual supports this module's configuration but does not establish a current lifecycle status or an unrestricted successor substitution.
Features:
- Complete historical order code
- Hardware and software range match
- Sensor and compensation wiring
The Siemens 6ES7331-7KF01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Installation reference includes the verified original wiring drawings
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7331-7KF01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered module and approved project wiring.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7331-7KF01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is the conversion resolution fixed at twelve bits?
No. The integration time determines resolution. The manual lists 9, 12 or 14 bits for unipolar ranges and the corresponding resolution plus a sign bit for bipolar ranges. The integration choices are 2.5, 16 2/3, 20 and 100 ms; longer integration provides higher resolution. -
How are measuring methods and ranges selected?
Use the measuring-range modules together with STEP 7 or supported system functions. Each A/B/C/D module serves one channel pair. Position D supports two-wire 4 to 20 mA; position C supports the documented four-wire current ranges. Isolation from load voltage does not apply to two-wire transmitters, although isolation from the CPU remains documented. -
Are eight resistance measurements available at once?
No. Resistance measurement uses one channel per pair for measurement and the other for current injection. This leaves four resistance measurement channels; the measured value is accessed through the first channel of each pair. -
Which temperature sensor types are documented?
The manual lists thermocouple types E, N, J, K and L, plus Pt100 and Ni100 resistance thermometers. Thermocouple measurement requires the appropriate internal or external compensation arrangement and measuring-range setting. -
Which channels can generate limit interrupts?
Limit interrupts can be configured for channels 0 and 2. These are the first channels of the first two channel groups. Diagnostic interrupts are configured separately. -
Can unused inputs simply remain disconnected?
Deactivate unused channels in STEP 7 and short-circuit them; Siemens recommends connection to MANA. Also short-circuit unused COMP. Programmed unused inputs within an active group require special treatment: parallel for 1 to 5 V; series for four-wire 4 to 20 mA; two-wire inputs may remain open with diagnostics disabled, or use a 1.5 to 3.3 kohm resistor when diagnostics is enabled.
