In Stock
Fast Shipping Available

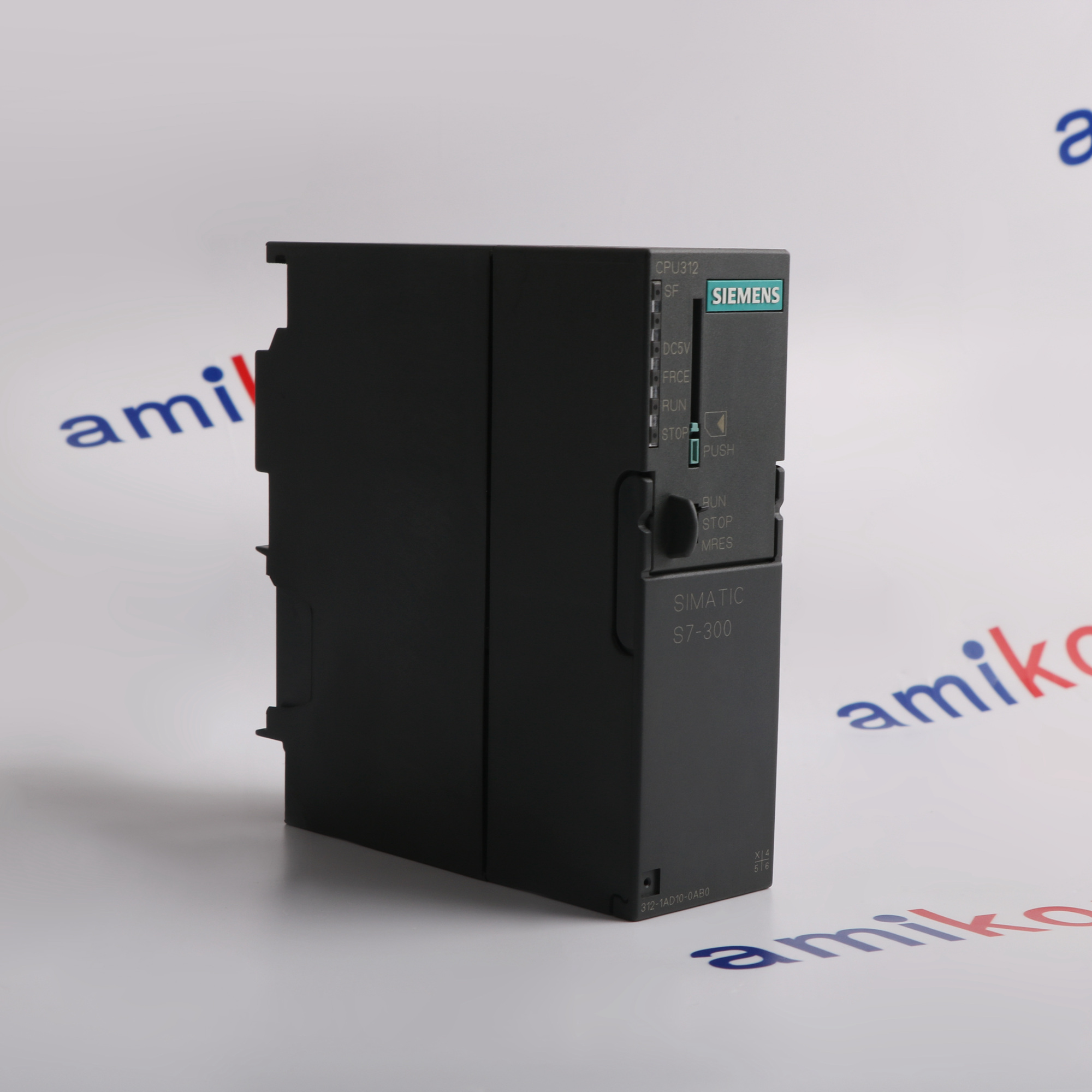

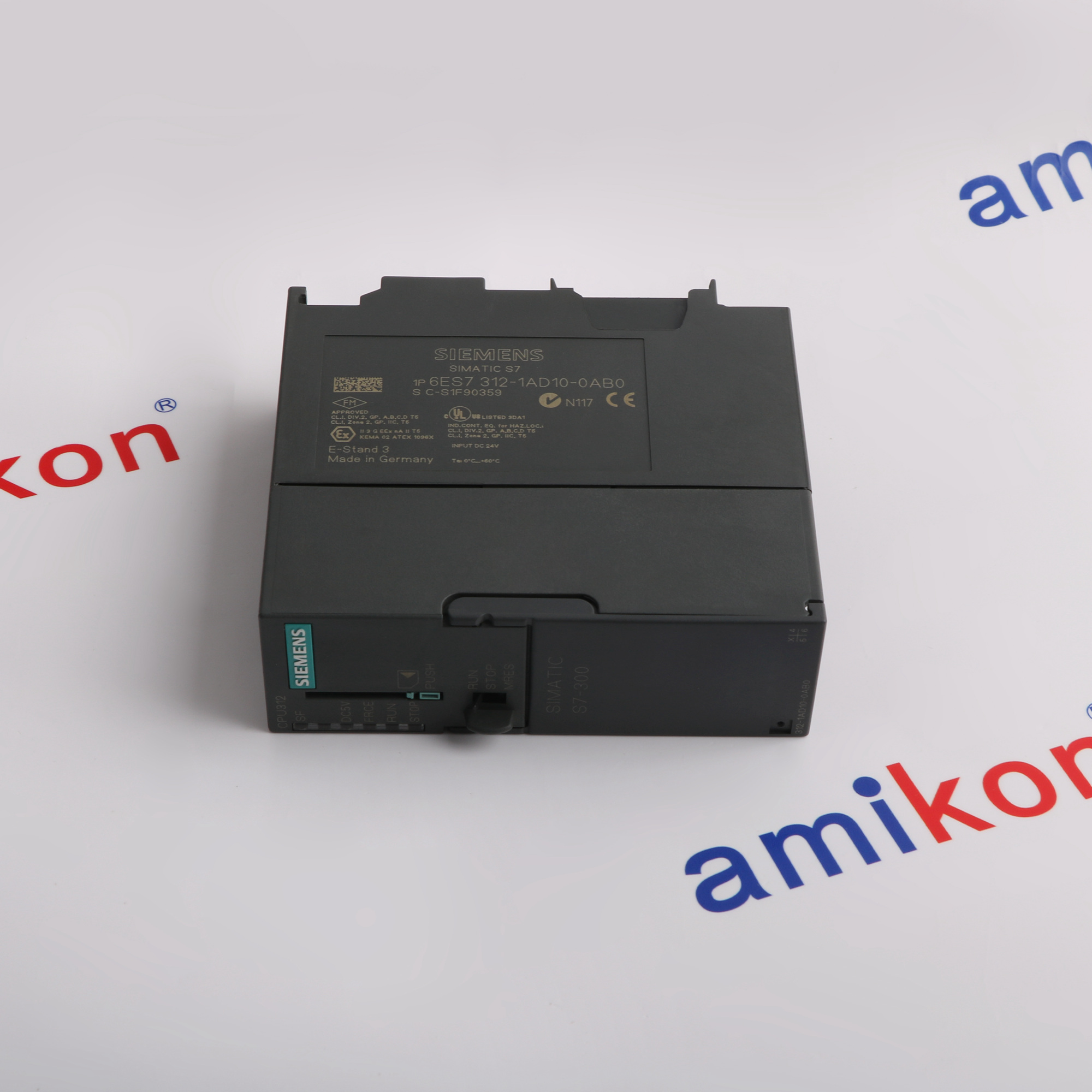

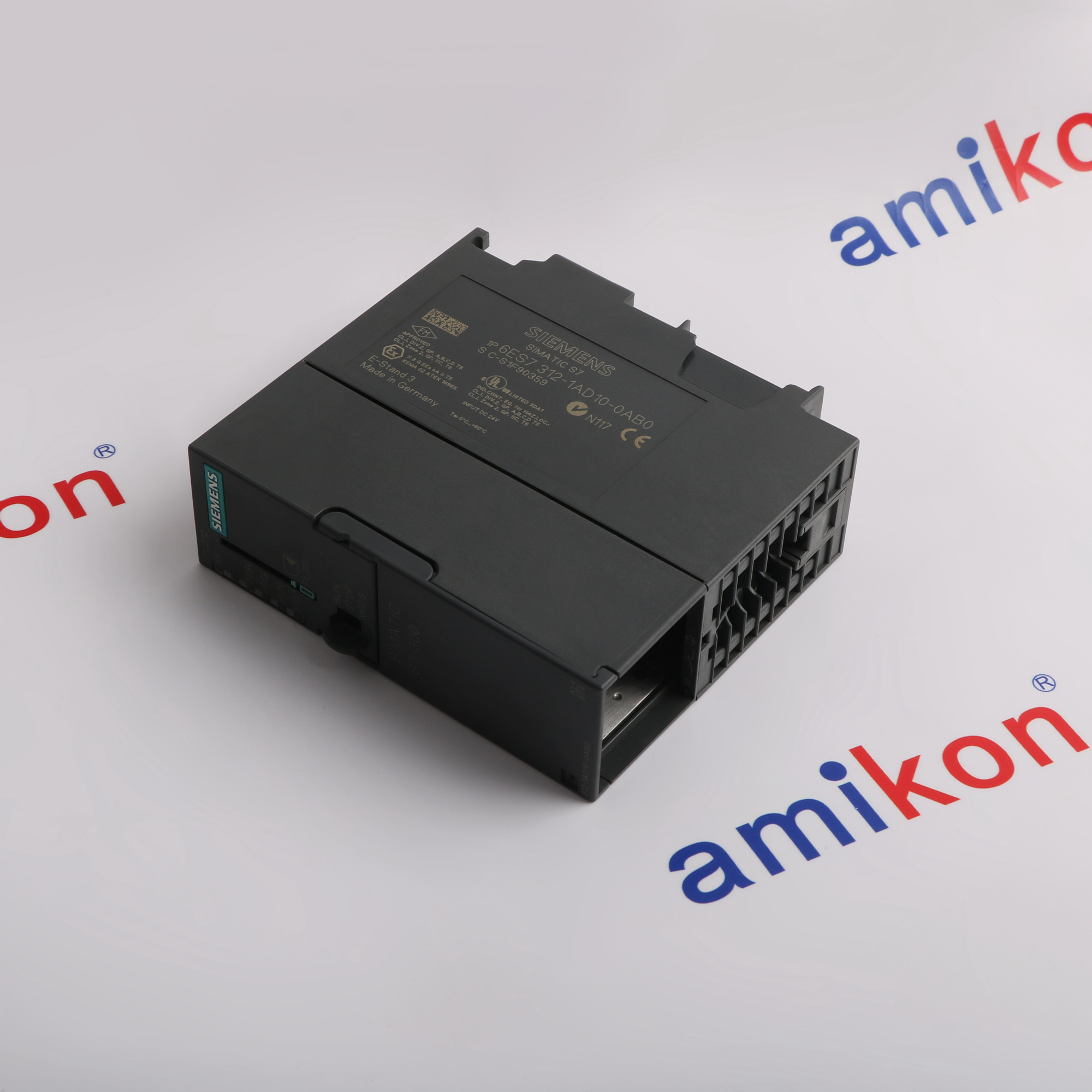

Siemens 6ES7312-1AD10-0AB0
Siemens 6ES7312-1AD10-0AB0
Siemens 6ES7312-1AD10-0AB0
Siemens 6ES7312-1AD10-0AB0
Siemens 6ES7312-1AD10-0AB0
Siemens 6ES7312-1AD10-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7312-1AD10-0AB0

CPU 312 with MPI

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7312-1AD10-0AB0 CPU 312 with MPI

Siemens 6ES7312-1AD10-0AB0 is the CPU 312 with MPI for SIMATIC S7-300. The CPU 312 provides an integrated MPI interface and 16 KB of working memory for an S7-300 project.

Working memory is specified as 16 KB. The published data also lists V2.0.0 for firmware version in data sheet and STEP 7 V5.1 SP4 or later for programming software.
ACTUAL APPLICATIONS

Application fields for 6ES7312-1AD10-0AB0

These broad application fields reflect the documented function and technical characteristics of 6ES7312-1AD10-0AB0.
  • 01 · INDUSTRIAL MANUFACTURING

    Discrete Manufacturing and Industrial Assembly

    Industrial fabrication and durable goodsGeneral materials and process manufacturing
  • 02 · AUTOMOTIVE MANUFACTURING

    Vehicle Assembly and Automotive Components

    Vehicle manufacturing and component supplyAutomotive interiors and trim industries
  • 03 · METALS & MINING

    Metallurgy and Mineral Processing

    Ferrous metallurgy and steel productsNonferrous metal refining and metallurgy

Technical specifications for 6ES7312-1AD10-0AB0

  • Product Model
    6ES7312-1AD10-0AB0
  • Spare Model
    CPU312
  • Product Parameters
    CPU 312 with MPI
  • In stock
    5 units
  • Manufacturer
    Siemens
  • Working memory
    16 KB
  • Firmware version in data sheet
    V2.0.0
  • Programming software
    STEP 7 V5.1 SP4 or later
  • Integrated interface
    MPI
  • Nominal supply
    24 V DC
  • Supply range
    20.4–28.8 V DC
  • Rated current
    0.6 A
  • Typical no-load current
    60 mA
  • Typical inrush
    2.5 A
  • Typical power loss
    2.5 W
  • Maximum supported MMC
    4 MB
  • Typical bit operation time
    0.2 µs
  • Typical word operation time
    0.4 µs
View all additional

Alternative Names

6ES73121AD100AB0 6ES7312-1AD10-0AB0 CPU 312 with MPI SIMATIC S7-300 6ES7312-1AD10-0AB0
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7312-1AD10-0AB0 within SIMATIC S7-300

The CPU 312 provides an integrated MPI interface and 16 KB of working memory for an S7-300 project. Review the host documentation for the installed SIMATIC S7-300 configuration.
Check the project software version, MPI addressing and required Micro Memory Card before setting up the CPU. Compare the project settings with the corresponding product ratings.
Use 16 KB and V2.0.0 as documented reference values when reviewing the project. Verify the configured function under the site acceptance procedure.

Features:

  • Working memory · 16 KB
  • Firmware version in data sheet · V2.0.0
  • SIMATIC S7-300 configuration
Use 6ES7312-1AD10-0AB0 only within the documented SIMATIC S7-300 arrangement and applicable installation instructions.
INTERCHANGEABILITY

Replace 6ES7312-1AD10-0AB0 within SIMATIC S7-300

Record the complete 6ES7312-1AD10-0AB0 order code and photograph the fitted unit. Identify the connected equipment and any separately fitted accessories.
Preserve the project and MMC contents and confirm the installed hardware and firmware version before testing the replacement.
Record the final configuration and test the affected functions against the pre-change baseline. Resolve any unexpected indications before returning the assembly to operation.

Features:

  • Complete 6ES7312-1AD10-0AB0 order code
  • Installed wiring and supplied scope
  • Functional verification after exchange
Use 6ES7312-1AD10-0AB0 only within the documented SIMATIC S7-300 arrangement and applicable installation instructions.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Exact-model technical data for 6ES7312-1AD10-0AB0
  • Document applicability checked against the complete identity
  • Directory links by subcategory and brand
Documentation for 6ES7312-1AD10-0AB0 must match the installed product identity and supplied configuration.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Product size
    4.00 x 12.20 x 12.50 cm
    Net weight
    0.28 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8537101190
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7312-1AD10-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Which STEP 7 release supports this CPU 312?

    The documented minimum is STEP 7 V5.1 SP4. Check the project and CPU firmware when restoring a station.
  • Can the CPU 312 MPI port connect directly to Ethernet?

    Its built-in interface is MPI. Use an appropriate external interface if Ethernet access is required.
  • How large a Micro Memory Card does the CPU 312 support?

    The documented maximum MMC capacity is 4 MB.
  • What 24 V tolerance applies to the CPU 312?

    The permitted supply at the CPU is 20.4–28.8 V DC.
  • How much working memory is available to this CPU?

    The CPU provides 16 KB of working memory. Check that the existing program fits.
  • What does a successful MPI recovery test verify?

    Check the restored node address, online access and the CPU status with the original hardware configuration.
  • Which CPU 312 version details should appear on a quote?

    Include the full -1AD10 suffix and the required firmware. Siemens lists V2.0.0 in the data sheet.
  • How should receiving handle a CPU 312 order with an MMC?

    Check whether an MMC is itemised and confirm its label and capacity separately from the CPU.
